Instrukcja obsługi budzika cyfrowego Peakeep MHP3112

1. Wprowadzenie

This manual provides detailed instructions for the Peakeep Digital Alarm Clock, Model MHP3112. This battery-operated digital alarm clock features a clear display, dual alarm settings with weekday mode options, an indoor temperature display, and a smart sensor night light for enhanced visibility in low-light conditions. Its compact and durable design makes it suitable for various indoor environments.

Rycina 1: Przód view of the Peakeep Digital Alarm Clock MHP3112, displaying current time, date, day of the week, indoor temperature, and active alarm settings.

2. Konfiguracja

2.1 Instalacja baterii

The Peakeep Digital Alarm Clock requires 3 AAA batteries for operation. Batteries are not included and must be purchased separately.

1. Znajdź pokrywę komory baterii z tyłu zegara.
2. Aby otworzyć, przesuń pokrywę w dół.
3. Włóż 3 baterie AAA, zwracając uwagę na prawidłową biegunowość (+ i -).
4. Załóż pokrywę komory baterii, przesuwając ją do góry, aż zatrzaśnie się na swoim miejscu.

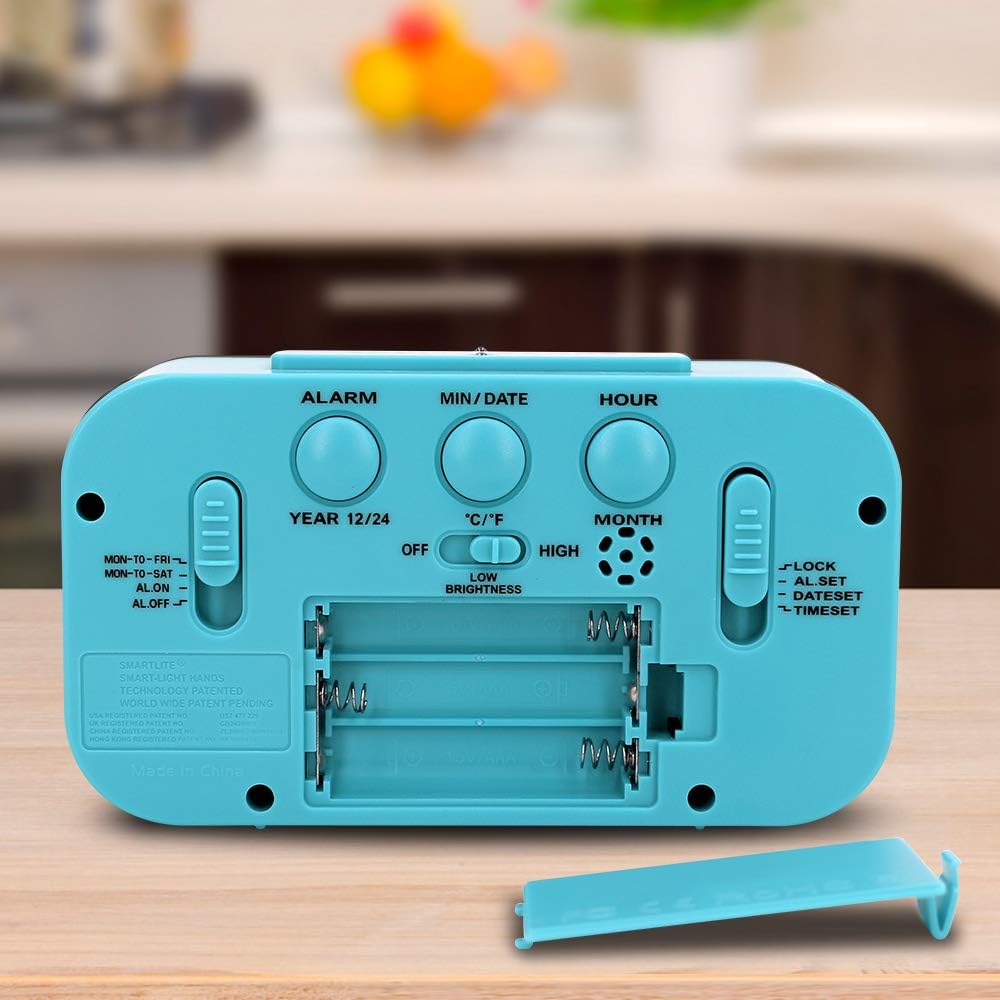

Figure 2: Rear panel of the alarm clock, highlighting the battery compartment and various setting buttons and switches.

2.2 Początkowe ustawienie czasu i daty

After installing batteries, the clock will power on. Follow these steps to set the current time and date:

1. Zlokalizuj USTAWIENIE CZASU slider on the right side of the back panel. Slide it to the 'TIME SET' position.
2. Użyj GODZINA button to adjust the hour. Press repeatedly or hold to advance quickly. Observe the AM/PM indicator.
3. Użyj MIN/DATA button to adjust the minute. Press repeatedly or hold to advance quickly.
4. Aby ustawić datę, naciśnij przycisk MIN/DATA button while in 'TIME SET' mode. The year will flash. Use the GODZINA przycisk, aby ustawić rok.
5. Naciskać MIN/DATA again to set the month. Use the GODZINA przycisk, aby ustawić miesiąc.
6. Naciskać MIN/DATA again to set the day. Use the GODZINA button to adjust the day.
7. Once all settings are correct, slide the USTAWIENIE CZASU slider back to the 'LOCK' position to save.

2.3 Temperature Unit and Time Format

To switch between Celsius (°C) and Fahrenheit (°F) for temperature display, or between 12-hour and 24-hour time format:

• Naciśnij MIN/DATA button to toggle between °C and °F.
• Naciśnij 12/24 godz przycisk umożliwiający przełączanie między formatem czasu 12-godzinnym i 24-godzinnym.

Figure 3: The clock display showing the indoor temperature reading.

Figure 4: The clock display showing the month, date, and day of the week.

3. Instrukcja obsługi

3.1 Ustawianie alarmów (Alarm 1 i Alarm 2)

The clock supports two independent alarms. To set an alarm:

1. Zlokalizuj ZESTAW ALARMU slider on the right side of the back panel. Slide it to the 'ALARM SET' position.
2. Użyj GODZINA button to adjust the alarm hour. Press repeatedly or hold to advance quickly.
3. Użyj MIN/DATA button to adjust the alarm minute. Press repeatedly or hold to advance quickly.
4. To set the second alarm, press the ALARM button on the back panel. The alarm icon (1 or 2) will change. Repeat steps 2 and 3.
5. Once the alarm time(s) are set, slide the ZESTAW ALARMU slider back to the 'LOCK' position.

Figure 5: The clock display indicating two alarm settings and the active weekday mode (MON-TO-FRI).

3.2 Activating/Deactivating Alarms and Weekday Mode

Użyj WŁĄCZANIE / WYŁĄCZANIE ALARMU slider on the left side of the back panel to control alarm activation and mode:

• ON: Activates the alarm(s) for all 7 days.
• MON-TO-FRI: Activates the alarm(s) only on weekdays (Monday to Friday).
• MON-TO-SAT: Activates the alarm(s) from Monday to Saturday.
• WYŁĄCZONY: Deactivates all alarms.

3.3 Funkcja drzemki

Gdy zabrzmi alarm, naciśnij duży przycisk SNOOZE / LIGHT button on the top of the clock to activate the snooze function. The alarm will temporarily stop and sound again after approximately 9 minutes.

3.4 Smart Sensor Night Light

The clock features a smart sensor night light that automatically illuminates the display in low-light conditions. You can adjust its behavior:

• Użyj ŚWIATŁO NOCNE switch on the back panel to select between 'OFF', 'LOW', or 'HIGH' brightness for the automatic night light.
• Naciśnięcie SNOOZE / LIGHT button on top will temporarily illuminate the display for 5 seconds at full brightness, regardless of the night light switch setting.

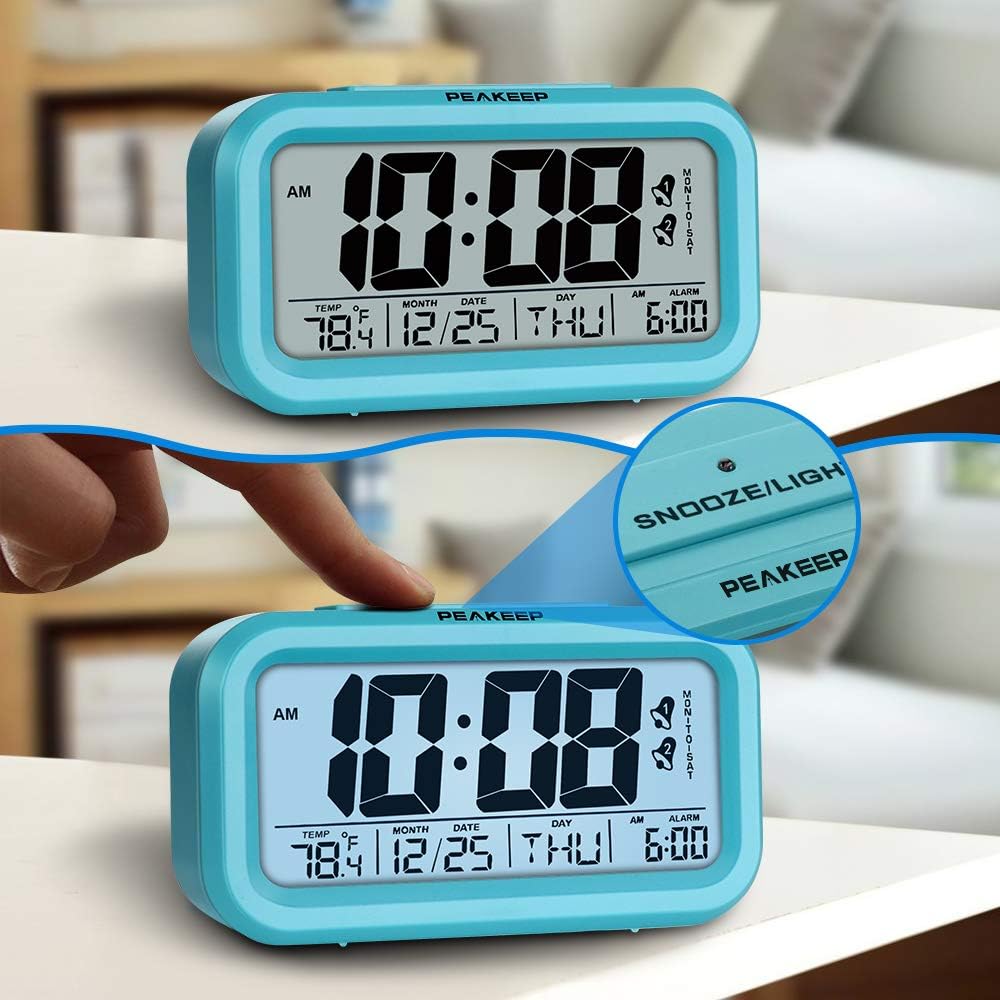

Figure 6: The top snooze/light button and the illuminated display.

Figure 7: The clock's smart dim backlight feature in action, with the low brightness setting indicated.

4. Konserwacja

4.1 Wymiana baterii

When the display dims or the clock functions become erratic, it is time to replace the batteries. Follow the battery installation steps in Section 2.1.

4.2 Czyszczenie

To clean the clock, use a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the display or casing.

5. Rozwiązywanie Problemów

• Brak wyświetlacza/Przyciemniony wyświetlacz: Check battery installation and replace with fresh AAA batteries. Ensure the night light switch is not set to 'OFF' if expecting continuous illumination.
• Alarm nie brzmi: Zweryfikuj WŁĄCZANIE / WYŁĄCZANIE ALARMU slider is set to 'ON', 'MON-TO-FRI', or 'MON-TO-SAT' as desired. Ensure the alarm time is correctly set.
• Nieprawidłowa godzina/data: Re-enter time and date settings as described in Section 2.2. Ensure the USTAWIENIE CZASU slider is returned to 'LOCK' after adjustments.

6. Specyfikacje

Figure 8: Dimensions of the Peakeep Digital Alarm Clock.

7. Gwarancja i wsparcie

For warranty inquiries or product support, please contact Peakeep customer service at: sales@us-myhome.com.
