Ważne informacje dotyczące bezpieczeństwa
- Read all instructions thoroughly before beginning installation or use.
- Ensure the main water supply to the installation area is completely turned off before starting any plumbing work.
- If you are uncertain about any step of the installation process, consult a qualified professional plumber.
- Do not use harsh chemicals, abrasive cleaners, or scouring pads on the product's finish, as this may cause damage.
Zawartość opakowania
- 8-inch Shower Rainhead
- 4.75-inch Ceiling Mount Shower Arm
- Decorative Flange/Escutcheon
- Installation Hardware (e.g., Pipe Thread Sealant Tape)
Wymagane narzędzia
- Klucz nastawny
- Pipe Thread Sealant Tape (Teflon Tape)
- Miękka tkanina
Konfiguracja: Instrukcje instalacji
Follow these steps carefully to ensure proper installation of your Artos F907-4/5BN shower rainhead and ceiling mount arm.
- Przygotuj obszar instalacji: Ensure the main water supply to the bathroom is turned off. Clear the area around the shower ceiling connection point.
- Nałóż środek uszczelniający gwinty: Wrap pipe thread sealant tape (Teflon tape) clockwise around the threaded end of the 4.75-inch ceiling mount shower arm that will connect to the water supply pipe in the ceiling. Apply 3-4 layers for a secure seal.
- Install Shower Arm: Thread the shower arm into the ceiling water supply pipe. Hand-tighten, then use an adjustable wrench to tighten an additional 1/4 to 1/2 turn. Do not overtighten. Ensure the arm is securely mounted and positioned correctly.
- Install Flange/Escutcheon: Slide the decorative flange/escutcheon over the shower arm, pushing it flush against the ceiling to cover the opening and provide a finished look.
- Attach Rainhead: Apply pipe thread sealant tape to the threaded connection on the shower arm where the rainhead will attach. Thread the 8-inch shower rainhead onto the shower arm. Hand-tighten, then use an adjustable wrench to tighten slightly. Do not overtighten.
- Sprawdź, czy nie ma wycieków: Slowly turn on the main water supply and carefully inspect all connections for any signs of leaks. If leaks are detected, turn off the water, re-tighten the connections, and re-check.
Komponenty ponadview
The following image illustrates a typical Artos shower component, providing a visual reference for general product design and finish. Please note that this image does not depict the F907-4/5BN rainhead and ceiling mount arm directly.

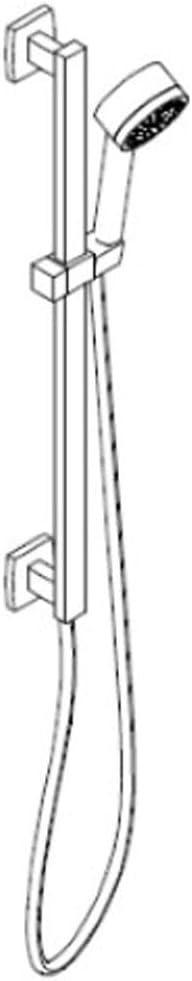

Rysunek 1: Example of an Artos shower slide bar with handheld shower. This image is for illustrative purposes of general design and finish.
Instrukcja obsługi
The Artos F907-4/5BN shower rainhead operates by directing water flow from your shower valve. To use:
- Ensure your shower valve is in the "off" position before entering the shower enclosure.
- Turn on the hot and cold water supplies at your shower valve to achieve the desired water temperature.
- The rainhead will deliver a consistent, wide spray pattern for a full and immersive shower experience.
- After use, turn off the water supply completely at the shower valve.
Konserwacja
Regular cleaning and maintenance will help preserve the finish and functionality of your Artos shower rainhead.
- Czyszczenie: Clean the rainhead and arm regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for bathroom fixtures.
- Unikaj materiałów ściernych: Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the brushed nickel finish.
- Złoża minerałów: If mineral deposits accumulate on the rainhead nozzles, gently rub them with your finger or a soft brush to dislodge them. For stubborn deposits, a solution of white vinegar and water can be applied with a soft cloth, then rinsed thoroughly.
- Wysuszenie: After cleaning, wipe the product dry with a soft cloth to prevent water spots and maintain the finish.
Rozwiązywanie problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Niskie ciśnienie wody | Partially closed main water valve; Clogged rainhead nozzles; Debris in the shower arm. | Ensure main water valve is fully open. Clean rainhead nozzles by gently rubbing them. Disassemble and check shower arm for debris if necessary. |
| Wycieki na połączeniach | Improperly tightened connections; Insufficient thread sealant tape. | Turn off water supply. Re-tighten connections. Apply more thread sealant tape if necessary and re-assemble. |
| Plamy wodne | Hard water deposits; Not drying after use. | Wipe the product dry after each use. For stubborn spots, use a vinegar solution as described in the Maintenance section. |
Specyfikacje
- Model: F907-4/5BN
- Marka: Artos
- Rainhead Size: 8 cali
- Shower Arm Length: 4.75 cali
- Typ montażu: Montaż sufitowy
- Tworzywo: Nickel (Brushed Nickel Finish)
- Numer części: F907-45BN
- Kod UPC: 646791262373
Gwarancja i wsparcie
For specific warranty information regarding your Artos F907-4/5BN shower rainhead and ceiling mount arm, please refer to the warranty documentation provided with your purchase or visit the official Artos website. For technical support or assistance, please contact Artos customer service directly.
Artos Official Webstrona: www.artos.com (Note: This is a placeholder link; please refer to your product documentation for the correct support contact information.)
