1. Wprowadzenie i produkt końcowyview
Niniejsza instrukcja zawiera podstawowe informacje dotyczące bezpiecznego i efektywnego użytkowania urządzenia. Kanlux SL-RED LED Indicator Light, Model 23320. This device is designed to visually indicate the status of electrical circuits using a red LED. It functions as a phase control lamp, providing clear feedback on power presence.
The Kanlux SL-RED is built with a durable grey plastic housing and features an IP20 protection rating, making it suitable for indoor installations where it is protected from solid objects larger than 12.5mm. It complies with EN 60947-1 and EN 60947-5-1 standards, ensuring reliability and safety.
Rycina 1: Przód view of the Kanlux SL-RED LED Indicator Light, showing the red LED and product markings.
2. Informacje dotyczące bezpieczeństwa
OSTRZEŻENIE: Electrical installations should only be performed by qualified personnel in accordance with local electrical codes and regulations. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Przed instalacją lub serwisowaniem urządzenia należy zawsze odłączyć zasilanie za pomocą głównego wyłącznika.
- Upewnij się, że objętośćtage supply matches the device's specifications (240 Volts).
- Nie narażaj urządzenia na działanie wilgoci ani ekstremalnych temperatur.
- The device has an IP20 rating, meaning it is not protected against water ingress. Install in dry locations only.
- Nie próbuj otwierać ani modyfikować urządzenia. Wewnątrz nie ma żadnych części, które mogłyby zostać naprawione przez użytkownika.
- Produkt przeznaczony jest wyłącznie do użytku wewnątrz pomieszczeń.
3. Konfiguracja i instalacja
The Kanlux SL-RED LED Indicator Light is designed for easy installation within electrical panels, typically mounted on a DIN rail.
3.1 Montaż
- Ensure the power supply to the electrical panel is completely disconnected.
- Locate a suitable position on the DIN rail within the electrical enclosure.
- Hook the top edge of the indicator light onto the DIN rail.
- Press the bottom edge firmly until it clicks into place on the DIN rail.
3.2 Okablowanie
Refer to the wiring diagram below for correct electrical connections. The indicator light requires a connection to the electrical circuit it is intended to monitor.

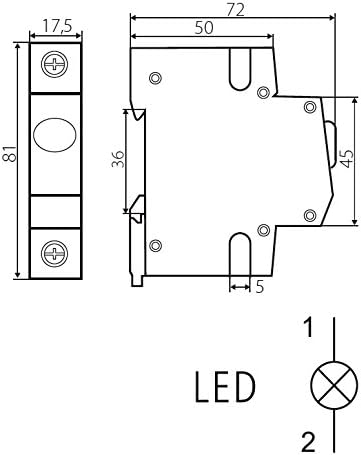

Figure 2: Technical drawing showing dimensions (in mm) and the wiring diagram for the LED indicator. Terminals 1 and 2 are for electrical connection.
- Connect the live wire of the circuit to one terminal (e.g., terminal 1) of the indicator light.
- Connect the neutral wire of the circuit to the other terminal (e.g., terminal 2) of the indicator light.
- Sprawdź, czy wszystkie połączenia są solidne i właściwie zaizolowane.
- After wiring, close the electrical panel and restore power.
4. Instrukcja obsługi
The Kanlux SL-RED LED Indicator Light operates automatically once correctly installed and connected to a powered electrical circuit.
- When the monitored electrical circuit is active and power is present, the red LED on the front of the indicator light will illuminate.
- If the electrical circuit is de-energized or there is a power interruption, the red LED will turn off.
- The illumination of the LED serves as a visual confirmation of the circuit's status.
5. Konserwacja
The Kanlux SL-RED LED Indicator Light requires minimal maintenance.
- Periodically inspect the device for any visible damage or loose connections.
- Clean the exterior of the device with a soft, dry cloth if necessary. Do not use abrasive cleaners or solvents.
- Ensure power is disconnected before any cleaning or inspection.
- There are no user-serviceable parts inside the unit. Do not attempt to disassemble.
6. Rozwiązywanie Problemów
If the LED indicator light does not illuminate when the circuit is powered:
- Sprawdź zasilanie: Verify that the electrical circuit connected to the indicator light is indeed energized. Use a multimeter or other appropriate testing equipment to confirm voltage obecność.
- Sprawdź okablowanie: Ensure that the wires are securely connected to the indicator light's terminals and that there are no loose connections or damaged insulation.
- Verify Polarity (if applicable): While LED indicators typically work with AC, ensure connections are correct as per the wiring diagram.
- Device Failure: If the power supply and wiring are confirmed to be correct, the indicator light itself may be faulty and require replacement.
If troubleshooting steps do not resolve the issue, contact a qualified electrician or the product supplier for assistance.
7. Specyfikacje
| Marka: | Kanlux |
| Numer modelu: | 23320 |
| Typ: | LED Indicator Light / Phase Control Lamp |
| Kolor światła: | Czerwony |
| Tomtage: | 240 wolty |
| Aktualny: | 13mA (as per product description) |
| Stopień ochrony: | IP20 |
| Materiał obudowy: | Plastic (Grey) |
| Typ montażu: | DIN Rail (implied by images and typical use) |
| Certyfikaty: | CE, EN 60947-1, EN 60947-5-1 |
| Źródło zasilania: | Kabel elektryczny |
8. Gwarancja i wsparcie
Specific warranty information for the Kanlux SL-RED LED Indicator Light (Model 23320) may vary depending on the region and retailer. Please refer to the purchase documentation or contact your point of sale for detailed warranty terms and conditions.
For technical support or inquiries regarding spare parts, please contact Kanlux directly or consult their official website. Information regarding software updates is not applicable for this product.
