SK-200 SkylinkNet Connected Wireless Alarm System

1. Wprowadzenie

The SK-200 SkylinkNet Connected Wireless Alarm System is an all-in-one solution designed to protect your home with alarm, home control, and video monitoring functions. This system allows you to control and monitor your home remotely via a smartphone application without monthly fees or contracts. It is expandable, supporting over 100 devices, and features easy plug-and-play installation.

Rysunek 1.1: Nadview of the SkylinkNet SK-200 system, including the Internet Hub, sensors, keychain remote, and the smartphone application interface.

2. Zawartość opakowania

Verify that all components are present in your SK-200 SkylinkNet kit:

• Internet Hub (1 unit)
• Door/Window Sensors (2 units)
• Motion Sensor (1 unit)
• Keychain Remote (1 unit)
• Zasilacz
• Kabel Ethernet
• Akcesoria montażowe

Rysunek 2.1: Visual representation of the components included in the SkylinkNet SK-200 starter kit.

3. Konfiguracja i instalacja

3.1 Initial Hub Connection

Follow these steps for the initial setup of your Internet Hub:

1. Połącz się z routerem: Use the provided Ethernet cable to connect the Internet Hub to your home router.
2. Podłącz do zasilania: Plug the power adapter into the Internet Hub and then into a standard wall outlet.

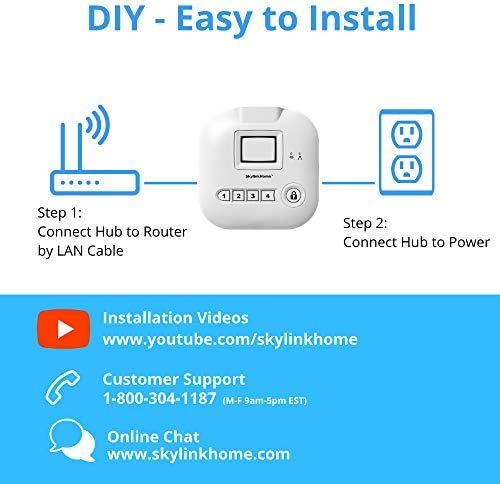

Rysunek 3.1: Diagram illustrating the two simple steps for connecting the SkylinkNet Internet Hub to your router and power source.

3.2 Smartphone App Installation

The SkylinkNet system is controlled via a dedicated smartphone application. Download the app for your device:

• For iOS devices (iPhone, iPad): Szukaj "SkylinkNet" in the Apple App Store.
• Dla urządzeń z systemem Android: Szukaj "SkylinkNet" in the Google Play Store.

Once downloaded, open the app and follow the on-screen instructions to create an account and link it to your Internet Hub.

Rysunek 3.2: A smartphone displaying the SkylinkNet app interface, indicating its availability on the App Store.

3.3 Parowanie urządzeń

After setting up the Internet Hub and the app, you can pair the included sensors and remote. Refer to the specific instructions provided with each sensor for detailed pairing procedures. Generally, this involves activating a pairing mode on the sensor and then adding it through the SkylinkNet app.

4. Obsługa Systemu

4.1 Korzystanie z aplikacji SkylinkNet

The SkylinkNet app provides comprehensive control and monitoring capabilities:

• Uzbrajanie/rozbrajanie: Łatwe uzbrajanie i rozbrajanie systemu z dowolnego miejsca.
• Stan czujnika: View the real-time status of all connected sensors (door/window, motion, etc.).
• Powiadomienia: Receive push notifications for any activity detected by your sensors.
• Sterowanie domowe: Manage connected smart home devices (lights, appliances, garage door, etc.).
• Monitorowanie wideo: Access live camera feeds and recorded images if compatible cameras are integrated.

Rysunek 4.1: Screenshots of the SkylinkNet app, showing the Home Screen with device status, Camera Screen for live feeds, and Alarm Screen for system control.

4.2 Keychain Remote Functions

The included keychain remote provides quick access to essential system functions:

• Przycisk blokady: Arms the system.
• Przycisk odblokowania: Rozbraja system.
• Przycisk Home: Arms the system in 'Home' mode (e.g., perimeter protection only).
• Przycisk paniki: Activates an immediate alarm.

Rysunek 4.2: The SkylinkNet keychain remote, showing its four primary function buttons.

4.3 Integracja inteligentnego domu (Alexa)

The SkylinkNet system is IFTTT compatible, allowing integration with various smart home devices, including Amazon Alexa. You can use voice commands to control your system:

• Enable the SkylinkNet skill in your Alexa app.
• Use commands like "Alexa, ask SkylinkNet to Arm Away" or "Alexa, ask SkylinkNet to turn on kitchen light."

Rysunek 4.3: An illustration demonstrating how the SkylinkNet Internet Hub integrates with Amazon Alexa for voice control of the system and connected devices.

5. Konserwacja

5.1 Wymiana baterii

Sensors in the SK-200 system typically require 3 AAA batteries. When a sensor's battery is low, you will receive a notification via the SkylinkNet app. To replace batteries:

1. Ostrożnie otwórz czujnik casing.
2. Wyjmij stare baterie i zutylizuj je w odpowiedni sposób.
3. Insert new AAA batteries, ensuring correct polarity.
4. Zamknij czujnik casing bezpiecznie.

5.2 Pielęgnacja czujnika

To ensure optimal performance, keep sensors clean and free from dust. Avoid placing sensors in direct sunlight or areas with extreme temperature fluctuations, as this can affect their operation and battery life.

6. Rozwiązywanie Problemów

If you encounter issues with your SkylinkNet system, consider the following common solutions:

• Brak połączenia z aplikacją: Ensure your Internet Hub is properly connected to your router and power. Check your home internet connection.
• Czujnik nie odpowiada: Verify the sensor's battery level. Re-pair the sensor with the Internet Hub if necessary. Ensure the sensor is within range of the hub.
• Fałszywe alarmy: Check sensor placement to avoid accidental triggers (e.g., motion sensor facing a window with moving curtains). Adjust sensitivity settings if available.
• Powiadomienia nie odebrane: Check your smartphone's notification settings for the SkylinkNet app. Ensure the app is running in the background or has necessary permissions.
• System nie uzbraja się/nie rozbraja: Confirm the command is registered by the app or remote. Check the system status in the app for any error messages.

For persistent issues, refer to the customer support section.

7. Specyfikacje

8. Informacje o gwarancji

The SK-200 SkylinkNet Connected Wireless Alarm System comes with a 1-roczna ograniczona gwarancja from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full details regarding warranty terms and conditions, please contact Skylink customer support.

9. Obsługa klienta

For technical assistance, troubleshooting, or general inquiries regarding your SkylinkNet system, please use the following contact methods:

• Wsparcie telefoniczne: 1-800-304-1187 (Monday - Friday, 9 AM - 5 PM EST)
• Czat online: Odwiedzać www.skylinkhome.com
• Filmy instalacyjne: Find helpful guides on www.youtube.com/skylinkhome
