Instrukcja obsługi systemu bezkluczykowego Skylink KN-318

Wstęp

This manual provides comprehensive instructions for the installation, programming, operation, and maintenance of your Skylink KN-318 Keyless Entry System. Please read this manual thoroughly before attempting to install or operate the device to ensure proper function and safety.

The Skylink KN-318 is designed to provide convenient keyless access to your garage. It is compatible with all Skylink Garage Door Openers. For universal compatibility with most national brand garage door openers, the KN-318 keypad requires the Skylink GB-318 Smart Button Receiver (sold separately).

Image: The Skylink KN-318 Keyless Entry System with its protective cover lifted, revealing the numeric keypad.

Informacje dotyczące bezpieczeństwa

• Always keep the garage door area clear of obstructions when operating the opener.
• Ensure children and pets are away from the garage door when it is in motion.
• Do not allow children to play with the keypad or remote controls.
• Regularnie sprawdzaj drzwi garażowe i ich napęd pod kątem oznak zużycia lub uszkodzeń.
• The keypad is designed for outdoor use and includes a weather-proof cover. Ensure the cover is closed when not in use to protect against environmental elements.

Organizować coś

1. składniki

Pakiet zawiera:

• Skylink KN-318 Keyless Entry System Keypad
• Weather-proof cover
• 1 AAA Alkaline Battery (included)
• Sprzęt montażowy

2. Instalacja baterii

1. Carefully remove the back cover of the keypad. You may need a small screwdriver to loosen the screw at the bottom.
2. Insert the included AAA Alkaline battery, ensuring correct polarity.
3. Załóż tylną pokrywę i dokręć śrubę.

Obraz: Bok view of the Skylink KN-318 Keyless Entry System, illustrating its compact design with the protective cover closed.

3. Montaż klawiatury

Choose a convenient location near your garage door, out of reach of small children, but easily accessible. Use the provided mounting hardware to securely attach the keypad to a wall or door frame. Ensure the keypad is mounted vertically.

4. Changing the Passcode

The default passcode is typically 0000. It is highly recommended to change this to a personal, secure 4-digit code immediately after installation.

1. Enter the current passcode (e.g., 0000) followed by the asterisk (*) button.
2. Enter your new 4-digit passcode followed by the asterisk (*) button.
3. Re-enter your new 4-digit passcode followed by the asterisk (*) button to confirm.

Three beeps will confirm that the passcode has been successfully changed.

5. Programming with your Garage Door Opener

Follow the specific programming instructions provided with your Skylink Garage Door Opener to link the KN-318 keypad. If you are using a non-Skylink garage door opener, you must first install the Skylink GB-318 Smart Button Receiver (sold separately) and then follow its instructions to program the keypad.

Typically, this involves pressing a learn button on your garage door opener or receiver, then entering the default passcode (0000) on the KN-318 keypad.

Instrukcja obsługi

1. Podstawowa obsługa

To operate your garage door, simply enter your 4-digit passcode followed by the hash (#) button. The garage door will activate (open or close).

The keypad features a back-lit display for easy visibility in low-light conditions.

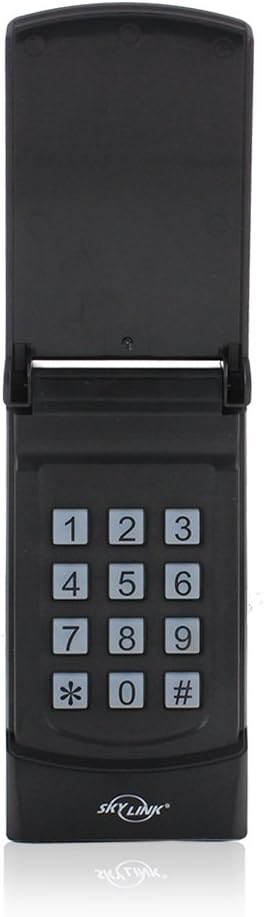

Obraz: Przód view of the Skylink KN-318 Keyless Entry System with its cover open, clearly displaying the numeric keypad for operation.

2. Single Door Operation Mode

In single door operation mode, the keypad is configured to control one garage door. To activate the door, enter your PIN followed by the hash (#) button. The keypad will emit three beeps to confirm activation.

3. Multiple Doors Operation Mode

The KN-318 can operate up to four Skylink garage door openers. To switch to Multiple Doors Operation Mode:

1. Enter your current PIN, then press the asterisk (*) button, then the number 9, then the hash (#) button.
2. Two beeps will indicate that the keypad has successfully changed to Multiple Doors Operating Mode.

To operate a specific door in this mode, enter your PIN, then the hash (#) button, followed by the door number (1, 2, or 3). For example, PIN [#] [1] for door 1.

To change back to Single Door Operation Mode:

1. Enter your current PIN, then press the asterisk (*) button, then the number 0, then the hash (#) button.
2. Two beeps will indicate that the keypad has successfully changed to Single Doors Operating Mode.

Konserwacja

1. Wymiana baterii

The keypad is powered by one AAA Alkaline battery. When the battery is low, the keypad's performance may degrade. Replace the battery by following the steps in the "Battery Installation" section. Ensure to use a fresh AAA Alkaline battery for optimal performance and battery life (approximately 4350 hours).

2. Czyszczenie

Clean the keypad and its cover with a soft, damp ściereczką. Unikaj stosowania środków czyszczących o działaniu ściernym lub rozpuszczalników, ponieważ mogą one uszkodzić wykończenie lub elementy elektroniczne.

3. Ochrona przed warunkami atmosferycznymi

Always ensure the weather-proof cover is closed when the keypad is not in use. This protects the internal components from rain, snow, dust, and direct sunlight, extending the lifespan of the device.

Rozwiązywanie problemów

1. Klawiatura nie odpowiada

• Check the battery: Ensure the AAA battery is correctly installed and not depleted. Replace if necessary.
• Verify programming: Confirm the keypad is correctly programmed to your garage door opener or the GB-318 receiver. Refer to the "Programming with your Garage Door Opener" section.
• Range: Ensure you are within the operating range of the garage door opener (up to 100 feet).

2. Incorrect Passcode Attempts

The keypad features a Passcode Lock Timeout. If ten incorrect passcode attempts are made, the keypad will automatically lock for 10 minutes to prevent unauthorized access. Wait for the lockout period to expire before attempting to enter the passcode again.

3. Resetting the Passcode to Factory Default (0000)

If you forget your passcode or wish to reset it to the factory default (0000), follow these steps:

1. Remove the back cover and take out the AAA battery.
2. Press and hold both the hash (#) and asterisk (*) buttons simultaneously.
3. While holding these buttons, reinsert the AAA battery.
4. Continue holding both buttons until you hear three beeps. This indicates the passcode has been reset to 0000.
5. Załóż tylną pokrywę i dokręć śrubę.

After resetting, you will need to reprogram the keypad with your garage door opener using the default passcode 0000, and then change the passcode to a new personal code.

Specyfikacje

Informacje o gwarancji

The Skylink KN-318 Keyless Entry System comes with a 1-year limited warranty from the date of purchase. Please retain your proof of purchase for warranty claims. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, modification, or unauthorized repair.

Obsługa klienta

For further assistance, technical support, or to inquire about replacement parts, please contact Skylink customer service. Refer to the product packaging or the official Skylink webna tej stronie znajdziesz najbardziej aktualne dane kontaktowe.
