Lumitec Lighting Mini Rail 2 LED Utility Light
Model: 101079
Marka: Lumitec
Wstęp
The Lumitec Mini Rail 2 LED Utility Light is a versatile, compact, and powerful lighting solution designed for both interior and exterior applications, particularly in marine environments. Building upon the success of its predecessor, the Rail 2 offers significantly increased light output while maintaining a durable, IP67 compliant design. This manual provides essential information for the safe and effective installation, operation, and maintenance of your Lumitec Mini Rail 2 LED Utility Light.
Informacje dotyczące bezpieczeństwa
WARNING: Always disconnect power before installing or servicing this product to prevent electric shock or damage.
- Upewnij się, że wszystkie połączenia przewodów są bezpieczne i odpowiednio izolowane.
- This product is designed for 10-30V DC systems. Connecting to incorrect voltagmoże spowodować uszkodzenie.
- Do not modify the product. Unauthorized modifications will void the warranty and may pose safety risks.
- This light is certified Intrinsically Safe/Ignition Protected, making it suitable for engine rooms and other hazardous locations.
- Observe proper polarity during installation (red wire for positive, black wire for negative).
Produkt ponadview
The Lumitec Mini Rail 2 is a robust LED utility light featuring a sealed, durable construction. Its compact design allows for installation in various locations, including flat or curved surfaces like T-tops or grab rails. The light provides bright, even illumination with low power consumption.
Rysunek 1: Strona view of the Lumitec Mini Rail 2 LED Utility Light, showcasindzięki kompaktowej i eleganckiej konstrukcji.

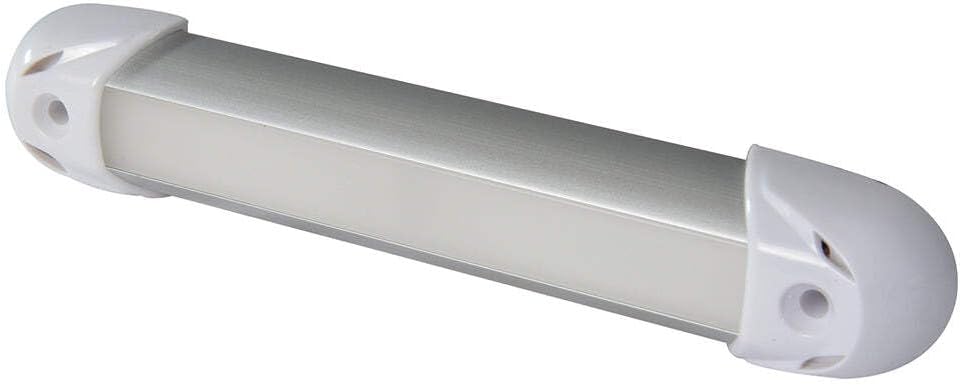

Rysunek 2: Kątowy view of the Lumitec Mini Rail 2, highlighting the light output area.
Rysunek 3: Góra view of the Lumitec Mini Rail 2, showing the mounting points at each end.
Konfiguracja i instalacja
The Mini Rail 2 is designed for straightforward installation. Follow these steps carefully:
- Wybierz miejsce montażu: Select a flat or curved surface that can accommodate the light's dimensions (Height: 5.90in / 14.97cm, Width: 1.11in / 2.82cm, Depth: 0.60in / 1.53cm). Ensure there is sufficient space for wiring.
- Przygotuj powierzchnię montażową: Mark the drilling points for the mounting screws. The mounting hole diameter is 5/32".
- Wywierć otwory pilotażowe: Carefully drill pilot holes at the marked locations.
- Okablowanie:
- Połącz czerwony przewód from the light to the positive (+) terminal of your 10-30V DC power source.
- Połącz czarny drut from the light to the negative (-) terminal (ground).
- Ensure all connections are watertight and secure, especially for exterior or marine applications.
- Zamontuj światło: Secure the light to the surface using appropriate fasteners through the mounting holes. Do not overtighten.
- Funkcjonalność testu: Once installed, apply power to the circuit and verify that the light operates correctly.

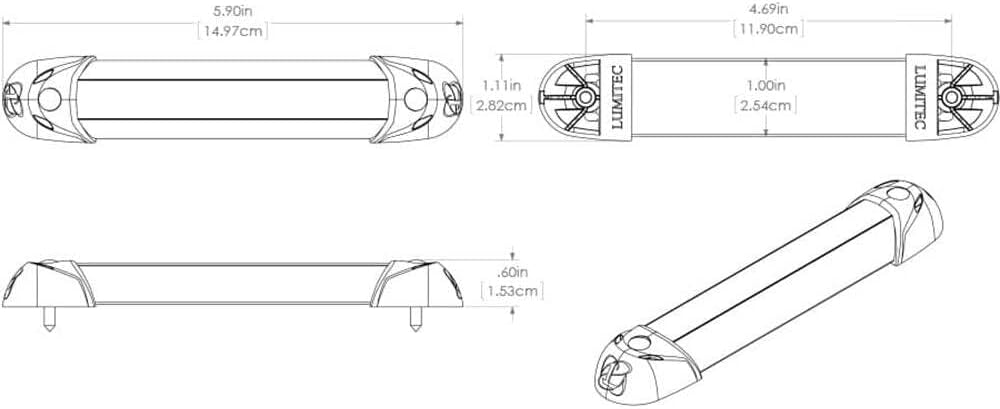

Figure 4: Technical drawing illustrating the dimensions and mounting points of the Lumitec Mini Rail 2.
Instrukcja obsługi
The Lumitec Mini Rail 2 LED Utility Light is designed for simple operation.
- Włączanie/wyłączanie: The light is controlled by an external switch connected to its power supply. Toggle the switch to turn the light on or off.
- Ściemnianie: This model is non-dimmable by itself. However, it is 3PD (Third Party Dimmer) capable, meaning it can be integrated with compatible third-party dimming systems if desired. Consult the third-party dimmer's instructions for integration.
Konserwacja
The Lumitec Mini Rail 2 LED Utility Light requires minimal maintenance due to its durable and sealed construction.
- Czyszczenie: Periodically clean the lens and housing with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents that could damage the acrylic lens or housing.
- Kontrola: Regularly inspect the wiring and mounting points for any signs of wear, corrosion, or loosening, especially in harsh marine environments. Ensure all connections remain secure and watertight.
- Brak części nadających się do samodzielnej naprawy przez użytkownika: The LED components are sealed within the unit. Do not attempt to open or disassemble the light, as this will void the warranty and may damage the product.
Rozwiązywanie problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Światło się nie włącza. | No power to the light; incorrect wiring; faulty switch; blown fuse/breaker. | Check power supply and connections. Verify correct polarity (red to positive, black to negative). Test the switch. Check fuses or circuit breakers in the power circuit. |
| Światło migocze lub jest słabe. | Niska objętośćtage; loose connection; corroded wiring. | Sprawdź objętość wejściowątage is within 10-30V DC range. Inspect all wiring connections for tightness and corrosion. Clean or replace corroded terminals. |
| Light turns on but then off. | Overheating (unlikely for LED); intermittent connection. | Ensure adequate ventilation around the light, though typically not an issue for this sealed unit. Check for intermittent wiring connections. |
If troubleshooting steps do not resolve the issue, please contact Lumitec customer support for assistance. Do not attempt to repair the unit yourself.
Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Nazwa modelu | Mini Rail 2 LED Utility Light |
| Numer części | 101079 |
| Wejście Voltage | 10-30V DC |
| Current Draw (12V DC) | 360mA |
| Current Draw (24V DC) | 200mA |
| Ocenione Watts | 4 watów |
| Wymiary (wysokość x szerokość x głębokość) | 5.90 cala (14.97 cm) x 1.11 cala (2.82 cm) x 0.60 cala (1.53 cm) |
| Średnica otworu montażowego | 5/32" |
| Temperatura pracy | -31°F do +131°F (-35°C do +55°C) |
| Stopień ochrony IP | IP67 Compliant (Sealed for long life and extreme durability) |
| Tworzywo | Plastic housing, Acrylic lens |
| Kolor | Niebieski |
| Możliwość ściemniania | Non-dimmable, 3PD (Third Party Dimmer) capable |
| Certyfikaty | Certified Intrinsically Safe/Ignition Protected |
Gwarancja i wsparcie
Extended 5-Year Warranty: Lumitec offers an extended 5-year warranty across its complete line of extreme environment LED products, including the Mini Rail 2. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or any questions regarding your Lumitec Mini Rail 2 LED Utility Light, please contact Lumitec customer service directly. Refer to the official Lumitec webna tej stronie znajdziesz najbardziej aktualne dane kontaktowe.
Zasoby internetowe: For additional information, product updates, and FAQs, visit the official Lumitec webstrona: www.lumiteclighting.com
