1. Wprowadzenie
The SkylinkHome LK-318-3 Wireless Three Button Keychain Remote Control is designed to wirelessly operate compatible SkylinkHome receiver modules. This compact and lightweight transmitter allows for convenient control of various home automation devices, such as lighting and small appliances, from a distance. It incorporates rolling code technology for enhanced security and offers optional password protection.
2. Zawartość opakowania
- SkylinkHome LK-318-3 Keychain Remote Control
- Lithium Battery (CR-2032, pre-installed)
- Instrukcje użytkownika
3. Funkcje
- Sterowanie trzema przyciskami: Operates up to three distinct SkylinkHome receiver modules.
- Działanie bezprzewodowe: Provides remote control for lighting, small appliances, and other home electronics.
- Rozszerzony zasięg: Operates up to 500 feet in an open area, including through walls and floors.
- Kompaktowa konstrukcja: Small and lightweight, suitable for carrying on a keychain, in a pocket, or purse.
- Wstępnie zainstalowana bateria: Includes a long-life CR-2032 lithium battery.
- Optional Password Protection: Enhances security by requiring a 2 to 8-digit password (using buttons 1, 2, and 3) before operation.
- Technologia kodu zmiennego: Generates a unique code with each activation, preventing unauthorized code duplication.
4. Konfiguracja
4.1 Instalacja baterii
The SkylinkHome LK-318-3 remote control comes with a CR-2032 lithium battery pre-installed. If the battery needs replacement, refer to the Maintenance section.
4.2 Programowanie pilota
To program the LK-318-3 remote control to your SkylinkHome receiver modules, follow the specific programming instructions provided with your SkylinkHome receiver module. The remote is designed for easy synchronization with compatible receivers. Typically, this involves placing the receiver into a learning mode and then pressing a button on the remote.

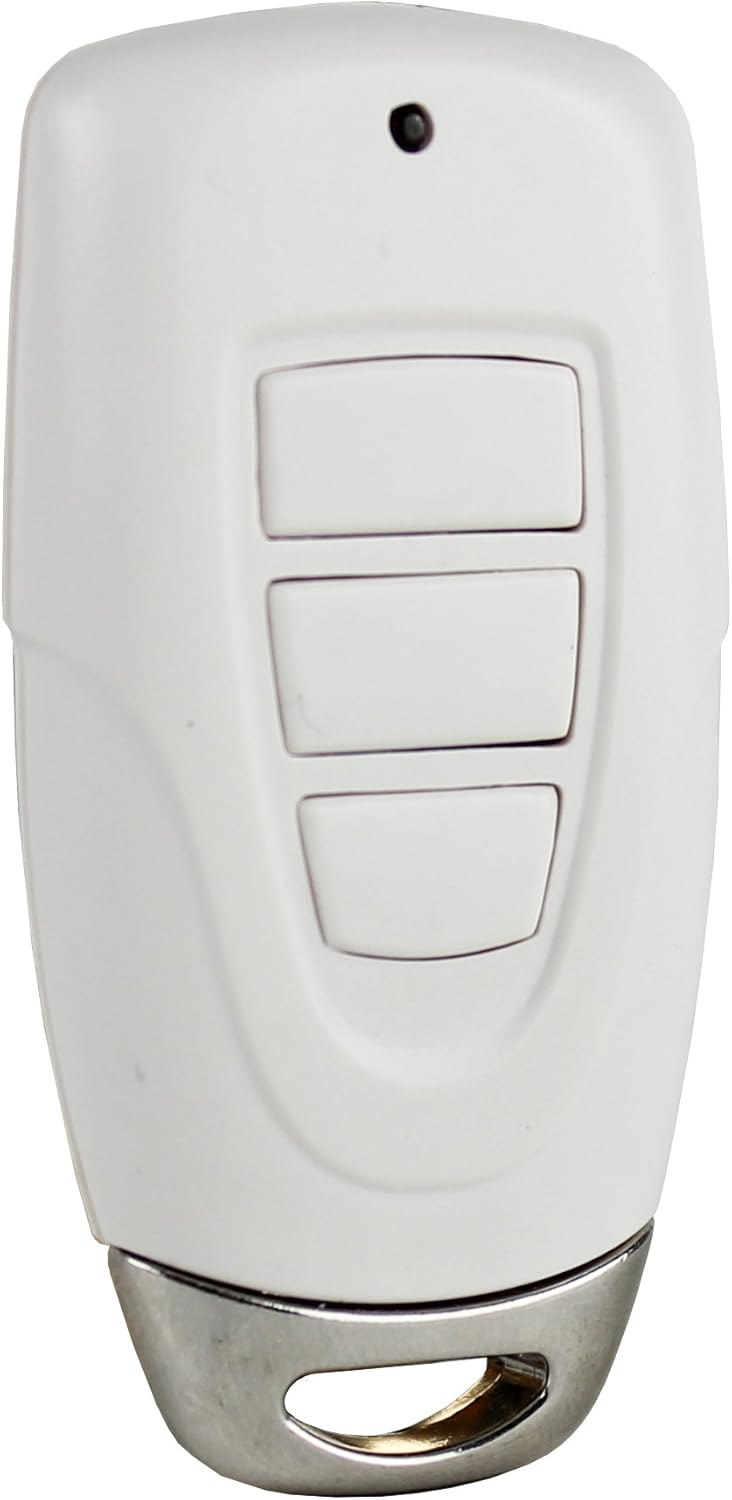

Rysunek 1: Przód view of the SkylinkHome LK-318-3 Remote Control, showing the three control buttons and the LED indicator.
5. Instrukcja obsługi
5.1 Podstawowa obsługa
Once programmed to your SkylinkHome receiver modules, press the corresponding button (1, 2, or 3) on the keychain remote to activate or deactivate the linked module. The remote can control up to three separate modules.
5.2 Optional Password Protection
For enhanced security, you can enable password protection. When enabled, the remote will only operate after the correct password has been entered. The password can be a sequence of 2 to 8 digits, created using a combination of buttons 1, 2, and 3. For example, a password could be '1-2-1-2'. Refer to your SkylinkHome receiver's manual for specific instructions on enabling and setting up password protection.
5.3 Rolling Code Technology
The LK-318-3 remote utilizes rolling code technology. This means that each time you press a button, the remote generates a new, unique code. This code is recognized by your rolling code compatible receiver, which then performs the desired function. This technology significantly reduces the risk of unauthorized access by preventing code duplication through electronic scanners, as the next code will always be different.
Rysunek 2: The SkylinkHome LK-318-3 Remote Control shown attached to a keychain with a car key, illustrating its compact and portable design.
6. Konserwacja
6.1 Wymiana baterii
The remote control is powered by a CR-2032 lithium battery. When the remote's operational range decreases or the LED indicator does not light up consistently, it may be time to replace the battery. To replace the battery:
- Ostrożnie otwórz pilota casing.
- Wyjmij starą baterię CR-2032.
- Insert a new CR-2032 lithium battery, ensuring correct polarity (+ side up).
- Zamknij pilota casing bezpiecznie.
Stare baterie należy utylizować zgodnie z lokalnymi przepisami.
7. Rozwiązywanie Problemów
- Pilot nie odpowiada:
- Sprawdź baterię. W razie potrzeby wymień ją (patrz rozdział 6.1).
- Ensure the remote is within the operational range of the receiver (up to 500 feet in open area).
- Verify that the remote is correctly programmed to the receiver (refer to Section 4.2).
- If password protection is enabled, ensure the correct password is being entered.
- Ograniczony zasięg:
- Wymień baterię.
- Ensure there are no significant obstructions (e.g., thick concrete walls, large metal objects) between the remote and the receiver.
- Avoid sources of strong radio interference.
- Problemy ze zgodnością:
- The LK-318-3 remote is designed for use with SkylinkHome receiver modules. It may not be compatible with other brands or older systems from different manufacturers.
8. Specyfikacje
| Numer modelu | LK-318-3 |
| Marka | SKYLINK |
| Źródło zasilania | Zasilany bateryjnie |
| Typ baterii | CR-2032 Lithium (1 included) |
| Żywotność baterii | Około 5000 godzin |
| Zasięg operacyjny | Do 500 stóp (otwarta przestrzeń) |
| Wymiary produktu | 4.32 x 1.78 x 12.7 cm (1.7 x 0.7 x 5 cala) |
| Waga przedmiotu | 90.72 g (3.2 uncji) |
Rysunek 3: The SkylinkHome LK-318-3 Remote Control positioned beside a car key, highlighting its compact size for easy integration with existing keychains.
9. Gwarancja i wsparcie
For warranty information or technical support regarding your SkylinkHome LK-318-3 Wireless Three Button Keychain Remote Control, please refer to the documentation included with your purchase or visit the official Skylink webInformacje kontaktowe do działu obsługi klienta są zazwyczaj dostępne na opakowaniu produktu lub na stronie pomocy technicznej producenta.
