YAESU GC-038B Mast Clamp Instrukcja obsługi

1. Wprowadzenie

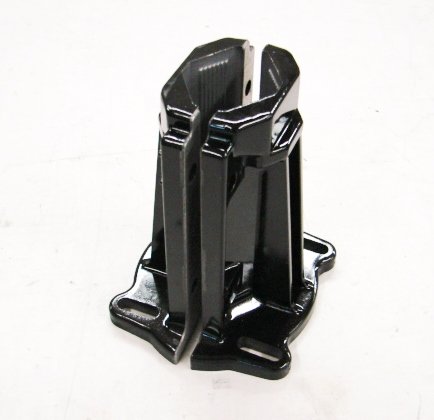

The YAESU GC-038B Mast Clamp is a robust, all-metal component designed for securely mounting equipment, such as a Yaesu rotator, to a mast. This heavy-duty clamp ensures a firm grip, providing stability and reliability for various applications. Its durable construction and intuitive design make it an essential tool for amateur radio enthusiasts and professionals alike.

2. Informacje dotyczące bezpieczeństwa

• Always wear appropriate personal protective equipment (PPE), such as gloves, when handling tools and equipment.
• Ensure all fasteners are tightened securely to prevent accidental dislodgement of the mast or attached equipment.
• Do not overtighten bolts beyond recommended torque specifications, as this can damage the clamp or the mast.
• Sprawdź klamp and all mounting hardware regularly for signs of wear, corrosion, or damage. Replace any compromised components immediately.
• Ensure the mast and mounting surface are stable and capable of supporting the combined weight of the clamp and attached equipment.

3. Zawartość opakowania

Przed otwarciem opakowania należy sprawdzić, czy wszystkie elementy są obecne i nieuszkodzone:

• 1 x YAESU GC-038B Mast Clamp (typically a two-piece clam-shell design)
• Necessary mounting hardware (bolts, nuts, washers)

4. Konfiguracja i instalacja

Follow these steps to properly install the GC-038B Mast Clamp:

1. Przygotuj powierzchnię montażową: Ensure the mast or pipe where the clamp will be attached is clean, dry, and free from obstructions.
2. Ustaw Clamp: Place one half of the clamp around the mast. If mounting a rotator, align the clamp with the designated mounting holes on the rotator body.
3. Attach the Second Half: Bring the second half of the clamp into position, ensuring it mates correctly with the first half and the mast.
4. Wstaw elementy złączne: Insert the provided bolts through the aligned holes of both clamp halves and the rotator (if applicable).
5. Dokręcanie ręczne: Initially hand-tighten the nuts onto the bolts to hold the clamp na miejscu.
6. Ostateczne dokręcanie: Using appropriate tools, gradually tighten the nuts in an alternating pattern to ensure even pressure distribution. Tighten until the clamp firmly grips the mast and the rotator is secure. Nie dokręcaj zbyt mocno.

5. Instrukcja obsługi

Once installed, the GC-038B Mast Clamp functions as a fixed mounting point. Its operation primarily involves ensuring its continued secure attachment.

• Bezpieczne przechowywanie: clamp is designed to provide a strong, non-slip grip on the mast, preventing rotation or slippage of the attached equipment.
• Regularna kontrola: Periodically check the tightness of the mounting bolts, especially after initial installation and exposure to environmental stresses (e.g., strong winds, temperature changes).
• Nośność: Ensure that the load placed on the mast and clamp assembly does not exceed the structural limits of the mast or the clamp's holding capacity.

6. Konserwacja

Proper maintenance will extend the lifespan and ensure the continued reliability of your GC-038B Mast Clamp.

• Czyszczenie: Wyczyść clamp periodically to remove dirt, dust, and debris. A damp cloth is usually sufficient. Avoid harsh chemicals that may damage the finish.
• Kontrola korozji: Inspect for any signs of rust or corrosion, particularly in outdoor installations. Apply a rust-inhibiting coating if necessary, ensuring it does not interfere with the clamp's grip.
• Sprawdzenie sprzętu: Verify that all bolts, nuts, and washers are in good condition. Replace any worn or damaged hardware.
• Ponowne dokręcanie: Over time, vibrations or temperature fluctuations can cause fasteners to loosen. Re-tighten all bolts to the appropriate torque as needed.

7. Rozwiązywanie Problemów

This section addresses common issues you might encounter with the GC-038B Mast Clamp.

• Clamp Not Holding Securely:
  • Ensure bolts are tightened evenly and sufficiently.
  • Verify that the mast diameter is compatible with the clampProjekt 's.
  • Check for any debris or foreign objects between the clamp and the mast that might prevent a firm grip.
• Clamp Appears Damaged (e.g., Cracked):
  • A cracked clamp often indicates overtightening during installation. Always tighten fasteners gradually and avoid excessive force.
  • Jeśli klamp is cracked or visibly damaged, it must be replaced immediately to ensure safety and structural integrity. Do not attempt to repair a damaged clamp.
• Difficulty Aligning Clamp Halves:
  • Ensure the mast is properly seated within one half of the clamp before attempting to attach the second half.
  • Check for any deformation of the clamp halves or obstructions in the mounting holes.

8. Specyfikacje

9. Gwarancja i wsparcie

The YAESU GC-038B Mast Clamp is manufactured to high-quality standards. For specific warranty information, please refer to the documentation provided with your purchase or visit the official YAESU website. For technical support or inquiries regarding replacement parts, please contact YAESU customer service directly.

Informacje kontaktowe można zazwyczaj znaleźć na stronie producenta webmiejscu lub na opakowaniu produktu.
