1. Koniec produktuview
The SIEMENS P3054L3200CU is a 200-Amp, 30-space, 54-circuit, 3-phase main lug load center designed for various electrical applications. This PL Series load center incorporates features aimed at simplifying installation and ensuring reliable performance. It is equipped with a patented Insta-Wire neutral/ground system, copper bussing, and convertible design for enhanced flexibility.

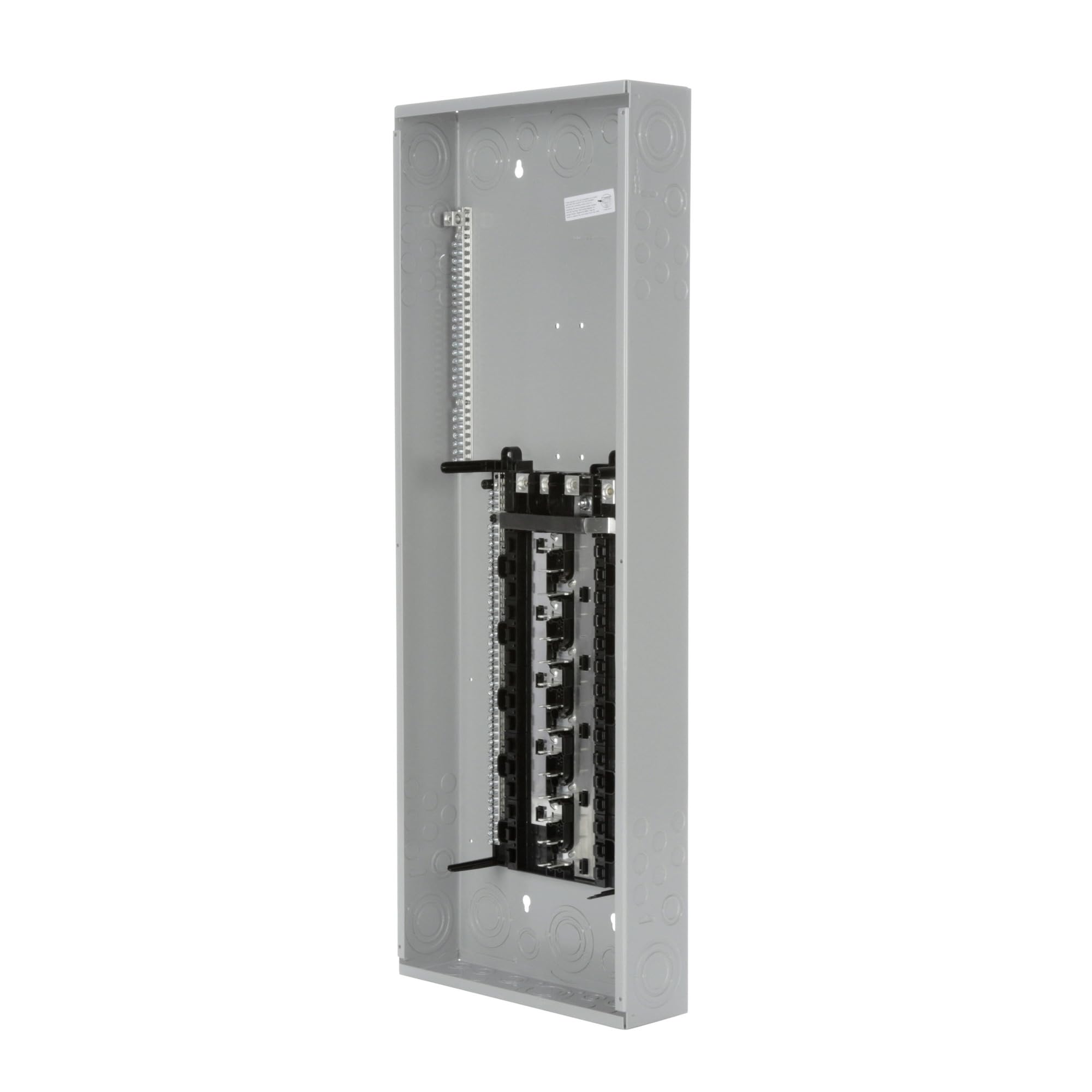

Obraz 1.1: Przód view of the SIEMENS P3054L3200CU 200-Amp 3-Phase Main Lug Load Center, showing the enclosure and main lug terminals.
2. Informacje dotyczące bezpieczeństwa
OSTRZEŻENIE: Installation, servicing, and maintenance of this electrical equipment must be performed by qualified, licensed personnel only. Failure to follow these instructions can result in serious injury, death, or property damage.
- Always disconnect power at the main service disconnect before working on the load center.
- Stosuj odpowiedni sprzęt ochrony osobistej (PPE), w tym rękawice termoizolacyjne i okulary ochronne.
- Verify all circuits are de-energized using a voltage tester before touching any components.
- Upewnij się, że wszystkie połączenia są dobrze dokręcone i bezpieczne, aby zapobiec przegrzaniu i zagrożeniu pożarem.
- Comply with all national and local electrical codes and regulations.
- Nie instalować w mokrych lub damp locations unless the enclosure is rated for such environments.
3. Funkcje
The SIEMENS P3054L3200CU load center is designed with several key features to enhance installation and performance:
- Three-Phase 200 Amp Main Lug: Provides robust power distribution for demanding applications.
- 30 Spaces / 54 Circuits: Oferty ample capacity for various circuit configurations.
- Patented Insta-Wire Technology: Neutral and ground bars feature screws that are pre-backed out, facilitating quick and easy wire insertion.
- Copper Bus: Ensures excellent conductivity and durability.
- Factory-Installed Ground Bars: Two ground bars are pre-installed for convenience and compliance.
- Mounting Tabs on Trim: Designed to hold the load center in place during trim installation, freeing hands for screw driving.
4. Konfiguracja i instalacja
Installation of the SIEMENS P3054L3200CU load center should only be performed by a qualified electrician. The following steps provide a general overview:
- Przygotowanie: Ensure all power to the installation site is disconnected at the main service entrance. Verify with a voltagtester.
- Montowanie: Securely mount the load center enclosure to a suitable surface using appropriate fasteners. Ensure it is level and plumb.
- Wejście przewodu: Install conduits and pull wires into the load center, leaving sufficient length for connections.
- Main Lug Connections: Connect the incoming main power conductors to the main lugs. Ensure proper torque specifications are met as per local codes and manufacturer guidelines.
- Neutral and Ground Connections: Utilize the patented Insta-Wire neutral/ground system. Insert neutral and ground conductors into the appropriate terminals on the pre-installed ground bars and tighten screws. The pre-backed out screws simplify this process.
- Montaż wyłącznika: Install appropriate SIEMENS circuit breakers into the designated spaces. Ensure they are securely seated.
- Branch Circuit Wiring: Connect branch circuit conductors to their respective circuit breakers and neutral/ground bars.
- Montaż listew wykończeniowych: Once all wiring is complete and inspected, install the trim. The mounting tabs on the trim will assist in holding it in place while securing with screws.
- Kontrola końcowa: Before re-energizing, perform a thorough inspection of all wiring and connections.
- Odzyskaj energię: Restore power at the main service disconnect.
5. Instrukcja obsługi
The SIEMENS P3054L3200CU load center functions as the central distribution point for electrical power within a facility, providing overcurrent protection for branch circuits.
- Działanie wyłącznika: Each circuit breaker protects a specific branch circuit. In the event of an overload or short circuit, the breaker will automatically trip to the "OFF" or center position, interrupting power to that circuit.
- Resetowanie wyłączonego wyłącznika: To restore power to a tripped circuit, first identify and correct the cause of the trip (e.g., unplug overloaded devices). Then, firmly push the breaker handle to the full "OFF" position before pushing it to the "ON" position.
- Turning Circuits On/Off: To manually turn a circuit off, push the breaker handle to the "OFF" position. To turn it back on, push it to the "ON" position.
6. Konserwacja
Regular maintenance helps ensure the safe and efficient operation of your load center. All maintenance should be performed by qualified personnel with power disconnected.
- Przeglądy okresowe: Annually inspect the load center for any signs of damage, corrosion, loose connections, or discoloration.
- Czyszczenie: With power disconnected, carefully clean any dust or debris from inside the enclosure using a dry, non-conductive brush or vacuum.
- Dokręcanie połączeń: Periodically check and re-tighten all electrical connections, including main lugs, neutral, ground, and circuit breaker terminals, to the manufacturer's specified torque values. Loose connections can cause overheating.
- Etykietowanie: Ensure all circuits are clearly and accurately labeled for easy identification.
7. Rozwiązywanie Problemów
This section addresses common issues that may arise with your load center. For complex problems, consult a qualified electrician.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Częste wyzwalanie wyłączników. | Przeciążenie obwodu, zwarcie lub zwarcie doziemne. | Reduce load on the circuit. Inspect wiring and appliances for shorts or ground faults. If problem persists, consult an electrician. |
| No power to a specific circuit. | Tripped circuit breaker, loose connection, or faulty breaker. | Check and reset the circuit breaker. Inspect connections (with power off). If breaker is faulty, replace it with an identical SIEMENS breaker. |
| Load center feels warm. | Overloaded circuits, loose connections, or improper ventilation. | Reduce electrical load. Have an electrician inspect and tighten all connections. Ensure adequate airflow around the load center. |
| Flickering lights or intermittent power. | Loose main connections, loose branch circuit connections, or utility issue. | Contact a qualified electrician to inspect all connections within the load center and at the service entrance. Contact your utility provider if the issue is widespread. |
8. Specyfikacje
| Specyfikacja | Szczegół |
|---|---|
| Numer modelu | P3054L3200CU |
| Marka | SIEMENS |
| Ampwymazać | 200 Amps |
| Liczba miejsc | 30 |
| Liczba obwodów | 54 |
| Rodzaj fazy | Trójfazowy |
| Główny typ | Główny zaczep |
| Bus Material | Miedź |
| Wymiary produktu | 16 x 41.5 x 5.75 cala |
| Waga przedmiotu | 0.01 uncji (Uwaga: Ta waga wydaje się nietypowo niska i może wynikać z błędu w wprowadzaniu danych. Dokładną wagę można sprawdzić na opakowaniu produktu.) |
| UPC / GTIN | 662643853827 |
9. Gwarancja i wsparcie
For specific warranty information regarding the SIEMENS P3054L3200CU load center, please refer to the documentation included with your product or visit the official SIEMENS webWarunki gwarancji mogą się różnić.
For technical support, product inquiries, or to locate authorized service centers, please contact SIEMENS customer service directly. Contact information can typically be found on the manufacturer's webwitryny lub opakowania produktu.
