Wstęp
Thank you for choosing the Peavey KB 1 20-Watt Keyboard Amplifier. Ten amplifier is designed to provide clear and reliable amplification for keyboards, drum machines, backing tracks, or as a personal PA system. Featuring an 8-inch extended-range speaker and two independent channels, the KB 1 offers versatile sound control in a compact and durable package. Please read this manual thoroughly to understand the features and ensure proper operation and longevity of your ampliyfikator.
Organizować coś
Rozpakowywanie
Ostrożnie usuń ampWyjmij urządzenie z opakowania. Sprawdź, czy nie ma śladów uszkodzeń, które mogły powstać podczas transportu. Zachowaj oryginalne opakowanie do transportu lub przechowywania w przyszłości.
Umieszczenie
Umieść amplifier on a stable, flat surface. Ensure adequate ventilation around the unit to prevent overheating. Avoid placing the amplifier in direct sunlight, near heat sources, or in areas with excessive moisture or dust.
Podłączenie zasilania
Podłącz dostarczony przewód zasilający do gniazda prądu zmiennego na tylnym panelu urządzenia. amplifier and then to a grounded electrical outlet. Ensure the amplifier's power switch is in the 'OFF' position before connecting to power.
Rycina 1: Przód view of the Peavey KB 1 Keyboard Amplifier, showcasing the protective grille and Peavey logo.

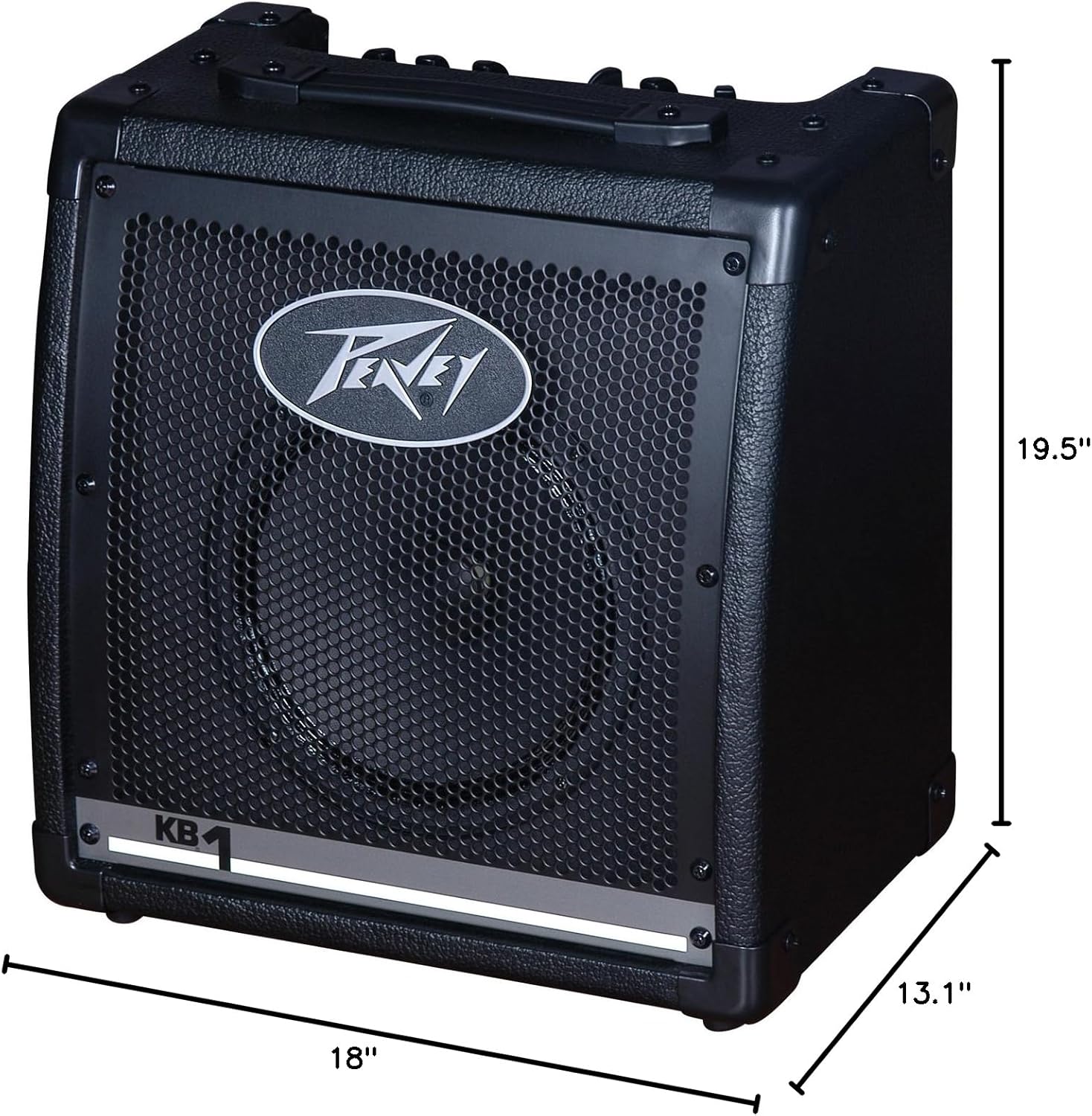

Figure 2: Dimensions of the Peavey KB 1 Keyboard Amplifier, illustrating its compact size for portability and placement.
Instrukcja obsługi
Kontrola nadview
The Peavey KB 1 features a straightforward control panel for ease of use. The top panel includes controls for two independent channels, each with its own volume and 2-band EQ (Low and High) for precise tone shaping. A headphone output is also available for private practice.

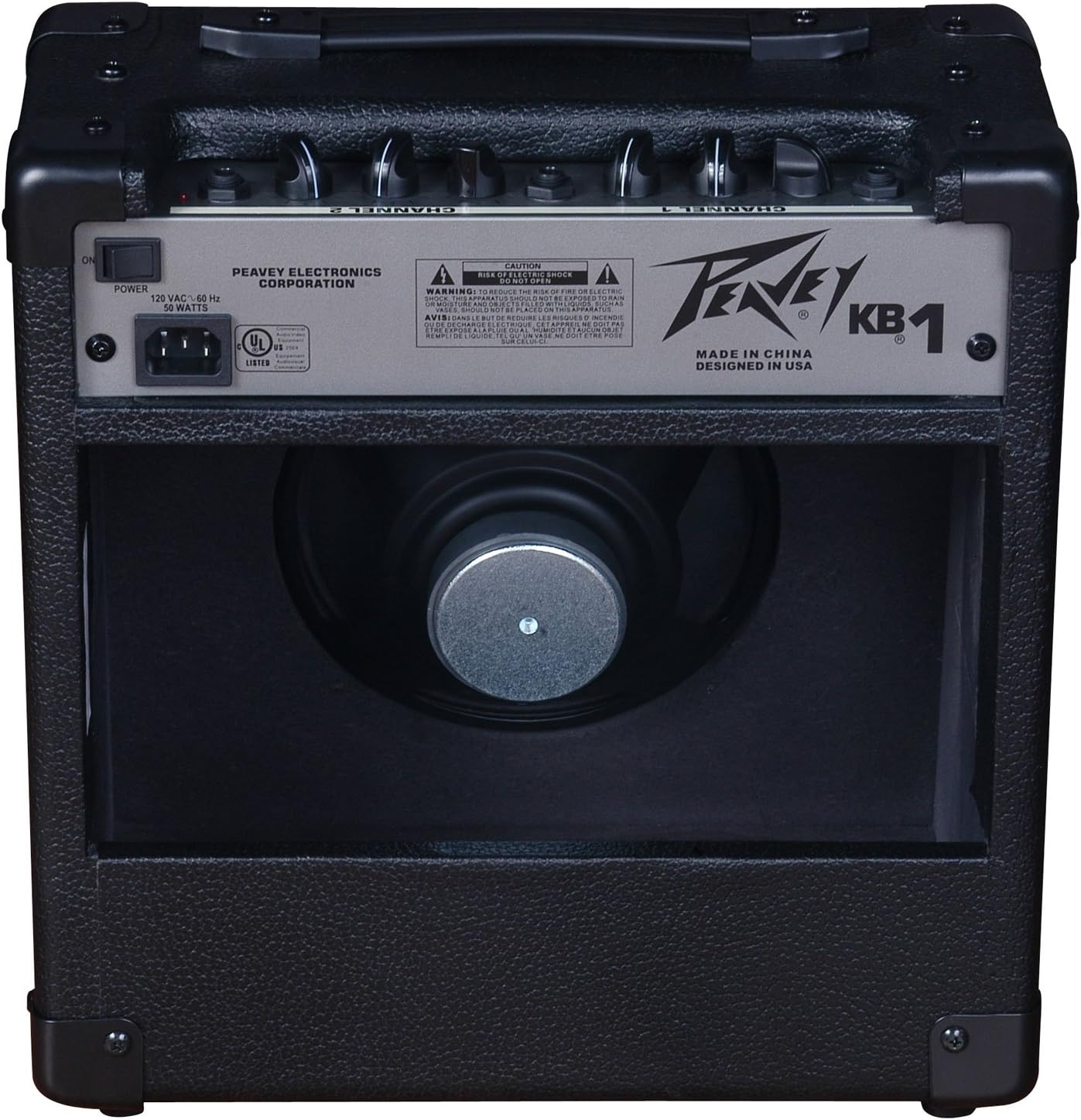

Figure 3: Rear panel of the Peavey KB 1 Keyboard Amplifier, showing the power input and various connection ports.
Łączenie instrumentów
The KB 1 is equipped with two separate input channels, allowing for connection of multiple instruments or a microphone. Each channel is designed to handle various input levels.
- Wejście kanału 1: Use for keyboards or other line-level instruments.
- Wejście kanału 2: Use for a second keyboard, drum machine, or other audio source.
- Wyjście słuchawkowe: Connect standard 3.5mm headphones for silent practice.
Regulacja dźwięku
To achieve your desired sound, follow these steps:
- Włączanie: Flip the power switch to the 'ON' position. The power indicator light will illuminate.
- Regulacja głośności: Start with the master volume and individual channel volumes set to their lowest positions. Gradually increase the channel volume for the connected instrument until the desired level is reached. Adjust the master volume for overall output.
- Korekcja (EQ): Use the 'Low' and 'High' knobs on each channel to adjust the bass and treble frequencies. Experiment with these controls to tailor the sound to your preference and instrument.
- Użycie słuchawek: When headphones are connected, the main speaker output will be muted, allowing for private monitoring.
Konserwacja
Czyszczenie
Aby wyczyścić ampDo czyszczenia należy używać miękkiej, suchej ściereczki. W przypadku uporczywych zabrudzeń należy użyć lekkoamp cloth can be used, followed by a dry cloth. Avoid using abrasive cleaners, solvents, or waxes, as these can damage the finish and internal components. Ensure the ampPrzed czyszczeniem należy odłączyć urządzenie od zasilania.
Składowanie
W przypadku nieużywania przez dłuższy czas, należy przechowywać amplifier in a cool, dry place, away from extreme temperatures and humidity. Covering the unit with a dust cover can help protect it from dust and debris.
Rozwiązywanie problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Brak dźwięku | Power not connected or switched off; volume knobs too low; instrument cable faulty; headphones connected. | Check power connection and switch; increase volume levels; test with a different cable; disconnect headphones. |
| Zniekształcony dźwięk | Input signal too high; EQ settings incorrect; faulty instrument or cable. | Reduce instrument output volume; adjust EQ knobs; test with another instrument or cable. |
| Brzęczenie lub buczenie | Ground loop issue; interference from other electronics; faulty power cable. | Try plugging into a different outlet; move amplifier away from other electronic devices; ensure power cable is secure. |
Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Model | KB 1 |
| Moc wyjściowatage | 20 watów |
| Głośnik | 8-inch Extended-Range Speaker |
| Kanały | 2 niezależne kanały |
| Wyrównanie | 2-band EQ per channel (Low, High) |
| Wyjście słuchawkowe | Yes (3.5mm Jack) |
| Waga przedmiotu | 16 funta |
| Wymiary produktu (Gł. x Szer. x Wys.) | 13.1" x 18" x 19.5" |
| Numer modelu | 573100 |
Gwarancja i wsparcie
Peavey products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official Peavey webZachowaj paragon jako dowód zakupu na wypadek ewentualnych roszczeń gwarancyjnych.
For technical support, service, or replacement parts, please contact Peavey customer service through their official website or authorized service centers. Do not attempt to service the amplifier yourself, as this may void your warranty and expose you to electrical hazards.
