Clatronic DR 3280 Steam Cleaner User Manual

Wstęp

The Clatronic DR 3280 Steam Cleaner is designed for deep, efficient, and environmentally friendly cleaning without the need for additional detergents. Its versatile attachments enable use across various household areas, including large floor surfaces, windows, and the removal of limescale deposits. This steam cleaner effectively eliminates stubborn dirt without leaving streaks or limescale residues. It is an essential tool for quick and easy cleaning of shower partitions, roller shutters, radiators, and is ideal for disinfecting bathrooms and kitchens, as well as refreshing upholstery and clothing.

Ważne instrukcje bezpieczeństwa

• Bezpieczeństwo elektryczne: Zawsze upewnij się, że zasilanie jest zgodne z napięciemtage specified on the appliance. Do not operate the steam cleaner with a damaged cord or plug.
• Zagrożenie gorącą parą: Steam is extremely hot and can cause severe burns. Never direct steam at people, pets, or electrical appliances. Keep hands and face away from the steam nozzle during operation.
• Zbiornik na wodę: Do not overfill the water tank. Always unplug the appliance and allow it to cool before refilling.
• Dzieci i zwierzęta: Keep the appliance out of reach of children and pets. Do not allow children to operate the steam cleaner.
• Zgodność z powierzchnią: Test the steam cleaner on an inconspicuous area of the surface to be cleaned to ensure compatibility and prevent damage.
• Konserwacja: Always unplug the appliance and allow it to cool completely before performing any maintenance or cleaning.
• Woda destylowana: This appliance does not feature an anti-limescale system. To prevent limescale buildup and ensure optimal performance, it is highly recommended to use distilled water.

Komponenty produktu i akcesoria

The Clatronic DR 3280 Steam Cleaner comes with a range of accessories for various cleaning tasks. Familiarize yourself with each component before use.

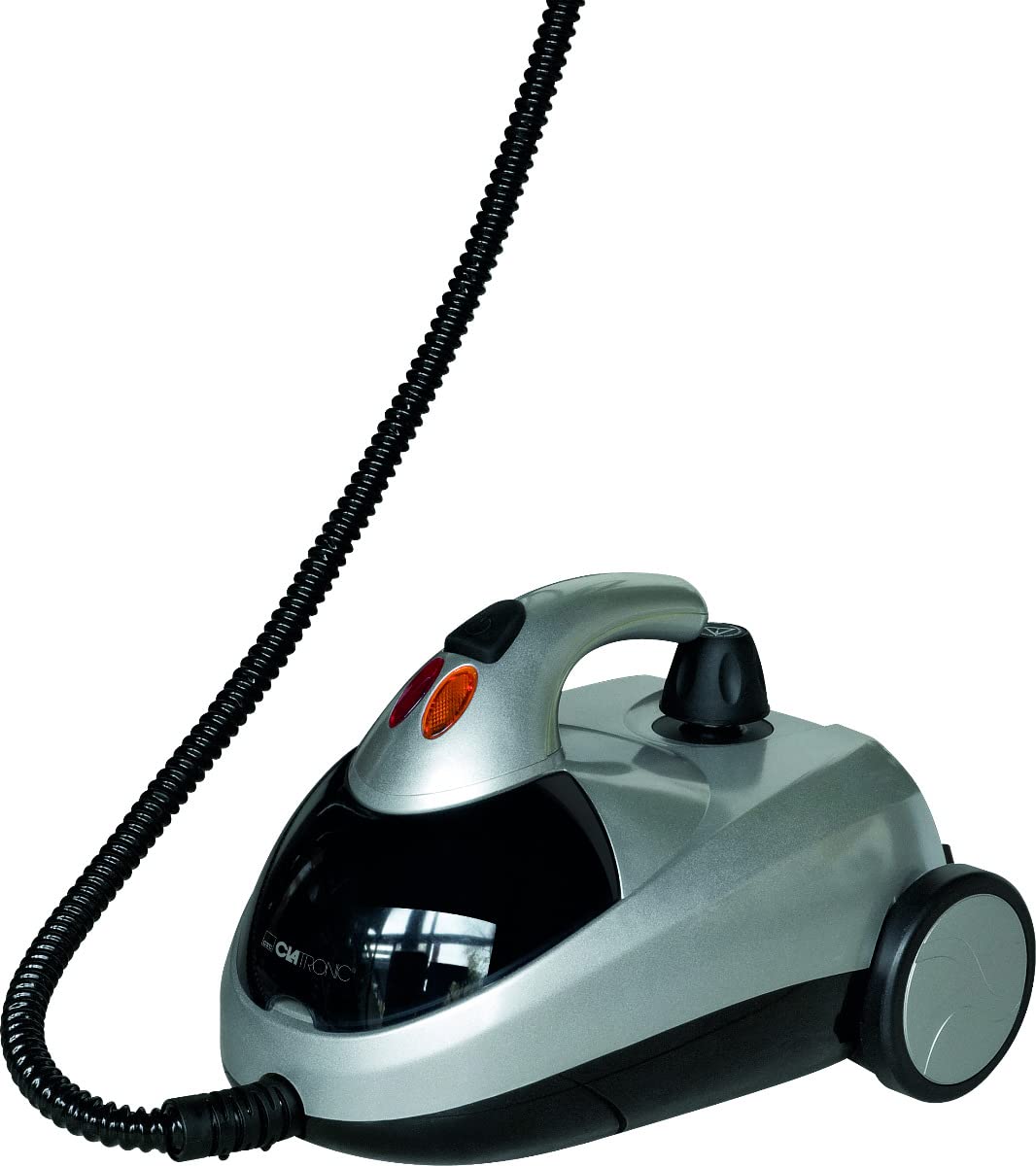

Rysunek 1: The Clatronic DR 3280 Steam Cleaner main unit, showing the water inlet and accessory storage compartment.

Rysunek 2: The Clatronic DR 3280 Steam Cleaner main unit with some accessories neatly stored within its compartment.

Rysunek 3: Kompleksowy view of the Clatronic DR 3280 Steam Cleaner's accessories, including floor brush, extension tubes, nozzles, small brushes, measuring cup, funnel, and cloth covers.

List of Included Accessories:

• Główna jednostka parowa
• Elastyczny wąż parowy
• Floor Brush Attachment
• Nakładka do ściągaczki do okien
• Small Round Brushes (various sizes)
• Point Jet Nozzle
• Miarka
• Lejek
• Extension Tubes (for extended reach)
• Cloth Covers for Floor and Hand Tools

Konfiguracja i montaż

1. Rozpakować: Ostrożnie wyjmij wszystkie elementy z opakowania. Sprawdź, czy nie są uszkodzone.
2. Napełnij zbiornik na wodę: Unscrew the safety cap on the main unit. Use the provided measuring cup and funnel to fill the water tank with a maximum of 1.5 liters of woda destylowana. Do not use tap water to prevent limescale buildup. Screw the safety cap back on securely.
3. Podłącz wąż: Connect the flexible steam hose to the steam outlet on the main unit. Ensure it clicks into place or is firmly secured.
4. Wybierz i zamontuj akcesorium: Choose the appropriate cleaning attachment for your task (e.g., floor brush, point jet nozzle) and connect it to the end of the steam hose or extension tubes.
5. Podłączenie zasilania: Podłącz przewód zasilający do uziemionego gniazdka elektrycznego (230 V, 50 Hz).

Instrukcja obsługi

1. Włączanie i nagrzewanie: Switch on the steam cleaner. The indicator light will illuminate, signaling that the appliance is heating. The heating process typically takes 5 to 10 minutes, depending on the water volume. The indicator light will turn off or change color when the operating temperature and pressure (4 bar) are reached.
2. Wydanie Steam: Before cleaning, direct the steam nozzle into a cloth or bucket for a few seconds to release any condensed water.
3. Rozpocznij czyszczenie: Press the steam trigger on the handle to release steam. For continuous steam, engage the steam lock button if available. Move the attachment slowly over the surface to be cleaned.
4. Korzystanie z załączników:
   • Szczotka podłogowa: Attach the floor brush with a cloth cover for cleaning hard floors.
   • Point Jet Nozzle: Use for targeted cleaning of grout, crevices, and stubborn spots.
   • Small Round Brushes: Ideal for scrubbing small areas, fixtures, and heavily soiled spots.
   • Ściągaczka do okien: For streak-free cleaning of windows, mirrors, and other smooth surfaces.
5. Uzupełnianie wody: If steam production decreases or stops, the water tank may be empty. Always unplug the appliance and allow it to cool down for several minutes before carefully unscrewing the safety cap and refilling with distilled water.
6. Wyłączone: After cleaning, switch off the appliance and unplug it from the power outlet.

Konserwacja i pielęgnacja

Regular maintenance ensures the longevity and optimal performance of your Clatronic DR 3280 Steam Cleaner.

1. Ochłonąć: Always allow the appliance to cool completely before cleaning or storing.
2. Pusty zbiornik na wodę: After each use, carefully empty any remaining water from the tank.
3. Wyczyść załączniki: Wash cloth covers and other removable attachments with warm, soapy water. Rinse thoroughly and allow to air dry.
4. Odkamienianie (jeśli konieczne): If tap water was used despite recommendations, limescale buildup may occur. To descale, fill the tank with a solution of water and white vinegar (1:1 ratio) or a commercial descaling agent. Heat the appliance and release steam until the tank is empty. Rinse thoroughly with distilled water afterwards. Perform this process regularly to prevent severe buildup.
5. Czyszczenie zewnętrzne: Wytrzyj zewnętrzną część jednostki głównej za pomocąamp ściereczka. Nie należy używać środków czyszczących o właściwościach ściernych ani rozpuszczalników.
6. Składowanie: Store the steam cleaner and its accessories in a dry, safe place, out of reach of children.

Rozwiązywanie problemów

If problems persist after attempting these solutions, please contact your retailer or a qualified service technician.

Dane techniczne

Gwarancja i wsparcie

Information regarding specific warranty terms and spare parts availability for the Clatronic DR 3280 is not provided in this manual. For warranty claims, technical support, or inquiries about spare parts, please contact your original retailer or the manufacturer directly. Keep your proof of purchase for any warranty-related services.
