Instrukcja obsługi zegarka męskiego Invicta INVICTA-6051 Venom Reserve

1. Wprowadzenie

This instruction manual provides comprehensive guidance for the proper use, setup, and maintenance of your Invicta Men's INVICTA-6051 Venom Reserve Black Stainless Steel Watch. To ensure optimal performance and longevity, please read this manual thoroughly before operating your watch.

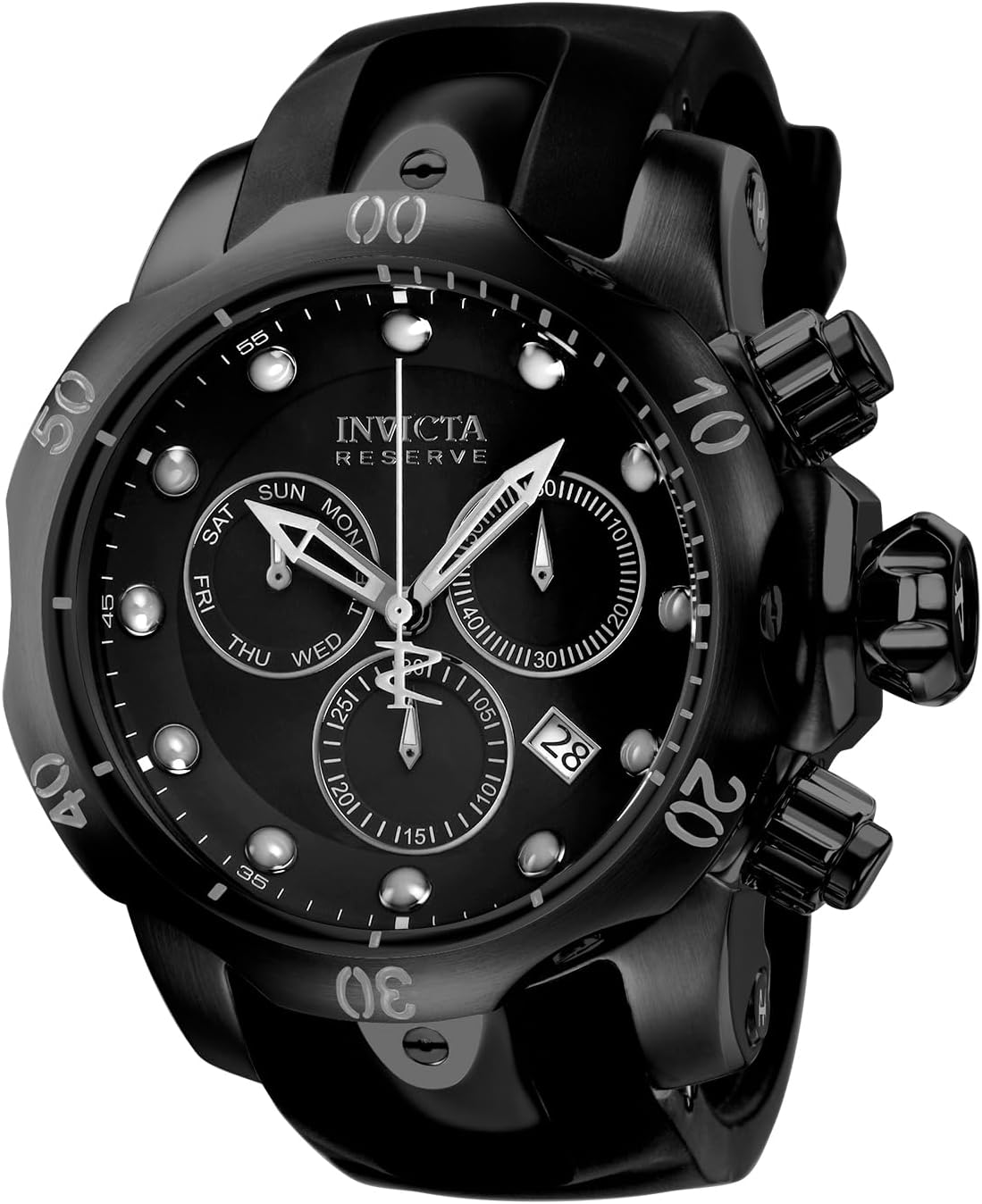

Rycina 1: Przód view of the Invicta INVICTA-6051 Venom Reserve watch, showcasing its black dial, luminous hands, chronograph sub-dials, and uni-directional bezel with minute markers. The watch features a robust black stainless steel case and a black polyurethane band.

2. Koniec komponentówview

Familiarize yourself with the key components of your Invicta INVICTA-6051 Venom Reserve watch:

• Sprawa: Black stainless steel, 53.7mm diameter, 21mm thick.
• Kant: Uni-directional black stainless steel with minute markers (00, 10, 20, 30, 40, 50).
• Korona: Screw-down crown for time and date adjustment, located at the 3 o'clock position.
• Popychacze: Two pushers for chronograph functions, located at the 2 and 4 o'clock positions.
• Kryształ: Flame Fusion crystal, designed for scratch resistance.
• Cyferblat: Black dial with luminous hands and hour markers. Features include:
  • Day of the week sub-dial (at 9 o'clock position, marked SUN, MON, TUE, WED, THU, FRI, SAT).
  • 60-second sub-dial (at 6 o'clock position).
  • 30-minute sub-dial (at 3 o'clock position).
  • Date window (at 4 o'clock position).
• Zespół: Black silicone band, 210mm L x 26mm W, with a buckle clasp.

3. Konfiguracja

3.1 Ustawianie czasu

1. Unscrew the crown by turning it counter-clockwise until it releases.
2. Wyciągnij koronkę do drugiej pozycji kliknięcia.
3. Turn the crown to move the hour and minute hands to the desired time. Ensure the AM/PM is correctly set by observing the day/date change.
4. Wciśnij koronkę z powrotem do pierwszej pozycji kliknięcia.
5. Screw the crown clockwise until it is securely tightened to maintain water resistance.

3.2 Ustawianie daty i dnia

1. Unscrew the crown by turning it counter-clockwise until it releases.
2. Wyciągnij koronkę do pierwszej pozycji kliknięcia.
3. Turn the crown clockwise to adjust the date. Turn the crown counter-clockwise to adjust the day of the week.
4. Once the correct date and day are set, push the crown back in to the first click position.
5. Screw the crown clockwise until it is securely tightened to maintain water resistance.

3.3 Regulacja opaski

The polyurethane band can be adjusted by moving the buckle to the appropriate hole for a comfortable and secure fit. For any complex adjustments or if you require a different band size, it is recommended to consult a professional watch technician.

4. Obsługa funkcji chronografu

Your Invicta INVICTA-6051 Venom Reserve watch features a chronograph for measuring elapsed time. The chronograph is operated using the two pushers on the side of the case.

4.1 Starting, Stopping, and Resetting

1. Start: Press the upper pusher (at 2 o'clock) to start the chronograph. The central second hand and the sub-dials will begin to move.
2. Zatrzymać: Press the upper pusher again to stop the chronograph. The elapsed time will be indicated by the central second hand, the 30-minute sub-dial, and the 60-second sub-dial.
3. Reset: After stopping, press the lower pusher (at 4 o'clock) to reset the chronograph. All chronograph hands will return to their zero positions.

5. Wodoodporność

The Invicta INVICTA-6051 Venom Reserve watch is water resistant to 1000 meters (3300 feet). This rating makes it suitable for all water activities, including professional marine activity and serious surface water sports, but not deep sea diving requiring helium saturation diving.

Ważny: Ensure the crown is always securely screwed down to maintain the watch's water resistance. Do not operate the pushers or crown while the watch is submerged in water.

6. Konserwacja

• Czyszczenie: Regularly wipe your watch with a soft, damp cloth to remove dirt and sweat. For watches exposed to saltwater, rinse with fresh water and dry thoroughly.
• Unikaj substancji chemicznych: Do not expose your watch to harsh chemicals, solvents, or detergents, as these can damage the case, band, and seals.
• Ekstremalne temperatury: Unikaj wystawiania zegarka na działanie ekstremalnych temperatur (wysokiej lub niskiej) lub nagłych zmian temperatury, ponieważ mogą one wpłynąć na jego dokładność i wodoodporność.
• Wymiana baterii: The watch uses an SR936SW battery. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and maintain water resistance.
• Składowanie: Gdy nie używasz zegarka, przechowuj go w chłodnym i suchym miejscu, z dala od bezpośredniego światła słonecznego i silnych pól magnetycznych.

7. Rozwiązywanie Problemów

• Uważaj, żeby nie biegać: If the watch stops running, the battery may need replacement. Contact a professional watch technician.
• Nieprawidłowa godzina/data: Refer to Section 3, "Setup," to correctly set the time and date. Ensure the crown is fully screwed down after adjustment.
• Woda w zegarku: If you notice condensation or water inside the watch, immediately take it to a professional watch technician. This indicates a breach in water resistance.

8. Specyfikacje

• Numer modelu: INVICTA-6051
• Ruch: Swiss quartz movement, Z60 Caliber
• Materiał obudowy: Czarna stal nierdzewna
• Średnica koperty: 53.7mm
• Grubość obudowy: 21mm
• Kryształ: Fuzja płomieni
• Materiał paska: Poliuretan
• Długość paska: 210mm
• Przepustowość łącza: 26mm
• Wodoodporność: 1000 metrów (3300 stóp)
• Bateria: 1 LR44 (w zestawie)
• Funkcje: Chronograph (30min, 60sec, 1/10th sec sub-dials), Day, Date

9. Gwarancja i wsparcie

Invicta watches typically come with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. For technical support, service, or warranty claims, please visit the official Invicta webstronie lub skontaktuj się z działem obsługi klienta.
