Wstęp
This instruction manual provides important information regarding the installation, operation, and maintenance of your Keuco Plan Toilet Brush Set, Model 14972170200. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Retain this manual for future reference.
Informacje dotyczące bezpieczeństwa
- Przed montażem należy upewnić się, że wszystkie elementy są obecne i nieuszkodzone.
- Do montażu użyj odpowiednich narzędzi.
- Mount the product securely to a suitable wall surface to prevent injury or damage.
- Keep cleaning agents and the brush head out of reach of children.
- Do not use abrasive cleaners on the aluminum surfaces.
Zawartość opakowania
Sprawdź, czy w pakiecie znajdują się wszystkie poniższe elementy:
- Toilet brush holder (silver-anodised aluminum)
- Removable plastic insert
- Black toilet brush with handle
- Zapasowa główka szczoteczki
- Corrosion-free fastening material (screws, wall plugs)

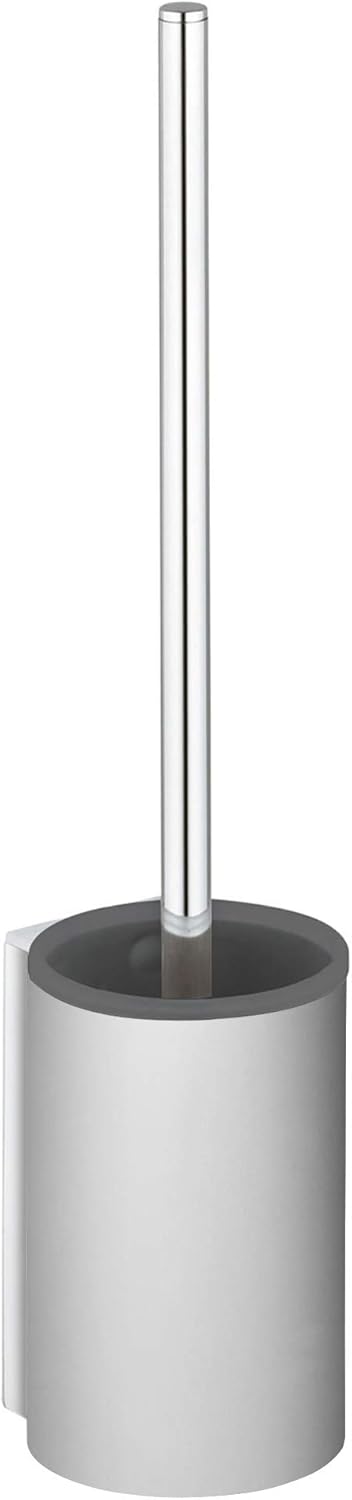

Image: The Keuco Plan Toilet Brush Set, showing the silver-anodised aluminum holder and the black brush.
Konfiguracja i instalacja
The Keuco Plan Toilet Brush Set is designed for wall mounting. Follow these steps for secure installation:
- Wybierz lokacje: Select a suitable wall location near the toilet, ensuring sufficient space for use and cleaning.
- Zaznacz punkty wiercenia: Use the provided fastening material or the product's mounting plate as a template. Mark the two drilling points on the wall. Refer to the dimension diagram for precise measurements.
- Wiercenie otworów: Drill two holes at the marked points using an appropriate drill bit for your wall type. Insert the wall plugs into the drilled holes.
- Uchwyt montażowy: Align the toilet brush holder with the drilled holes and secure it to the wall using the provided screws. Ensure it is firmly attached and level.
- Insert Plastic Liner: Place the removable plastic insert into the aluminum holder.
- Place Brush: Insert the black toilet brush into the plastic liner within the holder.
Image: Technical drawing illustrating the dimensions and mounting points for the toilet brush holder. The holder has a height of 135mm and a diameter of 90mm. The wall plate has a width of 95mm. The total height with the brush is 400mm. The mounting points are 35mm apart horizontally and 120mm from the bottom of the holder to the top mounting point.
Instrukcja obsługi
To use the Keuco Plan Toilet Brush Set:
- Wyjmij szczotkę toaletową z uchwytu.
- Clean the toilet bowl as needed.
- Po użyciu pozwól, aby nadmiar wody spłynął ze szczotki do muszli klozetowej.
- Return the brush to its holder. The plastic insert is designed to collect any remaining drips.
Konserwacja
Regular cleaning and maintenance will ensure the hygiene and appearance of your toilet brush set.
- Czyszczenie uchwytu: The removable plastic insert can be easily lifted out for cleaning. Wash it with warm soapy water and disinfect as necessary. Rinse thoroughly and dry before returning it to the aluminum holder.
- Czyszczenie powierzchni zewnętrznej: Wipe the silver-anodised aluminum holder with a soft, damp ściereczką. Nie używaj środków czyszczących o działaniu ściernym, gąbek ściernych ani silnych środków chemicznych, ponieważ mogą one uszkodzić wykończenie.
- Wymiana główki szczoteczki: The brush head is designed to be replaceable. Unscrew the old brush head from the handle and screw on the spare brush head provided. Dispose of the old brush head responsibly.
Rozwiązywanie problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Uchwyt wydaje się luźny na ścianie. | Screws are not tightened sufficiently or wall plugs are not secure. | Tighten the mounting screws. If the problem persists, check the wall plugs and wall integrity. |
| Brush head appears worn or ineffective. | Normalne zużycie. | Replace the brush head with the spare provided or purchase a new compatible brush head. |
| Unpleasant odor from the holder. | Plastic insert requires cleaning. | Remove and thoroughly clean and disinfect the plastic insert. Ensure it is dry before reinserting. |
Specyfikacje
- Marka: Keuco
- Model: 14972170200
- Tworzywo: Silver-anodised Aluminum (holder), Plastic (insert, brush handle, brush head)
- Kolor: Silver (holder), Black (brush)
- Holder Dimensions (approx.): Height 135 mm, Diameter 90 mm
- Wall Plate Width (approx.): 95 mm
- Total Height (with brush, approx.): 400 mm
- Waga przedmiotu: 620 gramów (ok. 1.37 funtów)
- Metoda instalacji: Naścienny
- Dodatek specjalny: Removable plastic insert, Replaceable brush head
Gwarancja i wsparcie
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Keuco products are known for their quality and durability. For technical support or inquiries regarding replacement parts, please contact Keuco customer service or your authorized dealer.
You can often find contact information on the official Keuco webna stronie internetowej lub za pośrednictwem pierwotnego punktu zakupu.
