Cobra CPI 1575 1500W Power Inverter User Manual

1. Wprowadzenie

The Cobra CPI 1575 Power Inverter converts 12 Volt DC battery power into 120 Volt AC household power. This unit is designed to power a variety of electronic devices and small appliances from your vehicle, including laptops, TV sets, video games, CD/DVD players, and cellular phone chargers. It provides 1500 Watts of continuous power and up to 3000 Watts of peak power.

2. Ważne informacje dotyczące bezpieczeństwa

OSTRZEŻENIE: Ten produkt może narazić Cię na działanie substancji chemicznych, w tym ołowiu, o którym w stanie Kalifornia wiadomo, że powoduje raka i wady wrodzone lub inne uszkodzenia układu rozrodczego. Aby uzyskać więcej informacji, przejdź do www.P65Warnings.ca.gov.

• Przed przystąpieniem do obsługi falownika należy przeczytać wszystkie instrukcje.
• Nie otwierać falownika casing. Wewnątrz nie ma żadnych części nadających się do samodzielnej naprawy przez użytkownika.
• Ensure adequate ventilation around the inverter. The outer case may become hot under extended use.
• Falownik należy podłączać wyłącznie do źródła zasilania prądem stałym o napięciu 12 V.
• Always install appropriate fusing as close to the battery as possible to protect the electrical system.
• Ensure proper grounding of the inverter to prevent electrical hazards.

Zastrzeżenie prawne: Except as expressly set forth in the description, the seller makes no express or implied warranties of any kind whatsoever about this merchandise. The seller is not responsible for consequential, incidental, or punitive damages of any kind. The seller's liability is limited to the amount paid by the buyer, including shipping and handling charges.

3. Funkcje produktu

• Moc ciągła 1500 watów: Provides stable power for various devices.
• Moc szczytowa 3000 watów: Handles temporary power surges for starting certain appliances.
• 3 Grounded AC Outlets: Allows connection of multiple household appliances.
• Port USB: Do ładowania urządzeń zasilanych przez USB, takich jak smartfony i tablety.
• Volt/Watt Meter: Digital display to monitor input voltage and output power consumption.
• Możliwość zdalnego włączania/wyłączania: Allows for convenient control from a distance.
• Piórotagon Protection: Five levels of protection against common failures: thermal shutdown, reverse polarity protection, over-voltage shutdown, low voltage shutdown, and low voltagalarm.

4. Konfiguracja i instalacja

Proper installation is crucial for the safe and efficient operation of your Cobra CPI 1575 power inverter.

4.1 Zagadnienia dotyczące okablowania

• Przekrój drutu: For optimal performance and to minimize voltage drop, use heavy gauge wiring. For typical installations, #4 AWG wire is a minimum, and #2 AWG or thicker is recommended, especially for runs exceeding 10-15 feet.
• Utrwalanie: 150 Amp ANL fuse is required for this 1500W inverter. Install the fuse as close to the battery as possible (ideally within 3 feet) to protect your vehicle's electrical system in case of a short circuit.
• Grunt: Ensure the inverter is properly grounded. Firmly install the ground wire to the grounding screw on your 110V system. An improperly installed ground can lead to battery drain even when the inverter is off.

4.2 Podłączanie falownika

1. Locate a suitable mounting position for the inverter, ensuring good ventilation and away from direct heat or moisture.
2. Connect the positive (+) cable (red) from the inverter's positive terminal to the positive terminal of your 12V battery, passing through the inline fuse.
3. Connect the negative (-) cable (black) from the inverter's negative terminal to the negative terminal of your 12V battery or a suitable chassis ground point.
4. Sprawdź, czy wszystkie połączenia są dobrze dokręcone i bezpieczne.

Rysunek 1: Tył view of the Cobra CPI 1575 Power Inverter, illustrating the DC input terminals (red for positive, black for negative) and cooling fans. Ensure secure connections for optimal performance.

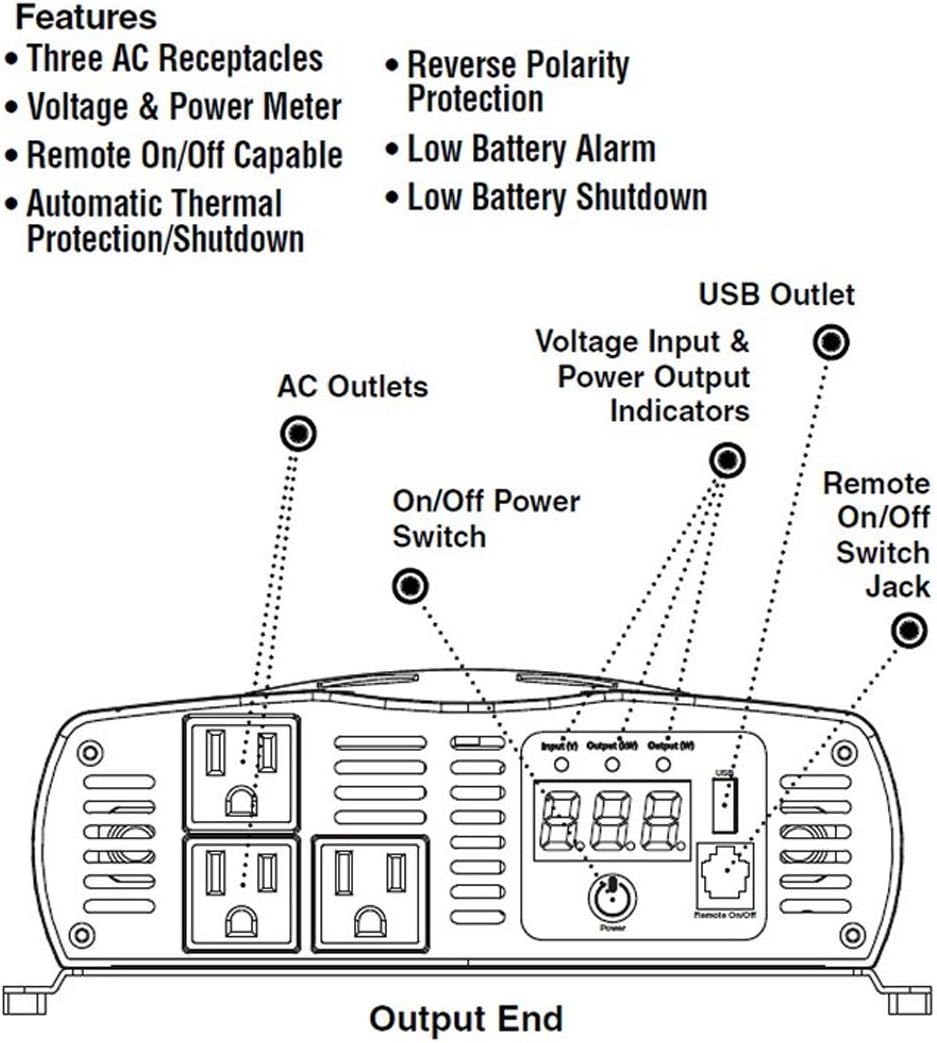

Rysunek 2: Diagram of the Cobra CPI 1575 Power Inverter's output end, highlighting the three AC outlets, USB port, On/Off power switch, voltage and power output indicators, and the remote On/Off switch jack.

5. Instrukcja obsługi

Follow these steps to operate your Cobra CPI 1575 power inverter safely and effectively.

5.1 Włączanie/wyłączanie

1. After ensuring all connections are secure, press the Power button on the inverter to turn it on. The digital display will illuminate, showing the input voltage i moc wyjściowatage.
2. To turn off the inverter, press the Power button again.
3. If using the remote On/Off capability, connect the remote switch to the designated jack and use it to control the inverter's power state.

5.2 Podłączanie urządzeń

• Plug your 120V AC appliances into the three grounded AC outlets. Ensure the total wattage of connected devices does not exceed 1500 Watts continuously.
• Connect USB-powered devices to the USB port for charging.
• Monitor the Volt/Watt meter to keep track of the input voltage and the power consumption of your connected devices.

Rysunek 3: Przód view of the Cobra CPI 1575 Power Inverter, featuring three AC outlets, a USB charging port, and a digital display for monitoring input voltage i moc wyjściowatage.

Rysunek 4: Close-up of the digital display and control panel on the Cobra CPI 1575, showing the input voltage (V), output in kilowatts (kW), output in watts (W) indicators, the USB port, power button, and remote On/Off port.

6. Konserwacja

To ensure the longevity and optimal performance of your Cobra CPI 1575 power inverter, follow these maintenance guidelines:

• Zachowaj czystosc: Regularnie przecieraj zewnętrzną część falownika suchą, miękką ściereczką. Nie używaj płynnych środków czyszczących ani rozpuszczalników.
• Zapewnij wentylację: Periodically check that the cooling fans and ventilation openings are free from dust, dirt, or obstructions. Blocked vents can lead to overheating and thermal shutdown.
• Sprawdź połączenia: Ensure all DC input cable connections remain tight and free from corrosion. Loose connections can cause power loss or overheating.
• Składowanie: Jeśli falownik nie będzie używany przez dłuższy czas, należy go przechowywać w chłodnym i suchym miejscu, odłączając go od akumulatora.

7. Rozwiązywanie Problemów

The Cobra CPI 1575 features Pentagon Protection to safeguard against common issues. If you encounter problems, refer to the following:

7.1 Typowe problemy i rozwiązania

• Falownik się nie włącza:
  • Check DC input connections for tightness and proper polarity.
  • Verify the 12V battery has sufficient charge (above 12.1V).
  • Check the inline fuse for continuity. Replace if blown.
• Niska objętośćtage Alarm/Wyłączenie: The inverter will sound an alarm and eventually shut down if the input voltage drops too low (e.g., below 10.5V). This protects your battery from deep discharge.
  • Naładuj lub wymień akumulator 12 V.
  • Ensure the vehicle engine is running to provide charging voltage if using the vehicle battery.
  • Verify wire gauge is adequate for the load and distance to prevent excessive voltagkropla.
• Wyłączenie termiczne: If the inverter overheats, it will shut down to prevent damage.
  • Zmniejsz obciążenie falownika.
  • Ensure adequate ventilation around the unit; clear any obstructions from the cooling fans.
  • Przed ponownym uruchomieniem należy odczekać, aż falownik ostygnie.
• Over-voltage Wyłączenie: The inverter will shut down if the input voltage exceeds a safe limit (e.g., above 15V).
  • Check the charging system of your vehicle or power source.
• Ochrona przed odwrotną polaryzacją: This feature prevents damage if the positive and negative input cables are accidentally reversed. Correct the wiring immediately.
• Unexpected Voltage Upuść: If the inverter shows a significant voltage drop with a light load, re-check your grounding wire. An improperly secured ground can cause erratic voltage readings and battery drain.

8. Specyfikacje

9. Gwarancja i wsparcie

For warranty information or technical support, please refer to the documentation included with your purchase or contact Cobra Electronics directly. Keep your proof of purchase for any warranty claims.

Notatka: The manufacturer's liability is limited to the amount paid by the buyer for the product. Any express or implied warranties are as stated in the product description, and the manufacturer is not responsible for consequential, incidental, or punitive damages.

For further assistance, visit the official Cobra Electronics webstronie lub skontaktuj się z działem obsługi klienta.
