1. Wprowadzenie
This manual provides essential information for the proper installation, operation, and maintenance of your Standard Motor Products DS-122 Wiper Switch. Please read these instructions thoroughly before attempting any installation or operation to ensure safety and optimal performance of the product. Retain this manual for future reference.
2. Koniec produktuview
The Standard Motor Products DS-122 is a high-quality replacement wiper switch designed for automotive applications. It controls the various functions of your vehicle's windshield wipers, including speed settings and washer fluid activation. This switch is engineered to meet or exceed original equipment specifications, ensuring reliable performance.

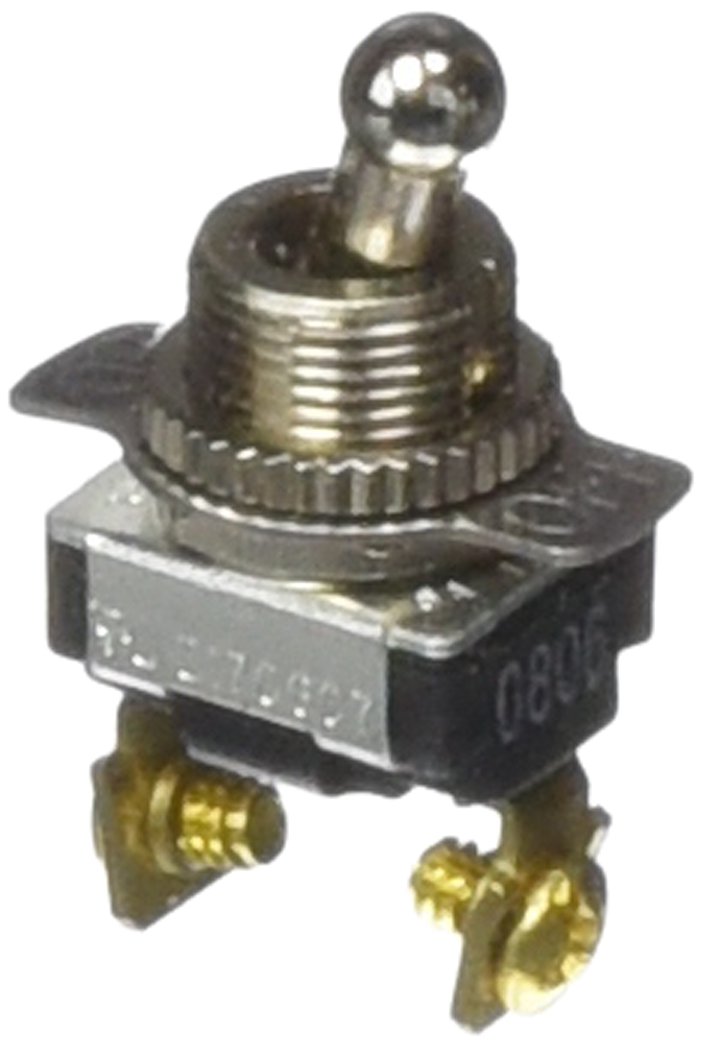

Image 1: Standard Motor Products DS-122 Wiper Switch. This image displays the front view of the wiper switch, highlighting its design and connector points.
Główne cechy:
- Direct replacement for original equipment.
- Trwała konstrukcja zapewniająca długotrwałą wydajność.
- Precise control over wiper functions.
3. Konfiguracja i instalacja
Safety Warning: Disconnect the vehicle's battery before beginning any electrical work to prevent electrical shock or damage to the vehicle's electrical system.
- Przygotowanie: Ensure the vehicle is turned off and the parking brake is engaged. Locate the existing wiper switch in your vehicle. Consult your vehicle's service manual for specific instructions on accessing and removing the old switch.
- Removal of Old Switch: Carefully disconnect any electrical connectors from the old wiper switch. Remove any mounting screws or clips securing the switch. Gently pull the old switch out of its housing.
- Instalacja nowego przełącznika: Align the Standard Motor Products DS-122 Wiper Switch with the mounting points in the vehicle's dashboard or steering column. Secure the new switch with the appropriate screws or clips.
- Połączenie: Reconnect all electrical connectors to the new DS-122 Wiper Switch. Ensure connections are secure and properly seated.
- Testowanie: Reconnect the vehicle's battery. Turn the ignition to the 'ON' position (without starting the engine) and test all wiper functions (intermittent, low, high, washer fluid) to ensure proper operation.
- Montaż końcowy: Reassemble any dashboard panels or covers that were removed during the installation process.
Jeśli masz wątpliwości co do któregokolwiek kroku, zaleca się zwrócenie się o pomoc do wykwalifikowanego mechanika samochodowego.
4. Instrukcja obsługi
The DS-122 Wiper Switch provides control over your vehicle's windshield wiper system. The specific functions and their activation methods may vary slightly depending on your vehicle's design, but generally include:
- OFF: Wipers are inactive.
- INTERMITTENT (INT): Wipers operate with a delay between sweeps. This setting is often adjustable via a separate ring or lever on the switch stalk.
- LOW (LO): Wipers operate at a continuous slow speed.
- HIGH (HI): Wipers operate at a continuous fast speed.
- WASHER FLUID: Typically activated by pushing the stalk inward or pulling it towards you. This sprays washer fluid onto the windshield and activates the wipers for a few sweeps.
Refer to your vehicle's owner's manual for detailed instructions on how to use your specific wiper system controls.
5. Konserwacja
The Standard Motor Products DS-122 Wiper Switch is designed for long-term reliability and typically requires no routine maintenance. However, to ensure its longevity and proper function:
- Keep the switch and surrounding area clean and free from dust and debris.
- Avoid spilling liquids on the switch.
- Do not apply excessive force when operating the switch.
If you notice any unusual resistance or difficulty in operating the switch, do not attempt to force it. Consult a qualified technician.
6. Rozwiązywanie Problemów
If you experience issues with your wiper system after installing the DS-122 Wiper Switch, consider the following:
- Wipers not working: Check the vehicle's fuse box for a blown wiper fuse. Ensure all electrical connectors to the switch are securely attached. Verify the wiper motor is functioning correctly.
- Incorrect wiper speed: Recheck connections. Ensure the switch is fully engaging in each position.
- Washer fluid not spraying: Check the washer fluid reservoir level. Inspect the washer pump and nozzles for blockages or malfunctions.
For persistent issues, it is recommended to consult a professional automotive technician for diagnosis and repair.
7. Specyfikacje
| Specyfikacja | Szczegół |
|---|---|
| Numer modelu | DS-122 |
| Marka | Standardowe produkty silnikowe |
| Tryb działania | Silnik |
| Typ złącza | Szybkie połączenie |
| Typ terminala | Szybkie połączenie |
| Typ przełącznika | Dźwignia kolankowa |
| Typ montażu | Przykręcany |
| Metoda kontroli | Dotykać |
| Wymiary produktu (dł. x szer. x wys.) | 6 x 5 x 7 cala |
| Waga przedmiotu | 1.6 uncji |
| Rezystancja izolacji | 100 megaomów |
| Międzynarodowa Ocena Ochrony | IP00 |
| Kolor | Mieszany |
| Liczba jednostek | 1.0 Liczba |
| UPC | 091769005542 |
8. Gwarancja i wsparcie
For information regarding warranty coverage and customer support for your Standard Motor Products DS-122 Wiper Switch, please refer to the documentation provided with your purchase or visit the official Standard Motor Products website. You may also contact their customer service directly for assistance with product inquiries or technical support.
Producent: Standardowe produkty silnikowe
Webstrona: www.smpcorp.com (Byłyamplink, proszę sprawdzić oficjalny webteren)
