1. Wprowadzenie
This manual provides essential information for the proper installation, operation, and maintenance of your Standard Motor Products S688 Pigtail/Socket. Please read these instructions carefully before beginning any work to ensure safe and correct usage.
2. Koniec produktuview
The Standard Motor Products S688 is an automotive electrical connector, commonly referred to as a pigtail or socket. It is designed to provide a secure and reliable electrical connection for various automotive components. This unit typically includes the connector housing and pre-attached wires, facilitating repair or replacement of damaged or worn original equipment connectors.

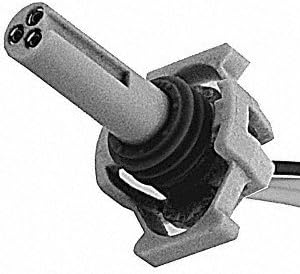

Rysunek 1: Zbliżenie view of the Standard Motor Products S688 Pigtail/Socket, showing the connector housing and the wire terminals.
3. Konfiguracja i instalacja
Proper installation is crucial for the performance and longevity of the S688 Pigtail/Socket. Always ensure the vehicle's battery is disconnected before performing any electrical work.
- Bezpieczeństwo przede wszystkim: Disconnect the negative terminal of the vehicle's battery to prevent accidental short circuits or electrical shock.
- Identyfikacja przewodów: Carefully identify the corresponding wires on the vehicle's harness and the S688 pigtail. Note wire colors and their functions.
- Przygotuj połączenia: Cut and strip the wires from the vehicle's harness and the S688 pigtail to the appropriate length. Ensure clean, unfrayed wire ends.
- Podłącz przewody: Use appropriate electrical connectors (e.g., crimp connectors, solder and heat shrink) to join the pigtail wires to the vehicle's harness wires. Ensure each connection is secure and insulated.
- Bezpieczne połączenie: Once all wires are connected, ensure the pigtail is securely fastened and protected from abrasion, heat, and moisture. Use cable ties or loom if necessary.
- Funkcjonalność testu: Reconnect the vehicle's battery and test the functionality of the component connected to the new pigtail/socket.
If you are unsure about any step, it is recommended to consult a qualified automotive technician.
4. Użytkowanie
Once correctly installed, the S688 Pigtail/Socket functions as a direct replacement or repair for the original electrical connector. It facilitates the flow of electrical current to the connected component, ensuring its proper operation. No specific user interaction is required beyond ensuring the connection remains secure and free from damage.
5. Konserwacja
The Standard Motor Products S688 Pigtail/Socket is designed for durability and minimal maintenance. However, periodic inspection can help ensure its continued reliability.
- Kontrola wizualna: Periodically check the connector and wires for any signs of wear, corrosion, fraying, or damage.
- Czystość: Keep the connector free from dirt, moisture, and debris. Use a non-conductive electrical contact cleaner if necessary.
- Bezpieczne dopasowanie: Ensure the connector remains firmly seated and that the wires are not under undue tension or stress.
6. Rozwiązywanie Problemów
If the component connected to the S688 Pigtail/Socket is not functioning correctly, consider the following troubleshooting steps:
- Sprawdź połączenia: Verify that all wire connections are secure and properly insulated.
- Sprawdź, czy nie ma uszkodzeń: Look for any visible damage to the pigtail, such as cut wires, melted plastic, or corroded terminals.
- Ciągłość testu: Use a multimeter to test for electrical continuity through the pigtail and its connections.
- Sprawdź zasilanie: Upewnij się, że prawidłowa objętośćtage and ground are present at the pigtail's terminals when the system is active.
- Awaria komponentu: If the pigtail and its connections are confirmed to be good, the issue may lie with the component itself or other parts of the vehicle's electrical system.
7. Specyfikacje
| Specyfikacja | Szczegół |
|---|---|
| Marka | Standardowe produkty silnikowe |
| Numer modelu | S688 |
| Numer części producenta | S688 |
| Waga przedmiotu | 0.4 uncji |
| Wymiary opakowania | 5.91 x 3.62 x 1.94 cala |
| ASIN | B000C81PS6 |
| Data pierwszej dostępności | 26 września 2006 r. |
8. Gwarancja i wsparcie
Warranty information for the Standard Motor Products S688 Pigtail/Socket is typically provided by the manufacturer or the point of purchase. Please refer to the documentation included with your product or contact Standard Motor Products directly for specific warranty terms and conditions.
For technical support or further assistance, please contact Standard Motor Products customer service or visit their official website. When contacting support, please have your product model number (S688) and purchase details readily available.
