MIZUDO 199K Tankless Water Heater Instruction Manual

1. Informacje dotyczące bezpieczeństwa

Przed instalacją i uruchomieniem należy uważnie przeczytać wszystkie instrukcje. Nieprzestrzeganie tych instrukcji może spowodować uszkodzenie mienia, obrażenia ciała lub śmierć. Zachowaj tę instrukcję do wykorzystania w przyszłości.

Ogólne wytyczne bezpieczeństwa

• Instalację i serwisowanie musi wykonywać wykwalifikowany instalator lub firma serwisowa.
• Należy zapewnić odpowiednią wentylację, zgodnie ze wskazówkami zawartymi w instrukcji instalacji.
• Nie przechowuj ani nie używaj benzyny ani innych łatwopalnych oparów i cieczy w pobliżu tego i jakiegokolwiek innego urządzenia.
• Verify that the gas supply matches the appliance's requirements (Natural Gas).
• Maintain clear access to the appliance for servicing.

Zintegrowane mechanizmy bezpieczeństwa

The MIZUDO 199K Tankless Water Heater is equipped with over 16 integrated safety mechanisms to ensure reliable and safe operation. These include:

• Freeze Protection (operational down to -13°F)
• Anti-dry Firing Protection
• Wykrywanie awarii płomienia
• Exhaust Blockage Monitoring
• Automatic Shutdown Systems
• Over-Pressure Protection
• Current Stabilization
• Zapobieganie przegrzaniu
• CPU Self-Check

Obraz: Ponadview of the 2+10 Safety Protection features, including flameout, ignition failure, flame overflow, grounding, power-outage memory, dry-fire prevention, over-pressure protection, current stabilization, overheat prevention, and CPU self-check.

2. Koniec produktuview

The MIZUDO 199K Tankless Water Heater provides on-demand hot water for residential use. This indoor, direct vent unit is designed for high efficiency and consistent performance, capable of supplying hot water to multiple fixtures simultaneously.

Główne cechy

• Duża pojemność: Max 10.3 GPM flow rate, suitable for 5-7 fixtures.
• Wydajne ogrzewanie: 199,000 BTU for instant hot water.
• Precyzyjna kontrola temperatury: Maintains water temperature within ±1°F accuracy using 6-stage gas modulation.
• Inteligentne sterowanie: WiFi and mobile application for remote management.
• Sealed Direct Vent System: Draws external air for combustion, preserving indoor air quality.
• Kompaktowa konstrukcja: Space-saving dimensions (24.8" x 15.9" x 10.4").
• Trwała konstrukcja: Phosphorous-deoxidized copper heat exchanger and stainless steel combustion chamber.

Image: The MIZUDO 199K Tankless Water Heater unit, showcasinze względu na kompaktową konstrukcję.

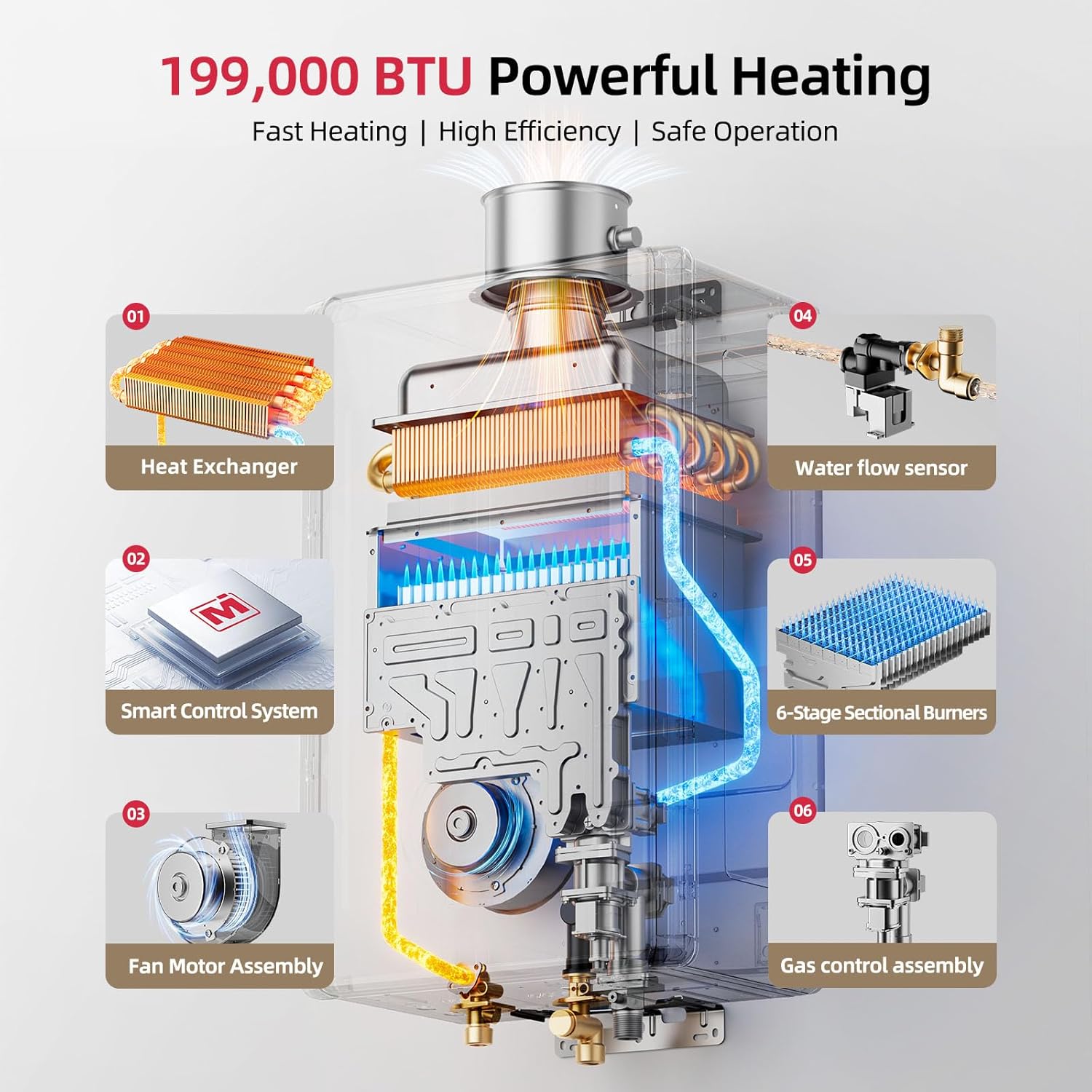

Image: Diagram illustrating the internal components, including the heat exchanger, smart control system, fan motor assembly, water flow sensor, 6-stage sectional burners, and gas control assembly.

3. Instalacja

Proper installation is crucial for the safe and efficient operation of your tankless water heater. This unit is designed for indoor, wall-mounted installation with a direct vent system. Consult a qualified professional for installation.

Zagadnienia przed instalacją

• Lokalizacja: Choose a location that allows for proper venting, access for maintenance, and protection from freezing temperatures.
• Wentylacja: The sealed direct vent system requires specific venting components to draw external air for combustion and exhaust flue gases.
• Media: Ensure access to a natural gas supply, 120V 60Hz electrical power, and 3/4" NPT water connections (hot water outlet, cold water inlet).
• Montowanie: The unit is designed for wall mounting. Ensure the wall structure can support the unit's weight (approximately 50 lbs).

Image: Installation diagram showing direct vent and chimney vent options, flexible adjustable brackets, and connection points for hot water outlet, cold water inlet, gas supply, and 120V power.

Punkty połączenia

• Wylot ciepłej wody: 3/4" NPT
• Wlot zimnej wody: 3/4" NPT
• Dostawa gazu: 3/4" NPT (Natural Gas)
• Elektryczna: 120 V 60 Hz

Image: The MIZUDO water heater with clearly labeled 3/4" NPT hot water outlet, 3/4" NPT cold water inlet, 3/4" NPT gas supply, and 120V 60Hz electrical connection. Also shows QR codes for app connection.

4. Działanie

The MIZUDO 199K Tankless Water Heater is designed for user-friendly operation, offering precise temperature control and smart connectivity.

Kontrola temperatury

The unit features advanced 6-stage gas modulation technology to maintain water temperature within ±1°F of your set point, preventing sudden temperature fluctuations. The adjustable temperature range is 95°F to 149°F.

Image: A graph illustrating the MIZUDO water heater's ability to maintain a stable water temperature within ±1°F, compared to a traditional product with wider temperature variations.

Image: Diagram explaining the 6-stage heating precision, from instant start to whole-home peak demand, ensuring precise flame control and stable water temperature.

Smart WiFi and App Control

Manage your water heater remotely using the dedicated mobile application. Connect your device to WiFi to access features such as:

• Zmiana ustawień temperatury.
• Creating custom schedules.
• Receiving maintenance alerts and error codes.
• Tracking energy usage.
• Switching operation modes.
• Checking real-time activity logs.

Image: A smartphone displaying the MIZUDO app interface, showing options to adjust temperature, view consumption reports, and manage settings remotely. Download the app from a.smart321.com/fogattiandroidletsmart.

5. Konserwacja

Regular maintenance ensures the longevity and optimal performance of your MIZUDO tankless water heater. While the unit is designed for minimal maintenance, periodic checks are recommended.

Rutynowe kontrole

• Kontrola wizualna: Periodically inspect the unit for any signs of leaks, corrosion, or damage.
• System wentylacyjny: Ensure the direct vent system is clear of obstructions and properly sealed.
• Jakość wody: In areas with hard water, consider periodic descaling of the heat exchanger. Consult a professional for this service.
• Ochrona przed zamarzaniem: The unit has built-in freeze protection (down to -13°F) with a 100W heating element. Ensure continuous power supply for this feature to function.

Image: The MIZUDO water heater in a winter setting, highlighting its advanced anti-freeze protection, including all-around protection, 100W heating upgrade, and -13°F cold resistance. Continuous power supply is required for full functionality.

6. Rozwiązywanie Problemów

If you encounter issues with your MIZUDO tankless water heater, refer to the following general troubleshooting steps. For detailed diagnostics and solutions, consult the full user manual or contact customer support.

Typowe problemy i rozwiązania

• Nie gorąca woda:
  • Check if the unit has power and the gas supply is open.
  • Ensure water flow is sufficient to activate the heater.
  • Verify temperature settings on the unit or via the app.
• Wahania temperatury wody:
  • Confirm that the cold water inlet temperature is within the operational range.
  • Sprawdź, czy przepływ i ciśnienie wody są prawidłowe.
• Kody błędów:
  • Refer to the mobile application for specific error code explanations and recommended actions.
  • Consult the comprehensive manual for a complete list of error codes.
• Niski przepływ ciepłej wody:
  • Check for sediment buildup in water filters or aerators.
  • Ensure adequate water pressure to the unit.

If problems persist, contact MIZUDO customer support or a qualified service technician.

7. Specyfikacje

Detailed technical specifications for the MIZUDO 199K Tankless Water Heater.

Image: The MIZUDO water heater with its dimensions (24.8" H x 15.9" W x 10.4" D) shown, illustrating its compact, space-saving design.

Image: A map of North America showing ground water temperatures and a chart indicating the approximate GPM and number of fixtures supported based on inlet water temperature and BTU output.

8. Gwarancja i pomoc techniczna

MIZUDO is committed to product quality and customer satisfaction. Your tankless water heater is backed by comprehensive warranty coverage.

Zakres gwarancji

• Pełna gwarancja na jednostkę: 2 lata od daty zakupu.
• Zasięg wymiennika ciepła: 5 lata od daty zakupu.

This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.

Obsługa klienta

For technical assistance, troubleshooting, warranty claims, or general inquiries, please contact MIZUDO customer support. Refer to the contact information provided in the packaging or on the official MIZUDO webstrona.

You can also visit the official MIZUDO store on Amazon for more product information and support resources: MIZUDO Store.
