Sweetcrispy 2-Drawer Rolling File Szafka (biała)

1. Koniec produktuview

The Sweetcrispy 2-Drawer Rolling File Cabinet is designed for organizing documents and office supplies in home or office environments. It features two spacious drawers, 360-degree swivel lockable wheels for mobility, and adjustable hanging rails to accommodate various file sizes. The cabinet is constructed from durable wood board, offering stability and a modern aesthetic.

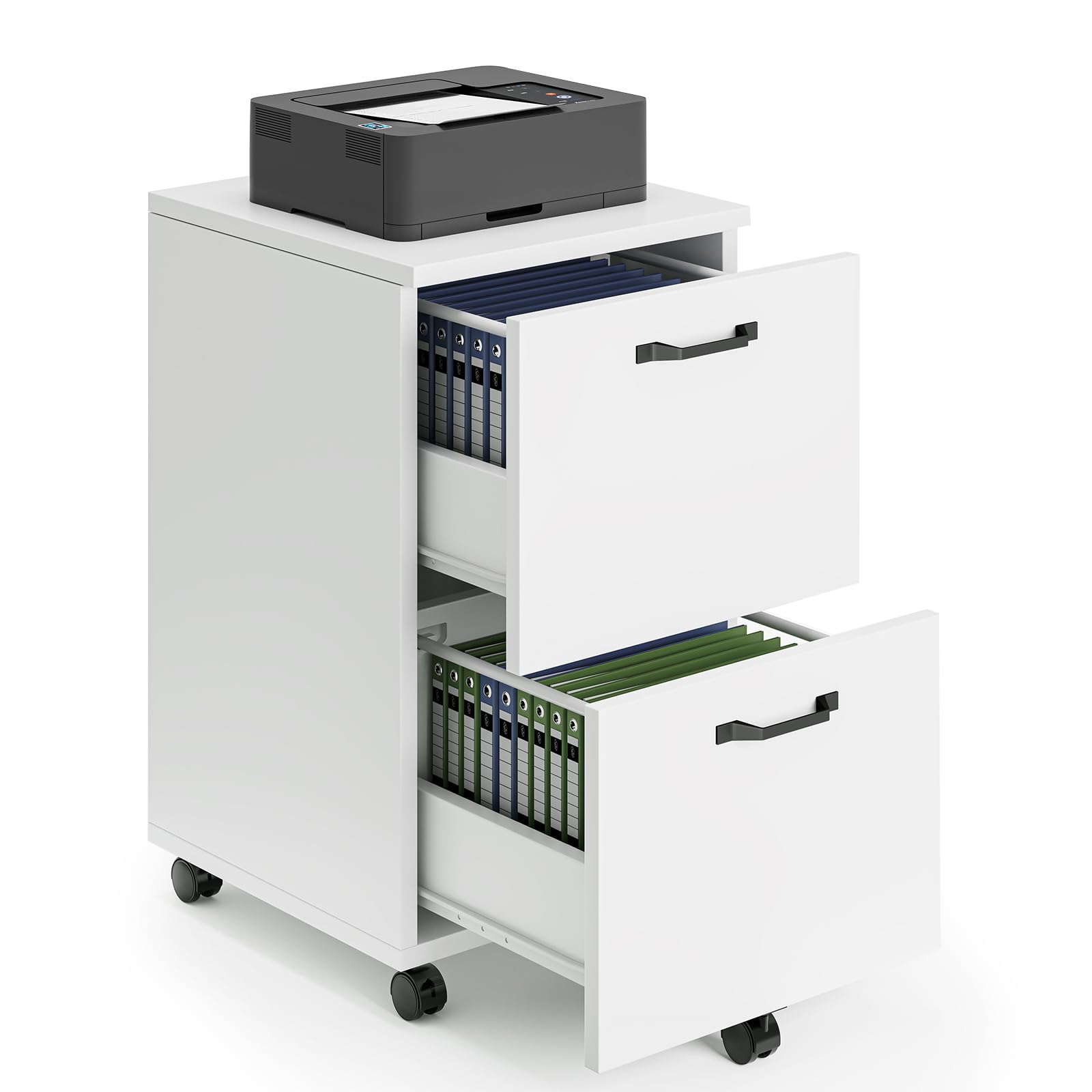

Image 1.1: Sweetcrispy 2-Drawer Rolling File Cabinet (White).

2. Informacje dotyczące bezpieczeństwa

• Always lock the wheels when using the cabinet to prevent unwanted movement.
• Be cautious when adjusting hanging rails to avoid pinch points.
• Podczas montażu należy upewnić się, że wszystkie śruby i elementy mocujące są mocno dokręcone, a także okresowo sprawdzać, czy nie ma luzów.
• Do not overload drawers beyond the maximum weight capacity to prevent tipping or damage.
• Aby uniknąć ryzyka zadławienia, podczas montażu małe części należy trzymać z dala od dzieci.

3. Wymiary produktu

The cabinet features the following dimensions:

• Overall Dimensions (D x W x H): 15.7 inches x 16.5 inches x 27.6 inches (40cm x 42cm x 70cm)
• Drawer Dimensions (L x W x H): 14.2 inches x 13.2 inches x 10.9 inches
• Maksymalna nośność: 22 funtów

Image 3.1: Product dimensions for the Sweetcrispy 2-Drawer Rolling File Gabinet.

4. Instrukcja montażu

This product requires assembly. Please follow the steps carefully. A screwdriver is required (not included). The assembly video below demonstrates the process using a black cabinet, but the steps are identical for the white model.

Instrukcja montażu krok po kroku:

1. Przygotuj komponenty: Unpack all parts and identify them using the included parts list. Ensure all hardware is present.
2. Attach Drawer Slides to Panels: Secure the drawer slide rails to the designated side panels and the bottom/top panels using screws. Pay close attention to the screw locations as indicated in the video.
3. Złóż główną ramę szafki: Connect the side panels to the bottom panel using wooden dowels and screws. Ensure a snug fit.
4. Włóż panele tylne: Slide the back panels (labeled '12' in some guides) into the grooves on the cabinet frame.
5. Zainstaluj koła: Attach the four wheels to the bottom of the cabinet. Note that two of the wheels have a built-in braking system; position these strategically for easy access. Secure them with screws.
6. Zamontuj panel górny: Załóż górny panel na zmontowaną ramę i przykręć go śrubami.
7. Montaż szuflad:
   • Connect the drawer side panels to the front panel using wooden dowels and screws.
   • Slide the drawer base (labeled '11' in some guides) into the grooves.
   • Attach the drawer back panel and secure it with screws.
   • Attach the remaining drawer slide rails to the sides of the assembled drawer.
   • Install the drawer handle onto the front panel.
8. Włóż szuflady: Carefully slide the assembled drawers into the cabinet's main frame, aligning the drawer slides.
9. Kontrole końcowe: Verify that all components are securely fastened and the drawers operate smoothly.

5. Instrukcja obsługi

5.1. Korzystanie z szuflad

The cabinet features two spacious drawers designed for full extension, allowing easy access to contents. Use the handles to open and close the drawers smoothly.

Image 5.1: Drawers provide ample storage for documents and supplies.

5.2. Adjustable Hanging Rails

Each drawer is equipped with adjustable hanging rails to accommodate Letter, A4, and Legal-size folders. To adjust, reposition the rails within the designated slots to match your folder size. Ensure the rails are securely seated before placing folders.

Image 5.2: Adjustable hanging rails for various file folder sizes.

5.3. Lockable Wheels

The cabinet is fitted with five 360-degree swivel casters for easy movement. Two of these wheels include a locking mechanism. To lock the cabinet in place, press down on the lever located on the wheel. To unlock, lift the lever. Always lock the wheels when the cabinet is in its desired position to prevent accidental movement.

Image 5.3: Lockable casters for stability and easy movement.

6. Konserwacja

• Czyszczenie: Przetrzyj powierzchnie szafki miękką,amp szmatką. Unikaj stosowania silnych środków chemicznych lub ściernych środków czyszczących, ponieważ mogą one uszkodzić wykończenie.
• Sprawdzenie sprzętu: Okresowo sprawdzaj wszystkie śruby i elementy mocujące, aby upewnić się, że są dobrze dokręcone. W razie potrzeby dokręć je, aby zachować stabilność.
• Prowadnice szuflad: If drawers become stiff, apply a small amount of silicone-based lubricant to the slides.
• Kółka: Utrzymuj koła w czystości (bez włosów, kurzu itp.), aby zapewnić płynne toczenie się kół.

7. Rozwiązywanie Problemów

• Wydanie: File folders do not fit the hanging rails.
  Rozwiązanie: The adjustable rails are designed to support Letter, A4, and Legal-size folders. Ensure the rails are correctly positioned in the appropriate outer holes for your specific folder size. Double-check that the folder hangers are fully seated on the rails. If issues persist, verify the internal width of the drawer against standard folder dimensions.
• Wydanie: Szuflady są trudne do otwierania i zamykania.
  Rozwiązanie: Check if the drawer slides are properly aligned and free from obstructions. Ensure all screws securing the slides are tight. If needed, apply a silicone-based lubricant to the drawer slides.
• Wydanie: Szafka jest niestabilna lub się chwieje.
  Rozwiązanie: Verify that all assembly screws are securely tightened. Ensure the cabinet is placed on a flat, level surface. If using the wheels, make sure the locking mechanisms on the braked casters are engaged.

8. Specyfikacje

9. Gwarancja i wsparcie

For warranty information or customer support, please refer to the contact details provided with your purchase or visit the official Sweetcrispy webZachowaj paragon zakupu na wypadek ewentualnych roszczeń gwarancyjnych.
