Lysole Walking Vibration Pad Treadmill with 5% Incline

1. Wprowadzenie

Thank you for choosing the Lysole Walking Vibration Pad Treadmill. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new fitness equipment. Please read it thoroughly before first use and retain it for future reference.

Ważne informacje dotyczące bezpieczeństwa: Always consult with a healthcare professional before starting any new exercise program. Ensure the treadmill is placed on a flat, stable surface. Keep children and pets away from the treadmill during operation. Do not use the treadmill if you weigh more than 340 pounds (154 kg).

2. Funkcje produktu

• 4-in-1 Portable Design: Functions as a walking pad, jogging pad, running pad, and climbing pad with adjustable incline.
• Regulowane nachylenie 5%: Manually adjustable incline to simulate mountaineering, targeting glutes and leg muscles more effectively.
• Mocny i cichy silnik: Equipped with a 2.5 HP motor, operating at less than 45dB, suitable for home and office use without significant noise disruption.
• Large LED Display & Remote Control: Real-time tracking of speed, distance, time, and calories burned. Remote control allows for easy speed adjustments and immediate stops.
• Non-Slip Running Belt & Shock Reduction: Features a spacious 16.54" x 40" running belt with five non-slip layers and eight soft rubber shock absorbers for a quiet and stable experience.
• Easy Storage & Portability: Slim design with transport wheels for convenient movement and storage under furniture or against a wall.

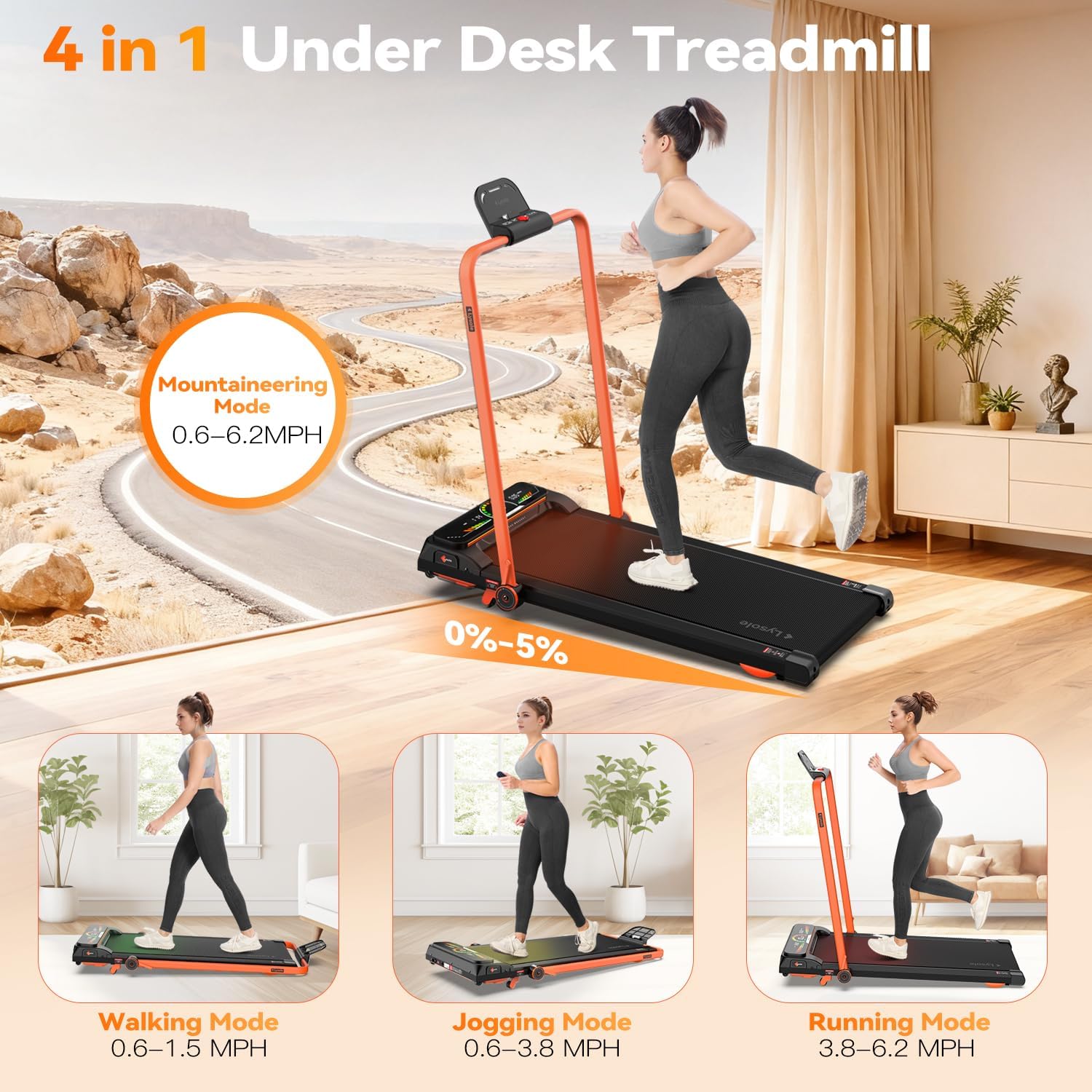

Figure 2.1: The 4-in-1 functionality of the Lysole treadmill, including walking, jogging, running, and mountaineering modes.

3. Zawartość opakowania

Proszę dokładnie sprawdzić przesyłkę, aby mieć pewność, że wszystkie przedmioty znajdują się w niej i są nieuszkodzone.

• Lysole Walking Pad Treadmill x 1
• Pilot zdalnego sterowania x 1
• Klucz w kształcie litery L x 1
• Instrukcja obsługi x 1

Figure 3.1: Contents included in the Lysole Walking Pad Treadmill package.

4. Instrukcje konfiguracji

The Lysole Walking Pad Treadmill requires minimal assembly. Follow these steps for initial setup:

1. Rozpakować: Ostrożnie wyjmij bieżnię i wszystkie akcesoria z opakowania.
2. Umieszczenie: Place the treadmill on a flat, stable, and non-slip surface. Ensure there is adequate space around the unit for safe operation.
3. Podłączenie zasilania: Podłącz przewód zasilający do gniazda zasilania bieżni, a następnie do uziemionego gniazdka elektrycznego.
4. Włączanie: Locate the main power switch (usually at the front or side of the treadmill) and turn it to the 'ON' position. The LED display should illuminate.
5. Konfiguracja pilota zdalnego sterowania: Insert 2 AAA batteries (not included) into the remote control. The remote is pre-paired with the treadmill.
6. Regulacja nachylenia (opcjonalnie): To adjust the incline, locate the orange levers at the front of the treadmill. Push them back to raise the front of the treadmill, creating a 5% incline. Ensure both sides are securely engaged.

Figure 4.1: The Lysole treadmill in its flat configuration, highlighting its compact design and transport wheels for easy movement.

5. Instrukcja obsługi

Familiarize yourself with the controls and display before beginning your workout.

5.1 Korzystanie z pilota zdalnego sterowania

• Uruchom/zatrzymaj: Press the Play/Pause button to start or stop the treadmill. A 3-second countdown will appear before starting.
• Regulacja prędkości: Use the '+' button to increase speed and the '-' button to decrease speed. The speed range is 0.6-6.2 MPH.
• Wybór trybu: Press the 'MODE' button to cycle through display modes (Time, Distance, Calories).

5.2 Zrozumienie wyświetlacza LED

The oversized LED display provides real-time workout data:

• CZAS: Wyświetla czas trwania treningu.
• PRĘDKOŚĆ: Shows your current walking/running speed in MPH.
• DYSTANS: Śledzi całkowity dystans pokonany podczas sesji.
• KALORIE: Szacuje liczbę kalorii spalonych podczas treningu.

Figure 5.1: The LED display and remote control for the Lysole Walking Pad Treadmill.

5.3 trybów treningu

• Tryb chodzenia: Speed range 0.6-1.5 MPH. Ideal for light activity or warm-ups.
• Tryb joggingu: Speed range 0.6-3.8 MPH. Suitable for a moderate pace.
• Tryb biegania: Speed range 3.8-6.2 MPH. For more intense cardio.
• Mountaineering Mode: Utilizes the 5% incline for a more challenging workout, engaging different muscle groups.

6. Konserwacja

Regularna konserwacja zapewnia długowieczność i optymalną wydajność bieżni.

6.1 Czyszczenie

• Przetrzyj powierzchnię bieżni wodąamp Po każdym użyciu przetrzyj ściereczką pot i kurz.
• Avoid using abrasive cleaners or solvents that may damage the display or finish.

6.2 Smarowanie

The running belt requires periodic lubrication to reduce friction and wear. Use the provided lubricant or a silicone-based treadmill lubricant.

1. Wyłącz i odłącz bieżnię.
2. Loosen the belt tension by turning the rear rollers counter-clockwise using the L-shaped wrench.
3. Lift the edge of the running belt and apply a thin line of lubricant along the center of the deck.
4. Tighten the belt tension by turning the rear rollers clockwise until the belt is snug but not overly tight.
5. Podłącz bieżnię do prądu i uruchom ją na niskich obrotach przez 1–2 minuty, aby rozprowadzić smar.

Figure 6.1: Adjusting the treadmill belt for proper tension and lubrication.

6.3 Regulacja paska

If the running belt is off-center or slipping, adjust it using the L-shaped wrench at the rear rollers. Turn the bolt clockwise to move the belt to the right, and counter-clockwise to move it to the left. Adjust in small increments and test the belt after each adjustment.

7. Rozwiązywanie Problemów

W tej sekcji znajdziesz informacje o typowych problemach i ich rozwiązaniach.

• Bieżnia nie uruchamia się: Ensure the power cord is securely plugged in and the main power switch is ON. Check if the remote control batteries are correctly inserted.
• Poślizg pasa biegowego: The belt may be too loose. Refer to Section 6.3 for belt adjustment.
• Nietypowy hałas podczas pracy: Check for any loose parts. Ensure the treadmill is on a flat surface. Lubricate the running belt if necessary (Section 6.2).
• Niedokładne odczyty wyświetlacza: Ensure the treadmill is properly calibrated. If issues persist, contact customer support.

8. Specyfikacje

Figure 7.1: Key specifications and features of the Lysole treadmill, including motor power and weight capacity.

9. Oficjalny film o produkcie

Wideo 9.1: Sędziaview of the Lysole Walking Pad Treadmill with Incline, demonstrating its features and usage.

10. Gwarancja i wsparcie

Lysole is committed to customer satisfaction. For warranty information, technical support, or any questions regarding your treadmill, please refer to the contact details provided in your purchase documentation or visit the official Lysole website. Our commitment to supporting customers 24 hours a day to ensure timely resolution of issues while providing satisfactory solutions remains unwavering.
