WEN 10,500-Watt Tri-Fuel Inverter Generator (TF1050iX) Instruction Manual

Wstęp

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your WEN 10,500-Watt Tri-Fuel Inverter Generator, Model TF1050iX. Please read this manual thoroughly before operating the generator to ensure proper use and to prevent injury or damage.

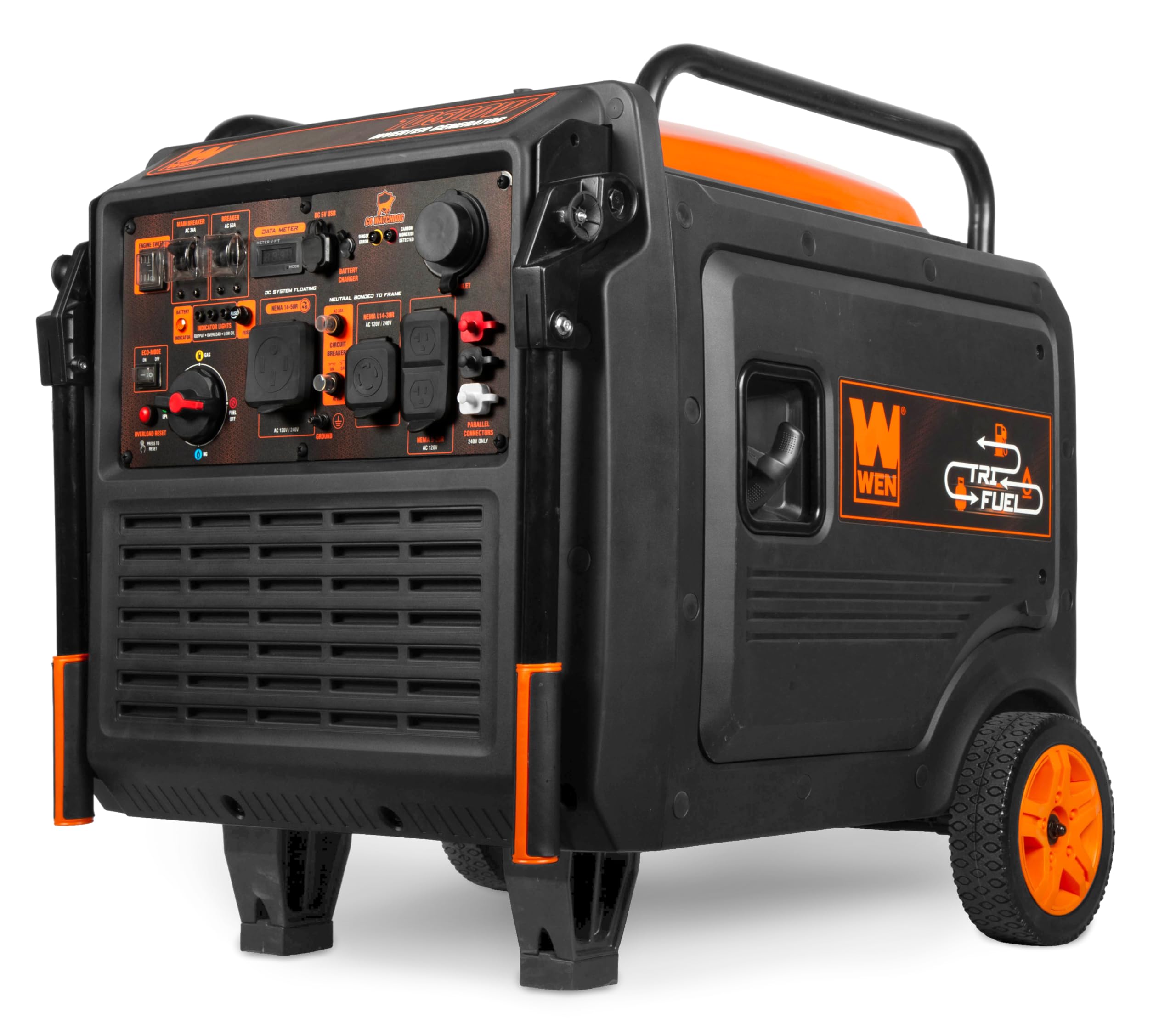

Figure 1: WEN 10,500-Watt Tri-Fuel Inverter Generator (TF1050iX) - Overall View

This image shows the complete WEN 10,500-Watt Tri-Fuel Inverter Generator, Model TF1050iX, from a three-quarter front view, highlighting its compact design, control panel, and integrated wheels.

Informacje dotyczące bezpieczeństwa

Always operate the generator outdoors in a well-ventilated area, far from windows, doors, and vents, to prevent carbon monoxide poisoning. Ensure the generator is on a level surface. Keep children and pets away from the operating unit. Do not operate in rain or wet conditions. Always refer to local codes and regulations for generator usage.

Carbon Monoxide (CO) Watchdog Sensor

Your generator is equipped with a WEN Watchdog CO Shutdown Sensor. This sensor automatically turns off the generator if dangerous levels of carbon monoxide are detected. Do not disable or tamper with this safety feature. If the generator shuts down due to CO detection, move it to an area with fresh air and allow it to cool before attempting to restart.

Organizować coś

1. Rozpakowanie i montaż

Carefully remove the generator from its packaging. Inspect for any shipping damage. The generator comes with a wheel kit and folding handles for portability. Attach the wheels and handles according to the included assembly instructions.

Figure 2: Generator Wheel Assembly

Na tym zdjęciu widać zbliżenie view of one of the generator's wheels, demonstrating the robust design for easy transport.

Figure 3: Generator Folding Handle Mechanism

This image shows the folding handle mechanism, illustrating how the handles can be extended or retracted for transport or storage.

2. Dodawanie oleju silnikowego

Before first use, add the recommended engine oil to the crankcase. Refer to the oil fill cap or engine specifications for the correct type and amount of oil. Do not overfill.

3. Podłączanie akumulatora

Connect the battery for the electric start feature. Ensure positive (+) and negative (-) terminals are connected correctly to avoid damage.

4. Podłączenie paliwa

This tri-fuel generator operates on gasoline, propane (LPG), or natural gas (NG). Choose your desired fuel source and connect it appropriately.

• Benzyna: Napełnij zbiornik paliwa benzyną bezołowiową. Nie przepełniaj zbiornika.
• Propan (LPG): Connect the included 6-foot LPG connection hose to a propane tank and the generator's LPG inlet.
• Gaz ziemny (NG): Connect a natural gas hose (sold separately, part no. TF1450X-1431) to a natural gas supply and the generator's NG inlet using the quick-connect adapter.

Ensure all fuel connections are secure and free of leaks before starting the generator.

Instrukcja obsługi

1. Panel sterowania zamkniętyview

Rysunek 4: Panel sterowania generatora

This image displays a detailed view of the generator's control panel, showing the engine switch, data meter, indicator lights, various outlets (120V 5-20R, 120V/240V 14-50R, 120V/240V L14-30R), USB ports, battery charger port, and the fuel selector switch.

The control panel features an engine switch, data meter (runtime, voltage, frequency), indicator lights (battery, output, overload, low oil, fuse), a fuel selector switch, various AC outlets, a battery charger port, and two 5V USB ports.

2. Uruchomienie generatora

1. Upewnij się, że generator znajduje się na równej powierzchni i wszystkie obciążenia elektryczne są odłączone.
2. Select the desired fuel type (Gas, LPG, or NG) using the fuel selector switch on the control panel.
3. Przekręć wyłącznik silnika do pozycji „ON”.
4. Rozruch elektryczny: Naciśnij i przytrzymaj przycisk rozrusznika elektrycznego, aż silnik uruchomi się.
5. Rozrusznik linkowy (zapasowy): If the electric start fails, pull the recoil starter handle firmly and smoothly until the engine starts.
6. Przed podłączeniem odbiorników elektrycznych należy odczekać kilka minut, aż generator się nagrzeje.

3. Praca w trybie Eco

Engage the eco-mode switch to maximize fuel economy. In eco-mode, the engine automatically adjusts its speed to match the electrical load, reducing fuel consumption and noise when less power is required.

4. Podłączanie obciążeń elektrycznych

Connect your appliances or transfer switch to the appropriate outlets on the control panel. The generator provides:

• Dwa gniazda NEMA 5-20R 120 V
• One 120V/240V NEMA L14-30R receptacle (transfer-switch-ready)
• One 120V/240V NEMA 14-50R receptacle (transfer-switch- or EV-ready)
• Dwa porty USB 5 V

Nie przekraczać znamionowej mocy generatoratage. Overload protection is built-in and will shut down the generator if overloaded.

5. Parallel Connection (Optional)

For increased power, two 240V WEN inverter generators can be linked using a WEN 240V Parallel Connection Kit (sold separately). Refer to the parallel connection kit's instructions for proper setup.

6. Wyłączanie generatora

1. Odłącz wszystkie odbiorniki elektryczne od generatora.
2. Przekręć wyłącznik silnika do pozycji „WYŁ”.
3. For gasoline operation, engage the fuel shutoff feature to allow the carburetor to run dry. This helps prevent fuel-related issues during storage.

Konserwacja

Regularna konserwacja zapewnia długowieczność i niezawodną pracę generatora.

• Wymiana oleju: Check engine oil level before each use and change oil at recommended intervals.
• Filtr powietrza: Należy regularnie sprawdzać i czyścić lub wymieniać filtr powietrza, szczególnie w warunkach dużego zapylenia.
• Świeca: Inspect and clean or replace the spark plug as needed for optimal engine performance.
• Układ paliwowy: Utilize the fuel shutoff feature when storing the generator to prevent carburetor blockages from stagnat paliwo.
• Ładowanie akumulatora: Use the on-panel battery charger port and the included charger to keep the electric start battery topped off.

Refer to the detailed maintenance schedule in the full product manual for specific intervals and procedures.

Rozwiązywanie problemów

W tej sekcji omówiono typowe problemy, jakie mogą wystąpić podczas korzystania z generatora.

If issues persist after following these steps, contact WEN customer support.

Specyfikacje

Gwarancja

The WEN 10,500-Watt Tri-Fuel Inverter Generator (TF1050iX) comes backed by a three-year limited warranty. Please retain your proof of purchase for warranty claims.

Wsparcie

For technical assistance, replacement parts, or warranty inquiries, please contact WEN customer support. A nationwide network of skilled service technicians is available to assist you.

Visit the official WEN webstrona zawierająca najnowsze dane kontaktowe i dodatkowe zasoby.

Dodatkowe zasoby

Product Video: Hands-On WEN 11,000-Watt Dual Fuel Generator
