1. Wprowadzenie
Thank you for choosing the Aoxun Louvered Pergola. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. This 10' x 10' metal pergola features an adjustable louvered roof, a patented easy assembly design, and a robust drainage system, making it a versatile addition to any outdoor space.

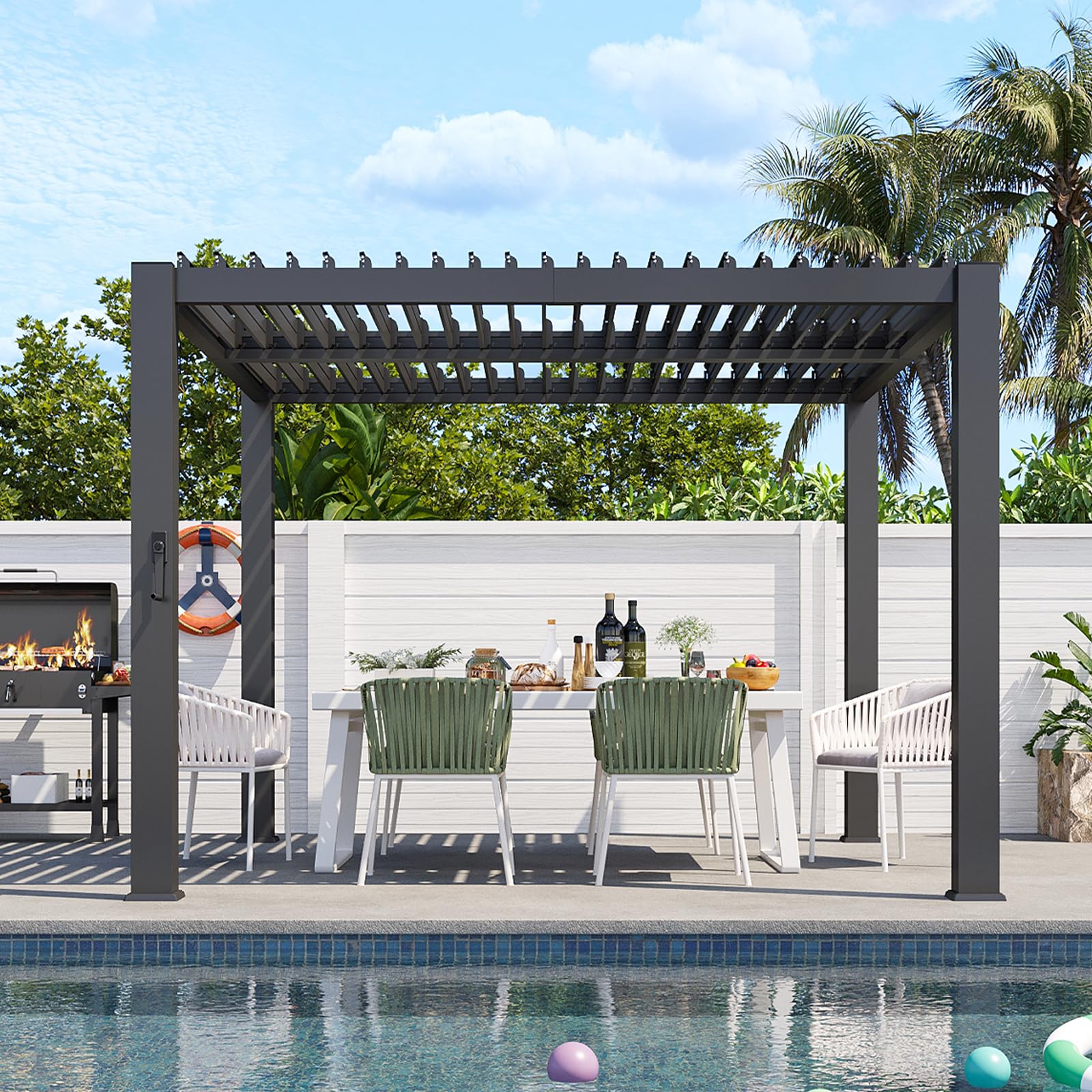

Image: The Aoxun Louvered Pergola installed in an outdoor setting, showcasing jego designu i funkcjonalności.
Image: This image demonstrates the pergola's multifunctional design, suitable for various outdoor activities such as dining, entertaining guests, or simply relaxing in nature.
2. Instrukcje bezpieczeństwa
- Przed montażem i użyciem należy uważnie przeczytać wszystkie instrukcje.
- Przed użyciem upewnij się, że wszystkie elementy są bezpiecznie zamocowane.
- Always anchor the pergola securely to a stable surface to prevent tipping or movement due to wind.
- Nie należy wieszać ciężkich przedmiotów na konstrukcji pergoli.
- Regularly inspect the structure for any loose parts or damage.
- Trzymaj dzieci i zwierzęta domowe z dala od miejsca montażu.
3. Zawartość opakowania
Your Aoxun Louvered Pergola is delivered in multiple packages (typically 4 boxes) to ensure safe transport of all components. All necessary screws, bolts, and tools for assembly are included. Please verify all parts are present and undamaged before beginning assembly.
Image: This image indicates that the pergola components are shipped in four distinct packages, which may arrive on different days.
4. Instalacja i montaż
The Aoxun Louvered Pergola features a unique, patented plug-and-play frame design that significantly simplifies installation. This design minimizes the need for screw hole alignment and uses fewer screws compared to traditional models, reducing assembly time and effort.
4.1 Etapy montażu
- Rozpakuj wszystkie elementy i rozłóż je na czystej, płaskiej powierzchni.
- Follow the detailed instructions provided in the separate assembly guide for step-by-step construction.
- Utilize the patented plug-and-play system for connecting frame components.
- Securely fasten all screws and bolts using the provided tools.
- Ensure the pergola is level and stable before anchoring.
4.2 Anchoring the Pergola
For optimal stability and safety, especially in windy conditions, it is crucial to anchor the pergola to your ground surface. Anchor bolts are included for securing the structure to a flat concrete surface.
- Position the pergola in your desired location.
- Mark the drilling points through the base plates of each column.
- Drill appropriate holes for the anchor bolts.
- Insert and tighten the anchor bolts to firmly secure the pergola to the ground.
Image: This image illustrates the patented plug-and-play frame design, which simplifies assembly by reducing the number of screws required and eliminating complex alignment.
Image: This image highlights the anchor bolts provided to securely fasten the pergola's posts to a solid concrete foundation, ensuring stability and safety.
5. Operating the Adjustable Louvered Roof
The Aoxun Louvered Pergola features an adjustable roof system, allowing you to control sunlight, shade, and protection from rain. The roof consists of two independently adjustable sections.
5.1 Regulacja żaluzji
- Locate the foldable crank handle on the side of the pergola column.
- Extend the crank handle.
- Rotate the handle clockwise or counter-clockwise to open or close the louvers to your desired angle.
- The foldable design of the crank handle ensures a clean aesthetic and prevents accidental bumps.
5.2 Benefits of Adjustable Louvers
- Otwarte: Allows full sunlight for sunbathing or maximum light exposure.
- Partially Open: Provides filtered light and gentle airflow.
- Zamknięte: Offers complete shade and protection from rain and harmful UV rays.
Obraz: Zbliżenie view of the foldable crank handle, demonstrating how easily the louvers can be adjusted to control sunlight and shade, enhancing user comfort.
Image: An overhead perspective of the pergola's metal louvered roof, highlighting its ability to be independently adjusted on two areas, allowing for both open-air sunbathing and complete shade.
Image: A visual of the foldable crank handle, emphasizing its ergonomic design for easy and flexible control over the louvered roof's position, preventing head bumps.
6. Konserwacja
The Aoxun Louvered Pergola is constructed from premium AlMgZn-coated steel, designed to withstand harsh outdoor conditions. This material effectively resists rust, corrosion, and UV damage, ensuring minimal maintenance and long-term durability.
6.1 Czyszczenie
- Clean the frame and louvers with a mild soap and water solution.
- Dokładnie spłukać czystą wodą.
- Unikaj stosowania ściernych środków czyszczących lub ostrych środków chemicznych, które mogłyby uszkodzić wykończenie.
6.2 System odwadniający
The pergola features a built-in drainage system with a sloped roof design. Accumulated water drains through the beams to the columns and flows to the ground, preventing pooling. Regularly check and clear any debris from the gutters and column drainage points to ensure proper function.
Image: This image showcases the pergola's frame constructed from AlMgZn-coated steel, emphasizing its superior resistance to rust, corrosion, and UV damage for long-lasting outdoor performance.
Image: This diagram details the integrated drainage system, where rainwater is collected from the louvered roof and channeled through the pergola's columns to prevent water accumulation on the roof.
Image: An illustration highlighting the pergola's robust design for all weather conditions, including its snow load capacity, soft-closing waterproof louvers, and ability to reflect 99% of UV rays.
7. Rozwiązywanie Problemów
- Trudności w montażu: Ensure all parts are correctly oriented according to the assembly guide. The patented design aims for ease, but careful attention to detail is still required.
- Woda zbierająca się na dachu: Verify that the louvers are fully closed and the drainage system is clear of any obstructions. The roof is designed with a slope for effective water runoff.
- Pergola instability: Confirm that all anchor bolts are securely fastened to a solid foundation. Re-tighten any loose connections.
8. Specyfikacje
- Marka: Aoxun
- Numer modelu: G43023BK01
- Wymiary produktu: 118" dł. x 118" szer. x 88.98" wys. (około 10' dł. x 10' szer. x 7.4' wys.)
- Powierzchnia użytkowa: 100 stóp kwadratowych
- Waga przedmiotu: 338 funtów
- Tworzywo: Metal (AlMgZn-coated steel)
- Materiał ramy: Metal
- Kolor: Szary
- Styl: Nowoczesny
- Poziom wodoodporności: Wodoodporny
- Ochrona przed promieniowaniem ultrafioletowym: Tak
- Wymagany montaż: Tak
Image: This image provides a clear dimensional overview of the 10ft x 10ft Aoxun Louvered Pergola, including its height and footprint.
Image: A visual comparison illustrating the wider and more robust design of Aoxun pergola posts (3.8"x3.8") compared to standard alternatives (3.1"x3.1"), emphasizing enhanced strength and durability.
9. Gwarancja i wsparcie
For warranty information, product support, or to order replacement parts, please refer to the documentation included with your purchase or contact Aoxun customer service directly. Keep your purchase receipt for warranty claims.
