Beko FBE69100X Freestanding Cooker - User Manual

1. Wprowadzenie

Thank you for choosing the Beko FBE69100X Freestanding Cooker. This appliance combines an elegant design with advanced technology, featuring a 4-zone induction hob and a 72-liter multifunction electric oven. Designed for efficiency and style, it is a perfect addition to any modern kitchen. This manual provides essential information for safe installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your appliance.

• 2-in-1 Cooker: Combines an induction hob and a multifunction oven for maximum versatility in a compact 60 cm space.
• 4-Zone Induction Hob: Features a Booster function for rapid heating up to 2300 W per zone and intelligent energy management (Power Management up to 9.1 kW).
• 72-Liter Multifunction Oven, Class A: Offers 6 cooking modes, including fan grill, traditional cooking, and bottom heating for perfect results.
• HidroClean Function: Provides natural and quick cleaning using steam, eliminating the need for harsh detergents.
• Premium Inox Design: Stainless steel handles and finishes, removable inner glass, internal lighting, and triple glass door for maximum safety.

2. Informacje dotyczące bezpieczeństwa

Please read this section carefully before using the appliance to prevent personal injury or damage. Keep this manual for future reference.

• Ogólne bezpieczeństwo: Ensure the appliance is installed by a qualified technician according to local regulations.
• Podłączenie elektryczne: Sprawdź, czy objętośćtage and frequency indicated on the rating plate match your household electrical supply. The appliance must be properly grounded.
• Dzieci i osoby narażone: Z urządzenia mogą korzystać dzieci w wieku od 8 lat oraz osoby o ograniczonej sprawności fizycznej, sensorycznej lub umysłowej, a także osoby nieposiadające odpowiedniego doświadczenia lub wiedzy, jeśli znajdują się pod nadzorem lub zostały poinstruowane na temat bezpiecznego korzystania z urządzenia i rozumieją związane z tym zagrożenia.
• Gorące powierzchnie: The appliance surfaces become hot during use. Avoid touching hot surfaces. Use oven mitts when handling hot items.
• Materiały łatwopalne: Do not store flammable materials (e.g., aerosols, cleaning products) in or near the appliance.
• Wentylacja: Podczas pracy urządzenia należy zapewnić odpowiednią wentylację wokół niego.
• Czyszczenie: Przed czyszczeniem lub konserwacją należy zawsze odłączyć urządzenie od zasilania.

3. Konfiguracja i instalacja

Proper installation is crucial for the safe and efficient operation of your cooker. It is recommended that installation be performed by a qualified professional.

3.1 Rozpakowanie

• Ostrożnie usuń wszystkie materiały opakowaniowe z urządzenia.
• Inspect the cooker for any signs of damage during transit. If damage is found, do not install and contact your retailer.
• Materiały opakowaniowe należy przechowywać w miejscu niedostępnym dla dzieci.

3.2 Pozycjonowanie

• Place the cooker on a stable, level surface.
• Ensure there is sufficient clearance around the appliance for proper ventilation. Refer to the installation diagram for minimum distances from walls and cabinets.
• The dimensions of the appliance are approximately 60 cm (Depth) x 60 cm (Width) x 85 cm (Height).

3.3 Podłączenie elektryczne

• The appliance comes with a power cable. Ensure the electrical supply is compatible with the cooker's requirements.
• Connect the appliance to a dedicated, properly grounded electrical outlet.
• The induction hob features Power Management, allowing adjustment of total power consumption from 2.5 kW to 7.2 kW. This setting should be configured during installation by a qualified electrician to match your home's electrical capacity.
• Jeśli kabel zasilający jest uszkodzony, musi zostać wymieniony przez producenta, jego przedstawiciela serwisowego lub podobnie wykwalifikowaną osobę, aby uniknąć zagrożenia.

Zawartość zestawu: The product includes a power cable.

4. Koniec produktuview

Familiarize yourself with the main components of your Beko FBE69100X cooker.

Figure 4.1: Overall front view of the Beko FBE69100X cooker, highlighting the induction hob and oven.

Rysunek 4.2: Szczegółowy widok z przodu view showing the control panel and stainless steel finish.

Rysunek 4.3: Strona view kuchenki.

Rysunek 4.4: Tył view of the cooker, showing connection points.

4.1 Panel sterowania

The control panel features mechanical knobs for oven functions and temperature, and touch controls for the induction hob.

4.2 Płyta indukcyjna

• Four cooking zones with varying power levels.
• Touch Control interface for precise adjustments.
• Booster function for rapid heating.
• Residual heat indicators for safety.

4.3 wielofunkcyjny piekarnik

• Pojemność 72 litrów.
• Multiple cooking levels (5 levels).
• Internal lighting for visibility.
• Removable inner glass for easy cleaning.
• Triple glass door for improved insulation and safety.

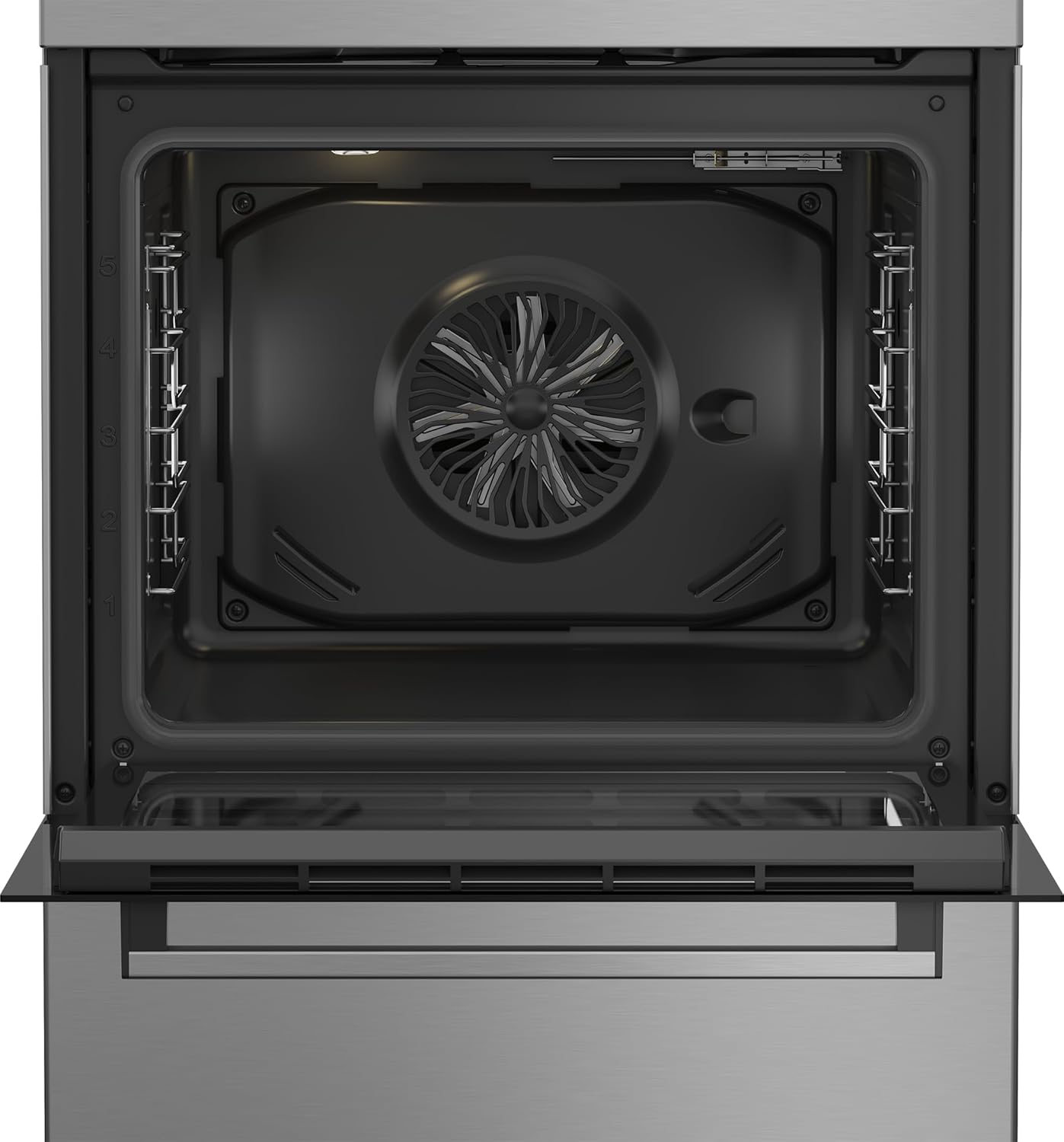

Figure 4.5: Oven interior with fan and rack positions.

5. Instrukcja obsługi

5.1 Using the Induction Hob

Figure 5.1: Induction hob touch controls.

1. Włączanie: Touch the main power symbol to turn on the hob.
2. Wybierz strefę gotowania: Place an induction-compatible pan on the desired zone. Touch the corresponding zone selection control.
3. Dostosuj moc: Use the '+' and '-' touch controls to set the desired power level (1-9).
4. Funkcja wzmacniacza: For rapid heating, touch the 'Booster' symbol for the selected zone. This provides maximum power for a short period.
5. Stop&Go™ Function: Touch the 'Stop&Go' symbol to pause all active cooking zones. Touch it again to resume cooking with the previous settings.
6. Funkcja timera: Set a cooking timer for individual zones or the entire hob using the timer controls.
7. Wyłączone: Touch the main power symbol to turn off the hob. Individual zones can also be turned off by reducing their power level to '0'.

Ważny: The hob features a residual heat indicator (H) which remains lit until the zone has cooled down to a safe temperature.

5.2 Using the Multifunction Oven

1. Wybierz funkcję gotowania: Turn the function selector knob to choose one of the 6 available cooking programs.
2. Ustaw temperaturę: Turn the thermostat knob to the desired temperature. The oven will begin to preheat.
3. Podgrzewanie: Allow the oven to reach the set temperature before placing food inside. The indicator light will turn off when the temperature is reached.
4. Miejsce jedzenia: Use the provided tray and metallic grid. The oven has 5 levels for flexible placement.
5. Monitoruj gotowanie: The internal light can be switched on to check food without opening the door.
6. Zakończenie gotowania: Turn both knobs to the 'Off' position after cooking.

Available Cooking Programs:

• Statyczny: Traditional top and bottom heating for even cooking.
• Wentylowane: Fan-assisted cooking for uniform heat distribution, ideal for baking multiple dishes.
• Grill: For grilling small items, toasting, or browning.
• Grill z wentylatorem: Combines grilling with fan assistance for faster and more even grilling.
• Ogrzewanie dolne: Doskonale nadaje się do chrupiącego spodu lub powolnego gotowania.
• HidroClean: Special cleaning program (see Section 6.1).

6. Konserwacja i czyszczenie

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Beko cooker.

6.1 HidroClean Function (Oven)

The HidroClean function uses steam to soften baked-on food residues, making cleaning easier.

1. Upewnij się, że piekarnik jest zimny.
2. Pour approximately 0.5 liters of water into the designated cavity at the bottom of the oven.
3. Select the HidroClean program on the oven function selector.
4. Allow the program to run for the recommended duration (refer to the full manual for exact timing).
5. Once the program is complete and the oven has cooled, wipe the interior with a soft cloth or sponge to remove softened dirt.

6.2 Ogólne czyszczenie

• Płyta indukcyjna: Clean the glass-ceramic surface with a soft cloth and a specialized hob cleaner after each use, once the surface has cooled. Avoid abrasive cleaners or scourers.
• Wnętrze piekarnika: For stubborn stains not removed by HidroClean, use a non-abrasive oven cleaner. The inner glass of the oven door is removable for thorough cleaning.
• Powierzchnie zewnętrzne: Clean stainless steel surfaces with a soft cloth and a mild detergent or a specialized stainless steel cleaner. Avoid harsh chemicals that can damage the finish.
• Akcesoria: Wash the tray and metallic grid with warm soapy water.

Ostrożność: Always ensure the appliance is disconnected from the power supply before performing any cleaning or maintenance.

7. Rozwiązywanie Problemów

Przed skontaktowaniem się z obsługą klienta zapoznaj się z poniższymi typowymi problemami i ich rozwiązaniami.

• Kuchenka nie włącza się:
  - Check if the appliance is properly plugged into the electrical outlet.
  - Verify the circuit breaker in your home's electrical panel.
• Induction Hob Not Heating:
  - Ensure the cookware is induction-compatible (magnetic base).
  - Check if the pan is correctly centered on the cooking zone.
  - Look for any error codes displayed on the hob's control panel and consult the full manual for their meaning.
• Piekarnik nie grzeje:
  - Confirm that the oven function and temperature knobs are correctly set.
  - Ensure the oven door is fully closed.
  - Check if the oven timer is set to 'manual' or a cooking duration.
• Unusual Odors During First Use:
  - It is normal for a new appliance to emit a slight odor during its first few uses. Ensure good ventilation in the kitchen.
• Uneven Cooking in Oven:
  - Ensure food is placed centrally on the rack.
  - Avoid overcrowding the oven.
  - Use the fan-assisted cooking function for more even heat distribution.

If the problem persists after checking these points, please contact Beko customer support.

8. Specyfikacje

9. Gwarancja i wsparcie

Your Beko FBE69100X Freestanding Cooker is covered by a manufacturer's warranty.

• Okres gwarancji: Produkt objęty jest 2-letnią gwarancją producenta. Prosimy zachować dowód zakupu na wypadek reklamacji.
• Zakres gwarancji: The warranty covers manufacturing defects and faults under normal domestic use. It does not cover damage caused by improper installation, misuse, neglect, or unauthorized repairs.
• Obsługa klienta: For technical assistance, spare parts, or warranty claims, please contact Beko customer service. You can find contact details on the official Beko webna stronie internetowej lub u sprzedawcy.
