PetsCosset Outdoor Storage Cabinet GF37 Instruction Manual

1. Wprowadzenie

This manual provides detailed instructions for the assembly, operation, and maintenance of your PetsCosset Outdoor Storage Cabinet, Model GF37. Please read this manual thoroughly before assembly and use to ensure safe and efficient operation. This weather-resistant cabinet is designed to provide organized storage for your outdoor essentials.

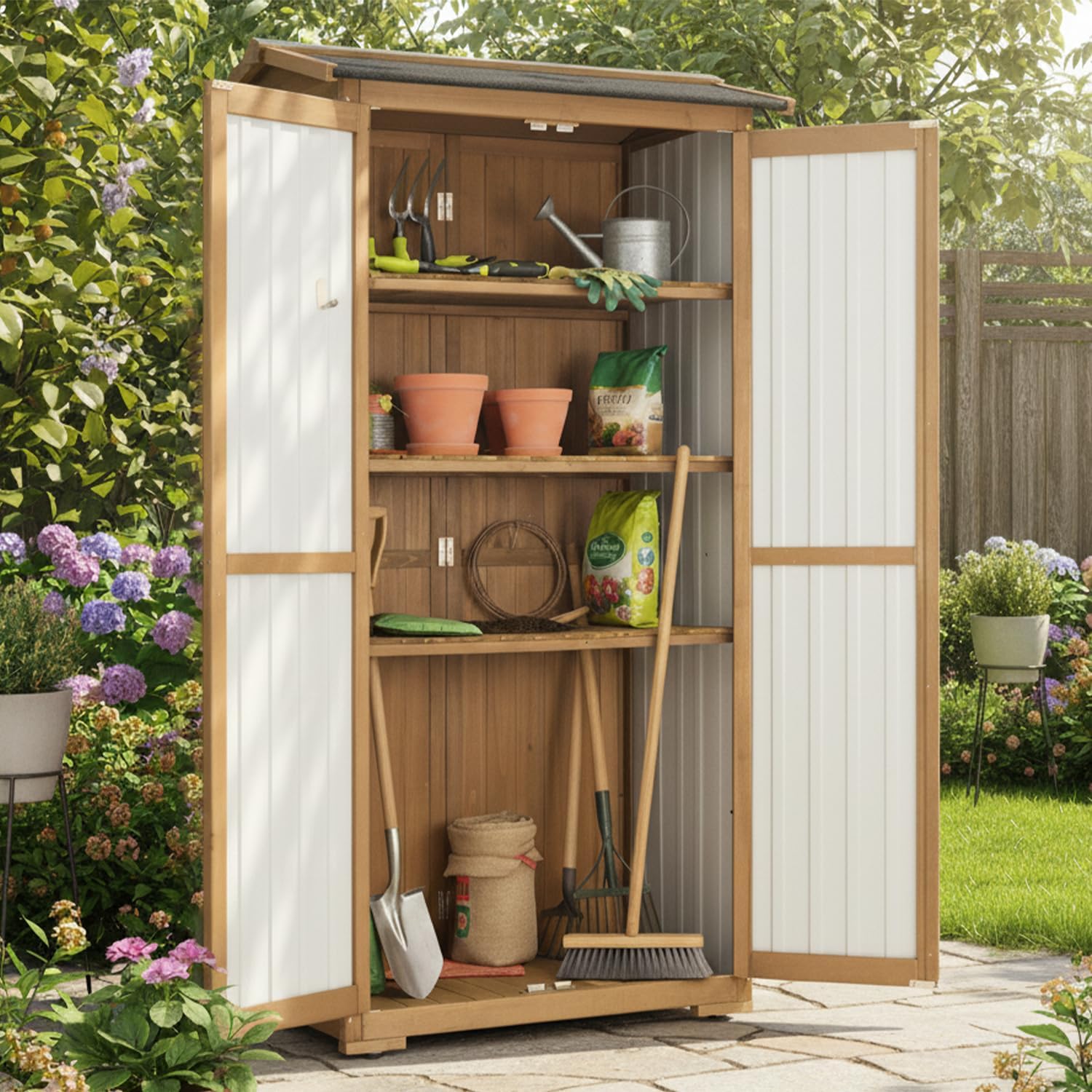

Image: The PetsCosset Outdoor Storage Cabinet in a garden setting, with its doors open to reveal organized storage for gardening tools and supplies.

2. Informacje dotyczące bezpieczeństwa

• Always assemble the cabinet on a flat, stable surface.
• Przed użyciem należy upewnić się, że wszystkie śruby i elementy mocujące są mocno dokręcone.
• Nie przeciążaj półek, rozłóż ciężar równomiernie.
• Podczas montażu małe części należy trzymać z dala od dzieci.
• Use appropriate safety gear (gloves, eye protection) during assembly.
• For added stability, especially in windy conditions, consider anchoring the cabinet to the ground using the provided ground anchors.

3. Zawartość opakowania

Przed rozpoczęciem montażu należy sprawdzić, czy wszystkie części są na miejscu i nieuszkodzone. Jeśli brakuje którejkolwiek części lub jest ona uszkodzona, prosimy o kontakt z obsługą klienta.

Składniki:

• Wood panels (back, side, doors)
• Metal components (hinges, latches, corrugated panels)
• Regulowane półki (3 sztuki)
• Waterproof asphalt roof
• Regulowane nóżki
• Ground anchors
• Sprzęt montażowy (śruby, nakrętki itp.)

4. Instalacja i montaż

Assembly typically requires two people and a Phillips head screwdriver or electric drill. Follow the step-by-step instructions below.

4.1 Koniec montażuview

Video: A 3D animated assembly guide for the outdoor cabinet, demonstrating the sequence of connecting various parts.

4.2 Montaż krok po kroku

1. Przygotuj bazę: Lay the back panel flat. Attach the back down rod to the bottom of the back panel using screws.
2. Zamontuj panele boczne: Connect the left and right panels to the back panel. Secure them with screws.
3. Install Front Supports: Attach the front down rod, front upper rod, and front pillars to complete the main frame structure.
4. Zamontuj podkładki pod stopy: Secure the foot pads to the bottom of the back, left, and right panels.
5. Wstaw półki: Place the bottom panels and shelf panels into the designated slots. The three shelves are adjustable to suit your storage needs.
6. Montaż drzwi: Attach the handles to the doors. Then, fix the doors to the left and right panels using hinges and screws.
7. Montaż dachu: Carefully place the roof onto the top of the cabinet and secure it with screws.
8. Secure with Angle Irons: For enhanced stability, fix the angle irons to the back, left, and right panels using screws and nails to the ground.

Video: A detailed assembly process video for an outdoor tool cabinet, showing each step of construction.

5. Instrukcja obsługi

5.1 regulowane półki

The cabinet features three removable shelves that can be adjusted to different heights or removed entirely to accommodate taller items like rakes or shovels. Simply lift and reposition the shelves into the desired support slots.

Image: The interior of the cabinet highlighting the removable shelves and magnetic door closures.

5.2 Secure Access

The cabinet doors are equipped with magnetic closures for easy access and lockable holes for added security (lock not included). To secure your belongings, simply close the doors and attach a padlock through the designated holes.

Video: A demonstration of the outdoor storage cabinet's features, including its storage capacity and secure door mechanism.

6. Konserwacja

To ensure the longevity and appearance of your PetsCosset Outdoor Storage Cabinet, follow these maintenance guidelines:

• Regularne czyszczenie: Wytrzyj zewnętrzną powierzchnię za pomocą adamp cloth and mild soap as needed to remove dirt and debris. Avoid harsh chemicals that may damage the wood or metal finish.
• Sprawdź zużycie: Periodically check all screws, hinges, and structural components for looseness or damage. Tighten any loose fasteners and replace damaged parts promptly.
• Obróbka drewna: Although the cabinet is weather-resistant, applying a wood sealant or stain annually can further protect the wood from UV rays and moisture, extending its lifespan.
• Inspekcja dachu: Ensure the asphalt roof remains intact and free of cracks or damage to maintain its waterproof properties.

Image: The cabinet's asphalt roof providing protection against rain, demonstrating its weather-resistant features.

7. Rozwiązywanie Problemów

• Wyciek wody: If you notice water inside the cabinet, inspect the roof for any damage or gaps. Ensure all panels are tightly secured and consider applying a silicone sealant to seams if necessary. Verify that the cabinet is level and the doors close completely.
• Drzwi nie zamykają się prawidłowo: Check hinges for alignment and tightness. Ensure the magnetic closures are clean and unobstructed. Adjust the adjustable feet to level the cabinet if it is on uneven ground.
• Problemy ze stabilnością: Confirm that the cabinet is placed on a firm, level surface. Utilize the provided ground anchors to secure the cabinet, especially in areas prone to strong winds.

8. Specyfikacje

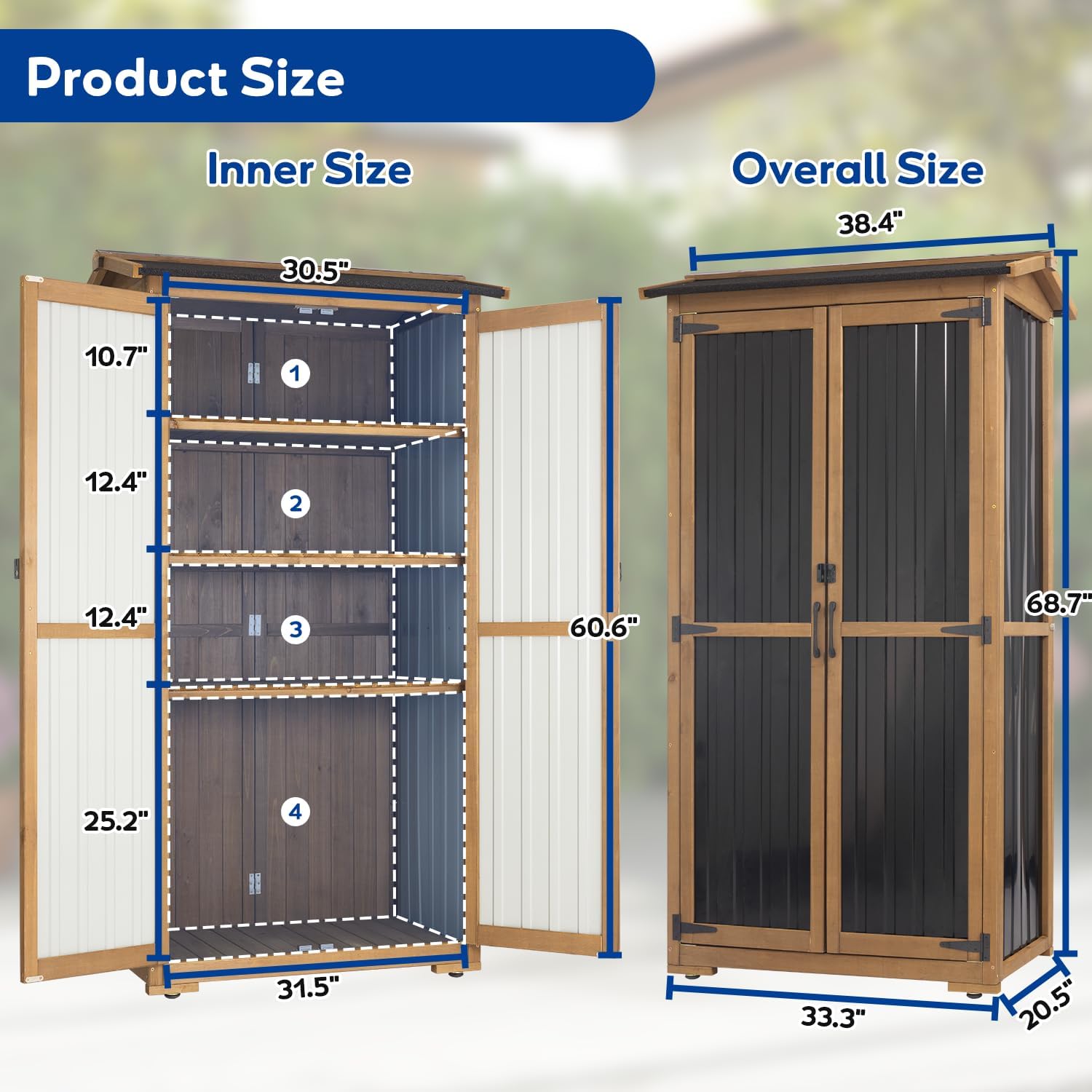

Image: Detailed dimensions of the PetsCosset Outdoor Storage Cabinet.

9. Gwarancja i wsparcie

For any questions, missing parts, or warranty claims, please contact PetsCosset customer support through your original point of purchase. Keep your purchase receipt as proof of purchase.
