1. Wprowadzenie
Thank you for choosing the CWOVRS Precision Adjust Knife Sharpening System. This system is designed to provide precise and efficient sharpening for various types of knives, ensuring optimal edge retention and performance. Constructed from CNC-machined aluminum, it offers stability, durability, and a high-precision flip mechanism for ease of use. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to help you achieve professional sharpening results.
Obraz 1.1: Koniecview of the CWOVRS Guided Knife Sharpening System, highlighting its ease of use, precision, and durability.
2. Informacje dotyczące bezpieczeństwa
Always prioritize safety when using the knife sharpening system. Improper use can lead to injury.
- Handle Knives with Care: Knives are extremely sharp. Always keep your fingers away from the blade edge.
- Zabezpiecz system: Ensure the sharpening system is firmly clamped to a stable surface before beginning.
- Noś sprzęt ochronny: Consider wearing cut-resistant gloves to protect your hands.
- Utrzymuj obszar w czystości: Ensure your workspace is free of clutter to prevent accidents.
- Nadzór osoby dorosłej: Trzymać poza zasięgiem dzieci. Ten produkt nie jest zabawką.
- Prawidłowa utylizacja: Dispose of worn-out sharpening stones responsibly.
3. Zawartość opakowania
Sprawdź, czy w pakiecie znajdują się wszystkie komponenty:
- CNC-machined Aluminum Sharpening System (Main Body with Flip Mechanism)
- Universal & Dual-Sided Stone Clamp
- Secure Table Clamp
- Diamond Sharpening Stones (240#, 400#, 800#, 1500#) with Aluminum Bases
- Water Sharpening Stones (6000#, 8000#)
- Zestaw do polerowania
- Silicone Pad (for knives with thickness less than 3mm)
4. Instalacja i montaż
Follow these steps to assemble and set up your sharpening system:
- Zamontuj tabelę Clamp: Secure the heavy-duty C-shaped table clamp to a stable table or countertop edge. Tighten the knob until the clamp is firm and does not move. The depth of the clamp Może być dopasowane.
- Mount the Main Body: Slide the main body of the sharpening system onto the table clamp post. Ensure it is seated correctly and tighten any securing screws or knobs.
- Install the Stone Clamp Pręt: Insert the guiding rod into the main body's angle adjustment mechanism.
- Prepare the Stone Clamp: The dual-sided stone clamp accommodates two sharpening stones simultaneously. Ensure the stones are of the exact same length for proper installation on both sides.
Image 4.1: The table clamp and depth adjustment feature, along with the angle adjustment knob.
Image 4.2: Illustration of the double-sided stone clamping mechanism and the stable C-shaped table clamp with adjustable depth.
5. Instrukcja obsługi
Achieving a razor-sharp edge requires careful attention to technique and stone progression.
5.1 Attaching the Knife
- Open the dual knife-clip on the main body.
- Carefully insert the knife blade into the clip, ensuring it is centered and securely held. For knives with a thickness less than 3mm, use the included silicone pad to ensure a snug fit.
- Tighten the clip to prevent any movement of the knife during sharpening.
5.2 Setting the Sharpening Angle
- Use the circular angle adjustment knob to set your desired sharpening angle. The system features clearly marked guides.
- Ważna uwaga: The scale on the sharpener body is for reference only. Due to variations in knife width, length, thickness, and stone thickness, the actual angle may differ. For more precise adjustment, it is recommended to use a corresponding angle gauge or a level tool in a mobile application.
- The patented knob ensures quick, accurate, and secure angle changes.
Image 5.1: Details of the circular angle adjustment design and the double-sided stone clamp.
5.3 Choosing and Preparing Sharpening Stones
The system includes a variety of diamond and water stones for different sharpening stages:
- Diamond Stones (240#, 400#, 800#, 1500#): These are mounted on stable aluminum bases and are ideal for initial shaping, repairing damaged edges, and general sharpening.
- Water Stones (6000#, 8000#): These finer grit stones are used for refining the edge and polishing to a mirror finish. Water stones require soaking in water for 5-10 minutes before use until no more bubbles appear. Keep them wet during sharpening.
Image 5.2: Selection of diamond whetstones and their applications for various knife types and tools.
5.4 Proces ostrzenia
- Zacznij od grubej ziarnistości: Begin with the lowest grit diamond stone (e.g., 240# or 400#) to establish the primary bevel and remove any nicks or damage.
- Stroke Direction: With the stone attached to the guiding rod, gently slide the stone across the knife edge, moving from the heel to the tip. Apply consistent, light pressure.
- Mechanizm odwracania: The 360° flip mechanism allows you to sharpen both sides of the blade without removing the knife. Once one side is sharpened, simply flip the knife holder to sharpen the other side at the exact same angle.
- Progress Through Grits: Gradually move to higher grit diamond stones (800#, 1500#) to refine the edge. Each grit should remove the scratches left by the previous, coarser grit.
- Use Water Stones for Finishing: For a very fine and polished edge, switch to the pre-soaked 6000# and then 8000# water stones. Continue with light, consistent strokes, keeping the stone wet.
- Check for Burrs: After sharpening with each grit, check for a burr (a tiny wire edge) on the opposite side of the blade. Once a burr is felt along the entire edge, flip the knife and sharpen the other side until a burr forms there.
- Gratowanie: Finish by making very light, alternating strokes on both sides with the finest grit stone to remove the burr.
Image 5.3: The convenient flip design mechanism for sharpening both sides of the blade.

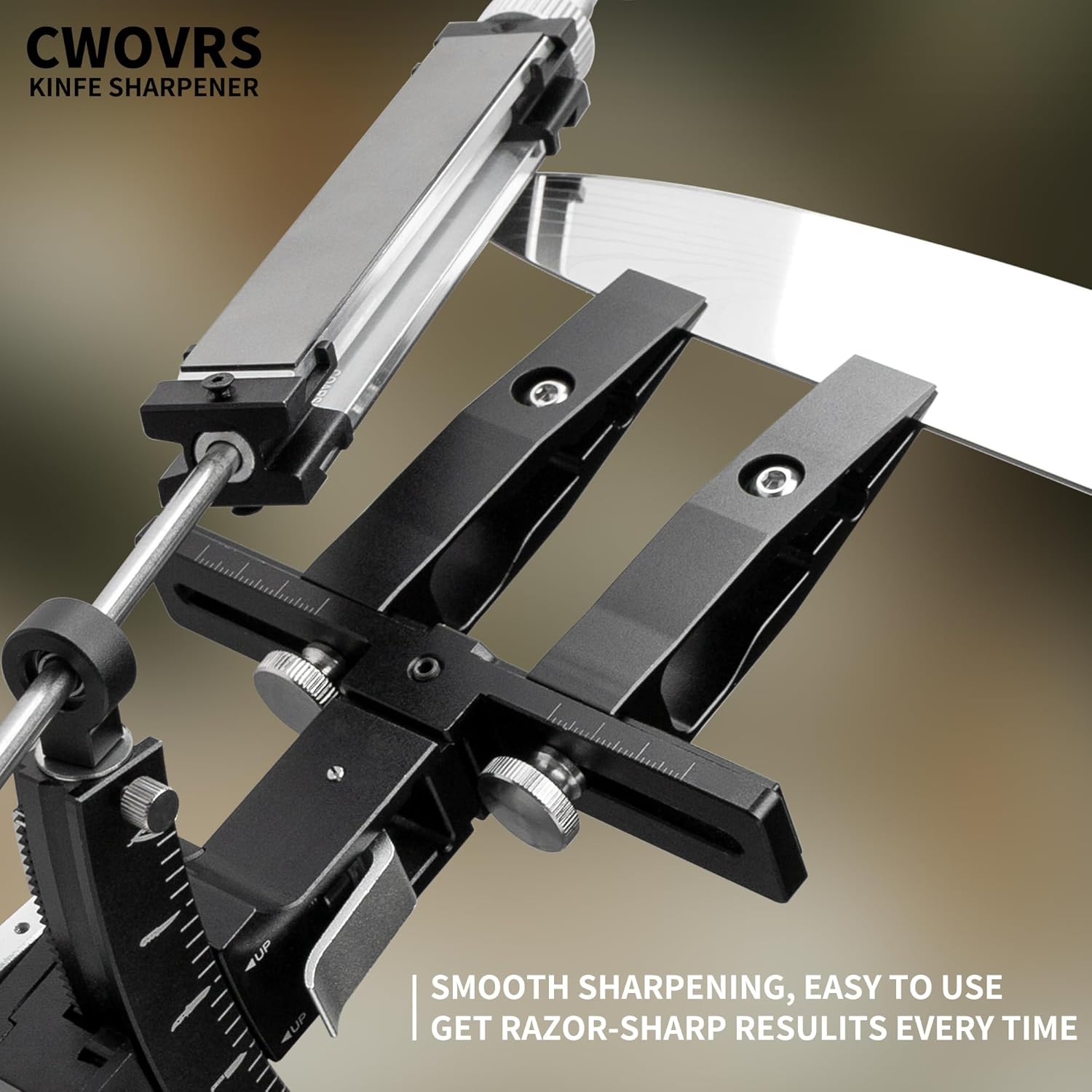

Image 5.4: The sharpening system in operation, designed for smooth sharpening and consistent results.
6. Konserwacja
Proper maintenance ensures the longevity and performance of your sharpening system.
- Czyszczenie systemu: After each use, wipe down the aluminum components with a damp cloth to remove any metal dust or stone residue. Dry thoroughly to prevent corrosion.
- Cleaning Sharpening Stones: Rinse diamond stones under running water to remove swarf (metal particles). For water stones, rinse and allow them to air dry completely before storing. Do not store wet water stones in enclosed containers.
- Składowanie: Store the sharpening system and stones in a dry, clean place, away from direct sunlight and extreme temperatures. Keep components organized to prevent loss or damage.
- Stone Flattening: Over time, water stones may develop grooves. Use a flattening stone (not included) to maintain a flat sharpening surface. Diamond stones generally do not require flattening.
7. Rozwiązywanie Problemów
Jeśli napotkasz problemy, zapoznaj się z poniższym przewodnikiem rozwiązywania problemów:
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Knife is not securely held. | Clip not tightened enough; knife too thin. | Ensure the knife clip is fully tightened. Use the included silicone pad for thinner blades. |
| Inconsistent sharpening angle. | Angle knob not secured; system not stable. | Tighten the angle adjustment knob. Ensure the table clamp is firmly secured to a stable surface. |
| Poor sharpening results (dull edge). | Incorrect grit progression; insufficient pressure; stone not wet (for water stones). | Start with a coarser grit and progress systematically. Apply consistent, light pressure. Ensure water stones are properly soaked and kept wet. |
| Stones not fitting correctly in clamp. | Stones are not the same length. | The dual-sided stone holder requires stones of the exact same length for proper installation. Adjust or use compatible stones. |
8. Specyfikacje
Key technical details of the CWOVRS Precision Adjust Knife Sharpening System:
- Materiał korpusu: Aluminum Alloy (CNC Machined)
- Processing Technology: Extrusion and CNC
- Applicable Knife Thickness: Less than 5mm (silicone pad required for thickness less than 3mm)
- Whetstone Length: 150mm (Diamond grinding stones use aluminum alloy base)
- Zakres kąta: 9-25° (for 41mm blade width)
- Mechanizm odwracania: Obrót o 360°
- Stone Clamp: Universal & Dual-Sided with thickness compensation
Image 8.1: Detailed specifications of the sharpening system components.
9. Gwarancja i wsparcie
For any questions, concerns, or support regarding your CWOVRS Precision Adjust Knife Sharpening System, please contact the manufacturer directly through the retailer's platform or visit the official CWOVRS store.
