Whitmor Modern Industrial Wardrobe User Manual

Wstęp

Thank you for choosing the Whitmor Modern Industrial Wardrobe. This heavy-duty, multi-functional storage solution is designed to organize your clothing and accessories efficiently. Featuring adjustable shelving, double hanging rods, and lockable swivel wheels, this wardrobe provides versatile storage and easy mobility. Please read this manual thoroughly before assembly and use to ensure proper setup and safe operation.

Informacje dotyczące bezpieczeństwa

• Nośność: Do not exceed the maximum static load capacity of 600 lbs. Distribute weight evenly across shelves and hanging rods.
• Montaż: Ensure all components are correctly assembled and securely tightened before use. Improper assembly can lead to instability and potential injury.
• Stabilność: Always place the wardrobe on a flat, level, and stable surface. Engage the wheel locks when the unit is stationary to prevent accidental movement.
• Dzieci i zwierzęta: Keep children and pets away from the unit during assembly. Do not allow children to climb on or play with the wardrobe.
• Konserwacja: Regularly inspect the wardrobe for loose parts or damage. Tighten connections as needed.
• Przenoszenie jednostki: Unlock the wheels before moving the wardrobe. Move slowly and carefully, especially when fully loaded.

Zawartość opakowania

Please verify that all parts are present before beginning assembly. If any parts are missing or damaged, contact Whitmor customer service.

• Vertical Poles (various lengths for top, middle, and bottom sections)
• Półki druciane (3)
• Drążki do zawieszania (2)
• Side Hooks (8)
• Plastic Sleeves/Clips (numerous, for shelf height adjustment)
• Casters/Wheels (4, with 2 lockable)

Instrukcja montażu i instalacji

Assembly is required. No additional tools are needed for most steps, but a rubber mallet may be helpful for securing shelves. Follow the instructions carefully. Parts are often labeled with letters corresponding to diagrams.

1. Rozpakuj i zidentyfikuj części: Ostrożnie wyjmij wszystkie elementy z opakowania. Rozłóż je i porównaj z listą zawartości opakowania, aby upewnić się, że wszystko jest obecne.
2. Zamontuj kółka: Screw the four casters into the bottom of the four shortest vertical poles. Ensure two of these casters are the lockable type. Tighten them securely.
3. Złóż dolną ramę: Connect the bottom vertical poles to the next set of vertical poles using the provided connectors. Ensure they are firmly seated.
4. Montaż dolnej półki: Determine the desired height for your lowest shelf. Snap the plastic sleeves onto each of the four vertical poles at the same height, ensuring they are securely locked into the grooves. Slide the wire shelf down over the sleeves until it rests firmly on them.
5. Install Middle Poles and Shelf: Connect the next set of vertical poles to the top of the poles from the previous step. Repeat the process of snapping plastic sleeves onto the poles at the desired height for the middle shelf, then slide the middle wire shelf into place.
6. Install Upper Poles and Top Shelf: Connect the final set of vertical poles. Snap plastic sleeves onto the poles for the top shelf, then slide the top wire shelf into place.
7. Zamocuj drążki do zawieszania: Position the two hanging rods between the vertical poles at your preferred height. Secure them using the designated clips or connectors.
8. Zamontuj haki boczne: Clip the eight side hooks onto the vertical poles as desired for additional storage.

Figure 1: Fully assembled wardrobe with overall dimensions (35.4"D x 16"W x 77"H).

Figure 2: Illustration of adjustable shelving, allowing customization of shelf height.

Figure 3: Detail of the 360-degree swivel wheels, including the lockable mechanism.

Instrukcja obsługi

• Regulacja półek: The shelves can be repositioned to accommodate items of various heights. To adjust, remove items from the shelf, lift the shelf, reposition the plastic sleeves to the desired groove on each pole, and then lower the shelf back onto the sleeves until it is secure.
• Using Hanging Rods: The two double hanging rods provide ample space for clothes. Ensure garments are hung evenly to maintain balance.
• Utilizing Side Hooks: The eight side hooks are ideal for hanging accessories such as hats, scarves, bags, or belts.
• Mobilność i stabilność: The wardrobe is equipped with four 360-degree swivel wheels for easy movement. Two of these wheels are lockable. To move the unit, unlock the two lockable wheels. To keep the unit stationary, engage the locks on these two wheels.
• Rozkład masy: For optimal stability and to prevent damage, distribute the weight of your items evenly across all shelves and hanging rods. Do not overload any single section.

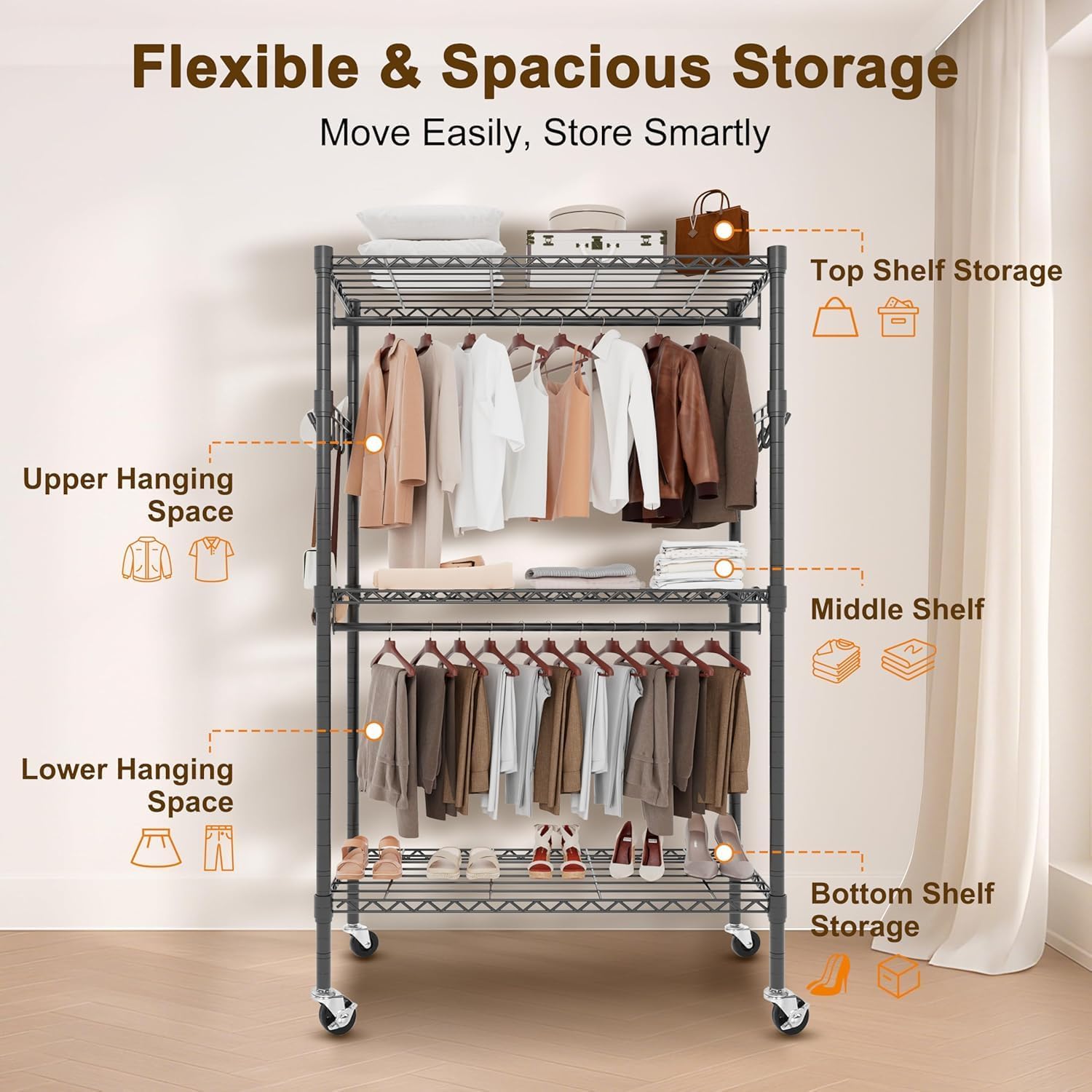

Rysunek 4: Koniecview of the wardrobe's flexible and spacious storage options, including top, middle, and bottom shelves, and upper and lower hanging spaces.

Konserwacja

• Czyszczenie: Przetrzyj metalowe powierzchnie miękką,amp szmatką. Unikaj środków czyszczących o działaniu ściernym i silnych środków chemicznych, które mogłyby uszkodzić wykończenie.
• Kontrola: Periodically check all connections, especially the plastic sleeves and pole joints, to ensure they remain secure. Tighten any loose parts.
• Pielęgnacja kół: Keep the casters free of dust and debris to ensure smooth rolling.

Rozwiązywanie problemów

• Wardrobe is Wobbly:
  Rozwiązanie: Ensure all plastic clips are correctly seated in the pole grooves at the same height for each shelf. Press down firmly on each corner of the shelves to ensure they are fully seated on the clips. Verify all pole connections are tight.
• Shelves Not Holding Weight / Slipping:
  Rozwiązanie: Confirm that the plastic clips are securely locked into the grooves on all four poles for each shelf. The clips have a tapered design; ensure they are oriented correctly. Do not exceed the maximum weight capacity of 600 lbs, and distribute items evenly.
• Difficulty Moving the Unit:
  Rozwiązanie: Check if the lockable wheels are engaged. Disengage the locks to allow movement. Ensure the wheels are free of any obstructions or debris.
• Części nie pasujące do siebie:
  Rozwiązanie: Double-check the part identification against the assembly instructions. Ensure components are oriented correctly. Some pole connections may require firm pressure to fully seat.

Specyfikacje

Gwarancja i wsparcie

For warranty information or customer support, please contact Whitmor directly through their official website or the retailer where the product was purchased. Please have your model number (6070-18576-SIOCV1) and purchase details available when contacting support.
