MIZUDO 6.5kW EQUIK 6 Tankless Electric Water Heater User Manual

1. Koniec produktuview

The MIZUDO 6.5kW EQUIK 6 Tankless Electric Water Heater provides instant hot water on demand, designed for point-of-use applications. This compact unit offers high energy efficiency and precise temperature control for a comfortable experience.

Image 1.1: Key advantages of the MIZUDO EQUIK 6 water heater, highlighting instant heating, smart touch control, 98% thermal efficiency, intelligent constant temperature, and multiple protections.

Główne cechy:

• Wysoka efektywność energetyczna: Boasts 98% thermal efficiency, heating water in approximately 3 seconds.

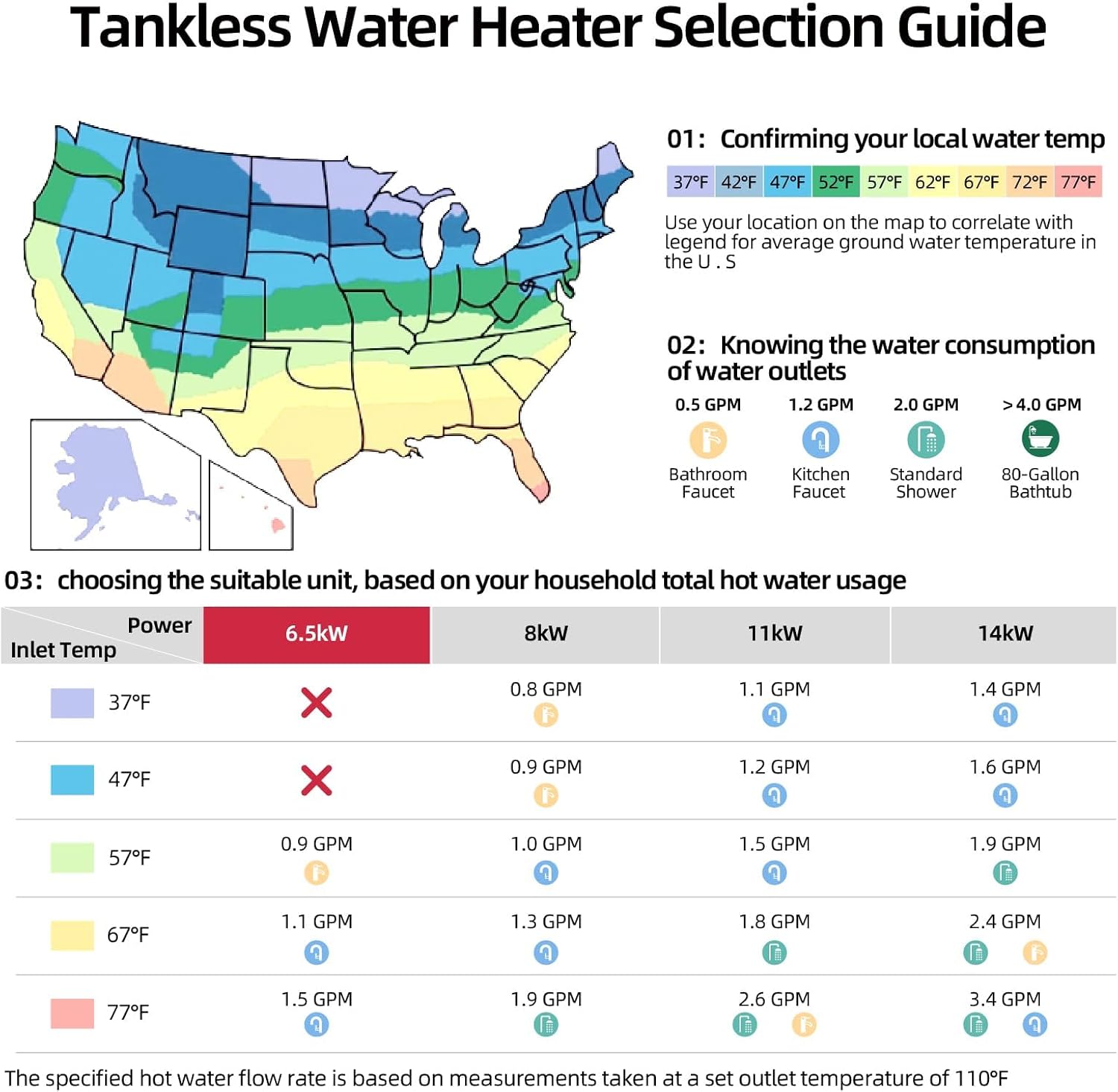

• Natychmiastowa ciepła woda: Delivers up to 1.5 GPM (Gallons Per Minute) for a single point of use.
• Kompaktowa konstrukcja: Measures 12.8"H x 8.6"L x 2.3"W, saving over 50% space compared to traditional tank heaters.
• Inteligentna kontrola temperatury: LED touch display allows setting temperatures between 86°F and 140°F, maintaining stability within ±1°F.
• Wiele zabezpieczeń: CSA certified with leakage, over-temperature, and dry-heating protection.

2. Informacje dotyczące bezpieczeństwa

This appliance is designed with multiple safety features. Adhering to all installation and operating instructions is crucial for safe operation. Do not attempt to modify the unit or bypass any safety features.

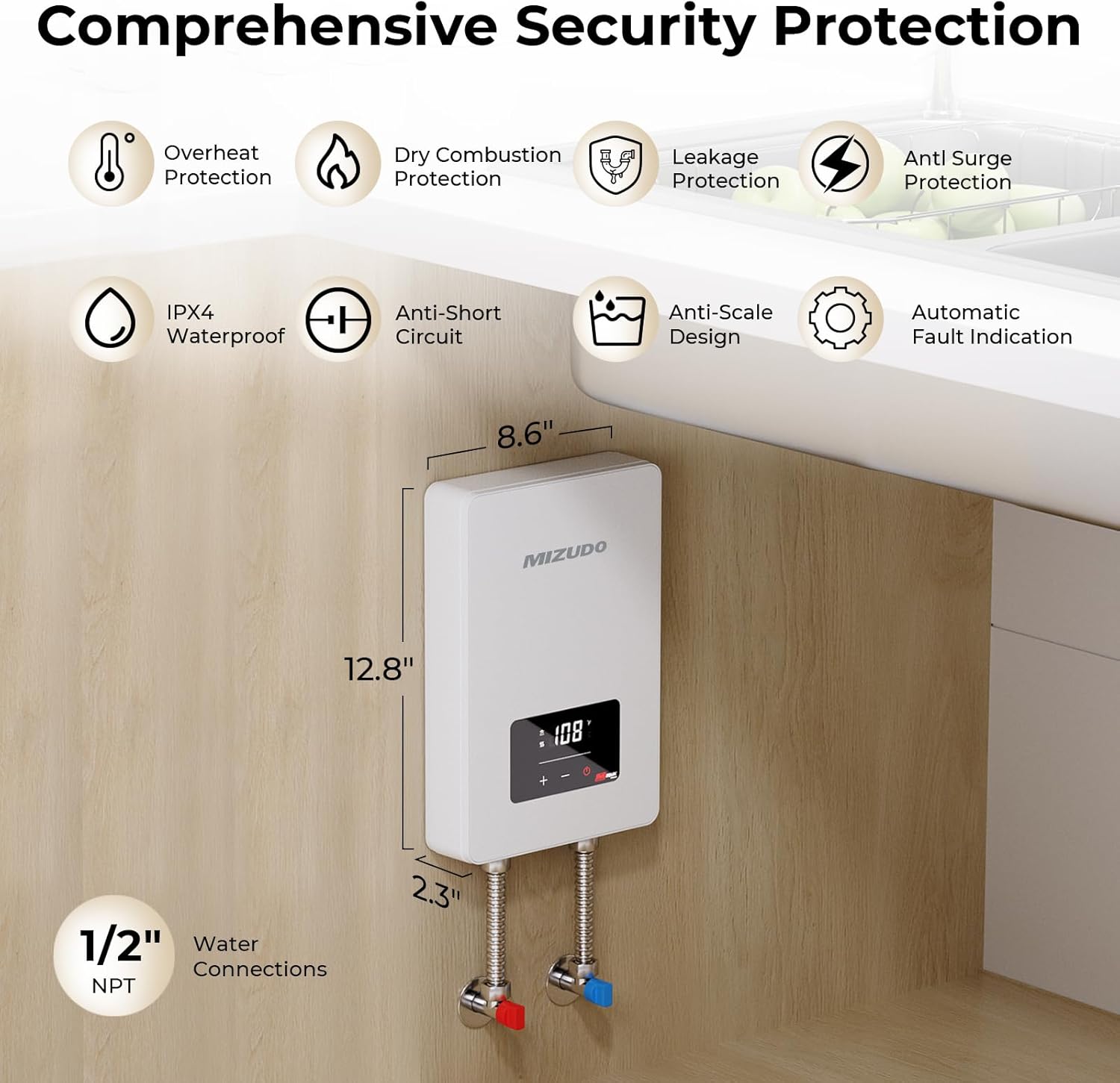

Obraz 2.1: Koniecview of the comprehensive security protections, including overheat, dry combustion, leakage, anti-surge, IPX4 waterproof, anti-short circuit, anti-scale design, and automatic fault indication.

Funkcje bezpieczeństwa:

• Ochrona przed wyciekiem: Automatically detects and prevents electrical leakage.
• Zabezpieczenie przed przegrzaniem: Shuts off if water temperature exceeds safe limits.
• Zabezpieczenie przed suchym nagrzewaniem: Prevents damage if the unit operates without water flow.
• Certyfikat CSA: Spełnia uznane normy bezpieczeństwa.

3. Installation Requirements & Setup

Proper installation is critical for the safe and efficient operation of your MIZUDO tankless water heater. It is recommended that installation be performed by a qualified electrician and plumber.

Wymagania elektryczne:

• Tomtage: 240 V (AC)
• Przerywacz: 30 AMP two-pole breaker
• Okablowanie: 1 set of 10 AWG wires

Water Connection Requirements:

• Rozmiar rury: 1/2" NPT water connections

Kroki instalacji:

1. Rozpakuj jednostkę: Carefully remove the water heater and all accessories from the packaging.
2. Wybierz miejsce montażu: Choose a suitable location, typically under or over a sink, ensuring it meets clearance requirements and is close to the point of use.
3. Zamontuj wspornik: Przymocuj uchwyt montażowy do ściany za pomocą dołączonych śrub.
4. Hang the Water Heater: Carefully hang the water heater onto the mounted bracket and secure it with the bottom screws.
5. Podłącz przewody wodne: Connect the cold water inlet (blue) and hot water outlet (red) to your plumbing system using 1/2" NPT connections. Ensure a filter is installed at the inlet.
6. Podłącz okablowanie elektryczne: Connect the power cord to the circuit breaker as per local electrical codes. Ensure power is OFF during this step.

Image 3.1: Visual guide for installation, detailing power and breaker requirements.

Image 3.2: Detailed installation diagram showing water and electrical connections to the circuit breaker panel.

4. Instrukcja obsługi

Once installed and connected, operating your MIZUDO tankless water heater is straightforward using the integrated LED touch display.

Ustawienie temperatury:

• The LED touch display allows you to set your preferred water temperature between 86°F (30°C) and 140°F (60°C).
• Use the '+' and '-' buttons on the display to adjust the temperature.
• The intelligent control system constantly fine-tunes heating power to maintain a stable temperature within ±1°F.

Image 4.1: The LED touch display for accurate temperature control, showing examples of suitable temperatures for various uses.

Pierwsze użycie:

Before first use, ensure all water connections are secure and open the hot water faucet to allow air to escape the system. Once water flows steadily, close the faucet and turn on the electrical power to the unit.

5. Konserwacja

Regular maintenance helps ensure the longevity and optimal performance of your tankless water heater. Always disconnect power before performing any maintenance.

Ogólna konserwacja:

• Sprawdź połączenia: Periodically check water and electrical connections for any signs of leaks or wear.
• Czysty wygląd zewnętrzny: Przetrzyj powierzchnię zewnętrzną miękką,amp ściereczka. Nie używaj środków czyszczących o właściwościach ściernych.
• Czyszczenie filtra: The inlet filter should be checked and cleaned periodically to prevent sediment buildup, which can affect water flow and heating efficiency.

6. Rozwiązywanie Problemów

If your water heater is not functioning as expected, refer to the following common troubleshooting steps. For persistent issues, contact customer support.

Reset wyłącznika termicznego bezpieczeństwa:

Jeżeli produkt przestanie działać z powodu zadziałania zabezpieczenia termicznego, możesz go zresetować w celu przywrócenia normalnej pracy. Warning: Ensure power is OFF before proceeding.

1. Remove the outer shell of the water heater.
2. Locate the safety thermal cut-off switch inside the unit.
3. Press the reset button on the thermal cut-off with a screwdriver.
4. Reinstall the outer shell.

Image 6.1: Step-by-step visual guide for resetting the safety thermal cut-off.

Typowe problemy:

• Nie gorąca woda: Check power supply, circuit breaker, and ensure water flow is adequate.
• Nierównomierna temperatura: Verify inlet water temperature is within operating range and check for proper water flow.
• Niskie ciśnienie wody: Inspect water inlet filter for clogs.

7. Specyfikacje

Detailed technical specifications for the MIZUDO 6.5kW EQUIK 6 Tankless Electric Water Heater.

Image 7.1: Diagram illustrating the product dimensions and included components.

8. Gwarancja i wsparcie

MIZUDO is committed to providing reliable products and excellent customer service.

Obsługa posprzedażna:

We offer long-term return and exchange services, along with professional technical consulting support. For any inquiries, technical assistance, or warranty claims, please contact MIZUDO customer service through the retailer where the product was purchased or visit the official MIZUDO webwitryna do informacji kontaktowych.
