1. Wprowadzenie
This manual provides detailed instructions for assembling, operating, and maintaining your STRICH SLP-D30 LP Style DIY Electric Guitar Kit. Designed for enthusiasts and aspiring luthiers, this kit allows you to build a high-quality electric guitar with a mahogany body, maple neck, and powerful HH pickups. Please read all instructions carefully before beginning assembly to ensure a successful and enjoyable building experience.
Figure 1: Fully assembled STRICH SLP-D30 LP Style Electric Guitar.
2. Co znajduje się w pudełku
Your STRICH SLP-D30 kit includes all necessary components for assembly. Please verify all parts are present before starting.
- Mahogany Body (LP Style)
- Maple Neck with HPL Fingerboard
- HH Pickups (Humbucker-Humbucker configuration)
- Bridge and Tailpiece
- Tuning Machines (6-in-line)
- Pre-wired Electronics (Potentiometers, Switch, Output Jack)
- Guitar Strings (6-piece set)
- Guitar Cable
- Strap Buttons
- Neck Plate and Screws
- Truss Rod Cover
- Control Knobs (Volume and Tone)
- Allen Key and Wrench
- All necessary screws and small hardware
Figure 2: All components included in the DIY Electric Guitar Kit.
3. Instrukcja montażu
Follow these steps carefully to assemble your STRICH SLP-D30 electric guitar. A visual guide is also available in the embedded video below.
Video 1: STRICH SLP-D30 Installation Tutorial. This video demonstrates the complete assembly process for the guitar kit.
3.1. Headstock Assembly
- Install Tuning Pegs: Insert the tuning machine posts into the pre-drilled holes on the headstock. Secure them from the front with washers and nuts, then tighten with the provided wrench.
- Attach Truss Rod Cover: Place the truss rod cover over the truss rod access point on the headstock and secure it with the small screws.
Rysunek 3: Szczegółowy view of the maple headstock with tuning pegs.
3.2. Body Wiring and Pickup Installation
- Thread Wires: Carefully thread the pre-wired electronic cables through the designated channels within the mahogany body. Ensure all wires are routed correctly to their respective cavities.
- Install Pickups: Place the HH pickups into their routed cavities. Connect the pickup wires to the main wiring harness using the provided connectors, matching colors. Secure the pickups with screws.
- Install Potentiometers and Switch: Insert the volume and tone potentiometers and the pickup selector switch into their respective holes. Secure them with their nuts and washers. Connect the remaining wires to the potentiometers and switch, ensuring correct color matching.
- Instalacja gniazda wyjściowego: Mount the output jack plate to the side of the guitar body and secure it with screws. Connect the output jack wires to the main harness.

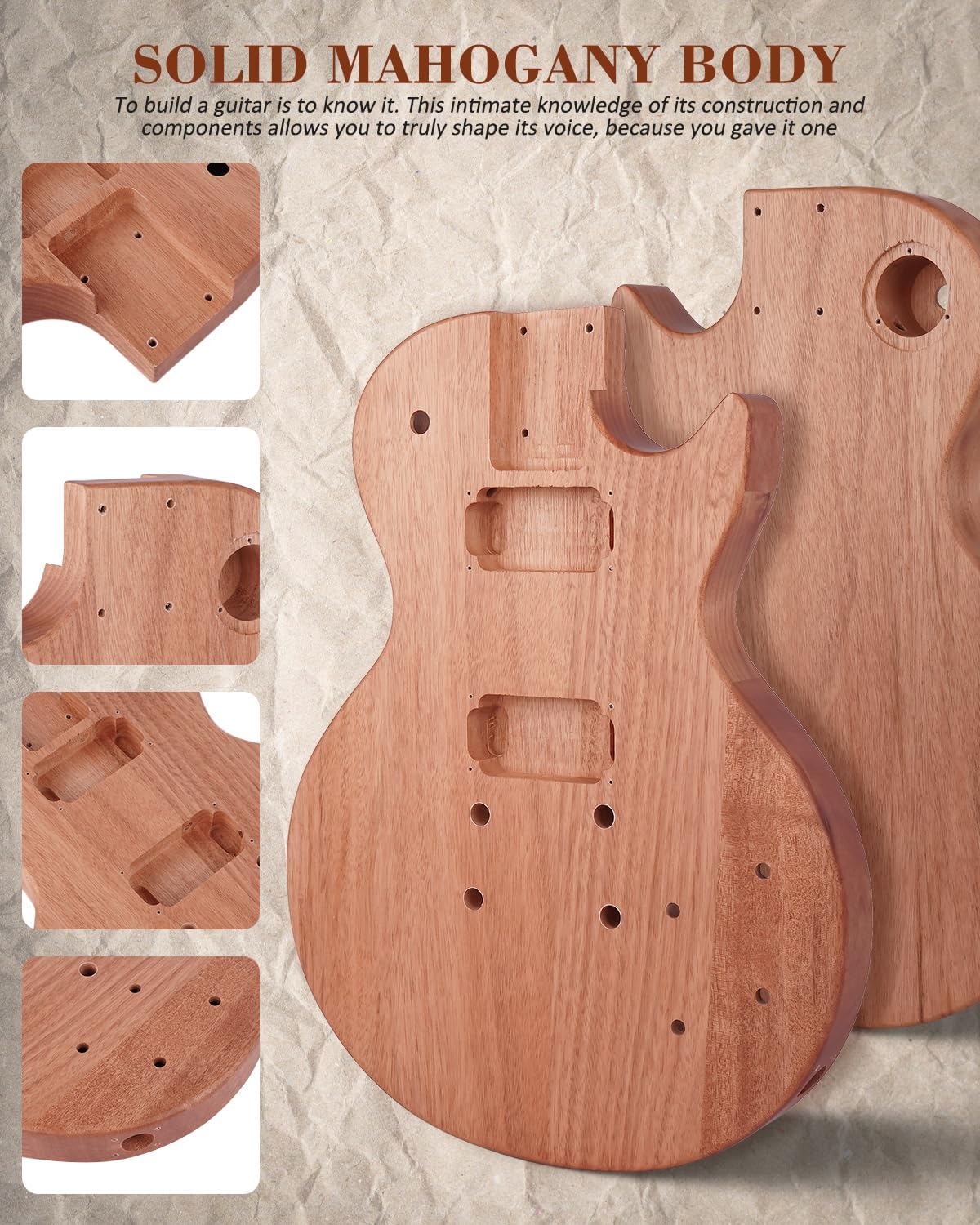

Figure 4: The guitar body showcasing the HH pickups and pre-varnished finish.
3.3. Bridge and Knobs Installation
- Install Bridge Posts: Gently tap the bridge posts into the pre-drilled holes on the guitar body using a hammer.
- Install Bridge and Tailpiece: Place the bridge and tailpiece onto their respective posts.
- Attach Control Knobs: Push the volume and tone control knobs onto the potentiometer shafts.
3.4. Neck Attachment
- Attach Neck to Body: Carefully align the maple neck with the neck pocket on the body. Ensure a snug fit without noticeable gaps.
- Secure Neck Plate: Place the neck plate over the four screw holes on the back of the body where the neck attaches. Insert and tighten the four neck screws securely.
Figure 5: Close-up of the securely attached neck joint.
3.5. Ostatnie szlify
- Install Strap Buttons: Screw the strap buttons into the pre-drilled holes on the body.
- Install Control Cavity Covers: Place the plastic covers over the control cavities on the back of the body and secure them with screws.
- Instalacja strun: Thread each string through the tailpiece, over the bridge, and through the corresponding tuning machine post on the headstock. Wind the strings tightly and tune the guitar.
4. Instrukcja obsługi
Once assembled, your STRICH SLP-D30 electric guitar is ready to play. Here are basic operating guidelines:
- Strojenie: Use an electronic tuner to accurately tune your guitar strings to standard E-A-D-G-B-e or your preferred tuning.
- Pokrętła głośności: Control the overall output volume of the guitar.
- Pokrętła tonu: Adjust the treble and bass frequencies for each pickup.
- Przełącznik wyboru przetwornika: This 3-way switch allows you to select different pickup configurations:
- Pozycja 1 (szyja): Activates the neck pickup for warmer, fuller tones.
- Pozycja 2 (środek): Activates both neck and bridge pickups for a balanced tone.
- Pozycja 3 (most): Activates the bridge pickup for brighter, sharper tones.
- Łączenie się z AmpLiyfikator: Use a standard 1/4" (6.35mm) instrument cable to connect the guitar's output jack to your ampliyfikator.
5. Konserwacja
Proper maintenance will prolong the life and playability of your guitar:
- Czyszczenie: Wipe down the body, neck, and strings with a soft, dry cloth after each use. For deeper cleaning, use guitar-specific cleaning products.
- Wymiana struny: Replace strings regularly (e.g., every 1-3 months, depending on usage) to maintain optimal tone and playability.
- Pielęgnacja podstrunnicy: Periodically clean and condition the HPL fretboard to prevent drying and cracking.
- Regulacja pręta kratownicy: If the neck shows excessive forward or backward bow, a truss rod adjustment may be necessary. This is an advanced procedure; if unsure, consult a professional luthier.
- Sprawdzenie sprzętu: Periodically check all screws and nuts for tightness, especially on tuning machines, bridge, and neck plate.
6. Rozwiązywanie Problemów
Oto rozwiązania typowych problemów, z którymi możesz się spotkać:
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Brak dźwięku z ampżywsze | Loose cable connection, faulty cable, incorrect pickup selection, amplifier off/volume down, wiring issue. | Check all cable connections, try a different cable, ensure amplifier is on and volume is up, verify pickup selector switch position, inspect internal wiring connections. |
| Buzzing/Fretting out | Low action, uneven frets, neck relief issues, old strings. | Adjust bridge saddle height, check neck relief (truss rod adjustment if needed), replace old strings. If frets are uneven, professional attention may be required. |
| Gitara nie trzyma stroju | New strings stretching, improperly wound strings, faulty tuning machines, nut issues. | Stretch new strings thoroughly, ensure strings are correctly wound around tuning posts, lubricate nut slots, inspect tuning machines for looseness. |
| Słaby lub niespójny wynik | Pickup height too low, loose wiring, faulty potentiometer/switch. | Adjust pickup height closer to strings, check all internal wiring connections, test potentiometers and switch for proper function. |
7. Specyfikacje
- Nazwa modelu:
- SLP-D30
- Materiał korpusu:
- Mahoń
- Materiał szyi:
- Klon
- Materiał podstrunnicy:
- Engineered Wood (HPL)
- Konfiguracja odbioru:
- H-H (Humbucker-Humbucker)
- Liczba ciągów:
- 6
- Orientacja dłoni:
- Prawidłowy
- System mostkowy:
- Naprawił
- Dźwięk Profile:
- Warm, heavy
- Typ złącza:
- 1/4" (6.35mm) audio jack
- Waga przedmiotu:
- 4 kilogramów
- Rozmiar instrumentu:
- Pełny rozmiar
8. Gwarancja i wsparcie
STRICH products are designed for quality and performance. For any questions regarding assembly, operation, or potential issues, please refer to the seller's support channels or contact STRICH customer service. Please retain your proof of purchase for warranty claims.
For additional resources and support, visit the official STRICH store: STRICH Store on Amazon
