Redodo Bluetooth 24V 50Ah LiFePO4 Battery and 29.2V 20A Charger Instruction Manual

1. Koniec produktuview

The Redodo Bluetooth 24V 50Ah LiFePO4 Battery is a smart lithium iron phosphate battery designed for various deep cycle applications, including trolling motors, marine use, RVs, fishing finders, solar systems, and off-grid power. It features integrated Bluetooth monitoring and an upgraded Battery Management System (BMS) for enhanced safety and performance. This package also includes a dedicated 29.2V 20A LiFePO4 battery charger.

Główne cechy:

• Bluetooth Monitoring & Control: Track charge status, cycles, temperature, and battery health via a mobile application. Manage discharge and power-off functions remotely.
• Kompaktowy i lekki: Weighing approximately 21.14 lbs, this battery offers a lightweight solution for various applications.
• Optimized for 24V Trolling Motors: Designed to power trolling motors with up to 100 lbs of thrust, providing continuous power with a 60A discharge current.
• Szybkie ładowanie: The included 29.2V 20A charger can fully charge a 24V 100Ah LiFePO4 battery in approximately 5 hours.
• Zaawansowana ochrona BMS: Equipped with safeguards against overcharge, over-discharge, short circuits, over-current, over-temperature, and low-temperature cut-off.
• Długa żywotność: Built with Grade A cells, offering over 4,000 cycles at full depth of discharge.
• Rozszerzalna pojemność: Can be scaled up to 10.24kWh (max 4P2S) for increased power needs.

Image: Redodo 24V 50Ah LiFePO4 Battery powering a trolling motor on a boat, highlighting its application.

2. Informacje dotyczące bezpieczeństwa

Read all safety instructions before operating the battery and charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.

Ogólne środki ostrożności:

• Nie rozbieraj, nie modyfikuj ani nie przekłuwaj akumulatora.
• Trzymaj akumulator z dala od ognia, źródeł ciepła i bezpośredniego światła słonecznego.
• Nie zanurzaj akumulatora w wodzie ani innych płynach.
• Use only the specified Redodo 29.2V 20A charger or a compatible LiFePO4 charger with a lithium activation function.
• Podczas ładowania i użytkowania należy zapewnić odpowiednią wentylację.
• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection, when handling the battery.
• Unikaj zwarcia zacisków akumulatora.
• Przechowywać w miejscu niedostępnym dla dzieci.

Charger Safety Functions:

• Wyjście zabezpieczenie przed zwarciem
• Ochrona przed przegrzaniem
• Wyjście Over-Voltage Ochrona
• Ochrona przed odwrotną polaryzacją połączenia

Image: Diagram illustrating the safety protection functions integrated into the 29.2V 20A charger.

3. Co znajduje się w pudełku

Upon unpacking your Redodo battery and charger, please verify that all items listed below are present and in good condition:

• Redodo Bluetooth 25.6V 50Ah LiFePO4 Battery with Low Temp Cut Off
• Insulating Caps for Terminal Bolts
• Śruby zaciskowe M8-5/8"
• Redodo 29.2V 20A LiFePO4 Battery Charger

Image: The Redodo 24V 50Ah LiFePO4 battery and its accompanying 29.2V 20A charger.

4. Konfiguracja i instalacja

Początkowa aktywacja:

Redodo Bluetooth batteries are shipped in a powered-off state to ensure safety during transit. To activate the battery, connect it to a compatible LiFePO4 charger (such as the included 29.2V 20A charger) or an MPPT solar charge controller that has a lithium activation function. The battery will activate automatically upon receiving a charge.

Podłączanie akumulatora:

1. Ensure all loads are disconnected from the battery before making connections.
2. Connect the positive (+) terminal of the battery to the positive (+) terminal of your application (e.g., trolling motor, inverter).
3. Connect the negative (-) terminal of the battery to the negative (-) terminal of your application.
4. Secure all connections tightly using the provided M8- 5/8" terminal bolts and insulating caps. Loose connections can cause overheating and damage.
5. If connecting multiple batteries in series or parallel, refer to the 'Expandable Capacity' section for specific wiring diagrams and safety guidelines.

Parowanie Bluetooth:

Download the official Redodo app from your smartphone's app store. Ensure your battery is activated and within Bluetooth range. Open the app and follow the on-screen instructions to pair with your battery. This will enable real-time monitoring and control features.

Image: The Redodo battery with a smartphone showing the Bluetooth monitoring interface for capacity, voltage, and state of charge.

5. Instrukcja obsługi

Ładowanie akumulatora:

Use the provided Redodo 29.2V 20A LiFePO4 battery charger. Connect the charger to a suitable power outlet, then connect the charger's output to the battery terminals. The charger features an indicator light:

• Czerwony pomarańczowy: Ładowanie
• Zielony: Fully Charged / Standby

The charger will automatically stop charging when the battery is full. Charging time for a 24V 100Ah battery is approximately 5 hours with the 20A charger.

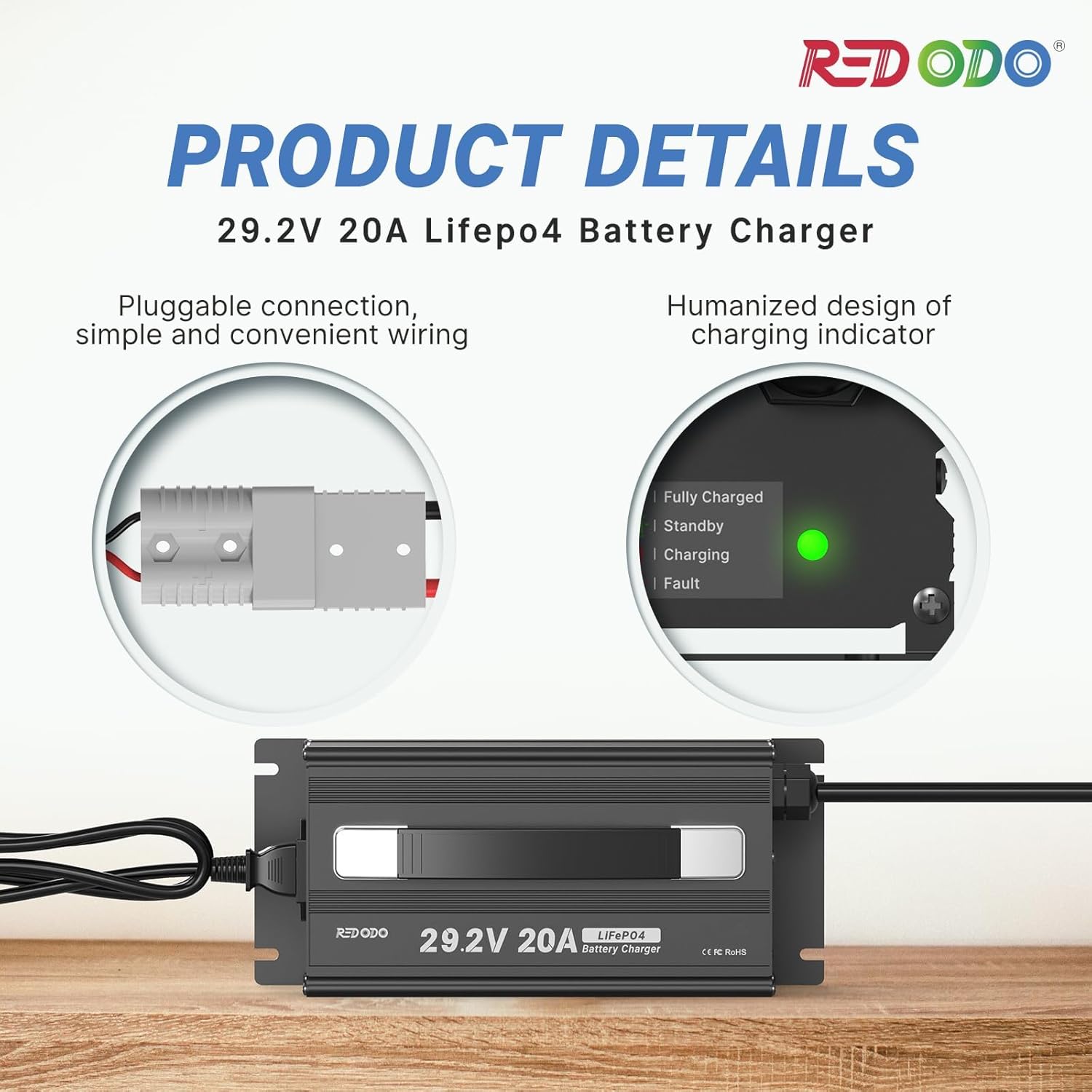

Image: The Redodo 29.2V 20A LiFePO4 battery charger, detailing its connection and indicator light.

Discharging and Application:

The battery is designed for deep cycle applications. It can deliver a continuous discharge current of 60A, suitable for high-power devices like trolling motors up to 100 lbs of thrust. Monitor battery status via the Bluetooth app to ensure optimal performance and avoid over-discharge.

Image: The Redodo battery in a marine application, demonstrating its capability for 24V trolling motors with up to 100 lbs of thrust.

Ochrona przed niską temperaturą:

The battery features a low-temperature cut-off protection. This ensures the battery's longevity and safety by preventing charging or discharging outside safe temperature ranges:

• Below -4°F (-20°C): Discharging stops.
• Below 32°F (0°C): Charging is disabled.
• Above 41°F (5°C): Charging resumes.

Image: Visual representation of the battery's low-temperature cutoff protection, indicating temperature thresholds for discharging and charging.

6. Konserwacja

Proper maintenance ensures the longevity and performance of your Redodo LiFePO4 battery.

• Regularna kontrola: Periodically check battery terminals for corrosion or loose connections. Clean terminals with a wire brush if necessary and ensure they are securely fastened.
• Czyszczenie: Keep the battery clean and dry. Wipe down the battery case with a damp płótno. Nie używaj ostrych środków chemicznych ani rozpuszczalników.
• Składowanie: If storing the battery for an extended period, ensure it is charged to approximately 50-70% State of Charge (SOC). Store in a cool, dry place, away from direct sunlight and extreme temperatures. Disconnect all loads.
• Unikaj głębokiego rozładowania: While the BMS protects against over-discharge, it is best practice to recharge the battery before it reaches critically low levels to maximize cycle life.

7. Rozwiązywanie Problemów

If you encounter issues with your Redodo battery or charger, refer to the following common troubleshooting steps:

Battery Not Activating:

• Ensure the battery is connected to a compatible LiFePO4 charger or MPPT with a lithium activation function. The battery is shipped in a powered-off state and requires an initial charge to activate.
• Check all connections for proper polarity and tightness.

Akumulator nie ładuje się:

• Verify the charger is properly plugged into a working power outlet and the battery.
• Check the charger's indicator light. If it's green, the battery might be fully charged or in standby. If it's off, check the power supply.
• Ensure the ambient temperature is above 32°F (0°C), as the battery has a low-temperature charging cut-off.
• Inspect the charger and battery cables for any damage.

Akumulator się nie rozładowuje / Niska moc wyjściowa:

• Check the battery's State of Charge (SOC) via the Bluetooth app. Recharge if the SOC is low.
• Ensure the ambient temperature is above -4°F (-20°C), as the battery has a low-temperature discharging cut-off.
• Verify that the load (e.g., trolling motor) is not exceeding the battery's maximum continuous discharge current (60A).
• Check for loose or corroded connections at the battery terminals and the load.

Problemy z łącznością Bluetooth:

• Ensure the battery is activated and powered on.
• Make sure your smartphone's Bluetooth is enabled and you are within close proximity to the battery.
• Restart the Redodo app and try pairing again.
• Jeśli problem nadal występuje, spróbuj ponownie uruchomić smartfon.

For persistent issues not covered here, please contact Redodo customer support.

8. Specyfikacje

Image: Dimensions of the Redodo 24V 50Ah LiFePO4 battery, indicating its compact size.

Obraz: Szczegółowy view of the upgraded BMS, highlighting its multi-protection features for peak performance and safety.

9. Gwarancja i wsparcie

Informacje o gwarancji:

The Redodo Bluetooth 24V 50Ah LiFePO4 Battery comes with a 5-letnia gwarancja od daty zakupu. Niniejsza gwarancja obejmuje wady materiałowe i wykonawcze wynikające z normalnego użytkowania. Prosimy zachować dowód zakupu na wypadek roszczeń gwarancyjnych.

The warranty does not cover damage caused by misuse, neglect, improper installation, unauthorized modifications, or natural disasters.

Obsługa klienta:

For technical assistance, warranty claims, or any questions regarding your Redodo product, please contact our customer support team. We aim to provide a 24-hour response to inquiries.

• Webstrona: Odwiedź oficjalną stronę Redodo webwitryna zawierająca zasoby pomocy technicznej i informacje kontaktowe.
• E-mail: Zapoznaj się z opakowaniem produktu lub oficjalnym webwitryna internetowa zawierająca adres e-mail pomocy technicznej.

Please have your model number (Bluetooth 24V 50Ah LiFePO4 Battery) and purchase date ready when contacting support.
