YWBL-WH FX1N-10MR Programmable Relay Module User Manual

Wstęp

This manual provides detailed instructions for the installation, operation, and programming of the YWBL-WH FX1N-10MR Programmable Relay Module. This module is designed for industrial control automation, offering versatile and efficient control over relays and motors through programmable signals.

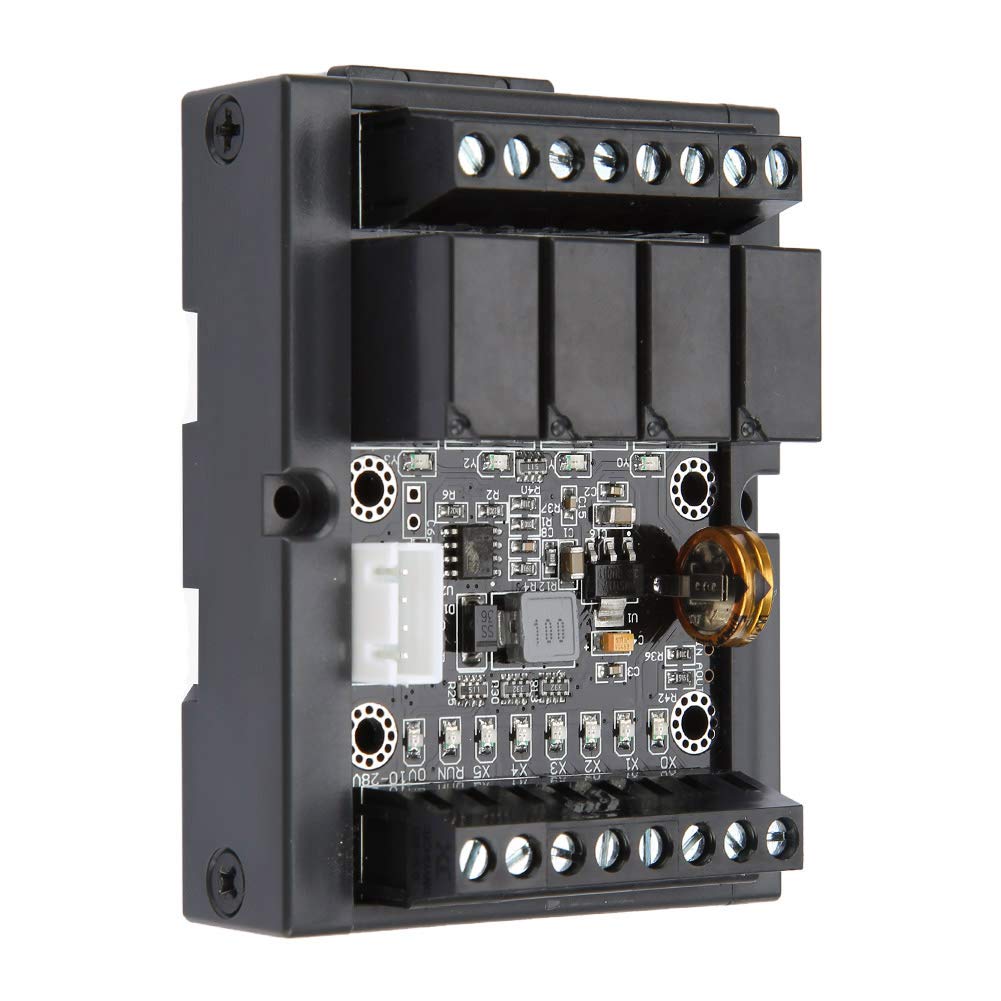

Figure 1: YWBL-WH FX1N-10MR Programmable Relay Module. This module is programmable and features a built-in timing circuit for stable and reliable long-term operation.

Informacje dotyczące bezpieczeństwa

Always ensure the power supply is disconnected before making any connections or disconnections to the module. This device operates with DC voltage; incorrect polarity can cause damage. Handle with care to avoid electrostatic discharge. Only qualified personnel should perform installation and maintenance.

Cechy produktu

• Versatile & Efficient Control: Supports precise control of relays and motors, including forward/reverse motor control, timed relay operations, and signal-based functions.
• Durable & Reliable Performance: Constructed with premium materials for durability and consistent results in industrial automation applications.
• Easy to Use & Wide Compatibility: User-friendly design, compatible with NPN sensor signals, and features a wide voltagZakres napięcia 10-28V DC.
• Stable & Long-Lasting Operation: Engineered for stability with a built-in timing circuit to ensure reliable performance over extended periods.
• Compact & Programmable Design: Small form factor for easy integration, fully programmable to customize thousands of functions for various timing, sequencing, or control tasks.

Specyfikacje

Zawartość opakowania

• 1 x YWBL-WH FX1N-10MR Programmable Relay Module

Konfiguracja i okablowanie

The FX1N-10MR module requires a DC power supply between 10V and 28V. Ensure correct polarity when connecting the power. The module features screw terminals for inputs (X0-X5), outputs (Y0-Y3), and power (DC10-28V, GND).

Rysunek 2: Góra view of the module, highlighting the input terminals (X0-X5) on the right and output terminals (Y0-Y3) on the left, along with power connections.

Connect your NPN sensors to the input terminals (X0-X5) as required by your application. The relay outputs (Y0-Y3) can be connected to control external devices such as motors or other relays, respecting the 2 Amp aktualna ocena.

Rysunek 3: Kątowy view of the module, providing a clearer perspective of the four integrated relays and their corresponding screw terminals for output connections.

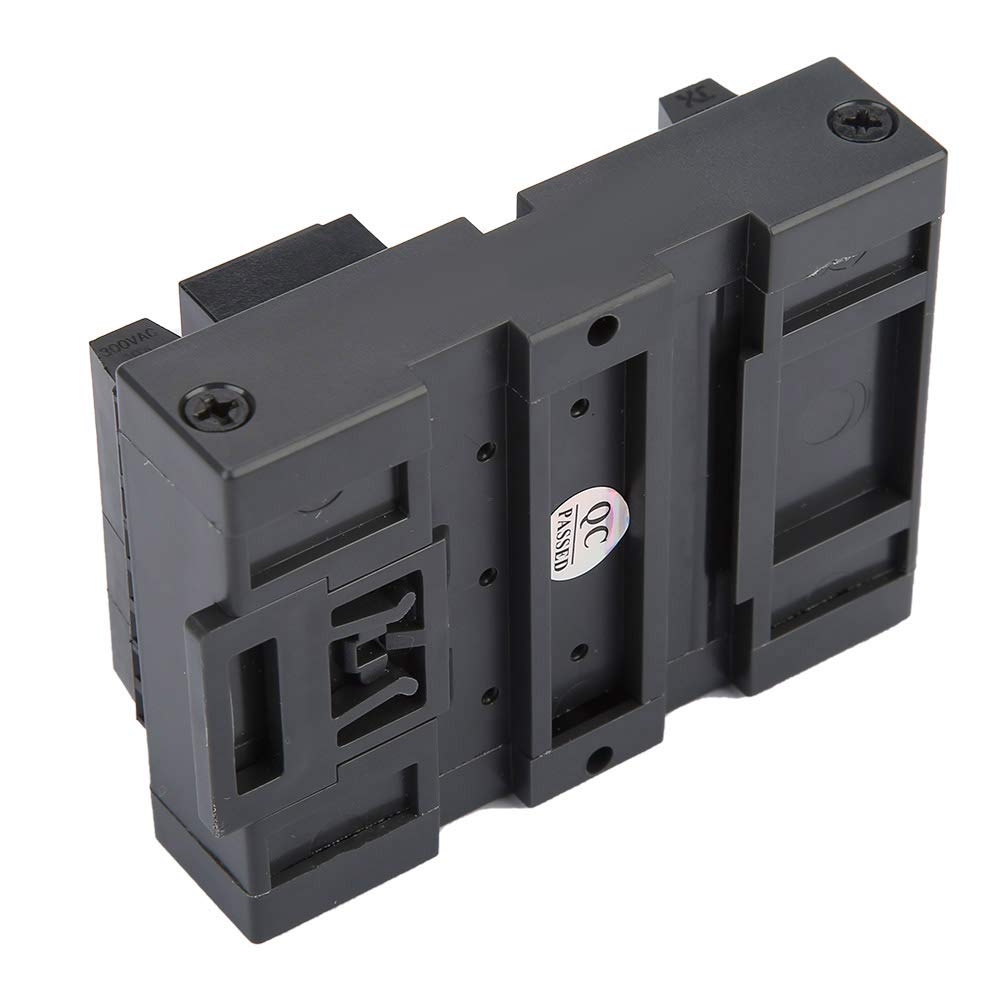

Rysunek 4: Dół view of the module, illustrating the integrated mounting clips for secure wall or panel installation.

Operating Instructions and Programming Functions

The FX1N-10MR module supports various programmable functions. Programming is achieved by configuring signals to control the relays. Below are examples of common functions:

1. Sequential Relay Activation: Upon power-on, Relay 1 closes after N seconds, followed by Relay 2 closing after another N seconds.
2. Timed Cyclic Relay Deactivation: Upon power-on, Relay 1 deactivates after N seconds, then Relay 2 deactivates after N seconds, and this cycle repeats.
3. Signal-Triggered Timed Relay Operation: When a signal or button is triggered, Relay 1 deactivates after N seconds, then Relay 2 deactivates after N seconds. This action repeats upon subsequent triggers.
4. Conditional Relay Control (Signal 1): If Signal 1 is active, Relay 1 closes and Relay 2 opens.
5. Conditional Relay Control (Signal 2): If Signal 2 is active, Relay 1 opens and Relay 2 closes.
6. NPN Sensor Integration: The module can be programmed to control relays based on NPN sensor signals.
7. Independent Signal Control: Signal 1 controls Relay 1, and Signal 2 controls Relay 2 independently.
8. Timed Motor Reversal Cycle: Upon power-on, the motor rotates in one direction for N seconds, then reverses for N seconds, and this cycle repeats.
9. Signal-Controlled Motor Direction: Signal 1 initiates forward motor rotation, while Signal 2 initiates reverse motor rotation.

For detailed programming instructions and specific 'N' values, refer to the programming software or documentation provided by the manufacturer.

Konserwacja

The YWBL-WH FX1N-10MR module is designed for low maintenance. Keep the module clean and free from dust and moisture. Periodically check all wiring connections to ensure they are secure. Avoid exposing the module to extreme temperatures or corrosive environments.

Rozwiązywanie problemów

• Moduł nie włącza się: Sprawdź wolumen zasilaniatage is within the 10-28V DC range and that polarity is correct. Check all power connections.
• Przekaźniki nie aktywują się: Ensure input signals are correctly connected and within the expected voltage range for NPN sensors. Verify programming logic.
• Działanie przerywane: Check for loose wiring connections or environmental factors such as excessive vibration or temperature fluctuations.
• Nieprawidłowy czas: Review the programmed 'N' values and ensure the timing circuit is functioning correctly.

Gwarancja i wsparcie

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact your vendor.
