Nuvita 1164 Mix70 Portable Bottle Warmer User Manual

Wstęp

The Nuvita 1164 Mix70 is a portable bottle warmer designed for convenience and efficiency. It features a unique 2-in-1 function that heats and automatically mixes milk to ensure a uniform temperature without cold spots or air bubbles. This device is suitable for breast milk, formula, and water, offering five adjustable temperature settings up to 70°C. Its universal design includes six adapters for compatibility with major bottle brands, and it is equipped with a long-lasting rechargeable battery for use at home or on the go. The Mix70 is made with premium materials, including a 316 stainless steel heating plate, and features an LED display with touch controls. It is compact, lightweight, and BPA-free.

Produkt ponadview

The Nuvita Mix70 combines heating and mixing capabilities in a compact, portable design. It ensures your baby's milk is perfectly warmed and free of clumps or cold spots, making feeding times smoother and safer.

Image: The Nuvita Mix70 bottle warmer shown in an outdoor setting with a family, highlighting its portability. The image also indicates its ability to heat up to 70°C and its mixing function.

Image: A diagram illustrating the exclusive mixing function of the Nuvita Mix70. It shows the internal propeller mechanism that automatically stirs the milk during heating for uniform temperature distribution, preventing cold spots and air bubbles.

Środki ostrożności

• Zawsze sprawdzaj temperaturę mleka przed karmieniem dziecka.
• Nie zanurzaj jednostki głównej w wodzie ani innych płynach.
• Przechowywać w miejscu niedostępnym dla dzieci, gdy nie jest używany.
• Use only the provided USB charger.
• Ensure the bottle is securely attached before heating and mixing.
• Nie używać, jeśli urządzenie lub kabel zasilający są uszkodzone.

Zawartość opakowania

• Nuvita 1164 Mix70 Portable Bottle Warmer
• 6 Universal Bottle Adapters
• Kabel ładujący USB-C
• Instrukcja obsługi

Organizować coś

Ładowanie urządzenia

Before first use, fully charge the Nuvita Mix70. Connect the provided USB-C cable to the charging port on the device and to a suitable USB power adapter (not included). A full charge takes approximately 4 hours and provides power for up to 11 heating cycles (based on 120ml bottle from 20°C to 37°C).

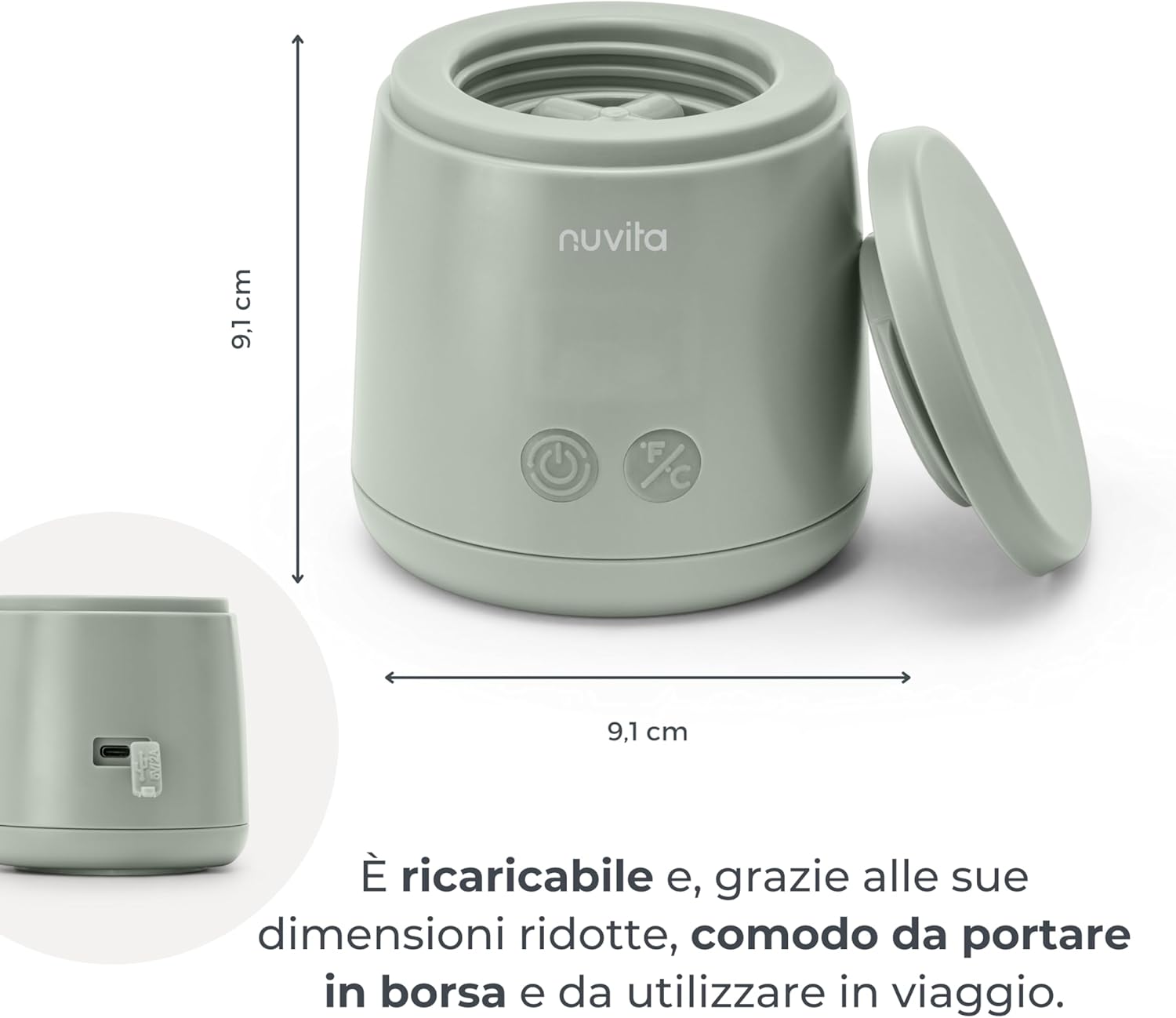

Image: A technical diagram illustrating the Nuvita Mix70, highlighting its compact dimensions (9.1 cm x 9.1 cm x 20 cm) and the location of the USB-C charging port. This image also shows the device's portability and rechargeable battery.

Attaching a Bottle

The Nuvita Mix70 comes with 6 universal adapters to ensure compatibility with most major bottle brands. Select the appropriate adapter for your baby's bottle.

1. Ensure the bottle warmer is clean and dry.
2. Screw the correct adapter onto the bottle warmer's opening.
3. Then, screw your baby's bottle onto the adapter. Ensure a tight, leak-proof seal.

Image: The Nuvita Mix70 bottle warmer shown with a selection of its 6 universal adapters, demonstrating its compatibility with various bottle brands like Chicco, NUK, Medela, Philips Avent, and others.

Instrukcja obsługi

Heating Milk or Water

1. Fill the baby bottle with breast milk, formula, or water.
2. Attach the bottle securely to the Nuvita Mix70 using the appropriate adapter.
3. Naciśnij i przytrzymaj przycisk zasilania (⏻) to turn on the device. The LED display will illuminate.
4. Press the temperature selection button (°F/°C) repeatedly to cycle through the 5 available temperature settings: 37°C, 40°C, 45°C, 50°C, or 70°C. Select the desired temperature.
5. The device will automatically begin heating and mixing. The mixing function ensures even heat distribution and prevents hot spots.
6. Once the desired temperature is reached, the device will maintain it for up to 4 hours.
7. When finished, press and hold the power button to turn off the device.
8. Carefully remove the bottle and always test the temperature of the contents before feeding your baby.

Image: The Nuvita Mix70 bottle warmer in use, heating a bottle on a bedside table. The image highlights its rapid heating capability (3 minutes for 120ml from 20°C to 37°C) and the five temperature settings (37°C, 40°C, 45°C, 50°C, 70°C).

Image: A visual representation of the Nuvita Mix70's features, including its ability to heat up to 11 bottles on a single charge and maintain temperature for up to 4 hours. It also shows the 5 temperature settings and the rapid heating time.

Preparing Formula (up to 70°C)

The 70°C setting is ideal for reconstituting powdered formula according to WHO recommendations, ensuring proper dissolution and sterilization of the water before mixing with powder.

1. Fill the baby bottle with the required amount of water.
2. Attach the bottle securely to the Nuvita Mix70.
3. Turn on the device and select the 70°C temperature setting.
4. Once the water reaches 70°C, remove the bottle.
5. Add the powdered formula as per the manufacturer's instructions.
6. Shake the bottle to mix thoroughly.
7. Allow the formula to cool to a safe feeding temperature before offering it to your baby. Always test the temperature.

Konserwacja i czyszczenie

Czyszczenie płyty grzewczej

After each use, ensure the heating plate is clean. Wipe it with a damp cloth. For stubborn residue, use a soft brush and mild detergent. Rinse thoroughly and dry completely before next use.

Cleaning Adapters and Mixing Propeller

The adapters and the mixing propeller can be washed with warm soapy water or placed in a dishwasher (top rack recommended). Ensure all parts are thoroughly rinsed and dried.

Sterylizacja

The Nuvita Mix70 can be sterilized in just 2 minutes using the portable Nuvita 1556 MellyPlus 2 UV sterilizer (sold separately).

Image: The Nuvita Mix70 bottle warmer shown alongside the Nuvita 1556 MellyPlus 2 UV sterilizer, indicating that the bottle warmer can be sterilized in 2 minutes using this separate accessory.

Składowanie

Store the device in a cool, dry place away from direct sunlight when not in use. Ensure it is fully charged before long-term storage.

Rozwiązywanie problemów

Specyfikacje

• Numer modelu: NU-ALSC0037
• Kompozycja: Bioplastic
• Wymiary (dł. x szer. x wys.): Wymiary 9 x 9 x 20 cm
• Waga: 710 gramów
• Bateria: Akumulatorowy (USB-C)
• Czas ładowania: Około 4 godzin
• Zużycie na jedno ładowanie: Up to 11 bottles (120ml from 20°C to 37°C)
• Ustawienia temperatury: 37°C, 40°C, 45°C, 50°C, 70°C
• Materiał płyty grzewczej: Stal nierdzewna 316
• Cechy: Heating, Automatic Mixing, LED Display, BPA-Free

Gwarancja i wsparcie

Nuvita products are designed and manufactured to the highest quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included in your package for specific terms and conditions, or visit the official Nuvita webWięcej szczegółów znajdziesz na naszej stronie.

For technical support, troubleshooting assistance, or warranty claims, please contact Nuvita Customer Service:

• Webstrona: www.nuvita.com (symbol zastępczy)
• E-mail: support@nuvita.com (symbol zastępczy)
• Telefon: +XX XXX XXX XXXX (placeholder)

Please have your model number (NU-ALSC0037) and proof of purchase ready when contacting support.
