Db Drive APT8MOTO-G3 Marine Tower Speakers User Manual

Wstęp

The Db Drive APT8MOTO-G3 are 8-inch WDX MOTO mini tower speakers designed for marine and off-road applications. These speakers are engineered to deliver robust audio performance with a maximum power handling of 550 watts and a nominal power of 275 watts. They feature a 1.25-inch high-power aluminum dome tweeter with a rear resonance chamber for clear high frequencies, and an ultralight, weather-resistant fiberglass midrange cone with a high-reaction ribbed cloth surround for durability and sound quality in challenging environments. The APT8MOTO-G3 speakers include RGB lighting (controller sold separately) and are housed in an IP52-rated, UV-inhibited enclosure. Installation is simplified with a weather-resistant quick-disconnect speaker connector and 360° swivel mounting brackets, compatible with roll cages from 1.5 to 3 inches. The frequency response ranges from 75 Hz to 21 kHz.

Informacje dotyczące bezpieczeństwa

• Bezpieczeństwo elektryczne: Always disconnect the vehicle's battery before performing any electrical work. Ensure all wiring connections are secure and properly insulated to prevent short circuits and electrical hazards.
• Wymagania dotyczące zasilania: These speakers operate on a 12-volt DC power supply. Do not connect to higher voltagsystemy elektroniczne.
• Bezpieczeństwo montażu: Ensure speakers are securely mounted to prevent detachment during vehicle operation, which could cause injury or damage. Use appropriate hardware for your specific mounting surface.
• Ochrona środowiska: While designed for marine use with an IP52 rating, these speakers are not fully waterproof. Avoid submersion or direct high-pressure water spray. Protect from extreme temperatures.
• Ochrona słuchu: Długotrwałe narażenie na wysoki poziom głośności może spowodować trwałe uszkodzenie słuchu. Zachowaj ostrożność podczas regulacji głośności.

Zawartość opakowania

Sprawdź, czy w opakowaniu znajdują się wszystkie elementy:

• Db Drive APT8MOTO-G3 Marine Tower Speakers (Pair)
• Mounting Hardware (360° swivel brackets, bolts, nuts)
• Weather-resistant quick-disconnect speaker connectors
• Karta gwarancyjna

Konfiguracja i instalacja

Prawidłowy montaż jest kluczowy dla optymalnej wydajności i bezpieczeństwa. W razie wątpliwości co do któregokolwiek kroku, skonsultuj się z profesjonalnym instalatorem.

1. Montaż głośników

1. Wybierz miejsce montażu: Choose a secure location on your vehicle's roll cage or other suitable structure. The 360° swivel brackets are compatible with roll cages from 1.5 to 3 inches in diameter.
2. Zamontuj wsporniki: Securely attach the swivel mounting brackets to the chosen location. Ensure the brackets are tightened sufficiently to prevent movement.
3. Stanowiska prelegentów: Attach the speakers to the mounting brackets. Adjust the speaker angle using the 360° swivel mechanism for optimal sound projection. Tighten all fasteners once the desired position is achieved.

Rysunek 1: Kątowy view of the Db Drive APT8MOTO-G3 speaker, illustrating the mounting bracket.

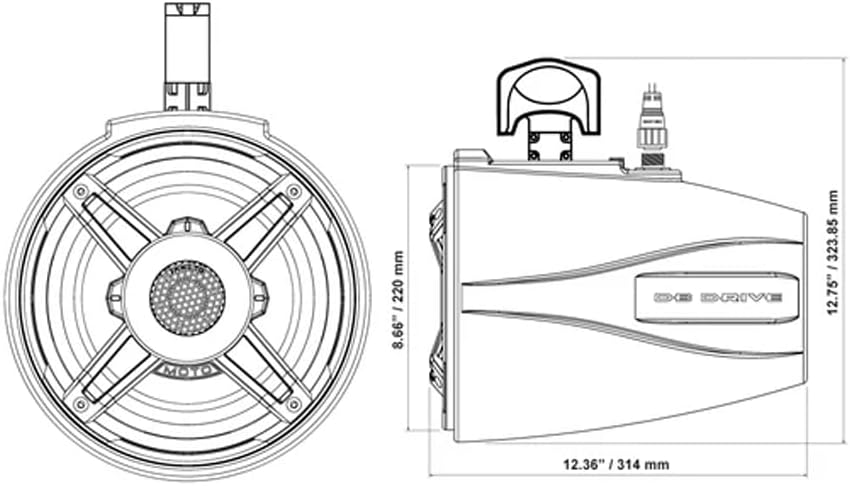

Figure 2: Dimensional drawing providing measurements for installation planning.

2. Połączenia okablowania

1. Okablowanie głośników: Podłącz przewody głośnikowe ze swojego amplifier or head unit to the weather-resistant quick-disconnect speaker connectors on the APT8MOTO-G3 speakers. Ensure correct polarity (+ to + and - to -).
2. RGB Lighting Wiring: The speakers feature RGB lighting. Connect the RGB wires to a compatible RGB controller (not included). Follow the instructions provided with your RGB controller for proper connection and operation.
3. Źródło zasilania: Zapewnij amplifier or head unit powering the speakers is connected to a stable 12-volt power source with appropriate fusing.

Rycina 3: Przód view of the Db Drive APT8MOTO-G3 speaker.

Instrukcja obsługi

Once installed and wired correctly, operating your Db Drive APT8MOTO-G3 speakers is straightforward.

1. Włączanie: Turn on your vehicle's ignition and your audio source (head unit/ampliyfikator).
2. Odtwarzanie dźwięku: Select your desired audio source and begin playback.
3. Regulacja głośności: Gradually increase the volume from your audio source to a comfortable listening level. Avoid setting the volume too high to prevent distortion and potential speaker damage.
4. Sterowanie oświetleniem RGB: If an RGB controller is connected, use its controls to select desired colors, patterns, or brightness for the speaker lighting. The speakers themselves do not have integrated RGB controls; an external controller is required.

Konserwacja

Regularna konserwacja pomaga zapewnić długowieczność i wydajność głośników.

• Czyszczenie: Clean the speaker grilles and housing with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the finish or materials.
• Kontrola połączenia: Periodically inspect all wiring connections for corrosion or looseness. Ensure the quick-disconnect connectors are securely seated.
• Bezpieczeństwo montażu: Check mounting bolts and brackets regularly to ensure they remain tight and secure, especially after off-road or marine use.
• Narażenie na czynniki środowiskowe: While weather-resistant, prolonged exposure to direct sunlight, salt spray, or extreme weather conditions can degrade materials over time. Consider covering the speakers when not in use for extended periods.

Rozwiązywanie problemów

Jeśli masz problemy z głośnikami, zapoznaj się z poniższymi, często występującymi problemami i ich rozwiązaniami:

• Brak dźwięku:
  • Check all audio connections from the amplifier/head unit to the speakers.
  • Zweryfikuj amplifier/head unit is powered on and functioning correctly.
  • Ensure the volume is turned up on your audio source.
  • Check for blown fuses in the amplifier's power circuit.
• Zniekształcony dźwięk:
  • Zmniejsz poziom głośności. Zniekształcenia często występują, gdy amplifier lub głośniki są przesterowane.
  • Check speaker wiring for loose connections or frayed wires that could cause a short.
  • Zapewnij amplifier's gain settings are not set too high.
• Oświetlenie RGB nie działa:
  • Verify the RGB controller is properly connected and powered.
  • Check the RGB wiring from the speakers to the controller for secure connections.
  • Consult the manual for your specific RGB controller for troubleshooting steps.
• Dźwięk przerywany:
  • Inspect all wiring for loose connections, especially at the quick-disconnect points.
  • Check for any signs of corrosion on terminals.

Specyfikacje

Gwarancja i wsparcie

Ten produkt jest objęty a 30-dniowa ograniczona gwarancja from the date of purchase. This warranty covers manufacturing defects. It does not cover damage resulting from improper installation, accident, misuse, abuse, neglect, normal wear and tear, or unauthorized modification.

For warranty claims or technical support, please refer to the contact information provided on your warranty card or the retailer where the product was purchased.
