Pizzato NS D4AZ1SMK-F41 Instrukcja obsługi wyłącznika bezpieczeństwa

1. Wprowadzenie

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Pizzato NS D4AZ1SMK-F41 Safety Locking Switch. This device is designed to enhance safety in industrial applications by ensuring machinery remains in a safe state when access is required.

2. Informacje dotyczące bezpieczeństwa

Always adhere to local and national safety regulations. Installation and maintenance should only be performed by qualified personnel. Disconnect power before performing any work on the device. Failure to follow these instructions may result in serious injury or equipment damage.

• Ensure all power sources are de-energized and locked out before installation or maintenance.
• Verify correct wiring according to the provided electrical diagrams.
• Nie omijaj ani tamper z urządzeniami zabezpieczającymi.
• Regularly inspect the switch for signs of wear or damage.

3. Funkcje produktu

The Pizzato NS D4AZ1SMK-F41 Safety Locking Switch incorporates advanced features for reliable safety interlocking:

• Technologia RFID: Utilizes Radio-Frequency Identification for secure and tamper-resistant interlocking.
• Mechanizm blokujący bezpieczeństwa: Ensures doors or guards remain locked until safe conditions are met.
• Integrated Actuator: Comes with a dedicated actuator for precise engagement.
• Trwała konstrukcja: Designed for industrial environments.
• NS Series: Part of the robust NS series of safety devices.

4. Zawartość opakowania

The package for the NS D4AZ1SMK-F41 typically includes:

• 1 x Pizzato NS D4AZ1SMK-F41 Safety Locking Switch
• 1 x Actuator (integrated or separate, depending on model variant)
• 1 x Instrukcja obsługi (ten dokument)

5. Konfiguracja i instalacja

Proper installation is critical for the safety function of the device. Refer to the detailed wiring diagrams provided with the product packaging for specific electrical connections.

1. Montowanie: Securely mount the safety switch and its corresponding actuator on the machine guard or door frame using appropriate fasteners. Ensure correct alignment for proper engagement.
2. Okablowanie: Connect the switch to the control circuit according to the electrical schematic. Pay close attention to safety circuit connections (e.g., normally closed contacts for safety functions).
3. Actuator Alignment: Verify that the actuator enters the switch head smoothly and fully, ensuring proper locking and unlocking.
4. Testowanie: After installation, perform a thorough functional test to confirm the safety switch operates as intended. Test both the locking and unlocking mechanisms, and verify that the machine cannot operate when the guard is open or improperly locked.

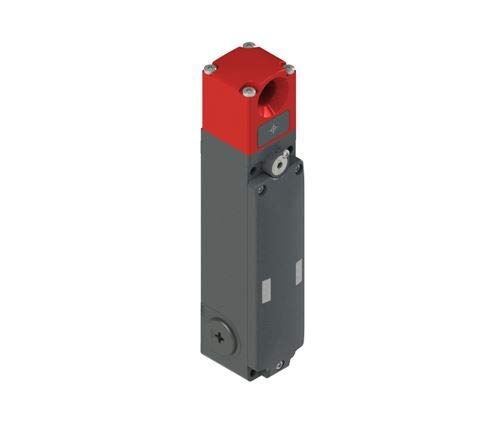

Rysunek 1: The Pizzato NS D4AZ1SMK-F41 Safety Locking Switch. This image shows the compact, rectangular body of the switch, primarily dark grey, with a red top section where the actuator is inserted. The top section features screw points and an opening for the actuator. The side of the switch body has visible screws and two light grey rectangular markings.

6. Instrukcja obsługi

The NS D4AZ1SMK-F41 operates as part of a safety interlocking system:

• Guard Closed and Locked: When the machine guard or door is closed and the actuator is fully inserted into the switch, the RFID technology verifies the correct actuator, and the locking mechanism engages. This allows the machine to operate.
• Guard Open or Unlocked: If the guard is opened, or the locking mechanism is disengaged (e.g., by a release button or signal), the actuator is withdrawn from the switch. This action immediately breaks the safety circuit, preventing or stopping machine operation.
• Zwolnienie ręczne: Some models may feature a manual release mechanism for emergency or maintenance access. Use this only when the machine is confirmed to be in a safe, de-energized state.

7. Konserwacja

Regular maintenance ensures the longevity and reliable operation of your safety switch.

• Czyszczenie: Keep the switch and actuator free from dust, dirt, and debris. Use a soft, dry cloth for cleaning. Avoid abrasive cleaners or solvents.
• Kontrola: Periodically inspect the switch for physical damage, loose connections, or excessive wear on the actuator or switch head.
• Kontrola funkcjonalna: Regularly test the safety function of the switch by attempting to operate the machine with the guard open or unlocked. The machine should not start or should immediately stop.
• Smarowanie: The switch mechanism is generally maintenance-free. Do not lubricate unless specifically instructed by Pizzato documentation.

8. Rozwiązywanie Problemów

If you encounter issues with your safety locking switch, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, contact Pizzato technical support or a qualified technician.

9. Specyfikacje

Key technical specifications for the Pizzato NS D4AZ1SMK-F41 Safety Locking Switch:

• Model: D4AZ1SMK-F41
• Szereg: NS
• Technologia: RFID
• Uruchamiacz: Included/Integrated
• Waga: 1.15 funta (w przybliżeniu)
• Producent: PIZZATO
• ASIN: B0FDRX93R4
• Liczba jednostek: 1.0 Liczba
• Liczba elementów: 1

10. Gwarancja i wsparcie

For warranty information and technical support, please refer to the official Pizzato website or contact your authorized Pizzato distributor. Keep your purchase receipt and product serial number handy when contacting support.

Producent: PIZZATO

Webstrona: www.pizzato.com (Byłyample link, rzeczywisty link może się różnić)
