Moen Attune Dual Shower Head with Handheld Sprayer Combo (Model 218C0SRN)

Produkt ponadview

The Moen Attune Dual Shower Head with Handheld Sprayer Combo provides a versatile showering experience with its combination of a fixed shower head and a detachable handheld sprayer. This system features a Spot Resist Brushed Nickel finish, designed to resist fingerprints and water spots. The 3-way diverter allows for independent or combined use of both shower heads. The handheld sprayer offers 6 distinct spray patterns, while the fixed shower head provides 8 functions, including a pause setting. This product is EPA WaterSense certified, ensuring water conservation without compromising performance.

Image: Moen Attune Dual Shower Head with Handheld Sprayer Combo.

Konfiguracja i instalacja

Before beginning installation, ensure all necessary components are present and that your water supply is turned off. This shower system is designed for wall-mounted installation.

Zawarte komponenty

• 8-setting wallmount shower head
• 6-setting handshower
• 60 inch metal hose
• 3-way diverter bracket
• 4 washers (pre-installed)
• Instrukcje instalacji

Image: Included components and handshower spray patterns.

Kroki instalacji

1. Przygotuj ramię prysznica: Ensure your existing shower arm is clean and free of debris. Remove any old shower head.
2. Install Diverter Bracket: Thread the 3-way diverter bracket onto the shower arm. Hand-tighten, then use a wrench to secure, ensuring the outlet for the handheld hose is facing downwards.
3. Attach Wallmount Shower Head: Connect the 8-setting wallmount shower head to the top outlet of the diverter bracket. Ensure the washer is in place and tighten securely.
4. Podłącz wąż ręczny: Attach one end of the 60-inch metal hose to the bottom outlet of the diverter bracket.
5. Attach Handshower: Connect the other end of the metal hose to the 6-setting handshower.
6. Mount Handshower: Place the handshower into the cradle on the diverter bracket.
7. Test szczelności: Turn on the water supply and check all connections for leaks. Tighten as necessary.

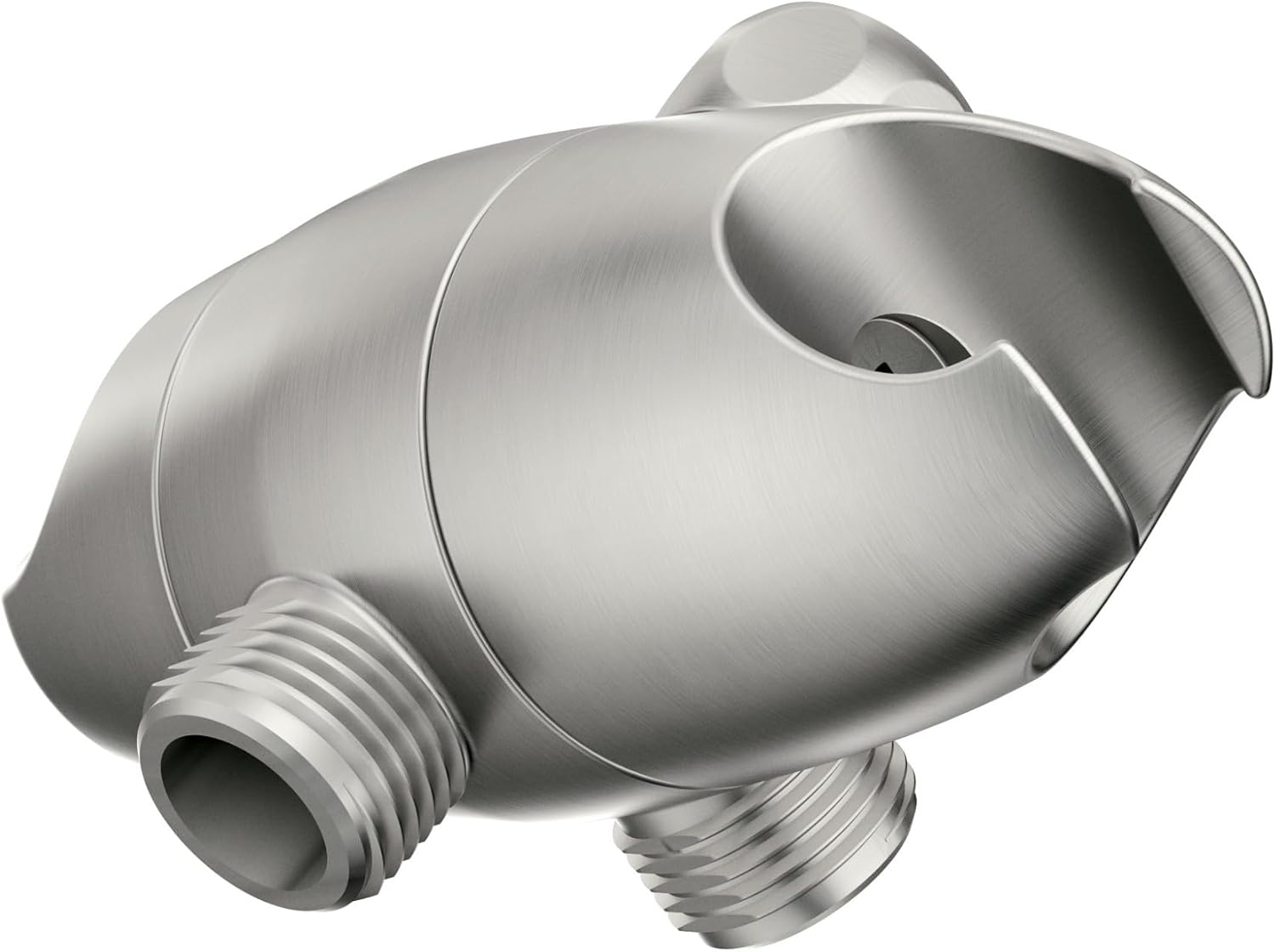

Image: 3-way diverter bracket.

Instrukcja obsługi

The Moen Attune shower system offers multiple spray functions and the flexibility to use both shower heads independently or simultaneously.

Spray Settings and Functions

Both the handheld shower head and the fixed shower head feature adjustable spray patterns. Rotate the spray face or dial on each shower head to cycle through the available settings.

• Handheld Shower Head (6 Settings): Includes Pause | Trickle, Rinse, Downpour, Full Coverage, Full Coverage Light, Relaxing Massage, Massage, Soothing Massage. (Note: The image shows 8 settings, please refer to your specific product for exact settings).
• Wallmount Shower Head (8 Functions): Offers a variety of spray options for a customized experience, including a pause function.

3-Way Diverter Operation

The integrated 3-way diverter allows you to control water flow:

• Rotate the diverter handle to direct water to the wallmount shower head only.
• Rotate the diverter handle to direct water to the handheld shower head only.
• Rotate the diverter handle to direct water to both shower heads simultaneously for maximum coverage.

Image: Moen Attune shower system in operation, showing water flow from both heads.

Pielęgnacja i konserwacja

To maintain the appearance and performance of your Moen Attune shower system, follow these simple cleaning guidelines:

• Regularne czyszczenie: Clean the shower heads and hose regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for bathroom fixtures.
• Wykończenie odporne na plamy: The Spot Resist Brushed Nickel finish is designed to minimize water spots and fingerprints. For best results, wipe surfaces dry after each use.
• Unikaj silnych środków czyszczących: Do not use abrasive cleaners, scouring pads, or chemicals containing ammonia, bleach, or alcohol, as these can damage the finish and internal components.
• Czyszczenie dysz: Jeśli na dyszach rozpylających zgromadzą się osady mineralne, delikatnie pocieraj je palcami lub miękką szczoteczką, aby usunąć osady.

Rozwiązywanie problemów

If you encounter issues with your Moen Attune shower system, consider the following common solutions:

• Niskie ciśnienie wody:
  • Sprawdź, czy zawory doprowadzające wodę są całkowicie otwarte.
  • Inspect shower head nozzles for mineral buildup and clean if necessary.
  • Sprawdź, czy wąż nie jest zagięty lub zablokowany.
• Wycieki na połączeniach:
  • Ensure all connections are hand-tightened, then gently tighten with a wrench if needed, being careful not to overtighten.
  • Verify that all washers are properly seated in the connections. Replace if damaged.
• Diverter Not Switching Properly:
  • Ensure the diverter handle is fully rotated to the desired position.
  • Check for any obstructions preventing full rotation.

If these steps do not resolve the issue, please contact Moen Customer Support for further assistance.

Specyfikacje

Informacje o gwarancji

The Moen Attune Dual Shower Head with Handheld Sprayer Combo is backed by Moen's Limited Lifetime Warranty. This warranty covers defects in material and manufacturing workmanship for the original consumer purchaser. For specific terms, conditions, and limitations of the warranty, please refer to the official Moen warranty documentation or contact Moen Customer Support.

Obsługa klienta

For technical assistance, warranty claims, or replacement parts, please contact Moen Customer Support. You can typically find contact information on the official Moen website or within the product packaging. When contacting support, please have your product model number (218C0SRN) and purchase date available.

Oficjalny Moen Webstrona: www.moen.com
