Instrukcja obsługi pralko-suszarki ładowanej od przodu LG FHD1207STB

1. Wprowadzenie

This manual provides essential information for the safe and efficient operation of your LG FHD1207STB Front Load Washer Dryer. Please read it thoroughly before using the appliance and retain it for future reference. This appliance combines washing and drying functions in a single unit, offering convenience and space efficiency.

Key features include AI Direct Drive technology for optimized fabric care, Steam+ for enhanced hygiene and wrinkle reduction, TurboWash 360 for faster cycles, and Wi-Fi connectivity via LG ThinQ for smart control and diagnosis.

Figure 1: LG FHD1207STB Front Load Washer Dryer, Platinum Black finish.

2. Informacje dotyczące bezpieczeństwa

Podczas korzystania z tego urządzenia należy zawsze przestrzegać podstawowych zasad bezpieczeństwa, aby zminimalizować ryzyko pożaru, porażenia prądem elektrycznym lub obrażeń.

• Bezpieczeństwo elektryczne: Ensure the appliance is connected to a properly grounded outlet. Do not use extension cords. Disconnect power before servicing.
• Podłączenie wody: Use new hoses for installation. Check for leaks after connection. Inlet water pressure must be between 50 kPa and 800 kPa.
• Bezpieczeństwo dzieci: Trzymaj dzieci z dala od urządzenia podczas pracy. Aktywuj blokadę rodzicielską, aby zapobiec przypadkowej zmianie ustawień.
• Materiały łatwopalne: Nie pierz i nie susz rzeczy zabrudzonych substancjami łatwopalnymi.
• Wentylacja: Zapewnij odpowiednią wentylację wokół urządzenia.

3. Koniec produktuview

3.1 Wymiary i pojemność

• Pojemność prania: 12 kilogramów
• Pojemność sucha: 7 kilogramów
• Wymiary (dł. x szer. x wys.): 56.5 x 60 x 85 centymetrów
• Waga: 73 kilogramów

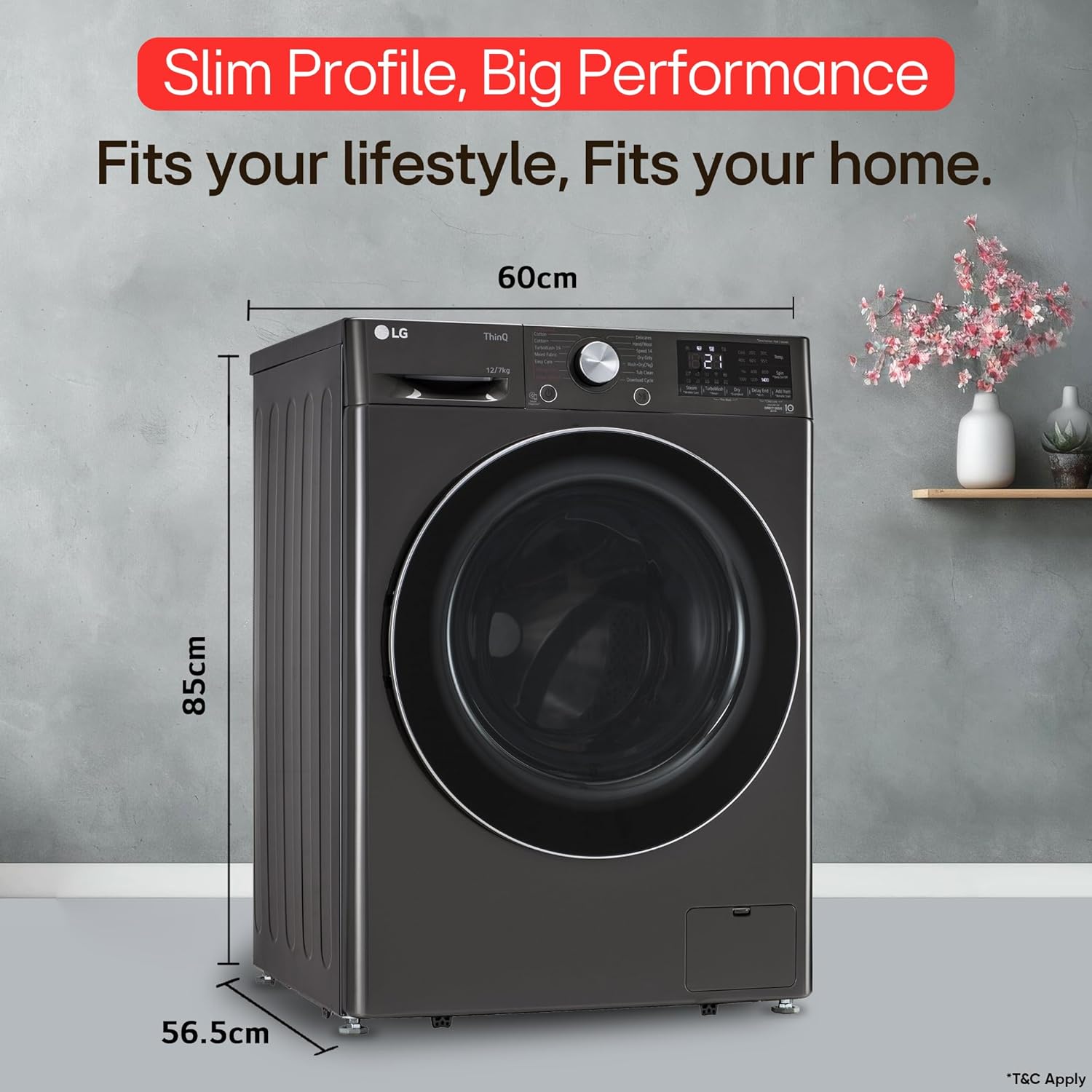

Figure 2: Product dimensions of the LG FHD1207STB Washer Dryer.

3.2 Panel sterowania

The control panel features a program knob, full touch buttons, and an LED display for easy navigation and cycle selection.

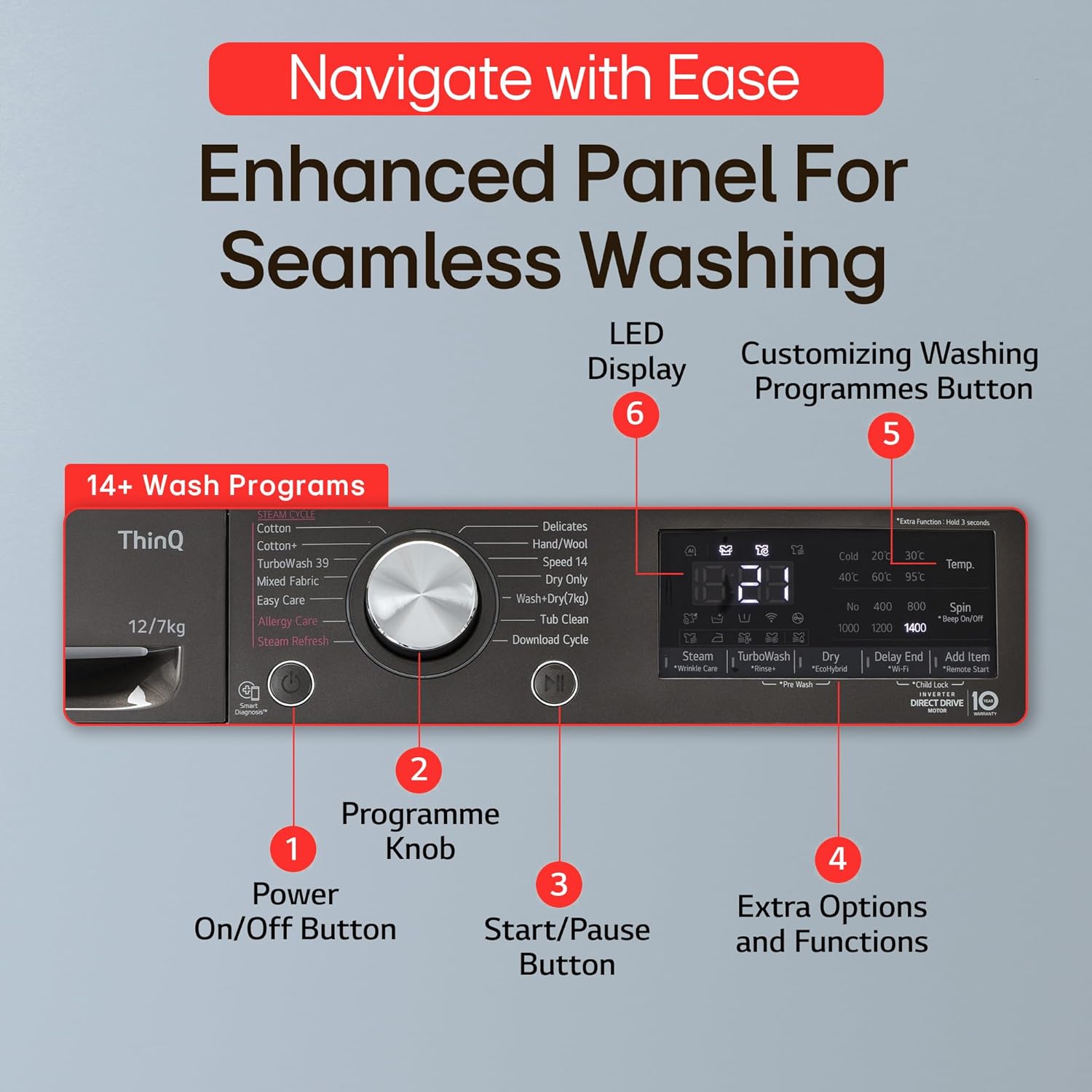

Rysunek 3: Szczegółowy view of the control panel with Power On/Off Button, Programme Knob, Start/Pause Button, Extra Options and Functions, Customizing Washing Programme Buttons, and LED Display.

3.3 Komponenty wewnętrzne

The appliance features a durable stainless steel inner drum and a tempered glass door. The Direct Drive motor is attached directly to the washing tub, eliminating the need for a belt or pulley, which contributes to less vibration and noise.

Figure 4: Illustration highlighting the long-lasting durability and hygiene benefits of the stainless steel drum.

4. Instalacja i konfiguracja

4.1 Rozpakowanie

Carefully remove all packaging materials. Inspect the appliance for any damage. Remove the transit bolts from the rear of the machine using the provided spanner. Keep these bolts for future transport.

4.2 Wymagania dotyczące lokalizacji

Place the washer dryer on a firm, level surface. Ensure there is sufficient space for ventilation and door opening. Avoid direct sunlight or areas prone to freezing.

4.3 Przyłącze zasilania wodą

Connect the cold supply hose to the cold water tap and the inlet valve on the back of the washer dryer. Ensure connections are tight to prevent leaks. The inlet water pressure should be between 50 kPa and 800 kPa.

4.4 Złącze węża spustowego

Securely connect the drain hose to a standpipe or laundry tub, ensuring it is properly routed to prevent kinks or blockages. Use the elbow bracket for securing the drain hose if necessary.

4.5 Poziomowanie urządzenia

Use the adjustable feet at the bottom of the appliance to ensure it is perfectly level. A level appliance reduces vibration and noise during operation. Use the spanner provided to adjust the feet.

Figure 5: Included components for installation, such as the cold supply hose and spanner.

4.6 Połączenie zasilania

Podłącz przewód zasilający do uziemionego gniazdka elektrycznego. Nie przeciążaj obwodu.

5. Instrukcja obsługi

5.1 Załadunek prania

Open the door and load items loosely into the drum. Do not overload the machine; refer to the capacity guidelines for optimal performance (12 kg wash, 7 kg dry). For best results, sort laundry by fabric type and color.

5.2 Dodawanie detergentów i dodatków

Add appropriate amounts of detergent, fabric softener, and other additives to the designated compartments in the dispenser drawer. The dispenser supports bleach, detergent (powder/liquid), and fabric softener.

5.3 Wybór programu prania

Turn the Programme Knob to select your desired wash cycle. The LED display will show the estimated time and default settings for the selected program. Available programs include:

• Bawełna
• Bawełna+
• TurboWash39 (Faster Wash Cycles)
• Tkanina mieszana
• Łatwa pielęgnacja
• Allergy Care (with Steam+)
• Odświeżanie Steam
• Delikatne
• Ręka/Wełna
• Prędkość 14
• Tylko suche
• Wash + Dry (7 Kg)
• Wanna Clean
• Download Cycle (via LG ThinQ app)

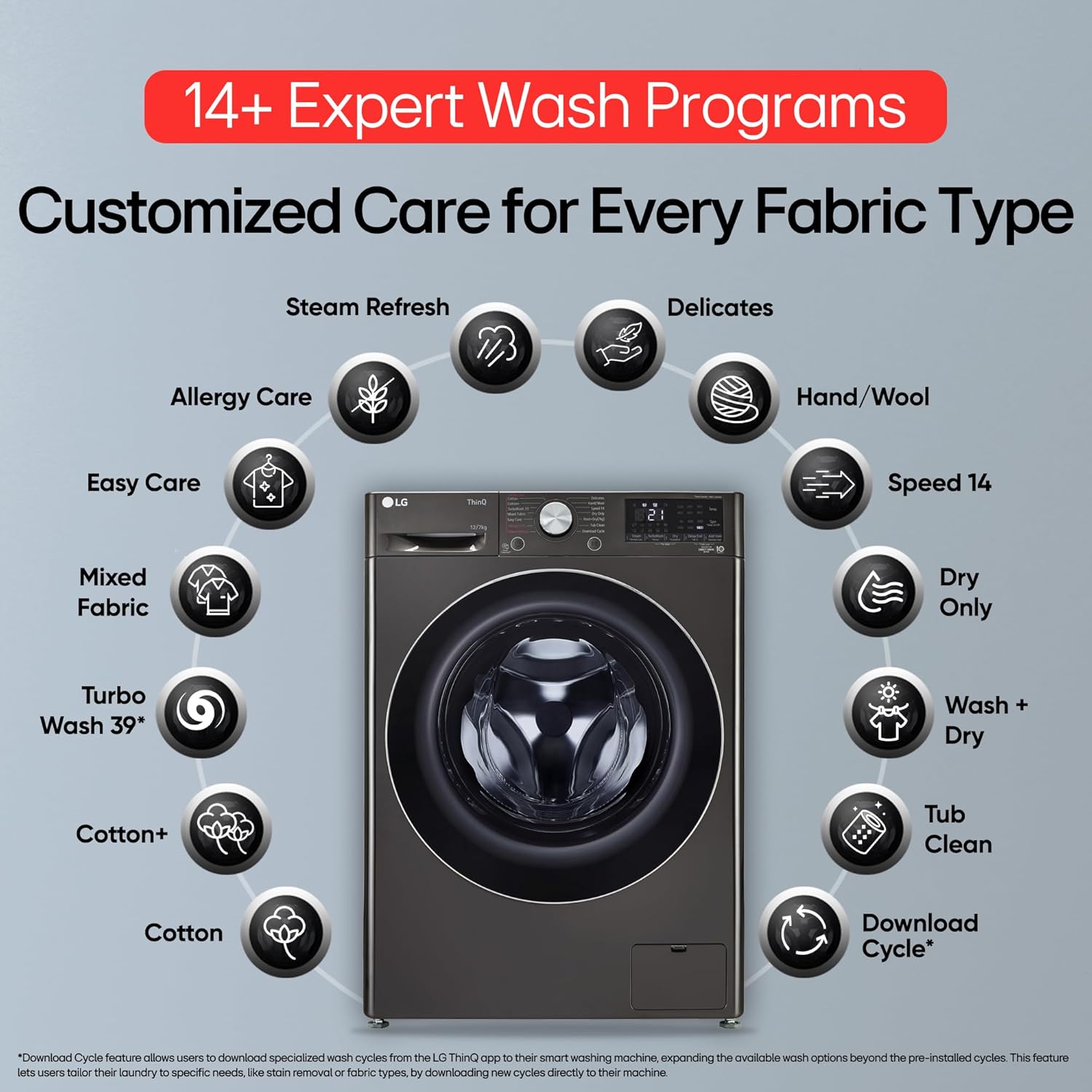

Rysunek 6: Koniecview of the 14+ expert wash programs available for customized fabric care.

Technologia napędu bezpośredniego 5.4 AI

The AI Direct Drive system automatically detects the weight and softness of the fabric, then selects the optimal washing motions for improved fabric care and cleaning performance.

Figure 7: Visual representation of the AI Direct Drive technology intelligently assessing fabric type for optimal wash patterns.

5.5 Steam+ Function

The Steam+ feature helps reduce allergens and wrinkles in your laundry, providing a more hygienic and convenient wash. This is particularly effective with the Allergy Care program.

Figure 8: Illustration demonstrating the Steam+ technology's ability to reduce viruses and allergens.

5.6 TurboWash 360

TurboWash 360 provides a thorough and efficient clean in a shorter amount of time, reducing laundry time, energy consumption, and clothes damage.

Figure 9: Visual highlighting the TurboWash feature, capable of completing a full wash in just 39 minutes.

5.7 Rozpoczęcie cyklu

Press the Start/Pause button to begin the selected cycle. The door will lock, and the machine will start filling with water.

5.8 Using the Dryer Function

For drying, select the 'Dry Only' program or the 'Wash + Dry' program for combined cycles. Ensure the load does not exceed the 7 kg drying capacity. Higher spin speeds (up to 1400 RPM) help in faster drying.

5.9 Wi-Fi Connectivity (LG ThinQ)

Connect your washer dryer to your home Wi-Fi network using the LG ThinQ app. This enables remote control, monitoring, and downloading additional wash cycles.

Figure 10: A user interacting with the LG ThinQ app to remotely control the washer dryer via Wi-Fi.

5.10 Blokada dziecięca

To activate the Child Lock, press and hold the designated button (usually indicated on the control panel) for a few seconds. This prevents children from accidentally changing settings or opening the door during operation.

Figure 11: A child attempting to interact with the control panel, illustrating the importance of the Child Lock feature for family safety.

6. Konserwacja

6.1 Czyszczenie szuflady dozownika

Regularly remove and clean the detergent dispenser drawer to prevent residue buildup. Rinse it under warm water and use a brush if necessary.

6.2 Czyszczenie bębna

Use the 'Tub Clean' program periodically to clean the inside of the drum and remove any detergent or fabric softener residue. This helps prevent odors and maintains hygiene.

6.3 Czyszczenie filtra pompy spustowej

Locate the drain pump filter (usually at the bottom front of the machine). Open the cover, drain any residual water, and remove the filter. Clean it of lint and debris, then reinsert it securely.

6.4 Czyszczenie zewnętrzne

Przetrzyj zewnętrzną część urządzenia miękką, damp szmatką. Unikaj środków czyszczących o działaniu ściernym i rozpuszczalników, które mogą uszkodzić wykończenie.

7. Rozwiązywanie Problemów

If you encounter issues with your washer dryer, refer to the following common problems and solutions. For more complex issues, use the Smart Diagnosis feature or contact customer support.

• Urządzenie nie uruchamia się: Check power connection, ensure door is closed, and press Start/Pause.
• Brak napełniania wodą: Check water supply taps are open and hoses are not kinked.
• Woda nie odpływa: Check drain hose for blockages and clean the drain pump filter.
• Nadmierne wibracje/hałas: Ensure the appliance is level and transit bolts have been removed. Check for unbalanced load.
• Kody błędów na wyświetlaczu: Refer to the LG ThinQ app or contact customer support with the specific code.

7.1 Inteligentna diagnoza

The LG ThinQ app includes a Smart Diagnosis feature that can help identify and troubleshoot issues with your appliance. Follow the instructions in the app to perform a diagnosis.

Figure 12: A user utilizing the Smart Diagnosis feature via the LG ThinQ app to identify and resolve appliance issues.

8. Specyfikacje

9. Gwarancja i pomoc techniczna

9.1 Informacje o gwarancji

Your LG FHD1207STB Washer Dryer comes with a 2 lata kompleksowej gwarancji na produkt i 10 lat gwarancji na silnik (Terms & Conditions Apply). Please retain your purchase receipt for warranty claims.

9.2 Obsługa klienta

For technical assistance, service requests, or warranty inquiries, please contact LG Customer Service:

• Producent: LG Electronics India Ltd.
• Adres: Działka nr. A-5, MIDC, Ranjangaon, Tal-Shirur Udyog Vihar, Pune (Maharasztra) PIN- 412220
• E-mail: serviceindia@lge.com
• Telefon: 08069379999
• WhatsApp: 9711709999
