WITMYA Smart Toilet with Bidet

1. Wprowadzenie

This manual provides detailed instructions for the installation, operation, and maintenance of your WITMYA Smart Toilet with Bidet, Model WITMYA-BSJ. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

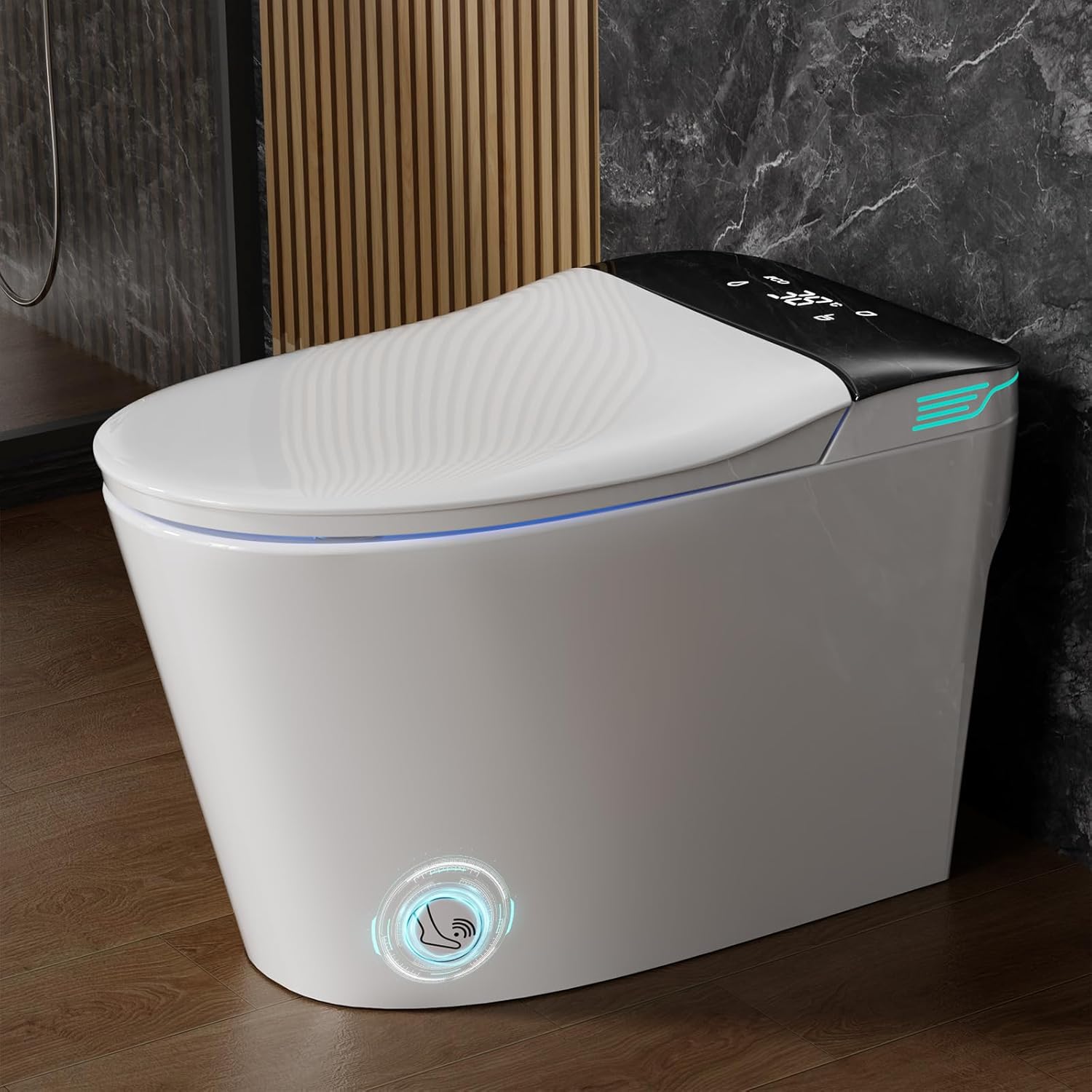

Obraz 1.1: Przód view of the WITMYA Smart Toilet with Bidet.

2. Informacje dotyczące bezpieczeństwa

• Upewnij się, że wszystkie połączenia elektryczne są zgodne z lokalnymi przepisami i regulacjami.
• Nie zanurzaj produktu w wodzie ani nie spryskuj wodą bezpośrednio podzespołów elektrycznych.
• Przed czyszczeniem lub jakąkolwiek konserwacją należy odłączyć urządzenie od zasilania.
• Keep children and individuals with reduced physical, sensory, or mental capabilities away from the product unless supervised.
• Do not use abrasive cleaners or harsh chemicals on any part of the toilet.
• Produkt przeznaczony jest wyłącznie do użytku wewnątrz pomieszczeń.

Obraz 2.1: Koniecview of the smart toilet's integrated safety features.

3. Zawartość opakowania

Przed rozpoczęciem instalacji sprawdź, czy wszystkie komponenty są obecne:

• 1x Smart Toilet with Hose and Components Pre-installed
• 1x Wireless Remote Control (Batteries included)
• 1x Angle Valve
• 1x Toilet Seal
• 1x Flange & Screw bolt set
• Instrukcja instalacji 1x

Image 3.1: Visual representation of the included installation components.

4. Konfiguracja i instalacja

The WITMYA Smart Toilet is designed for floor-mounted installation. Refer to the included Installation Manual for detailed step-by-step instructions.

4.1. Wymiary

Ensure adequate space for installation. The product dimensions are 26.77"D x 15.75"W x 18.89"H.

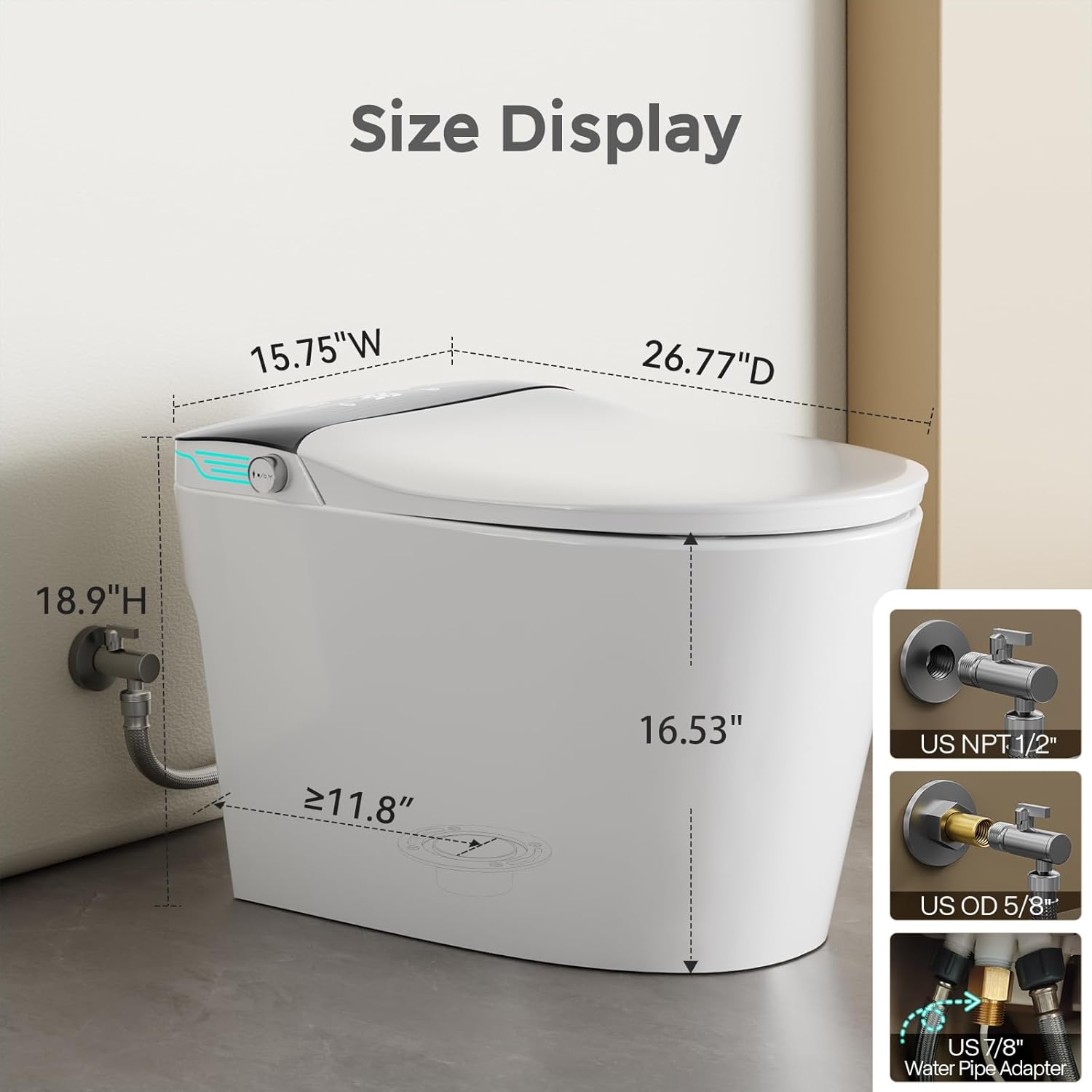

Image 4.1: Product dimensions and water pipe connection types.

4.2. Podłączenie do sieci wodociągowej

The provided angle valve is compatible with 1/2" and 3/8" water supply pipes. For a 3/8" pipe, a compression nut and ring are included for proper installation. If a special angle valve is required, please contact customer service.

5. Instrukcja obsługi

5.1. Smart Sensing & Hands-free Operation

The toilet features a microwave induction system for automatic lid opening and closing. A capacitive foot sensor allows for hands-free flushing and lid control.

• Automatyczne otwieranie/zamykanie pokrywy: The lid automatically opens when approached and closes after use.
• Czujnik stopy: Gently tap your foot near the sensor at the base of the toilet to open/close the lid or initiate a flush.

Obraz 5.1: Koniecview of smart sensing and hands-free functionalities.

Image 5.2: Foot induction flushing in action.

5.2. Flushing System

The toilet features an eco-powerful dual flush system for efficient cleaning.

• Automatyczne spłukiwanie podwójne: Automatically selects the appropriate flush volume (1.28 GPF) based on usage.
• Off-Seat Auto Flush: The toilet flushes automatically after you stand up.
• Manual Side Knob: A side knob allows for manual flushing, ensuring operation during power outagt.j.

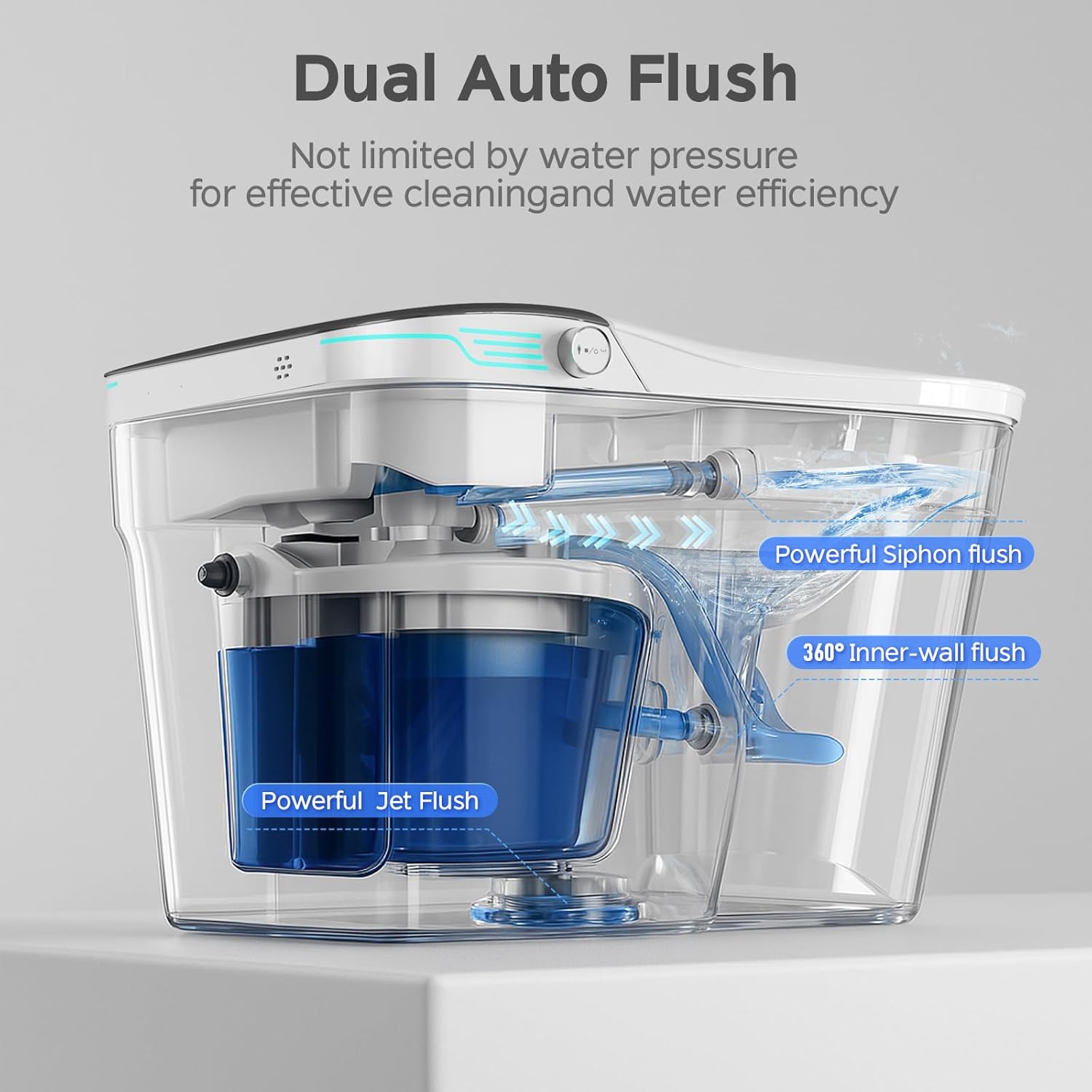

Obraz 5.3: Wewnętrzny view of the dual auto flush mechanism.

Image 5.4: Siphon and jet flush operation.

5.3. Sterowanie głosowe

Control various functions using voice commands. The toilet responds to specific phrases.

• Aktywacja: Say "Hello Toilet" to activate voice control.
• Polecenia: Use commands like "Open the lid" or "Full flush."

Image 5.5: Voice control interface and commands.

5.4. Bidet Functions

The integrated bidet offers multiple cleaning modes and features for enhanced hygiene.

• Tryby czyszczenia: Includes feminine care, buttocks cleaning, and massage cleaning.
• Natychmiastowe ogrzewanie: Water is heated instantly to your preferred temperature.
• Regulowana temperatura wody: Three adjustable temperature settings are available.
• Samoczyszczenie dyszy: The bidet nozzle performs a self-cleaning cycle before and after use.

Image 5.6: Various bidet cleaning modes.

Image 5.7: Bidet nozzle functions and cleaning options.

5.5. Funkcje zapewniające komfort

• Podgrzewane siedzenie: The seat warms up within 1 second, offering four adjustable temperature levels.
• Suszarka na ciepłe powietrze: A 4-gear adjustable warm air dryer provides a comfortable drying experience.
• Światło nocne: An ambient night light illuminates the bowl for nighttime convenience.

Image 5.8: Warm air dryer and heated seat features.

Image 5.9: Adjustable temperature controls and night light.

5.6. Foam Shield & Aroma Diffuser

The Foam Shield Technology creates a barrier to prevent splash and isolate odors. An integrated aroma diffuser provides a pleasant scent.

• Foam Shield: Automatically generates a foam layer in the bowl. The foam shield is replaceable and has a service life of approximately 3 months.
• Dyfuzor zapachowy: Releases a pleasant scent to suppress odors.

Image 5.10: Foam shield and air freshener details.

Image 5.11: 360-degree rotating foam shield.

5.7. Remote Control & LED Display

All settings can be adjusted using the intuitive wireless remote control. The high-definition LED display shows real-time water and seat temperatures.

• Zdalne sterowanie: Use the remote to adjust bidet settings, temperatures, and other functions.
• Wyświetlacz LED: Shows current water and seat temperatures, customizable in Celsius or Fahrenheit.

Image 5.12: LED display and other features.

Image 5.13: Side knob controls for bidet functions.

6. Konserwacja

Regularna konserwacja gwarantuje optymalną wydajność i długowieczność inteligentnej toalety.

• Czyszczenie dysz: The bidet nozzle automatically cleans itself. For manual cleaning, gently wipe with a soft cloth and mild detergent.
• Foam Shield Replacement: The foam shield component should be replaced approximately every 3 months. Refer to the installation manual for replacement instructions.
• Czyszczenie zewnętrzne: Przetrzyj zewnętrzne powierzchnie miękką, damp cloth. Avoid abrasive cleaners or solvents that may damage the ceramic glaze or ABS material.
• IPX4 Wodoodporny: The toilet has an IPX4 waterproof rating, protecting against splashing water. However, avoid direct high-pressure water jets on electrical components.

Image 6.1: IPX4 waterproof protection.

7. Rozwiązywanie Problemów

If you encounter any issues, refer to the following common solutions. For persistent problems, contact customer service.

• Brak zasilania: Check if the power cord is securely plugged in and the circuit breaker is not tripped.
• Brak spłukiwania: Ensure the manual side knob is not engaged. Check for power. If using auto-flush, ensure the sensor is clear.
• Słaby Flush: The water volume can be adjusted. Refer to the detailed installation manual for instructions on adjusting water pressure.
• Bidet nie działa: Ensure you are seated properly for the bidet to activate. Check water temperature settings.
• Pilot nie odpowiada: Check and replace batteries in the remote control. Ensure there are no obstructions between the remote and the toilet.

8. Specyfikacje

9. Gwarancja i wsparcie

WITMYA provides a 1-year free after-sales service for quality-related issues. For any problems with installation, function, or quality, please contact WITMYA customer service. Support teams are available online 24 hours to assist you promptly.

For assistance, please refer to the contact information provided in your purchase documentation or visit the official WITMYA webstrona.
