Wstęp
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your CANEST Smart Toilet with Bidet (Model FC-002). This advanced toilet system integrates a full-area seat sensor, foam dispenser, automatic temperature control for the heated seat, instant warm water bidet, auto open/close lid, foot sensor activation, and quiet flush technology to enhance your bathroom experience.
Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
Figure 1: CANEST Smart Toilet FC-002
Konfiguracja i instalacja
Proper installation is crucial for the optimal performance of your smart toilet. It is recommended to have a qualified plumber perform the installation.
Kroki przed instalacją
- Drain Outlet Centerline: Draw the drain outlet centerline on the floor. Ensure the drain outlet is positioned correctly relative to the wall (typically 10-12 inches from the wall).
- Water Supply Check: Connect a water hose to the shut-off valve. Fully open the shut-off valve and fill a bucket for 10 seconds. Measure if the water volume is greater than 1.05 gallons per 10 seconds to ensure adequate water pressure.
- Montaż zaworu odcinającego: Install the shut-off valve on the wall at the designated water supply point.
- Outline Toilet Footprint: Outline the toilet's footprint on the floor using a pencil or tape, referencing the provided cardboard template for accurate placement.
Montaż i połączenia
- Assemble Mounting Bracket: Assemble the mounting bracket with bolts and secure them to the pre-installed flange on the ground. Tighten with nuts.
- Montaż pierścienia woskowego: Place the wax ring over the drain outlet to create a watertight seal.
- Podłącz przewody doprowadzające wodę: Connect the toilet's water supply lines to the shut-off valve. Ensure all connections are tight to prevent leaks.
- Podłączenie zasilania: Plug the toilet into a grounded electrical outlet.
Film instruktażowy dotyczący instalacji
Video 1: FC002 Installation Guide. This video demonstrates the step-by-step process for installing the CANEST Smart Toilet, including drain outlet marking, shut-off valve installation, mounting bracket assembly, and water supply connections.
Figure 2: Included Components and Product Dimensions for Installation Planning.
Instrukcja obsługi
Your CANEST Smart Toilet is equipped with various intelligent features designed for comfort and hygiene. Familiarize yourself with these functions for optimal use.
Full-Area Smarter Seat Sensor
The smart toilet seat features distributed sensors across its entire surface. The bidet functions activate as soon as you sit down (for users over 26.45 lbs). This design eliminates the need to cover a fixed point, making it user-friendly for children, seniors, and individuals with limited mobility.
Figure 3: Full-Area Sensing Seat for enhanced accessibility.
Foam Shield Protection System
An automatic foam shield dispenses before each use. This feature prevents splashing, helps trap odors within the bowl, maintains a cleaner surface, and enhances overall bathroom cleanliness.
Figure 4: Foam Shield in action, preventing splash and controlling odor.
Seasonal Auto Temperature Control
The smart toilet automatically adjusts the seat temperature to keep it warm in winter and comfortably cool in summer. This feature is off by default; refer to the manual's activation section for first-time use. You can also use the remote control to fine-tune temperature settings manually.
Figure 5: Visual representation of seasonal temperature adjustments.
Powerful Tankless Flush
The tankless design utilizes an electronically-controlled valve system for strong and consistent flushing performance, using only 1.28 GPF (Gallons Per Flush). This system ensures reliable waste removal, conserves water, and maintains flushing capability even during power outagt.j.
Figure 6: Illustration of the powerful flushing mechanism, including blackout flushing capability.
Precision Foot Sensor Operation
A foot sensor projects a defined detection zone in front of the toilet, allowing you to activate the lid or flush with a simple step. This design ensures faster, more accurate, and truly hands-free operation compared to side-mounted sensors.
Figure 7: Hands-free auto open/close and foot sensor activation zone.
First-Class Wide Ergonomic Seat
The CANEST smart toilet features a widened, ergonomic seat structure, providing extra space and support for enhanced stability and comfort during both short and long sitting sessions. This design accommodates various body types for a relaxing experience.
Figure 8: Comparison highlighting the wider ergonomic seat design.
Quiet Operation and Night-Friendly Design
Enjoy a peaceful bathroom experience with smart quiet flushing and whisper-level performance. A built-in night light and LED display enhance visibility in low-light environments, while the automatic deodorizing system keeps the bathroom fresh around the clock.
Figure 9: Smart toilet with quiet operation and night light for nighttime use.
Instant Warm Water with Self-Cleaning Nozzles
The bidet delivers instantly heated water combined with air-infusion technology for a gentler and more comfortable wash for both rear and feminine areas. The nozzles feature a top-pin self-cleaning design, ensuring cleanliness before and after each use without manual disassembly.

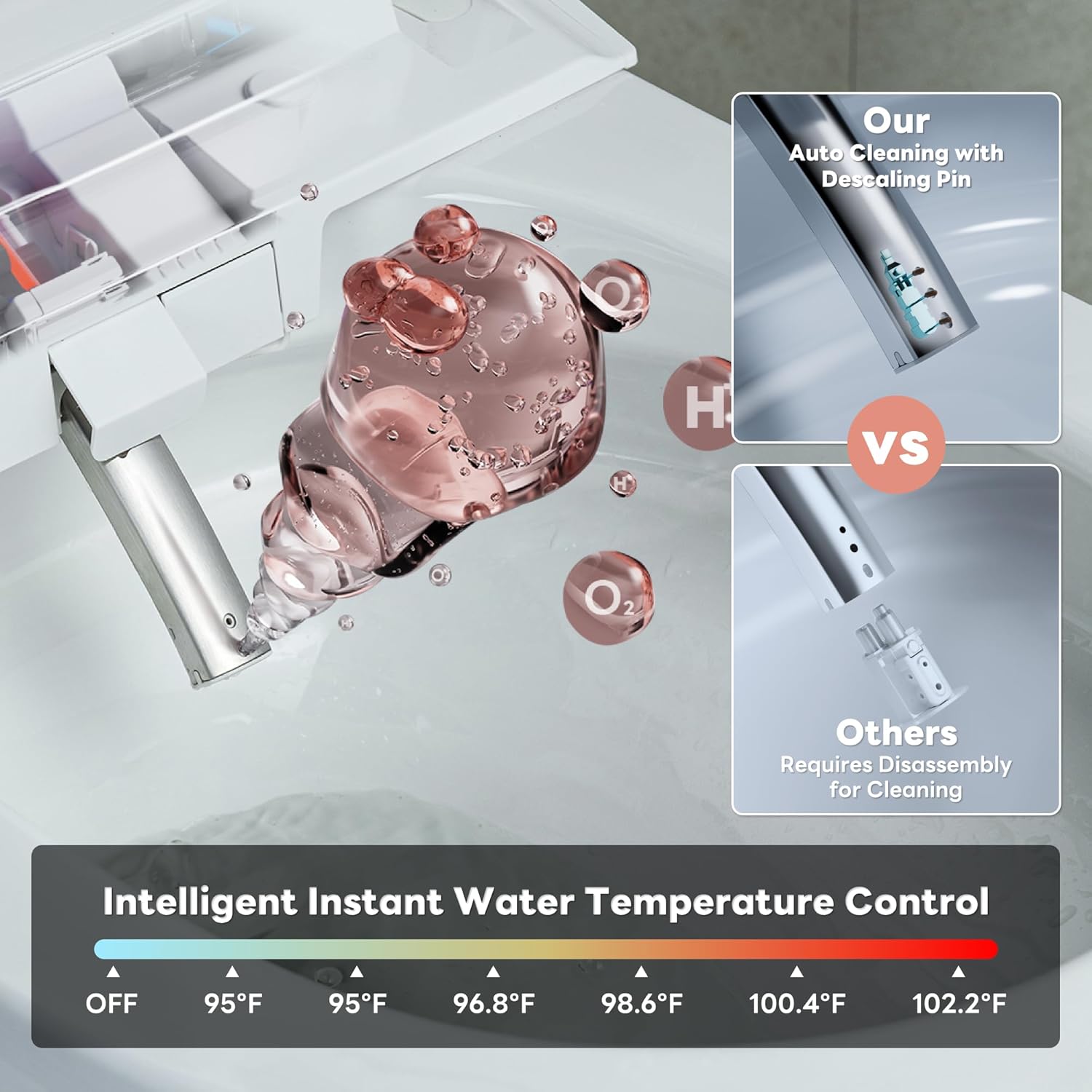

Figure 10: Detail of the self-cleaning nozzle and instant water heating.
Konserwacja
Regular maintenance ensures the longevity and hygienic operation of your CANEST Smart Toilet.
Wkład do dozownika pianki
To refill the foam dispenser, tap the eject button to release the foam solution container. Prepare the mixing bottle with a 1:1 ratio of detergent to water, shake well, and then insert the funnel to pour the mixture into the dispenser. Do not use undiluted detergent directly, as it may damage the foaming mechanism.
Figure 11: Instructions for refilling the foam dispenser.
Czyszczenie dysz
The bidet nozzles are designed with a self-cleaning function that activates before and after each use. For additional cleaning, you can manually extend the nozzle and wipe it with a soft cloth and mild cleaner. Avoid abrasive cleaners or tools that could damage the nozzle.
Ogólne sprzątanie
Wyczyść zewnętrzną część toalety miękką, miękką szmatką.amp cloth and a mild, non-abrasive cleaner. Do not use harsh chemicals, bleach, or abrasive pads, as these can damage the finish and electronic components. Regularly wipe down the seat and lid.
Rozwiązywanie problemów
If you encounter issues with your CANEST Smart Toilet, refer to the table below for common problems and their solutions.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| No power/functions not working | Przewód zasilający odłączony, wyłącznik automatyczny zadziałał, zasilanie wyłączonetage. | Check power connection, reset circuit breaker, verify power supply. |
| Bidet not activating | Seat sensor not detecting user (weight below threshold), bidet function disabled. | Ensure proper seating, check user weight (min 26.45 lbs), verify bidet settings on remote. |
| No foam dispensing | Foam solution low or empty, dispenser clogged. | Refill foam solution (1:1 detergent:water ratio), clean dispenser mechanism. |
| Seat not heating or incorrect temperature | Temperature control off, settings incorrect. | Activate auto temperature control (if desired), adjust temperature via remote. |
| Słaby kolor | Insufficient water pressure, partial clog. | Check water supply valve fully open, clear any visible obstructions in the bowl. |
| Lid/seat not opening/closing automatically | Foot sensor obstructed or dirty, auto open/close feature disabled. | Clean foot sensor area, ensure no obstructions, check settings on remote. |
If the problem persists after attempting these solutions, please contact CANEST customer support for further assistance.
Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Numer modelu | FC-002 |
| Kolor | FC-002Tankless |
| Wymiary produktu | 27.48" gł. x 16.18" szer. x 18.7" wys. |
| Tworzywo | Ceramika (toaleta), Polipropylen (PP) (deska) |
| Typ instalacji | Montaż na podłodze |
| Kształt | Kształt litery U |
| Waga przedmiotu | 99.8 funta |
| Zużycie wody | 1.28 GPF (galonów na spłukanie) |
| Certyfikaty | CEC, UPC, UL (as per manufacturer information) |
Zawarte komponenty
The following components are included with your CANEST Smart Toilet FC-002:
- Instrukcja obsługi
- Karta instalacyjna
- Zestaw pilota, uchwytu i śruby rozszerzającej
- Skrzynka na baterie
- Mixing measuring cup
- Zestawy instalacyjne ceramiczne
- Angle Valve & (Including flow restrictor)
- Woskowy pierścień
- Multitap nut & Sealing gasket
Gwarancja i wsparcie
For any questions, technical assistance, or warranty claims, please contact CANEST customer support. Refer to the product packaging or the official CANEST webstrona zawierająca najbardziej aktualne dane kontaktowe.
CANEST is committed to providing high-quality products and customer satisfaction. Please retain your proof of purchase for warranty purposes.
