Raybee 80.32" H Heavy Duty Rolling Clothes Rack Instruction Manual

1. Wprowadzenie

Thank you for choosing the Raybee 80.32" H Heavy Duty Rolling Clothes Rack. This manual provides detailed instructions for assembly, operation, and maintenance to ensure optimal use and longevity of your product. This versatile garment rack is designed for efficient clothing storage and organization in various settings, offering robust construction and convenient mobility.

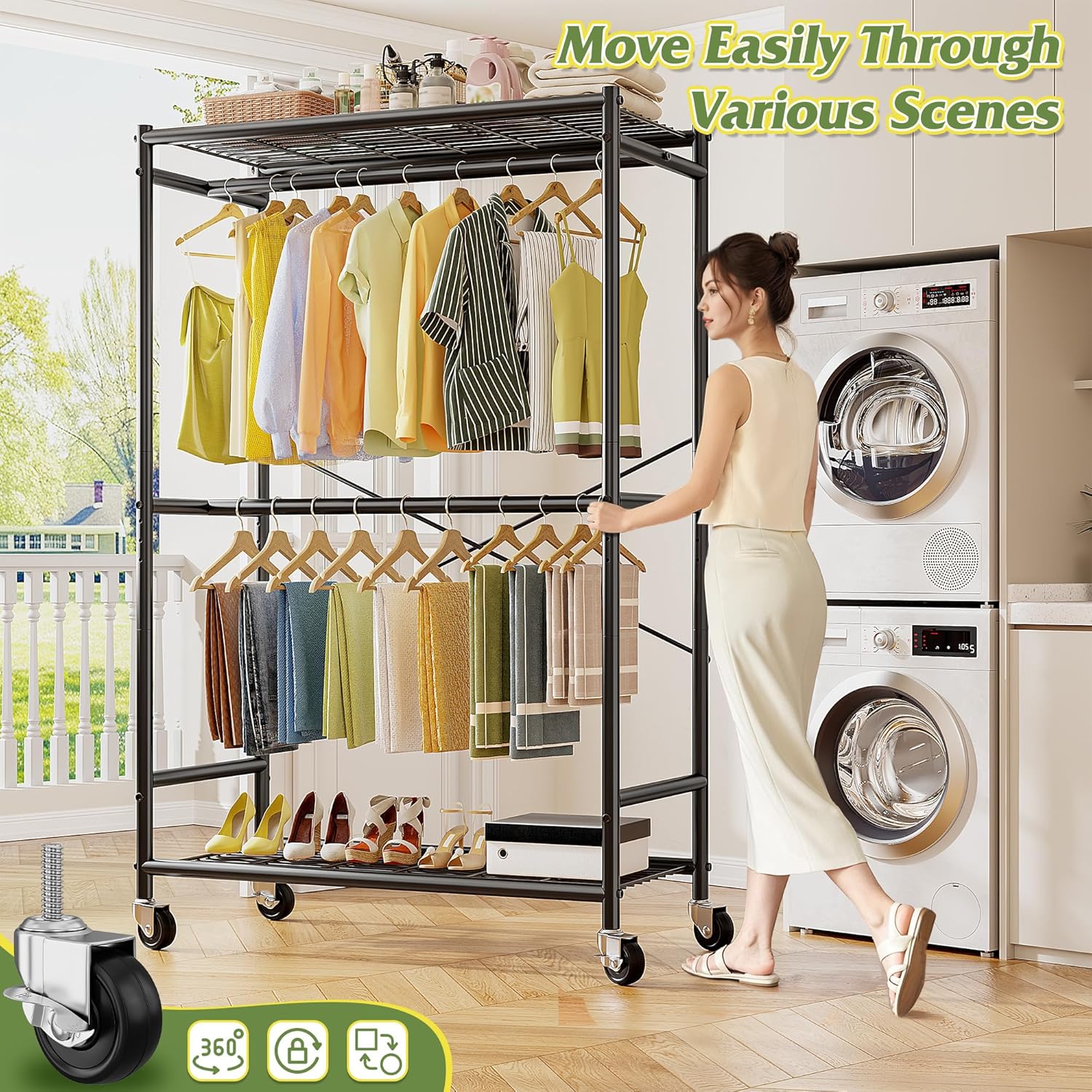

Image: The Raybee clothes rack shown in different environments, highlighting its adaptability for various scenes.

2. Funkcje produktu

• Wymiary: Ideally sized at 35.4"W x 15.75"D x 80.32"H, this clothes rack fits well in bedrooms, balconies, dormitories, and garages. It can hold up to 308 lbs (135 lbs when rolling), sufficient for storing approximately 120 outfits or over 70 thick winter coats.
• Konstrukcja oszczędzająca miejsce: Features two tiers of hanging rods for categorized clothing organization. The reinforced top shelf can support up to 70 pounds, ideal for luggage, bedding, or storage boxes. The open lower compartment provides space for more than 15 pairs of shoes, handbags, or accessories.
• Flexible 360° Wheels: Equipped with smooth-steering rubber wheels for effortless movement. Two of the wheels are lockable for stability. Adjustable feet are also included as an alternative to wheels, catering to different usage scenarios.
• Rock Sturdy Frame: Constructed with thicker metal tubing to ensure a stable and durable portable clothes rack. An X-brace support prevents bending or collapsing, even under heavy loads.
• Łatwy w instalacji: Designed for quick assembly, typically within 20 minutes. Features pre-drilled holes and labeled parts for smooth installation. All necessary tools, including spare screws, are provided.

Image: Visual representation of the clothes rack's storage capacity, indicating space for over 120 outfits, 10+ storage boxes, and 15+ pairs of shoes.

Image: Close-up details of the X-brace design for stability, thickened hanging rod for increased capacity, and the flexible option of replaceable universal wheels or adjustable feet.

3. Zawartość opakowania

Please ensure all parts are present before beginning assembly. Refer to the assembly video for a visual guide to all components.

• Metal Frame Components (various lengths and types)
• Wire Shelves (top and bottom)
• X-Brace Support Rods
• 360° Swivel Wheels (with locks)
• Regulowane nóżki poziomujące
• Screws and Washers (various sizes)
• Hex Key (Allen wrench)

4. Instrukcja montażu

Assembly is straightforward and typically takes about 20 minutes. All parts are labeled, and pre-drilled holes ensure a smooth process. No measuring is required; simply tighten the screws with the provided tools.

Instrukcja montażu w formie filmu

Video: A step-by-step visual guide demonstrating the complete assembly process of the Raybee clothes rack.

Step-by-Step Written Instructions:

1. Złóż sekcje podstawy: Connect the shorter horizontal pipes (part 2) to the vertical base pipes (part 3) using screws (B1) and washers (A). Ensure all connections are secure.
2. Attach Wheels/Feet: Screw the 360° swivel wheels (D) into the bottom of the assembled base sections. Alternatively, attach the adjustable leveling feet if you prefer a stationary setup.
3. Zainstaluj dolną półkę: Place the bottom wire shelf (part 1) onto the lower frame. Secure it to the vertical pipes using screws (B1) and washers (A).
4. Extend Vertical Poles: Connect the upper vertical poles (part 4) to the lower vertical poles (part 3) by inserting them and ensuring they click into place. Repeat for all four vertical supports.
5. Attach X-Brace: Secure the X-brace support rods (part 8) to the designated points on the vertical poles (parts 4 and 7) using the smaller screws (B2). This enhances stability.
6. Install Middle Hanging Rods: Attach the middle horizontal hanging rods (parts 5 and 6) to the vertical poles (parts 4 and 7) using screws (B1) and washers (A).
7. Zainstaluj górną półkę: Place the top wire shelf (part 1) onto the uppermost frame. Secure it to the top vertical poles using screws (B1) and washers (A).
8. Kontrole końcowe: Verify that all screws are tightened and all connections are secure before placing items on the rack.

5. Instrukcja obsługi

The Raybee Clothes Rack is designed for versatile use. Here’s how to maximize its functionality:

• Wieszanie ubrań: Utilize the two tiers of hanging rods to separate different types of garments. The upper rod is ideal for longer items like coats and dresses, while the lower rod is suitable for shirts, pants, and skirts.
• Top Shelf Storage: Place folded clothes, luggage, bedding, or storage boxes on the reinforced top shelf. Ensure the weight does not exceed 70 lbs.
• Przechowywanie na dolnej półce: Use the open lower compartment for shoes, handbags, or other accessories.
• Ruchliwość: If using wheels, unlock the two lockable wheels to move the rack. Lock them when the rack is in its desired position to prevent accidental movement. If using adjustable feet, the rack will remain stationary.

Image: The clothes rack positioned in a bedroom, showcasing its two-tier hanging capacity and top shelf storage.

6. Konserwacja

To maintain your Raybee Clothes Rack in optimal condition, follow these simple guidelines:

• Czyszczenie: Wytrzyj metalową ramę i półki miękką ściereczką.amp płótno. Unikaj ściernych środków czyszczących, które mogą uszkodzić wykończenie.
• Regularna kontrola: Okresowo sprawdzaj wszystkie śruby i połączenia, aby upewnić się, że są dobrze dokręcone. W razie potrzeby dokręć je, aby zachować stabilność.
• Rozkład masy: Distribute weight evenly across the hanging rods and shelves to prevent strain on the frame. Do not exceed the maximum load capacity.
• Pielęgnacja kół: Utrzymuj koła w czystości, aby zapewnić płynne toczenie. W razie potrzeby nasmaruj je.

7. Rozwiązywanie Problemów

If you encounter any issues with your clothes rack, refer to the following common solutions:

• Stojak jest niestabilny/chwiejny:
  • Upewnij się, że wszystkie śruby są całkowicie dokręcone.
  • Verify that the X-brace is correctly installed and secured.
  • If using adjustable feet, ensure they are evenly adjusted on a flat surface.
• Koła nie toczą się płynnie:
  • Check for any debris (hair, lint) caught in the wheels and remove it.
  • Ensure the wheel locks are disengaged.
• Trudności w składaniu części:
  • Refer to the assembly video and step-by-step instructions to ensure correct part orientation.
  • Do not force parts together; if a part doesn't fit, recheck the instructions.

8. Specyfikacje

Image: Diagram illustrating the precise dimensions of the Raybee clothes rack: 15.75 inches deep, 35.4 inches wide, and 80.32 inches high.

9. Gwarancja i wsparcie

For warranty information, product support, or to purchase replacement parts, please visit the official Raybee webOdwiedź witrynę lub skontaktuj się z działem obsługi klienta. Zachowaj paragon zakupu na wypadek ewentualnych roszczeń gwarancyjnych.
