1. Wprowadzenie
This instruction manual provides detailed guidance for installing and operating your BrickBling Light Kit, designed specifically for the LEGO Japanese Red Maple Bonsai Tree (LEGO Set 10348). This kit enhances your botanical model with custom LED lighting, featuring a touch-sensitive switch and dimming capabilities. Please note: The LEGO model itself is not included with this light kit.

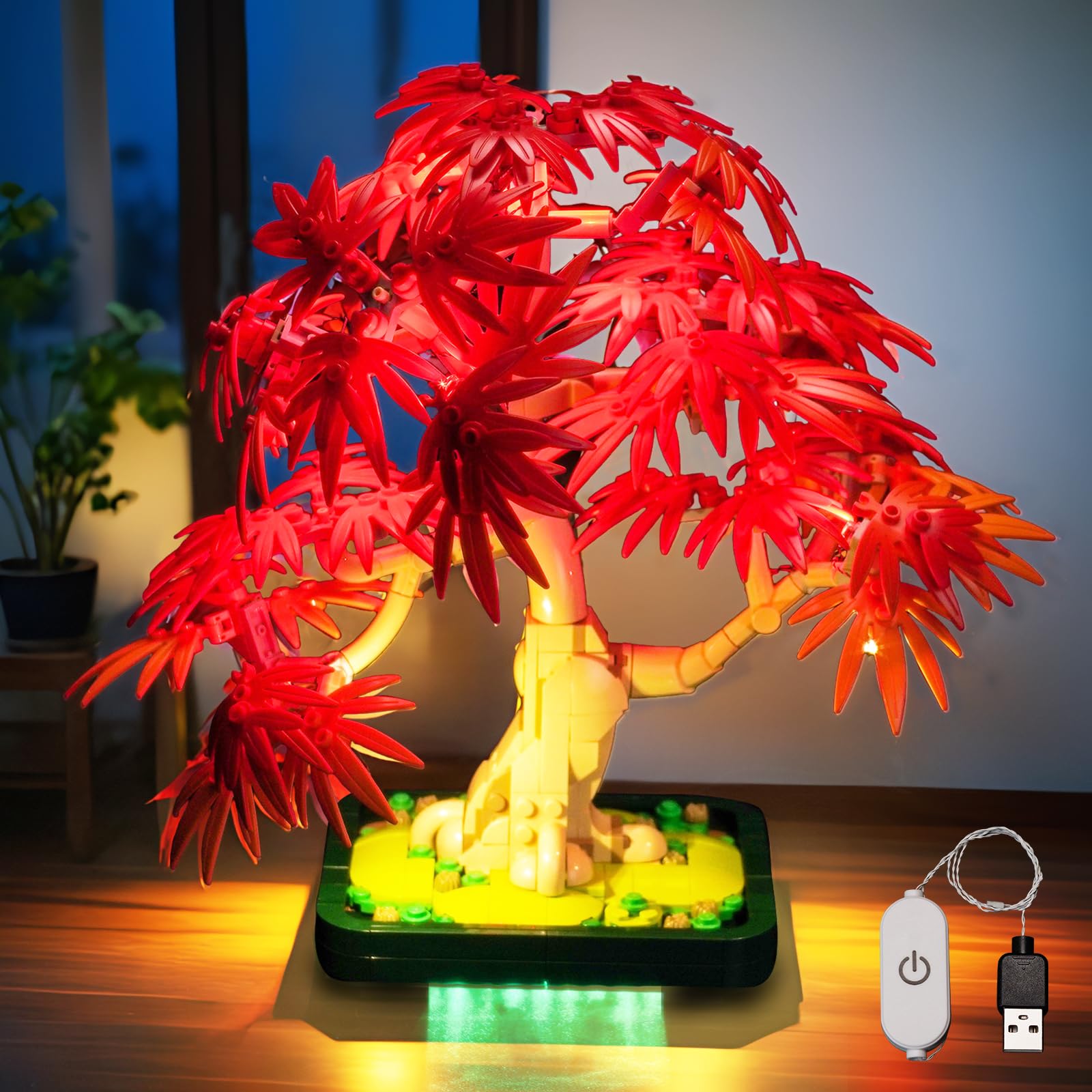

The BrickBling Light Kit illuminates the LEGO Japanese Red Maple Bonsai Tree, creating a vibrant display. The LEGO model is shown for illustrative purposes only and is not included.
2. Informacje dotyczące bezpieczeństwa
Przed instalacją i użyciem należy przeczytać i zrozumieć wszystkie instrukcje bezpieczeństwa.
- Ryzyko zadławienia: This product contains small parts and is not suitable for children under 3 years of age. Adult supervision is recommended during installation.
- Bezpieczeństwo elektryczne: Zalecana objętośćtage for this light kit is 3-5V. Do not exceed this voltage. Ensure all connections are secure before powering on.
- Obsługiwanie: Handle wires and LED components carefully to avoid damage. Do not bend wires excessively.
- Środowisko: Keep the light kit away from water and high humidity. Do not expose to extreme temperatures.
3. Zawartość opakowania
Verify that all components listed below are present in your package. If any items are missing or damaged, please contact BrickBling customer support.
Szczegółowy view of the light kit components and online instruction booklet.
- Light Kit Components (various high-brightness lights, rigid light bars, light strip)
- Connecting Cables (various lengths)
- Touch Dimming Module (50CM)
- Płyta rozszerzeń
- AAA Battery Case (batteries not included)
- Online Instructions Access Card
Ważny: This package contains only the light kit. The LEGO Japanese Red Maple Bonsai Tree (Set 10348) must be purchased separately.
The image clarifies that the light kit is sold separately from the LEGO model.
4. Konfiguracja i instalacja
The BrickBling Light Kit is designed for easy installation with minimal exposed wiring once complete. Detailed, step-by-step online instructions are provided to guide you through the process.
4.1 Accessing Online Instructions
A physical paper manual is not included. To access the comprehensive PDF and video instructions:
- Zlokalizuj website address printed in the booklet that came with your package.
- Odwiedź website and enter all characters from the label on the back of your package to retrieve the instructions.
Follow these steps to access the digital installation guide.
4.2 Ogólne wskazówki dotyczące instalacji
While specific steps are in the online guide, here are general principles:
- Demontaż: You may need to partially disassemble sections of your LEGO Bonsai Tree to integrate the lights. Follow the online guide carefully to identify which parts need to be removed.
- Prowadzenie przewodów: Route wires discreetly between LEGO bricks. The design aims to hide wires for a clean look.
- Łączenie komponentów: Connect the LED lights to the expansion board, and then connect the expansion board to the touch dimming module. Finally, connect the module to the power source (AAA battery case or USB power).
- Testowanie: Test the lights periodically during installation to ensure proper function before fully reassembling your model.
Examples of integrated lighting within the LEGO Bonsai Tree structure.
5. Działanie
Your BrickBling Light Kit features a touch-sensitive switch for easy control.
- Włączanie/wyłączanie: A short touch on the touch dimming module will turn the lights on or off.
- Dostosuj jasność: A long touch on the touch dimming module will cycle through different brightness levels. Release your finger when the desired brightness is reached.
The touch-sensitive module allows for simple control of the light kit's power and brightness.
6. Konserwacja
Aby zapewnić długowieczność i optymalną wydajność zestawu oświetleniowego:
- Czyszczenie: Use a soft, dry cloth to gently wipe away dust from the lights and wires. Do not use liquid cleaners.
- Wymiana baterii: If using the AAA battery case, replace batteries when lights dim significantly or stop working. Ensure correct polarity when inserting new batteries.
- Składowanie: If storing the LEGO model with the light kit for an extended period, consider disconnecting the power source to prevent battery drain or potential issues.
7. Rozwiązywanie Problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Światła nie włączają się. | No power, loose connection, or faulty component. | Check power source (batteries or USB). Ensure all cables are securely connected. Refer to online instructions for connection diagrams. |
| Światła są słabe lub migoczą. | Low battery power or insufficient power supply. | Replace batteries if using the battery case. Ensure USB power source provides adequate power (3-5V). |
| Touch dimming function is unresponsive. | Module not properly connected or damaged. | Verify the touch dimming module is correctly connected to the expansion board and power. Ensure the module surface is clean and dry. |
| Niektóre światła nie działają. | Loose connection to a specific light or damaged LED. | Check the connection of the non-working light to the expansion board. If the connection is secure and it still doesn't work, the LED may be faulty. |
If you encounter issues not covered here, please consult the detailed online instructions or contact BrickBling customer support.
8. Specyfikacje
- Marka: BrickBling
- Zgodność modelu: LEGO Japanese Red Maple Bonsai Tree 10348
- Styl: Classic Version Light
- Tworzywo: Akrylonitryl-butadien-styren (ABS), miedź
- Liczba źródeł światła: Varies by kit, includes multiple LEDs and light strips.
- Pobór mocy: 3-5V (USB or AAA Battery Case)
- Baterie w zestawie: No (for AAA Battery Case)
- Zawartość zestawu: Light Kit, Power Supply (USB cable or battery case)
9. Gwarancja i obsługa klienta
BrickBling products are manufactured with quality and customer satisfaction in mind. For any questions, concerns, or warranty claims, please contact BrickBling customer support through the official webwitrynę lub platformę zakupową.
Prosimy zachować dowód zakupu w celach gwarancyjnych.
