Devoko Automatic Cat Litter Box User Manual

Wstęp

Thank you for choosing the Devoko Automatic Cat Litter Box. This intelligent, self-cleaning system is designed to provide a hygienic and convenient solution for cat owners. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your device. Please read it thoroughly before use and retain it for future reference.

Informacje dotyczące bezpieczeństwa

Your Devoko Automatic Cat Litter Box is equipped with multiple safety features to ensure the well-being of your pets. Adherence to these guidelines is crucial for safe operation.

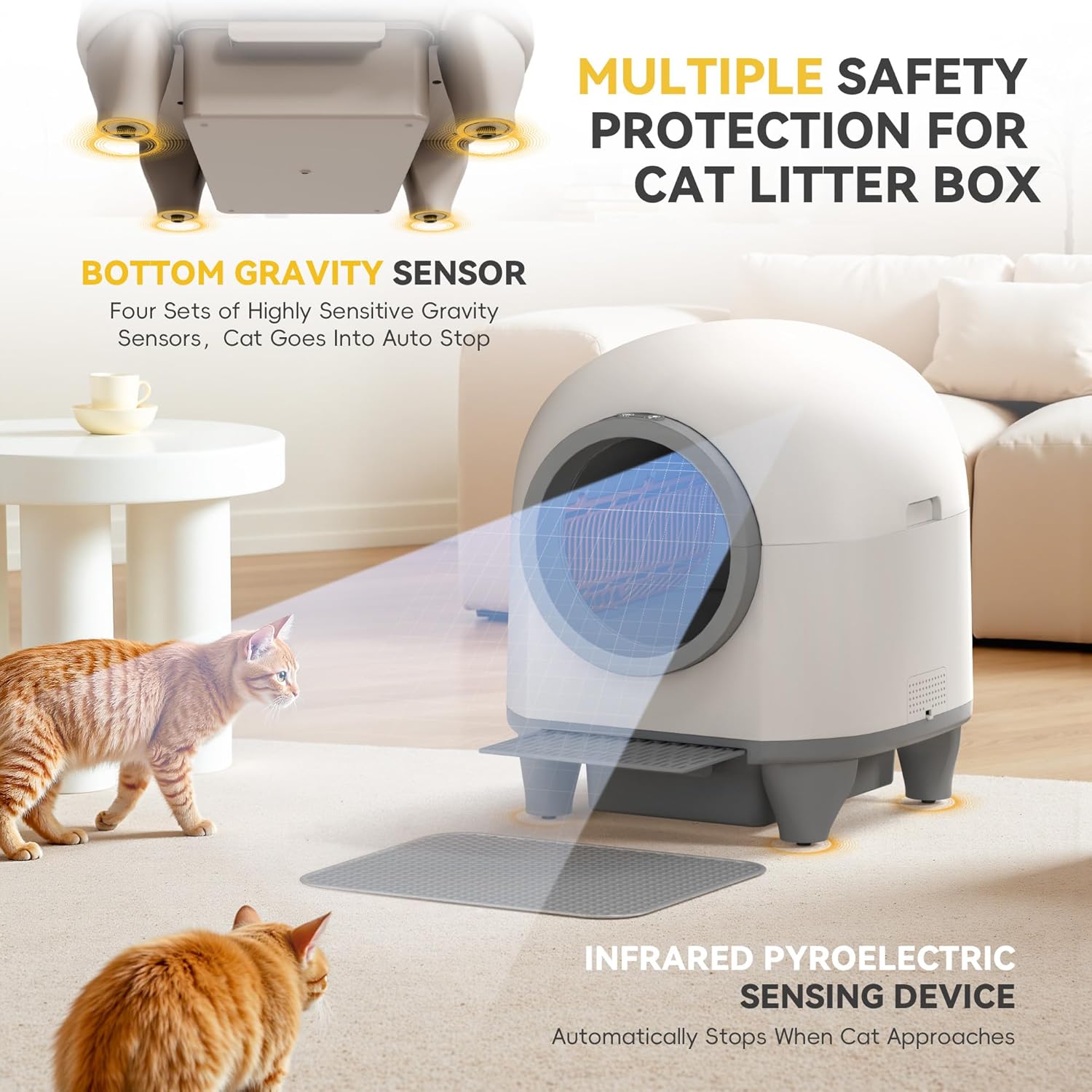

• 9-warstwowa ochrona bezpieczeństwa: The unit incorporates 4 infrared sensors, 4 weight sensors, and 1 motion radar for real-time monitoring.
• Automatic Stop Mechanism: The system will instantly pause operation if a cat approaches or enters the litter box during a cleaning cycle. This includes anti-pinch, auto-pause, and anomaly alerts.
• Radar Deactivation: The motion radar can be deactivated via the mobile application if desired.
• Limit wagowy: Suitable for cats weighing between 1.5 kg and 10 kg (approximately 3.3 lbs to 22 lbs) and aged 3 months or older.
• Umieszczenie: Place the unit on a stable, level surface. Avoid placing it near water sources or in excessively humid environments.
• Zasilanie: Use only the provided power adapter. Ensure the power cord is not damaged or pinched.

Produkt ponadview

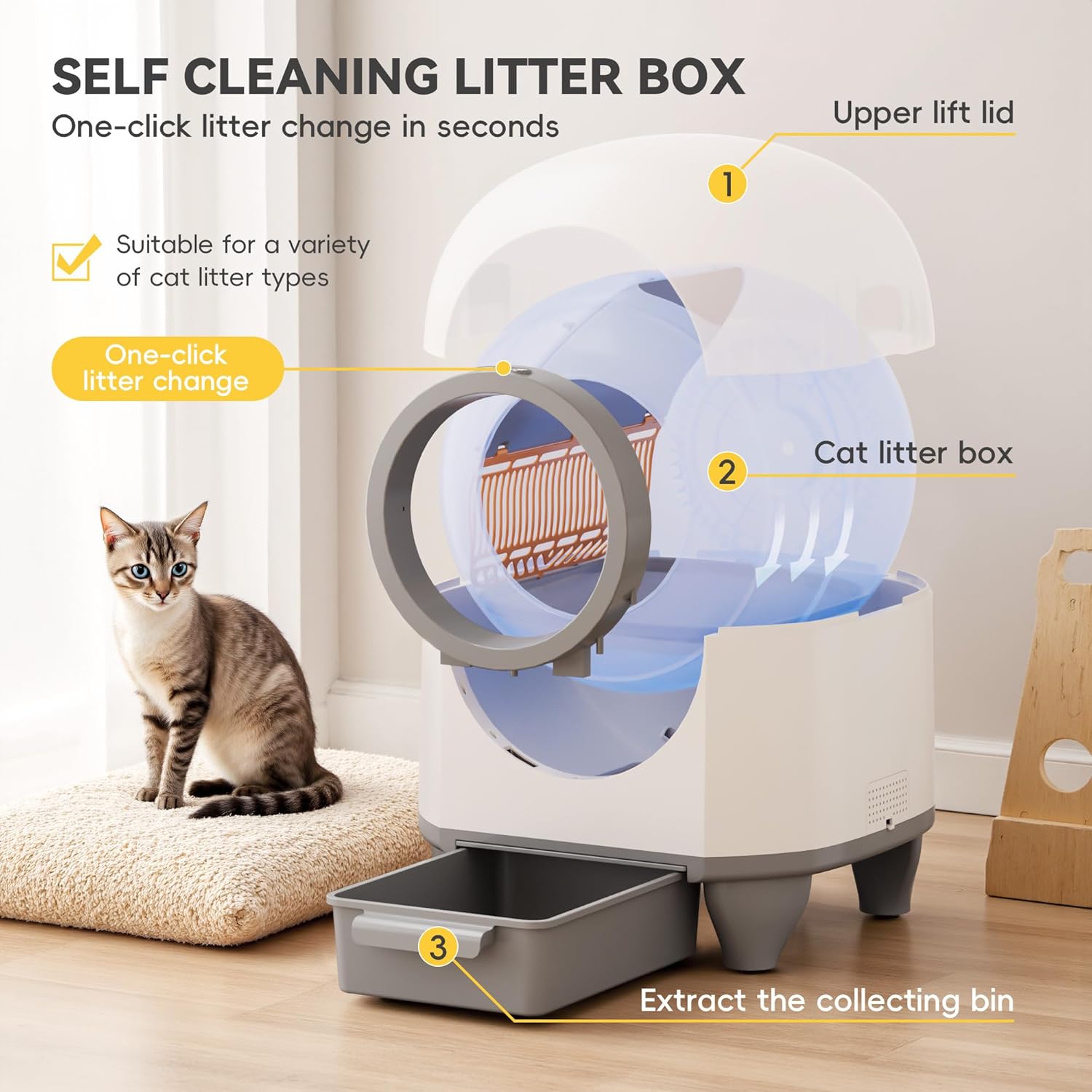

The Devoko Automatic Cat Litter Box is designed for ease of use and a clean environment. Key components include:

• Main Unit (housing the litter drum and motor)
• Waste Collection Bin (8.5 L capacity)
• Litter Drum (90 L capacity)
• Zasilacz
• Litter Mat (optional, for litter tracking)

Instrukcje konfiguracji

Follow these steps to set up your Devoko Automatic Cat Litter Box:

1. Rozpakuj jednostkę: Ostrożnie wyjmij wszystkie elementy z opakowania. Upewnij się, że wszystkie części są obecne i nieuszkodzone.
2. Umieść jednostkę: Position the litter box on a firm, level surface in a suitable location, away from direct sunlight and heat sources.
3. Install the Waste Bin: Slide the waste collection bin into its designated slot at the bottom front of the unit.
4. Dodaj żwirek dla kota: Open the top lid and pour clumping cat litter into the litter drum. Ensure the litter level is between the minimum and maximum fill lines. The unit is compatible with various types of clumping litter (excluding non-clumping litter).
5. Podłącz zasilanie: Plug the power adapter into the unit's power port, then connect it to a wall outlet. The unit will perform an initial calibration cycle.
6. Pobierz aplikację: Scan the QR code in the quick start guide or search for the 'Devoko Pet' app in your smartphone's app store (iOS/Android).
7. Sparuj urządzenie: Follow the in-app instructions to pair your litter box with your smartphone. This typically involves creating an account, selecting your device, and connecting to your home Wi-Fi network.

Instrukcja obsługi

The Devoko Automatic Cat Litter Box offers several operating modes and features for optimal convenience.

Tryby czyszczenia

• Tryb automatyczny: The unit detects when your cat has used the litter box and automatically initiates a cleaning cycle after a set delay (configurable via app).
• Tryb zaplanowany: Set specific times for cleaning cycles to occur daily or weekly via the mobile application.
• Tryb ręczny: Initiate a cleaning cycle at any time by pressing the button on the unit or through the mobile application.

App Control and Health Tracking

The 'Devoko Pet' app provides comprehensive control and monitoring capabilities:

• Zdalne czyszczenie: Start or stop cleaning cycles from anywhere.
• Health Data Tracking: Monitor your cat's weight, bathroom duration, and frequency. This data can help you track your cat's health trends.
• Regulacja ustawień: Customize delay times for automatic cleaning, activate/deactivate the motion radar, and manage other preferences.
• Tryb nocny: Enable silent night mode to pause cleaning during sleeping hours for undisturbed rest.

Konserwacja

Regular maintenance ensures the longevity and hygienic operation of your Devoko Automatic Cat Litter Box.

• Opróżnianie kosza na śmieci: The 8.5 L waste bin should be emptied regularly, typically every 7-10 days for a single cat, or more frequently for multiple cats. Simply pull out the bin, dispose of the waste, and reinsert.
• Czyszczenie urządzenia: The modular design allows for easy disassembly for thorough cleaning. Wipe down surfaces with a pet-safe cleaner. Avoid submerging electronic components in water.
• Litter Drum Cleaning: Periodically remove and clean the litter drum to prevent odor buildup and ensure smooth operation.
• Rodzaj miotu: Use only clumping cat litter. Non-clumping, crystal, or silica gel litters are not recommended as they may interfere with the cleaning mechanism.
• Kontrola zapachu: The integrated deodorizing system helps maintain a fresh environment. Replace deodorizer cartridges as needed.

Rozwiązywanie problemów

If you encounter issues with your Devoko Automatic Cat Litter Box, refer to the following common problems and solutions:

If the problem persists, please contact Devoko customer support for assistance.

Specyfikacje

Gwarancja i wsparcie

Devoko products are manufactured to high-quality standards. For warranty information, please refer to the documentation included with your purchase or visit the official Devoko website. If you require technical assistance, have questions about operation, or need to report a defect, please contact Devoko customer support through the following channels:

• Wsparcie online: Visit the Devoko official webStrona z odpowiedziami na często zadawane pytania i formularzami kontaktowymi pomocy technicznej.
• Wsparcie e-mailowe: Refer to your product packaging or the Devoko webodwiedź naszą witrynę, aby uzyskać odpowiedni adres e-mail pomocy technicznej.
• Wsparcie w aplikacji: Some issues can be resolved directly through the 'Devoko Pet' application's support section.

Please have your model number (NYT-MSP-0515) and purchase information ready when contacting support.
