Wstęp
This manual provides essential information for the setup, operation, and maintenance of your new Generic Replacement Remote Control. This remote is designed to be a direct replacement for various AUNA DisGo Box speaker systems, including models 100, 2100, 10033685, 10033686, 10030725, 10030726, and 10032598.
The remote control is pre-programmed and requires no additional setup or coding. Simply insert the batteries, and it will be ready for immediate use with your compatible speaker system.
Organizować coś
1. Instalacja baterii
Do pilota wymagane jest two (2) AAA batteries (not included). Please purchase new batteries from a local store before proceeding.
- Znajdź komorę baterii z tyłu pilota.
- Aby otworzyć komorę baterii, przesuń ją w dół lub w kierunku wskazanym strzałką.
- Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment. Incorrect insertion can prevent the remote from functioning.
- Załóż pokrywę komory baterii, wsuwając ją z powrotem na miejsce, aż do zatrzaśnięcia.
Figure 1: Battery compartment with cover removed, showing slots for two AAA batteries.
2. Początkowe użycie
Once batteries are correctly installed, the remote control is ready for use. No programming or pairing is required. Point the remote directly at your AUNA DisGo Box speaker system and press the desired function button.
Instrukcja obsługi
The remote control provides full functionality for your compatible AUNA DisGo Box speaker system. Below is a general overview przycisków i ich funkcji.

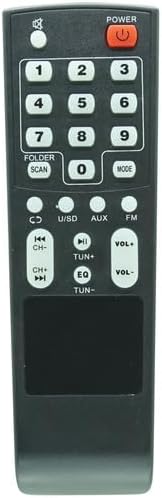

Rycina 2: Przód view pilota.
- MOC: Włącza lub wyłącza system głośników.
- Przyciski numeryczne (0-9): Used for direct track selection, radio station input, or other numerical inputs depending on the speaker system's mode.
- FOLDER / SCAN: Navigates through folders or initiates a scan function (e.g., for FM radio).
- Sposób użycia: Switches between different input modes (e.g., Bluetooth, USB, SD, AUX, FM, CD).
- CD / U/SD / AUX / FM: Direct selection buttons for specific input sources.
- Previous/Next Track (|<</>>|): Przechodzi do poprzedniego lub następnego utworu/file.
- Play/Pause (>||): Odtwarza lub wstrzymuje odtwarzanie dźwięku.
- GŁOŚNOŚĆ+ / GŁOŚNOŚĆ-: Zwiększa lub zmniejsza głośność główną.
- EQ: Przełącza między ustawieniami korektora.
- TUN+ / TUN-: Adjusts radio frequency up or down.
For specific functions and advanced operations, please refer to the original user manual of your AUNA DisGo Box speaker system.
Konserwacja
Wymiana baterii
If the remote control's range decreases or it becomes unresponsive, it is likely time to replace the batteries. Follow the battery installation steps outlined in the "Setup" section.
Czyszczenie
To clean the remote control, gently wipe it with a soft, dry cloth. Do not use liquid cleaners, abrasive materials, or solvents, as these can damage the remote's surface or internal components.
Rozwiązywanie problemów
- Pilot nie odpowiada:
- Ensure new batteries are correctly installed with the correct polarity.
- Check if there are any obstructions between the remote control and the speaker system's infrared receiver.
- Make sure you are within the effective range of the speaker system's IR receiver.
- Verify that the speaker system is powered on.
- Niektóre funkcje nie działają:
- Confirm that your specific AUNA DisGo Box model is listed as compatible. If you are unsure, please contact the seller for verification.
- Ensure the speaker system is in the correct mode for the function you are trying to use (e.g., pressing track skip buttons while in FM radio mode might not work).
If problems persist after following these steps, please contact the seller for further assistance.
Specyfikacje
| Funkcja | Szczegół |
|---|---|
| ASIN | B0F8NQNH7W |
| Wymagane baterie | 2 baterie AAA (brak w zestawie) |
| Producent | Ogólny |
| Marka | Ogólny |
| Funkcja specjalna | No additional programming required |
| Kolor | As shown (Black) |
| Maksymalna liczba obsługiwanych urządzeń | 1 (Specific AUNA DisGo Box Speaker System) |
| Kompatybilne urządzenia | AUNA DisGo Box 100, 2100, 10033685, 10033686, 10030725, 10030726, 10032598 Speaker Systems |
Gwarancja i wsparcie
Specific warranty information for this replacement remote control is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please refer to the purchase documentation or contact the seller directly through the platform where the product was purchased.
If you are unsure about compatibility with your device, it is recommended to contact the seller before purchase or for troubleshooting assistance.
