WITMYA Smart Toilet TC02 User Manual

1. Wprowadzenie

This user manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your WITMYA Smart Toilet TC02. Please read this manual thoroughly before using the product to ensure safe and efficient operation. Keep this manual for future reference.

2. Informacje dotyczące bezpieczeństwa

WARNING: To reduce the risk of burns, electrocution, fire, or injury to persons, read all instructions before using.

• Zapewnij właściwe uziemienie elektryczne.
• Nie zanurzać produktu w wodzie ani innych płynach.
• Do not attempt to disassemble, repair, or modify the product yourself. Contact qualified service personnel.
• Keep children and individuals with reduced physical, sensory, or mental capabilities away from the product unless supervised.
• Odłączaj produkt podczas burzy z piorunami lub gdy nie jest używany przez dłuższy czas.
• Do not use abrasive cleaners or harsh chemicals on the product surface.
• Ensure water supply is turned off before any maintenance or installation.

The WITMYA Smart Toilet TC02 features built-in leakage protection and flame retardant materials for enhanced safety.

Image: Safety features including dry burning protection, prevention of seat/water/wind overheating, electrical leakage protection, and flame retardant material.

3. Koniec produktuview

The WITMYA Smart Toilet TC02 is a modern, elongated smart toilet with integrated bidet functions, designed for enhanced hygiene and comfort. It features advanced technologies such as voice control, foot sensing, and automatic flushing.

3.1 Główne cechy

• Konstrukcja bezzbiornikowa: Efficient 1.28 GPF water-saving flush with 360° powerful flushing system. Operates during power outagt.j.
• Wiele trybów czyszczenia: Feminine care, posterior cleaning, and massage cleaning with self-cleaning nozzles.
• Regulowane, podgrzewane siedzenie: Warms within 1 second, with three adjustable temperature levels.
• Automatic Sensing: Microwave sensing for automatic lid opening/closing, and foot-sensing flush.
• Night Convenience: High-definition LED screen for temperature display and soft night light.
• Trwałość i bezpieczeństwo: Compact one-piece ceramic design, IPX4 waterproof rating, built-in leakage protection.

3.2 Składniki

Pakiet produktów zawiera:

• 1x Smart Toilet with Hose and Components Pre-installed
• 1x Installation Manual (this document)
• 1x Flange & Screw bolt
• 1x Angle Valve
• 1x Toilet Seal
• 1x Wireless Remote Control (including batteries)

Obraz: Przód view of the WITMYA Smart Toilet TC02, highlighting its sleek design and integrated features.

Image: Detailed dimensions of the smart toilet, including length, width, height, and rough-in measurement.

4. Konfiguracja i instalacja

Proper installation is crucial for the optimal performance and longevity of your smart toilet. It is recommended to have installation performed by a qualified professional.

4.1 Wymagane narzędzia

• Wiertarka udarowa
• Pistolet na klej
• Taśma miernicza
• Klucz nastawny
• Szczypce
• Gradenter (Level)
• Steel Saw
• Nóż
• Śrubokręt
• Ołówek

4.2 Czynności przed instalacją

1. Ensure the rough-in distance from the wall to the center of the drain is at least 11.8 inches.
2. Open the inlet valve and let water run for 3-5 minutes until approximately 3000ml of water has passed through, then close the inlet valve. This flushes out any debris.

4.3 Metody instalacji

There are two primary installation methods: without a flange and with a flange. Follow the instructions relevant to your bathroom setup.

Method 1: Without Flange

1. Position the toilet and mark the curve of the ceramic base on the floor with a pencil.
2. Remove the toilet and apply glass cement along the marked outline.
3. Install the toilet seal onto the drain outlet.
4. Carefully place the toilet onto the seal and align it with the marked outline.
5. Wipe up any spilled glass cement immediately.
6. Block the screw holes on the ceramic side with the equipped rubber plugs.
7. Connect the water inlet hose to the angle valve and the toilet.
8. Podłącz przewód zasilający do uziemionego gniazdka.

Method 2: With Flange

1. If your existing flange is too high, cut off any excess to ensure it is flush with the floor.
2. Assemble the mounting block together with the flange plate as per the diagram.
3. Install the assembled sealing flange into the drain outlet, ensuring a secure fit.
4. Position the toilet and mark the curve of the ceramic base on the floor with a pencil.
5. Remove the toilet and apply glass cement along the marked outline.
6. Carefully place the toilet onto the flange and align it with the marked outline.
7. Wipe up any spilled glass cement immediately.
8. Install the external screw to connect the 7-character fixing component of the toilet flange.
9. Connect the water inlet hose to the angle valve and the toilet.
10. Podłącz przewód zasilający do uziemionego gniazdka.

5. Instrukcja obsługi

Your WITMYA Smart Toilet TC02 offers various intelligent functions for convenience and hygiene.

5.1 Automatic Sensing Features

• Automatic Lid Opening/Closing: The microwave sensing system detects your approach and automatically opens the lid. It closes after a period of inactivity (e.g., 3 minutes after leaving).
• Foot-Sensing Flush: A sensor near the base allows for hands-free flushing by simply tapping your foot.
• Off-seat AUTO Dual Flush: The toilet automatically flushes when you stand up from the seat.

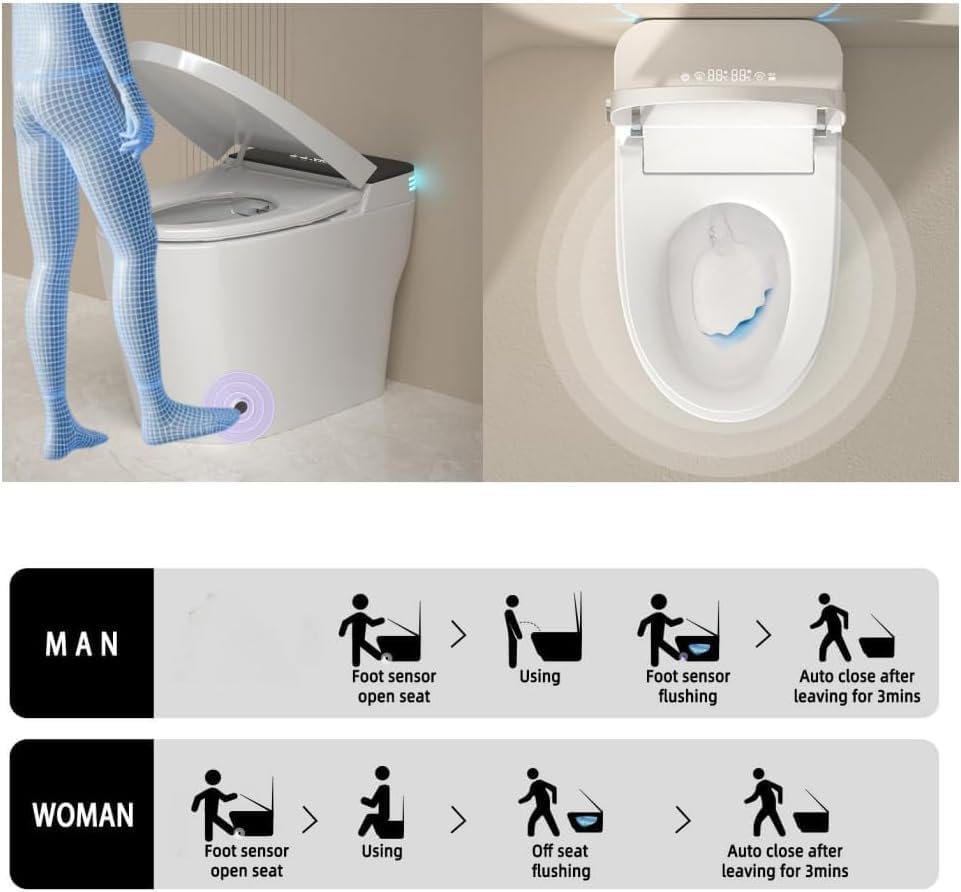

Image: Illustration of the automatic lid opening and flushing sequence activated by foot sensing, differentiating between male and female usage patterns.

5.2 Remote Control and Knob Functions

The wireless remote control and side rotary knob provide full control over the toilet's features.

Image: Detailed diagram of the wireless remote control, indicating buttons for stop, hip cleaning, feminine cleaning, drying, flush, nozzle adjustment, water pressure, water temperature, seat temperature, cover control, night lamp, and self-cleaning.

• Podgrzewane siedzenie: Adjust the seat temperature using the remote control. The seat warms up within 1 second of sitting.
• Suszenie ciepłym powietrzem: Adjust the warm air drying temperature and mode via the remote.
• Tryby czyszczenia: Select from feminine care, posterior cleaning, and massage cleaning. Adjust water pressure and temperature as desired.
• Regulacja dyszy: Control the position of the bidet nozzle.
• Płukanie: Initiate a flush using the remote or the side knob.
• Światło nocne: Activate the soft night light for convenience in low-light conditions.

Image: Visual representation of the 4-gear adjustable temperature air dryer and the instant heated seat, which warms up within 1 second after seating.

Image: Close-up of the hygienic nozzle, illustrating its multiple washing modes including rear wash, female wash, movable wash, and nozzle self-cleaning, along with adjustable water temperature settings.

5.3 Ekran wyświetlacza

The high-definition LED screen displays real-time water and seat temperatures, along with other operational indicators.

Image: Close-up of the HD LED display on the smart toilet, showing temperature readings and various function icons.

6. Konserwacja

Regular maintenance ensures the longevity and hygienic performance of your smart toilet.

• Samoczyszczenie dyszy: The bidet nozzle performs an automatic self-cleaning cycle before and after each use.
• Czyszczenie zewnętrzne: Użyj miękkiego, damp cloth and mild, non-abrasive cleaner to wipe down the exterior surfaces. Avoid harsh chemicals.
• IPX4 Wodoodporny: The product has an IPX4 waterproof rating, meaning it is resistant to splashing water from any direction. However, do not spray water directly onto electrical components or immerse the unit.
• Sterylizacja UV: The toilet features automatic UV sterilization after the lid closes, helping to prevent cross-infection.

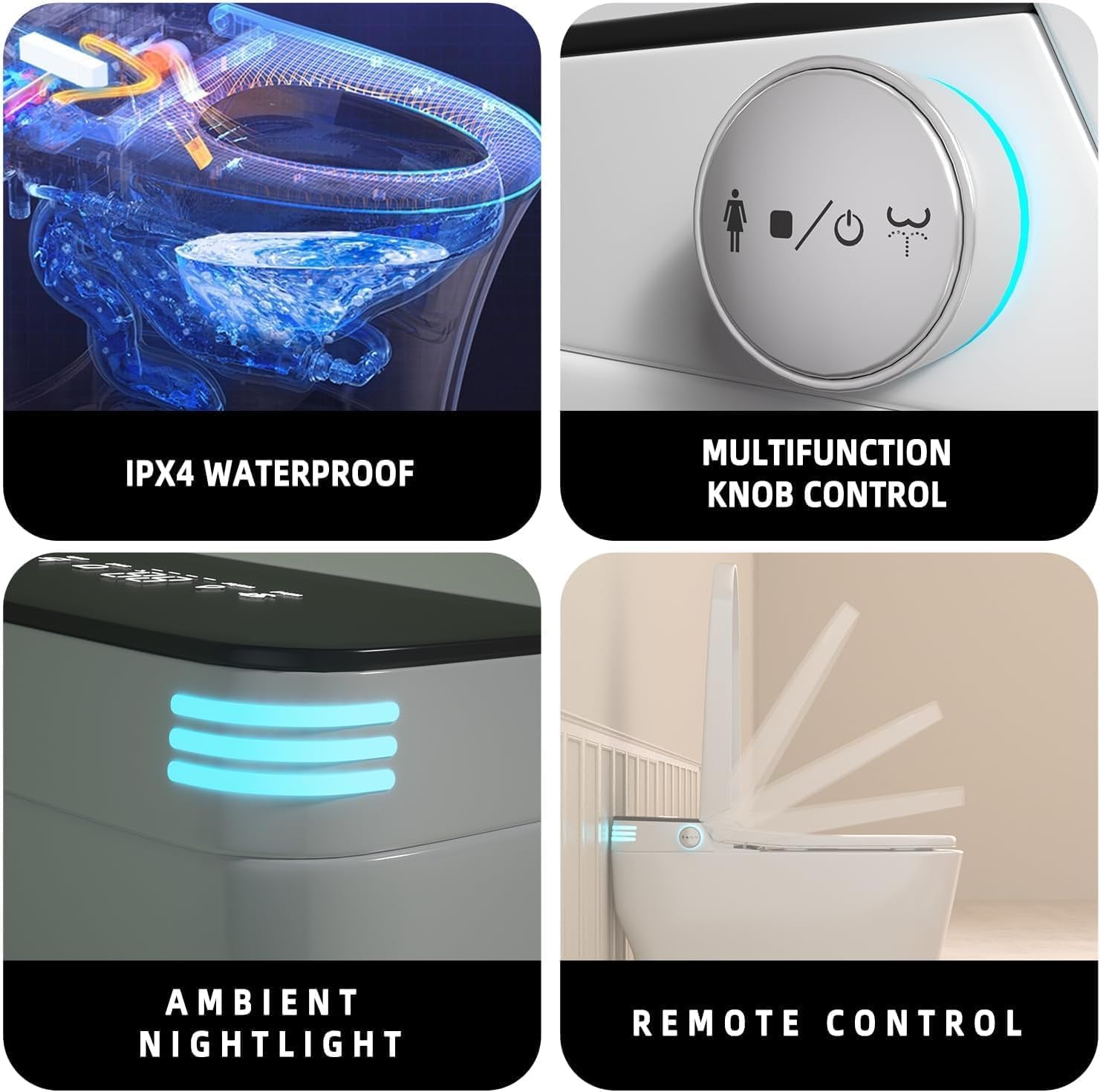

Obraz: Ponadview of key features including IPX4 waterproof design, intuitive multifunction knob control, ambient nightlight for convenience, and comprehensive remote control capabilities.

7. Rozwiązywanie Problemów

If you encounter issues with your WITMYA Smart Toilet TC02, refer to the common problems and solutions below. For persistent issues, contact customer support.

8. Specyfikacje

9. Gwarancja i wsparcie

WITMYA is committed to providing high-quality products and excellent customer service.

• Gwarancja: If there is a quality problem with the product, WITMYA provides 1 year of free after-sales service.
• Obsługa klienta: For any questions, technical assistance, or warranty claims, please contact WITMYA customer support. Professional service teams are available 24 hours online.
• Zwroty: Ten produkt można łatwo zwrócić w ciągu 30 dni.
