Curtis Stone Chop Chop Prep Tool Instruction Manual

1. Wprowadzenie

This manual provides essential instructions for the safe and effective use of your Curtis Stone Chop Chop Prep Tool. Please read all instructions carefully before first use and retain this manual for future reference.

Obraz 1.1: The Curtis Stone Chop Chop Prep Tool shown with its main unit and various interchangeable blades and attachments, including dicing grids, a slicer, and a grater.

2. Środki ostrożności

• Always handle blades with extreme care. Blades are very sharp and can cause injury.
• Keep fingers away from cutting surfaces during operation and cleaning.
• Ensure the tool is placed on a stable, flat surface before use.
• Przechowywać w miejscu niedostępnym dla dzieci.
• Do not attempt to chop extremely hard foods that may damage the blades or unit.
• Always use the food holder when using the slicer/grater attachments.

3. Koniec komponentówview

The Curtis Stone Chop Chop Prep Tool includes the following main components:

• Main Chopping Unit (Lid with push mechanism and base frame)
• Collection Container (with measurements)
• Interchangeable Dicing Blades (various sizes)
• Slicer Attachment
• Grater Attachments
• Food Holder for Slicer/Grater

4. Instalacja i montaż

1. Rozpakowywanie: Carefully remove all packaging materials. Be aware that some components may be secured with tape for shipping; remove tape gently to avoid damage.
2. Czyszczenie wstępne: Before first use, wash all components that will come into contact with food in warm, soapy water. Rinse thoroughly and dry.
3. Assembling the Chopping Unit:
   • Place the collection container onto a stable surface.
   • Select the desired dicing blade. Align the blade with the grooves in the base frame of the main chopping unit and press down firmly until it clicks into place.
   • Place the main chopping unit (with blade inserted) onto the collection container. Ensure it sits securely.
4. Assembling Slicer/Grater:
   • Place the collection container onto a stable surface.
   • Insert the desired slicer or grater attachment into the top of the collection container.

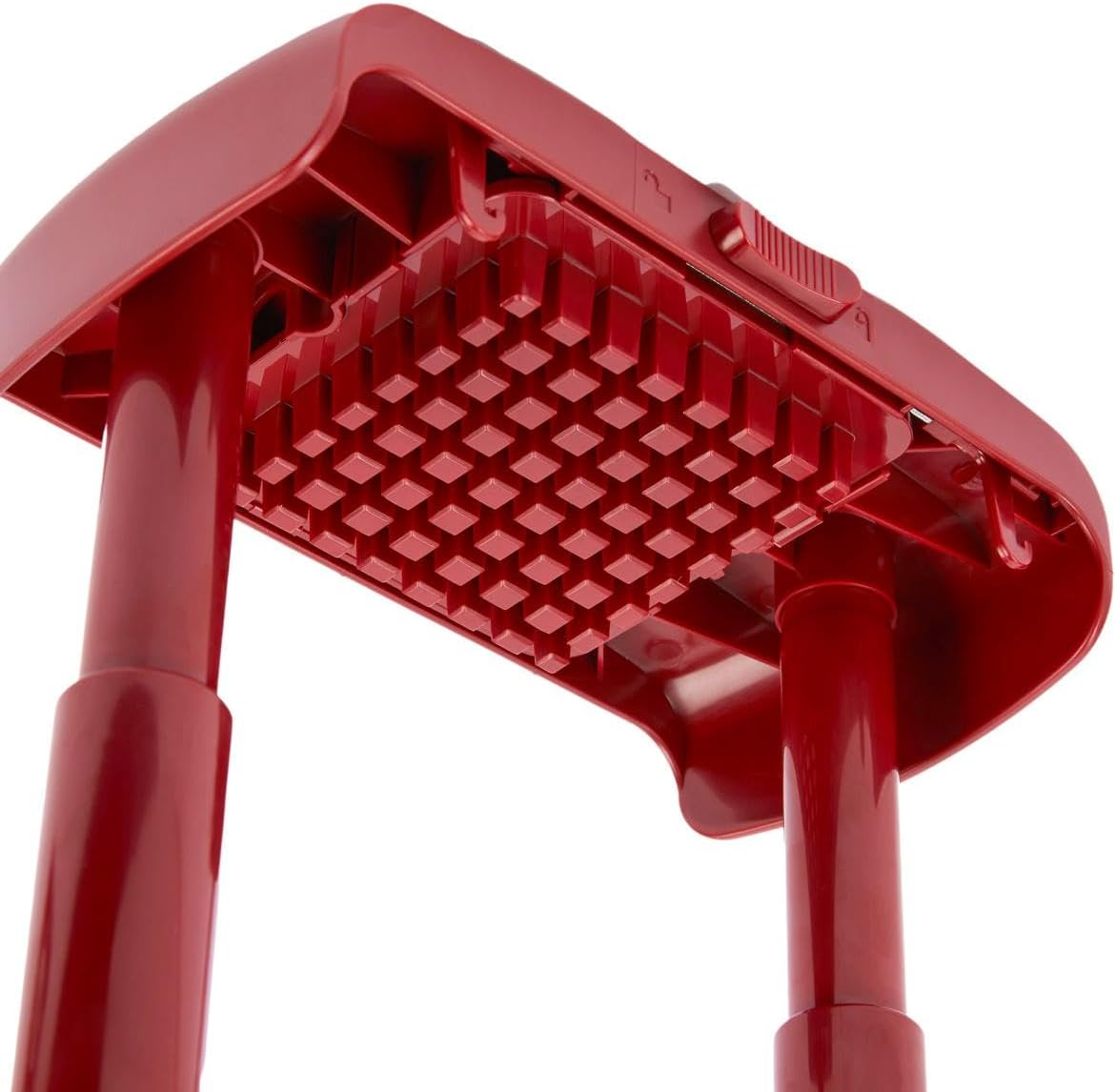

Obraz 4.1: A view of the underside of the chopping lid, illustrating the grid mechanism that pushes food through the interchangeable blades.

5. Instrukcja obsługi

5.1 Using the Chopping Unit

1. Ensure the chopping unit is assembled with the desired dicing blade and securely placed on the collection container.
2. Prepare your food by cutting it into pieces that fit within the blade's grid. For best results, ensure vegetables are firm and cut flat on one side if necessary.
3. Place the food item onto the center of the blade.
4. With one hand holding the base firmly, use the other hand to press down quickly and firmly on the lid's push mechanism. The food will be pushed through the blade and into the collection container.
5. Repeat for all food items.

5.2 Using the Slicer/Grater Attachments

1. Ensure the desired slicer or grater attachment is securely inserted into the collection container.
2. Place the food item into the food holder.
3. Hold the food holder firmly and slide it back and forth over the blade to slice or grate the food.
4. Exercise caution and always use the food holder to protect your hands from the sharp blades.

Obraz 5.1: The Curtis Stone Chop Chop Prep Tool in operation, demonstrating a lime being chopped into the collection container. Prepared food is visible in the background.

Obraz 5.2: Zbliżenie view of the grater attachment, showing the grating surface and the circular food holder in place, ready for use.

Obraz 5.3: A detailed image of the slicer attachment, highlighting its sharp blade and design for uniform slicing.

6. Konserwacja i czyszczenie

1. Demontaż: Carefully remove the chopping unit from the collection container. Detach the blade by pushing it up from the underside or using the release mechanism if available. For slicer/grater, simply lift out the attachment.
2. Mycie: Wash all components immediately after use to prevent food from drying on surfaces. Use warm, soapy water and a soft brush to clean blades and grids. Exercise extreme caution when cleaning blades.
3. Płukanie i suszenie: Rinse all parts thoroughly under running water. Allow all components to air dry completely before storing, or dry with a soft cloth.
4. Składowanie: Store all blades and attachments safely to prevent accidental cuts. The collection container can be used to store smaller components.

7. Rozwiązywanie Problemów

• Difficulty Unpacking/Removing Components: If packaging tape or other securing materials are difficult to remove, use a utility knife or scissors carefully to cut them without damaging the product.
• Food Not Chopping Evenly: Ensure food items are cut to a size that fits the blade grid. Apply firm, even pressure when pressing down the lid. For harder vegetables, you may need to cut them into smaller, thinner pieces first.
• Blades Seem Dull: The product features stainless steel blades designed for durability. If blades appear to be performing poorly, ensure they are clean and free of debris. This renewed product comes with a 1-year warranty for potential defects.
• Unit Not Stable: Ensure the collection container is placed on a flat, non-slip surface and the chopping unit is securely seated on top of it.

8. Specyfikacje

9. Informacje o gwarancji

This Curtis Stone Chop Chop Prep Tool (Renewed) comes with a 1-Year Refurbished Warranty. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation provided at the time of purchase or contact the seller.

10. Wsparcie

If you encounter any issues not covered in this manual or require further assistance, please contact the seller or manufacturer's customer support. Refer to your purchase documentation for contact details.
