Instrukcja obsługi pasa piersiowego do pomiaru tętna Magene H613

Wstęp

The Magene H613 Heart Rate Monitor Chest Strap is an advanced device designed for accurate heart rate tracking during various physical activities. It features a new-generation algorithm for precise real-time monitoring, 17 hours of offline data storage, multi-sport compatibility, and a multi-color LED indicator for heart rate zones. Its comfortable and durable design, coupled with IPX7 waterproofing, ensures reliable performance across diverse training environments.

The Magene H613 Heart Rate Monitor Chest Strap, designed for accurate fitness tracking.

Co jest w pudełku

• Magene H613 Heart Rate Monitor Module
• Regulowany pasek na klatkę piersiową
• Magnetyczny kabel ładujący
• Instrukcja obsługi (ten dokument)

Organizować coś

Wearing the Chest Strap

Follow these steps to correctly wear your Magene H613 Heart Rate Monitor:

1. Zwilż obszar elektrody: Lightly moisten the electrode areas on the back of the chest strap with water or electrode gel. This ensures optimal skin contact for accurate readings.
2. Regulacja pasa piersiowego: Place the chest strap below your chest, directly against your skin. Adjust the strap to a comfortable, snug length that prevents movement during activity.
3. Attach the Heart Rate Module: Securely snap the Magene H613 heart rate module onto the two buttons on the chest strap. Ensure it clicks firmly into place.
4. Aktywacja automatyczna: Once worn, the heart rate sensor will automatically turn on and begin broadcasting data continuously.

Visual guide for wearing the Magene H613 heart rate monitor chest strap.

Początkowe ładowanie

The device may arrive with a low battery. Connect the magnetic charging cable to the charging points on the back of the module and plug the USB end into a power source. A full charge can take several hours. The LED indicator will show charging status.

Pairing with Devices (Bluetooth & ANT+)

The H613 supports both Bluetooth and ANT+ connectivity, allowing it to pair with various devices such as smartphones, smartwatches, bike computers, and fitness apps.

• Parowanie Bluetooth: Enable Bluetooth on your smartphone or compatible device. Szukaj available devices and select 'Magene H613' to pair.
• Parowanie ANT+: For ANT+ compatible devices (e.g., bike computers), refer to your device's manual for specific pairing instructions. The H613 will appear as an available heart rate sensor.

The Magene H613 offers 3-channel Bluetooth and ANT+ compatibility for seamless data sharing.

Instrukcja obsługi

Accurate Heart Rate Monitoring

The H613 utilizes an internally developed, new-generation heart rate measurement algorithm. This algorithm ensures real-time, millimeter-accurate tracking of heart rate fluctuations, effectively filtering out anomalous interference even during high-intensity training sessions.

The H613 provides precise heart rate monitoring for effective training.

Przechowywanie danych offline

The H613 supports up to 17 hours of offline recording. This feature allows you to track your heart rate without needing to carry a smartphone or other devices during your workout. After your session, simply connect to the OnelapFit app to automatically synchronize your data and view szczegółowe raporty.

The H613 stores up to 17 hours of heart rate data offline.

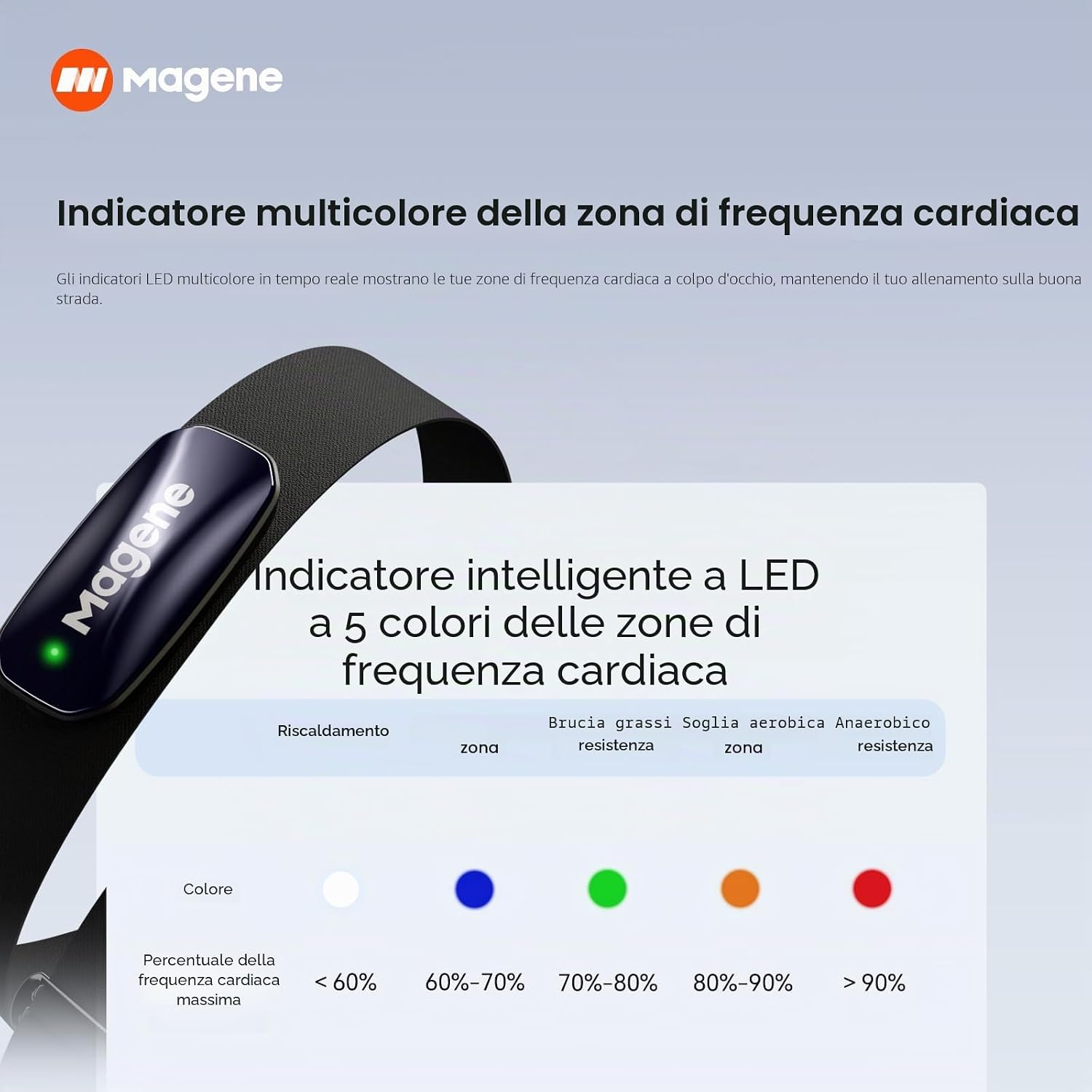

Wielokolorowy wskaźnik strefy tętna LED

The integrated multi-color LED indicator provides real-time visual feedback on your current heart rate zone. This allows you to quickly assess your training intensity at a glance:

• Biały: Warm-up (< 60% Max HR)
• Niebieski: Fat Burning (60%-70% Max HR)
• Zielony: Aerobic Endurance (70%-80% Max HR)
• Pomarańczowy: Threshold (80%-90% Max HR)
• Czerwony: Anaerobic Endurance (> 90% Max HR)

The multi-color LED indicates your current heart rate zone.

Heart Rate Alert Function

The H613 features a customizable heart rate alert function. You can set safe heart rate thresholds within the OnelapFit app. If your heart rate reaches the preset maximum limit, the chest strap will emit an audible beep to remind you, helping to prevent the risk of cardiopulmonary overload during intense workouts.

The H613 provides audible alerts for exceeding preset heart rate limits.

Multi-Sport Compatibility

The H613 is designed to provide accurate heart rate monitoring across a wide range of sports and activities, including cycling, running, yoga, Pilates, boxing, strength training, and more. Its versatile design ensures precise tracking regardless of your chosen exercise intensity.

The H613 is compatible with a wide range of sports and fitness activities.

Długa żywotność baterii

The Magene H613 offers an extended battery life of up to 100 hours on a single charge, allowing for prolonged use without frequent recharging. Actual battery life may vary depending on usage conditions and settings.

The H613 features a long-lasting battery for extended training sessions.

Konserwacja

Czyszczenie pasa piersiowego

After each use, detach the heart rate module from the chest strap. Rinse the chest strap with clean water and hang it to air dry. Do not use harsh chemicals, detergents, or abrasive materials, as these can damage the electrodes and fabric. The heart rate module can be wiped clean with a damp płótno.

Odporność na wodę

The Magene H613 heart rate module is IPX7 waterproof. This rating means it can withstand immersion in water up to 1 meter for 30 minutes. It is suitable for use in rain or during sweaty workouts, but it is not recommended for swimming or prolonged submersion.

The H613 features a durable, IPX7 waterproof design.

Składowanie

Store the heart rate monitor and strap in a cool, dry place away from direct sunlight and extreme temperatures when not in use. Ensure the module is detached from the strap during storage to conserve battery life.

Rozwiązywanie problemów

Brak odczytu tętna

• Ensure the electrode areas on the strap are moistened before wearing.
• Check that the heart rate module is securely attached to the strap.
• Verify that the device is correctly paired via Bluetooth or ANT+ to your receiving device.
• Sprawdź, czy akumulator jest naładowany.

Inaccurate Readings or Signal Loss

• Ensure the strap is worn snugly against your skin, just below the chest.
• Avoid wearing the strap over loose clothing that might cause friction or movement.
• Minimize interference from other electronic devices nearby.
• If using in cold weather, ensure the strap is warm enough to maintain good skin contact.

Powolne ładowanie

• Ensure the magnetic charging cable is properly connected to the charging points on the device.
• Charging times may vary. If charging is excessively slow, try a different USB power source.

Problemy z łącznością

• Restart both the H613 and your receiving device (smartphone, bike computer).
• Forget the device in your Bluetooth settings and re-pair it.
• Ensure your receiving device's software is up to date.

Specyfikacje

The Magene H613 is available in three sizes to ensure a comfortable fit.

Gwarancja i wsparcie

Informacje o gwarancji

The Magene H613 Heart Rate Monitor Chest Strap is covered by a 30-day refund/replacement policy. Please refer to your purchase documentation for specific warranty terms and conditions.

Obsługa klienta

For technical assistance, troubleshooting, or warranty claims, please contact Magene Fitness directly. You can typically find their contact information through the Amazon platform where you made your purchase, or by visiting the official Magene webstrona.
