1. Wprowadzenie
This manual provides detailed instructions for the installation, operation, and maintenance of your VENTISOL 24-Inch Wall-Mounted Shutter Exhaust Fan. This industrial-grade fan is designed for efficient air circulation, heat removal, and ventilation in various environments such as garages, attics, shops, and greenhouses. It features a durable metal construction, automatic gravity shutters, and a variable speed controller for optimized performance.
Rysunek 1.1: VENTISOL 24-Inch Wall-Mounted Shutter Exhaust Fan. This image displays the complete exhaust fan unit with its metal housing, internal fan blades, and external gravity shutters, along with the pre-installed power cord.
2. Instrukcje bezpieczeństwa
Read all safety warnings and instructions before installing or operating this product. Failure to follow these instructions may result in electric shock, fire, or serious injury. Keep this manual for future reference.
- Bezpieczeństwo elektryczne: Upewnij się, że zasilanie jest zgodne z mocą wentylatora.tage (120 Volts). Do not operate the fan with a damaged cord or plug. Avoid using extension cords unless absolutely necessary and ensure they are rated for the fan's wattage (150 watów).
- Bezpieczeństwo instalacji: Disconnect power before installation or servicing. Mount the fan securely to a sturdy wall structure capable of supporting its weight. Ensure proper clearance around the fan for optimal airflow and to prevent obstruction.
- Bezpieczeństwo działania: Keep hands, hair, clothing, and loose objects away from moving parts. Do not insert any objects into the fan grille. This fan is designed for outdoor usage in environments like attics, garages, greenhouses, industrial spaces, and shops.
- Bezpieczeństwo konserwacji: Zawsze odłączaj wentylator od zasilania przed czyszczeniem lub jakąkolwiek konserwacją.
- Orzecznictwo: This product is ETL-Certified for safety.
3. Zawartość opakowania
Sprawdź, czy wszystkie elementy są na miejscu i nieuszkodzone. Jeśli brakuje którejkolwiek części lub jest ona uszkodzona, skontaktuj się z obsługą klienta.
- VENTISOL 24-Inch Shutter Exhaust Fan (with pre-installed 1.65m power cord)
- Kontroler zmiennej prędkości
- Instrukcja obsługi
Rysunek 3.1: Wybuchł view of the Shutter Exhaust Fan. This diagram illustrates the main components including the metal construction frame, automatic gravity aluminum shutters, 3 rust-proof aluminum blades, safety coated steel wire grille, and the totally enclosed ball bearing motor.
4. Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Marka | VENTISOL |
| Nazwa modelu | 24-calowy wentylator wyciągowy |
| Wymiary produktu (Gł. x Szer. x Wys.) | 12.99" gł. x 28.54" szer. x 28.54" wys. |
| Przepływ powietrza | 4200 stóp sześciennych na minutę (CFM) |
| Cotage | 150 watów |
| Tomtage | 120 wolty |
| Źródło zasilania | AC |
| Długość przewodu zasilającego | 1.65m (5.4 stóp) |
| Tworzywo | Dual-layer Galvanized Steel body, Aluminum Alloy shutters and blades |
| Typ silnika | Sealed Ball Bearing Motor |
| Zakres temperatur pracy | -30°F do 140°F |
| Zastosowanie wewnątrz/na zewnątrz | Plenerowy |
| Orzecznictwo | Certyfikowany przez ETL |
Rysunek 4.1: Detailed specifications and dimensions of the VENTISOL 24-Inch Exhaust Fan. This image provides a visual representation of the fan's measurements and key performance metrics.
5. Konfiguracja i instalacja
The VENTISOL exhaust fan is designed for straightforward installation. It comes with a pre-installed power cord, eliminating the need for complex wiring.
- Wybierz lokacje: Select a suitable wall location in your garage, attic, greenhouse, or workshop. Ensure the wall structure is robust enough to support the fan's weight and that there is adequate space for airflow.
- Przygotuj otwarcie: Create an opening in the wall that accommodates the fan's dimensions (approximately 28.54" x 28.54" for the outer frame).
- Wentylator górny: Securely mount the fan into the prepared opening using appropriate fasteners (not included) for your wall material. Ensure the fan is level and firmly attached to prevent vibration and noise.
- Podłącz kontroler prędkości: The fan's pre-wired power cord connects directly to the included variable speed controller. Plug the fan's cord into the controller, then plug the controller into a standard 120V AC power outlet.
Rysunek 5.1: Illustration of connecting the variable speed controller. This image shows the fan's power cord plugging into the speed controller, which then plugs into a wall outlet, demonstrating the simple plug-and-play setup.
6. Instrukcja obsługi
The VENTISOL exhaust fan is operated using the included variable speed controller.
- Włączanie: Ensure the speed controller is securely plugged into a 120V AC outlet and the fan is connected to the controller.
- Dostosuj prędkość: Rotate the knob on the variable speed controller to adjust the fan's speed. The controller allows for speed adjustment from 60% to 100% of maximum airflow.
- Turn the knob clockwise to increase fan speed and airflow.
- Turn the knob counter-clockwise to decrease fan speed and airflow.
- Wyłączone: Turn the knob completely counter-clockwise until it clicks into the "OFF" position to power down the fan. The gravity shutters will automatically close when the fan is off, providing protection against dust and debris.

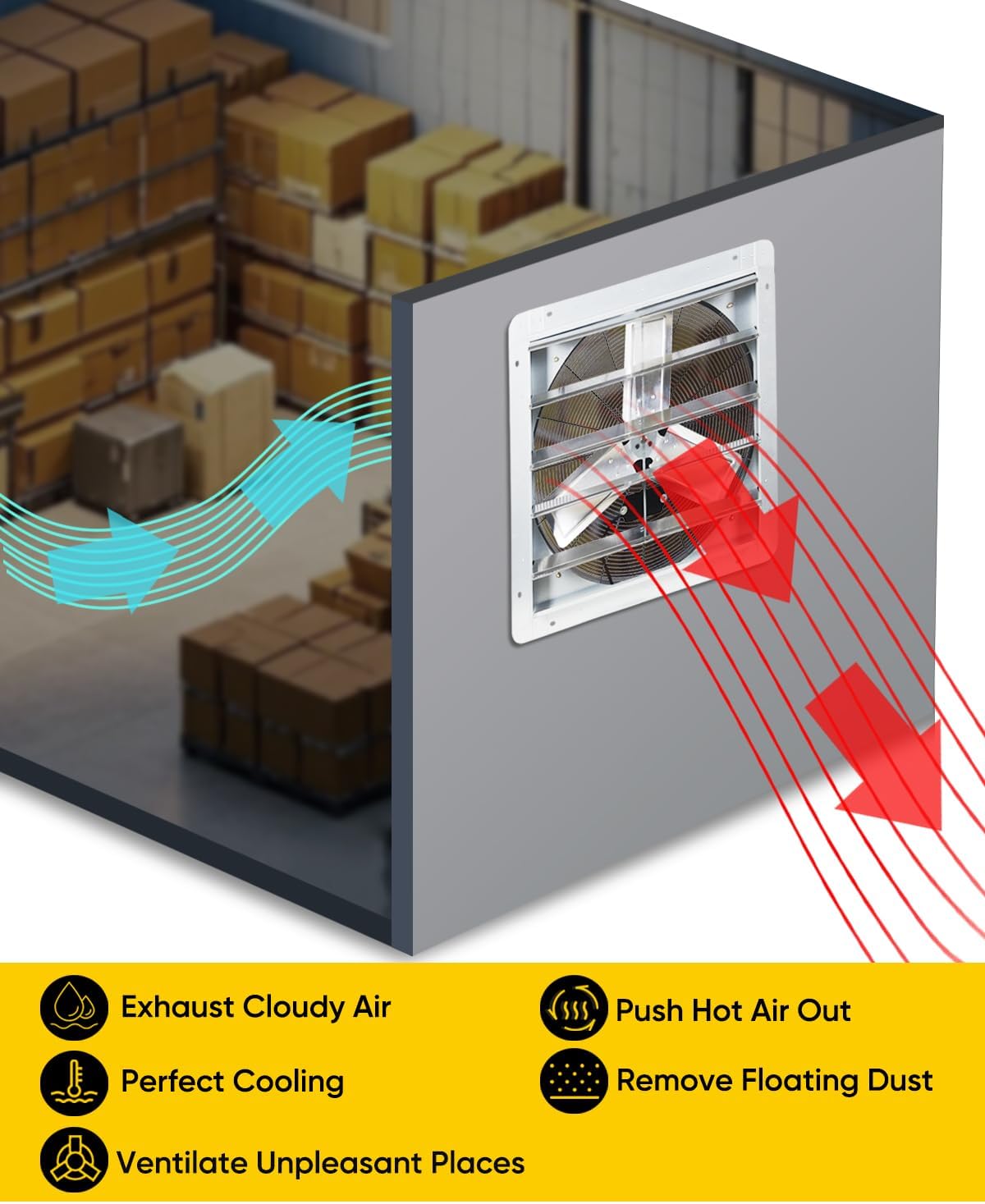

Rysunek 6.1: Diagram illustrating the VENTISOL Exhaust Fan's function. This image shows the fan effectively exhausting hot air, dust, and humidity from an indoor space, with blue arrows indicating fresh air intake and red arrows indicating exhaust.
7. Konserwacja
Regular maintenance ensures optimal performance and extends the lifespan of your VENTISOL exhaust fan.
- Czyszczenie: Disconnect the fan from power before cleaning. The reinforced aluminum blades and gravity shutters are designed for easy maintenance. Simply wipe down the surfaces with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Blade disassembly is not required for cleaning.
- Kontrola: Periodically inspect the fan for any signs of damage, loose connections, or unusual wear. Check the power cord for fraying or cuts.
- Silnik: The sealed ball bearing motor is designed to be dustproof and requires no lubrication.
Rysunek 7.1: Close-up of the gravity shutter mechanism. This image highlights the aluminum alloy, rust-resistant, and weather-proof features of the shutters, which automatically close to protect the fan from debris and dust when not in operation.
8. Rozwiązywanie Problemów
If you encounter issues with your VENTISOL exhaust fan, refer to the following common problems and solutions:
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Wentylator się nie włącza. | Brak zasilania. Speed controller is off. Damaged power cord/controller. | Ensure the speed controller is securely plugged into a live 120V outlet. Turn the speed controller knob to an "ON" position (60%-100%). Inspect the power cord and controller for visible damage. If damaged, discontinue use and contact support. |
| Low airflow or weak performance. | Speed controller set too low. Obstruction around fan blades or shutters. Łopatki wentylatora są brudne. | Increase the fan speed using the variable speed controller. Check for any debris or objects blocking the fan's intake or exhaust. Disconnect power and clean the fan blades and shutters as described in the Maintenance section. |
| Nietypowy hałas lub wibracje. | Luźne mocowanie. Zanieczyszczenia w łopatkach wentylatora. Damaged motor/bearings. | Ensure the fan is securely mounted to the wall. Tighten any loose fasteners. Disconnect power and carefully remove any debris from the fan blades. If the noise persists after checking for obstructions and mounting, contact customer support. |
9. Gwarancja i wsparcie
For specific warranty information regarding your VENTISOL 24-Inch Wall-Mounted Shutter Exhaust Fan, please refer to the documentation included with your purchase or contact the seller directly.
If you require technical assistance or have questions not covered in this manual, please contact VENTISOL customer support through the retailer where the product was purchased.
10. Filmy produktowe
No official product videos from the seller were provided in the available data to embed in this manual. For visual guides or demonstrations, please check the product page on the retailer's webstrona.
