1. Wprowadzenie
This manual provides essential instructions for the safe assembly, operation, and maintenance of your Olakids Kids Bike, Model TS10244. Please read this manual thoroughly before assembly and use to ensure proper function and safety.
Ważne informacje dotyczące bezpieczeństwa
- Podczas jazdy zawsze noś kask.
- Przed każdą jazdą należy upewnić się, że wszystkie śruby i elementy mocujące są mocno dokręcone.
- Supervise young riders, especially when using training wheels or learning to ride.
- Check brakes, tires, and steering regularly.
- Do not ride at night without proper lighting.
Image: A child wearing a helmet, riding the Olakids Kids Bike in an outdoor setting.
2. Koniec produktuview
The Olakids Kids Bike is designed for children aged 3-8 years, featuring a sturdy carbon steel frame, adjustable components, and a dual braking system for enhanced safety.
Główne cechy:
- Regulowane siedzenie i kierownica: Accommodates growing children.
- Podwójny układ hamulcowy: Includes both a handbrake and a rear coaster brake.
- Removable Training Wheels: Supports beginners and can be detached as skills improve.
- Enclosed Chain Guard: Protects against accidental contact with the chain.
- Trwała konstrukcja: Made with a high-quality carbon steel frame and wide rubber pneumatic tires.
Obraz: Ponadview of bike components including adjustable seat, handlebar, handbrake, coaster brake, enclosed chain guard, and detachable training wheels.
Image: Close-up of the dual braking system, showing both the handbrake lever and the coaster brake pedal mechanism.
Obraz: Szczegółowy view of the bike's design features, including easy-grip handles with a bell, a wide soft padded seat, and three different reflectors for visibility.
3. Instrukcja montażu
Your Olakids Kids Bike arrives 85% pre-assembled. The following steps detail the final assembly process, which typically takes about 15 minutes. Required tools are included.
- Montaż kierownicy: Włóż mostek kierownicy do rury widelca i mocno dokręć śrubę. Upewnij się, że kierownica jest prosta i ustawiona w jednej linii z przednim kołem.
- Montaż przedniej opony: Attach the front wheel to the fork. Ensure the wheel is centered and the axle nuts are tightened firmly.
- Montaż siedziska: Insert the seat post into the frame's seat tube. Adjust the height to the rider's comfort and secure it with the quick-release lever or bolt.
- Install Training Wheels (Optional): If desired, attach the training wheels to the rear axle. Ensure they are securely fastened and provide stable support.
- Zainstaluj pedały: Identify the left (L) and right (R) pedals. Thread the 'L' pedal counter-clockwise into the left crank arm and the 'R' pedal clockwise into the right crank arm. Tighten them firmly with a wrench.
Image: Visual guide showing the 5-step assembly process: installing the handlebar, front tire, seat, training wheels, and pedals.

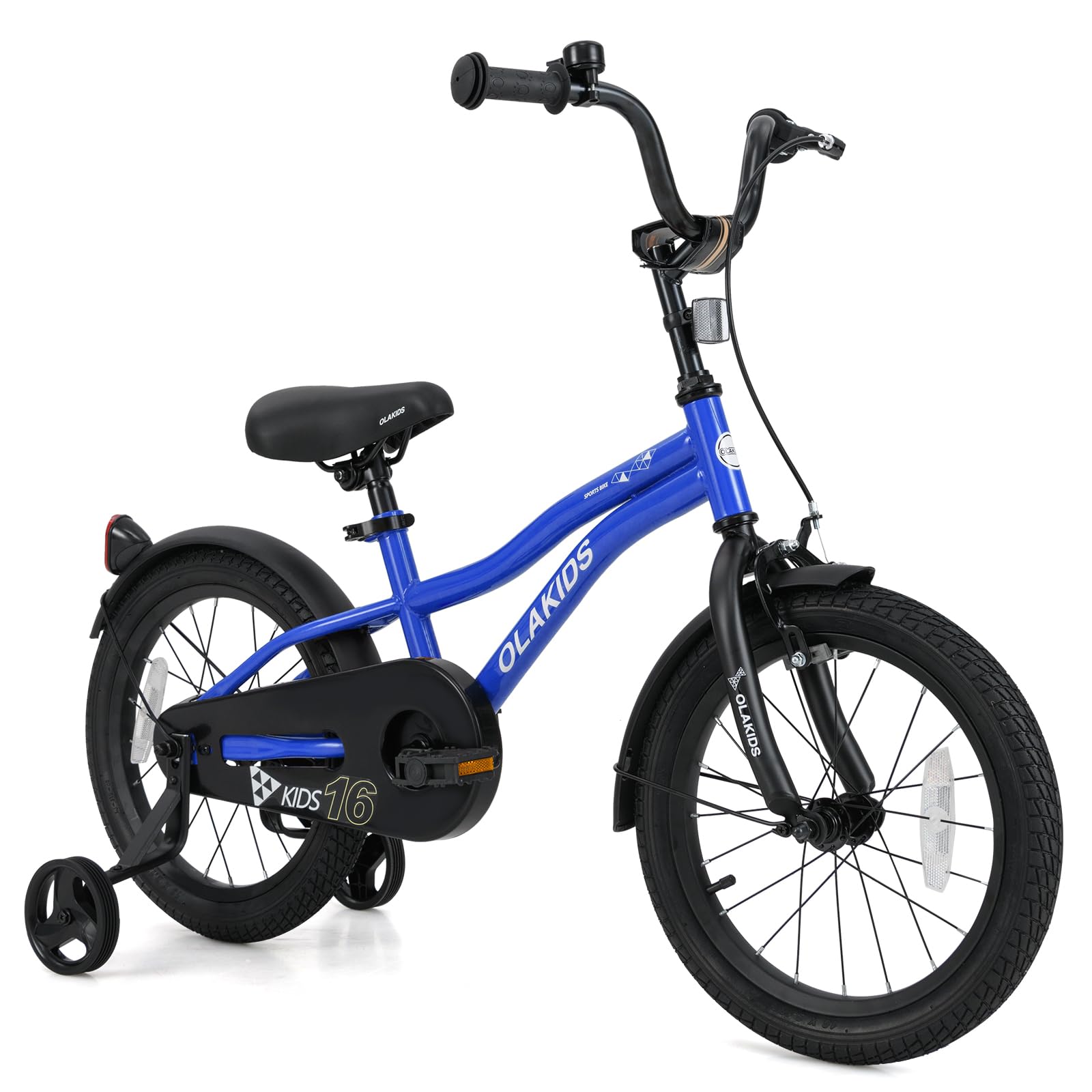

Image: The Olakids Kids Bike shown in its 85% pre-assembled state, ready for final quick assembly.
4. Instrukcja obsługi
Bezpieczna jazda
- Startowy: Ensure the rider can comfortably reach the ground with their feet when seated.
- Sterowniczy: Guide the handlebars gently to steer. Practice in an open, safe area.
- Hamowanie: The bike features a dual braking system:
- Hamulec ręczny: Squeeze the lever on the handlebar to engage the front brake.
- Hamulec gwintowany: Pedal backward to engage the rear brake.
- Adjusting Seat and Handlebar: Use the quick-release mechanism or wrench to adjust the seat and handlebar height for optimal rider comfort and control.

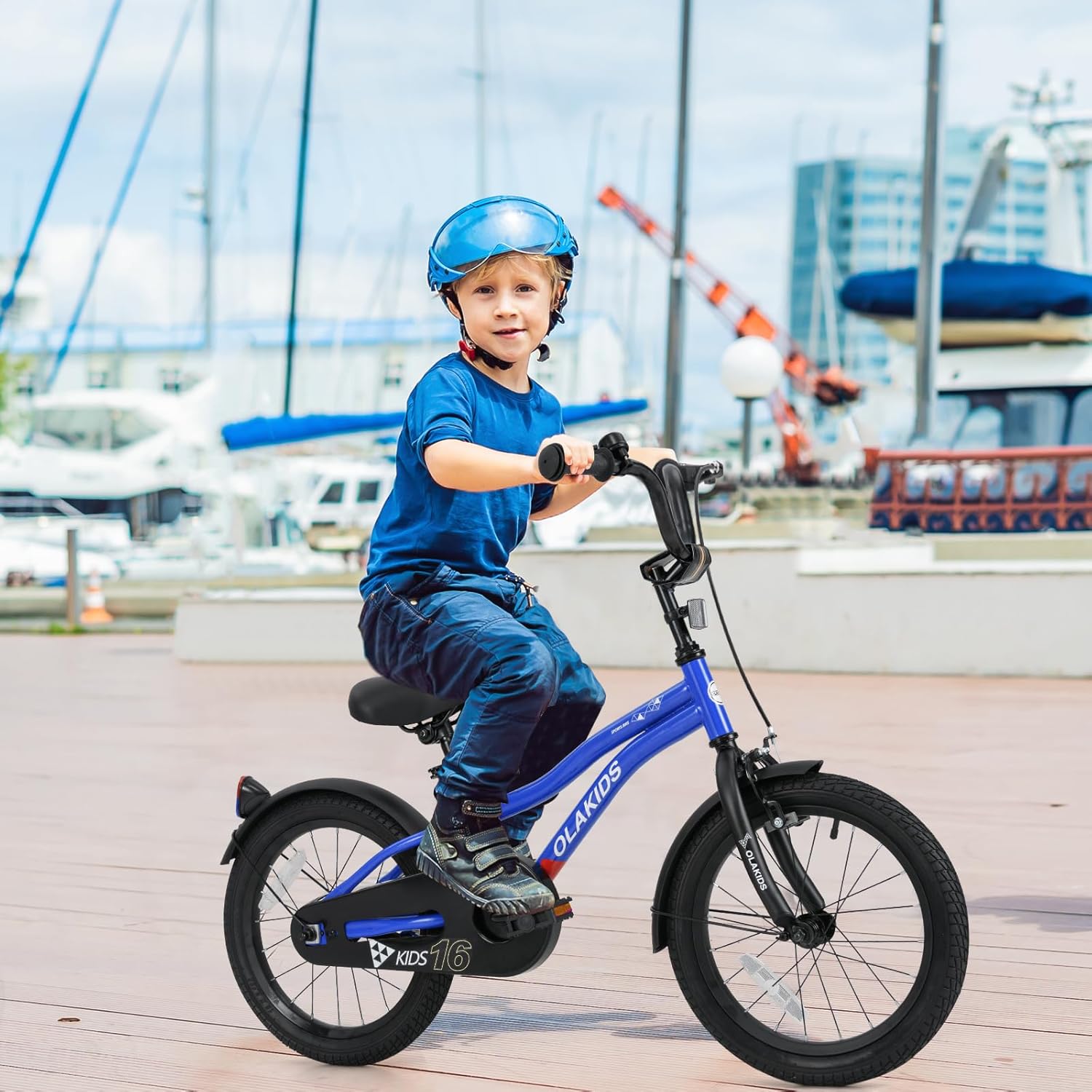

Image: A child riding the Olakids Kids Bike, demonstrating the adjustable seat and handlebar for different growth stagt.j.
5. Konserwacja
Regular maintenance ensures the longevity and safe operation of your Olakids Kids Bike.
- Ciśnienie w oponach: Przed każdą jazdą sprawdź ciśnienie w oponach. Utrzymuj ciśnienie w zakresie wskazanym na boku opony.
- Hamulce: Regularly inspect brake levers, cables, and pads for wear. Ensure both handbrake and coaster brake respond effectively. Adjust as needed. If the handbrake is difficult to adjust, consult a professional.
- Łańcuch: Keep the chain clean and lubricated. The enclosed chain guard helps protect it from dirt.
- Śruby i elementy złączne: Okresowo sprawdzaj, czy wszystkie śruby, nakrętki i dźwignie szybkozłączek są odpowiednio dokręcone.
- Czyszczenie: Wyczyść rower za pomocą adamp cloth and mild soap. Avoid high-pressure washing directly on bearings or electrical components (if any).
6. Rozwiązywanie Problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Hamulce nie działają skutecznie | Loose brake cable, worn brake pads, misaligned brake calipers. | Tighten brake cable, replace worn pads, adjust caliper alignment. Professional assistance may be required for complex adjustments. |
| Pedały są sztywne lub głośne | Lack of lubrication, loose or overtightened bearings. | Lubricate pedal bearings. Check and adjust bearing tightness if accessible, or consult a professional. |
| Training wheels wobble or are unstable | Loose attachment bolts. | Ensure training wheel bolts are securely tightened to the rear axle. |
| Bike feels unstable during ride | Loose handlebar, seat, or wheel axles; incorrect tire pressure. | Check and tighten all major fasteners. Ensure tires are inflated to the correct pressure. |
7. Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Numer modelu | TS10244 |
| Marka | Olakidy |
| Typ roweru | Rower dzieciecy |
| Rozmiar koła | 16 Inches (also available in 12, 14, 18 Inches) |
| Zakres wiekowy (opis) | 3-8 lat |
| Materiał ramy | Stal węglowa |
| Styl hamulca | Handbrake (front), Coaster Brake (rear) |
| Liczba prędkości | 1 (jednobiegowa) |
| Typ zawieszenia | Podwójny |
| Funkcja specjalna | Adjustable Handlebars, Detachable Training Wheels |
| Zawarte komponenty | Basket (may vary by model/package) |
| Maksymalna zalecana waga | 64.86 kilogramów |
| Wymagany montaż | Tak (85% wstępnie zmontowane) |
| Wymiary paczki | Wymiary 99.06 x 48.26 x 20.32 cm |
| Waga przedmiotu | 12.25 kilogramów |
| Kraj pochodzenia | Chiny |

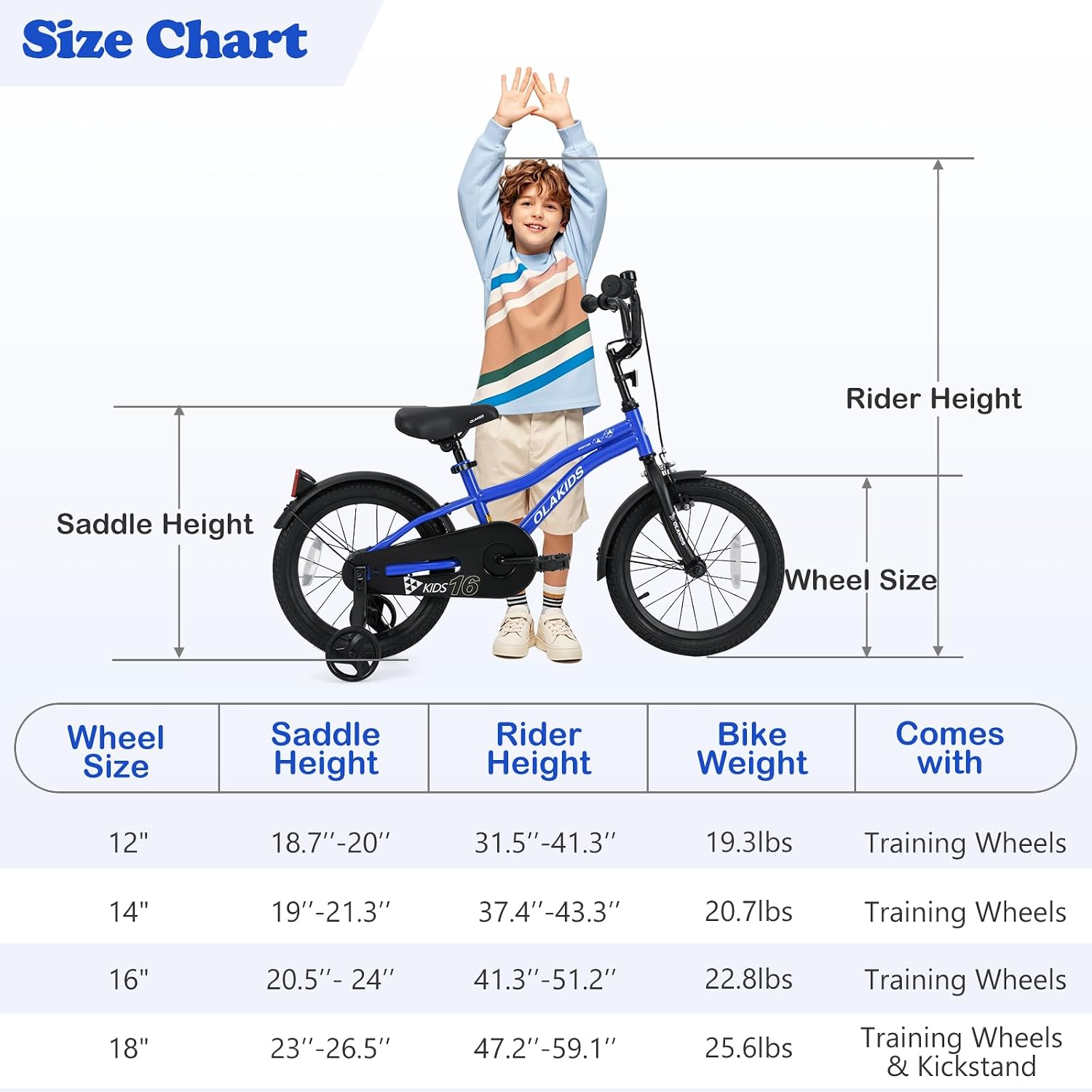

Image: Detailed size chart for Olakids Kids Bikes, showing recommended wheel size, saddle height, rider height, and bike weight for 12, 14, 16, and 18-inch models.
8. Gwarancja i wsparcie
The Olakids Kids Bike Model TS10244 comes with a 6-miesięczna gwarancja od daty zakupu, obejmując wady produkcyjne.
For technical support, warranty claims, or inquiries, please contact Olakids customer service. Manufacturer contact information: AKUSTIK, 11250 POPLAR AVE BLDG C, FONTANA.
Zachowaj dowód zakupu, aby skorzystać z serwisu gwarancyjnego.
