WAMPAT TV Stand Cabinets for 110+ Inch TVs, Natural Oak User Manual

Wstęp

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your WAMPAT TV Stand Cabinets. Please read this manual thoroughly before assembly and use to ensure proper function and safety.

Informacje dotyczące bezpieczeństwa

To prevent serious injury or death from furniture tip-over, this product must be permanently attached to the wall with the anti-tip kit provided. Always ensure the TV stand is placed on a level and stable surface. Do not allow children to climb on or play with the TV stand.

Image: Illustration demonstrating the installation of anti-tipping furniture straps to secure the TV stand to a wall, preventing accidental tip-overs. The diagram shows a secured cabinet and an unsecured cabinet tipping over.

Zawartość opakowania

Before beginning assembly, verify that all parts are present and undamaged. This product is shipped in two packages.

• 6-drawer Dresser
• Set of 2 Cabinets
• Anti-tip Kits
• Instrukcja montażu
• Pakiety sprzętu

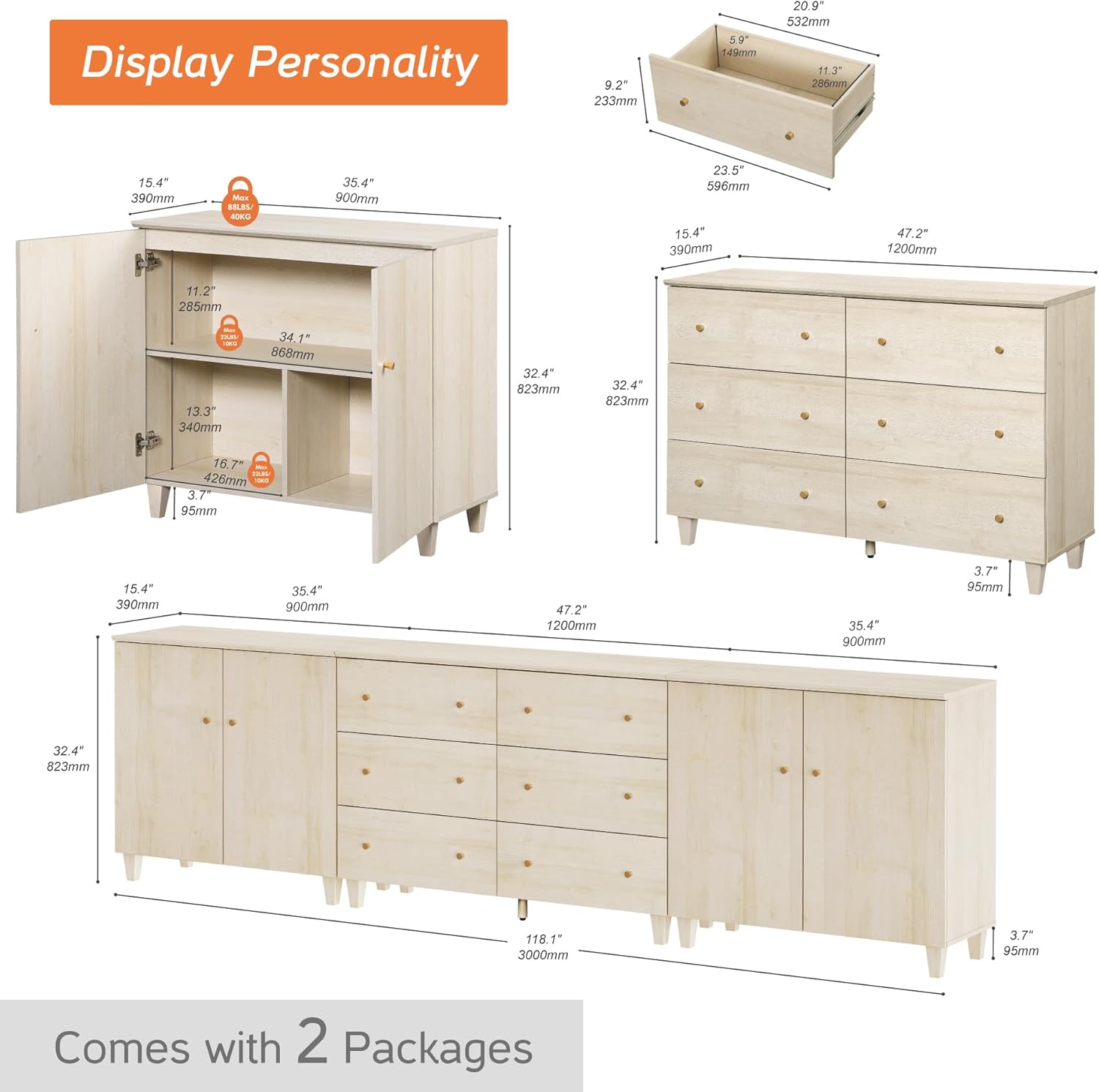

Image: A detailed diagram illustrating the dimensions of the TV stand's components, including the two side cabinets and the central six-drawer dresser. It also indicates that the product comes in two packages.

Konfiguracja i montaż

WAMPAT TV Stand Cabinets require assembly. Please follow the clear instructions provided in the included assembly manual. Each screw, pin, and panel is coded for easy identification and assembly progress.

1. Rozpakuj wszystkie komponenty i sprawdź je na liście części zawartej w instrukcji montażu.
2. Identify all hardware using the provided codes.
3. Assemble the main frame of the 6-drawer dresser according to the manual's diagrams.
4. Assemble the two side cabinets, ensuring all panels are securely fastened.
5. Attach the solid wood legs to all three units.
6. Install the drawers and cabinet doors. Refer to the 'Troubleshooting' section for door adjustment if needed.
7. Secure the entire unit to the wall using the anti-tip kit as described in the 'Safety Information' section.

For optimal stability and to prevent scratches, each leg is equipped with non-slip pads.

Image: A composite image highlighting key construction details: smooth metal drawer slides for easy operation, a curved edge tabletop for safety and aesthetics, and sturdy solid wood legs providing stable support for the TV stand.

Instrukcja obsługi

Your WAMPAT TV Stand is designed for versatile storage and display. It features a spacious tabletop, two side cabinets with six storage compartments, and a middle wide dresser with six sliding drawers.

• Zastosowanie szafki: Open and close cabinet doors using the gold-coated knobs. The internal shelves can be used to store media, electronics, or other items.
• Zastosowanie szuflady: The six sliding drawers provide ample storage. Note that for anti-tip safety, drawers can be pulled out approximately 7.48 inches (19 cm) at most.
• Umieszczenie TV: The tabletop is designed to accommodate flat-screen TVs up to 110+ inches wide. Ensure the TV's base is centered and stable on the stand.

Obraz: widok z góry view of the dresser section of the TV stand with several drawers open, revealing neatly folded clothing and other items, demonstrating the storage capacity.

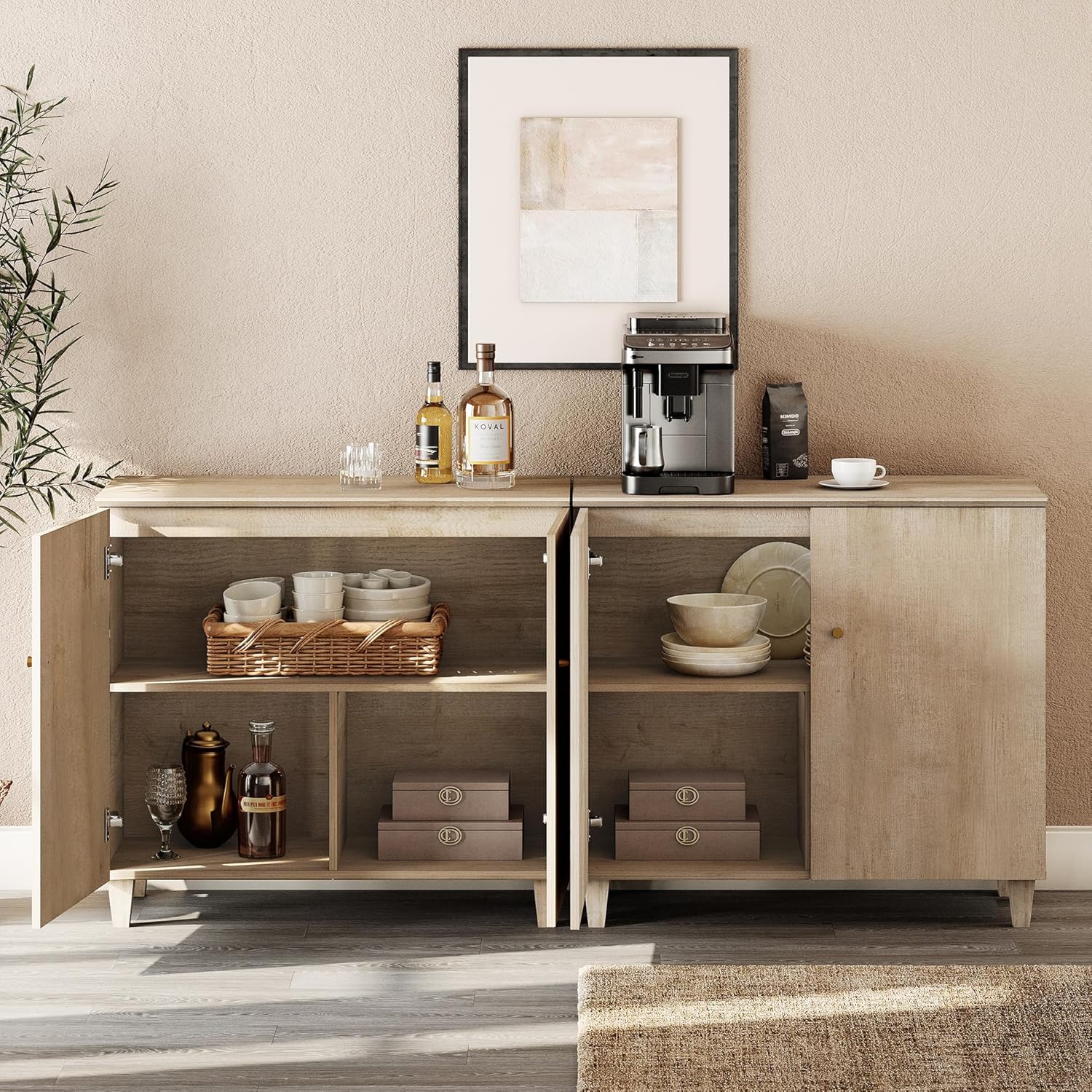

Image: The side cabinets of the TV stand with doors open, showcasing various dishes, bowls, and kitchenware stored on the internal shelves, highlighting the versatile storage options.

Konserwacja

• Czyszczenie: Przetrzyj powierzchnie miękką, damp szmatką. Unikaj silnych środków chemicznych i ściernych środków czyszczących, które mogą uszkodzić wykończenie.
• Zasypka: Regularnie odkurzaj powierzchnie, aby zapobiec gromadzeniu się kurzu.
• Sprawdzenie sprzętu: Okresowo sprawdzaj wszystkie śruby i elementy mocujące, aby upewnić się, że są dobrze dokręcone. W razie potrzeby dokręć.
• Unikaj wilgoci: Protect the wood finish from excessive moisture and direct sunlight to prevent warping or fading.

Rozwiązywanie problemów

This section addresses common issues you might encounter with your TV stand's cabinet doors.

Issue 1: Cabinet doors do not close correctly or are horizontally misaligned.

If the two doors cannot close properly or are misaligned horizontally:

1. Locate Screw A on the hinge (typically the screw closest to the cabinet frame).
2. To adjust the door's position to the left or right horizontally, turn Screw A counterclockwise or clockwise.
3. Once the door is correctly aligned and closes smoothly, tighten Screw A to secure the door in place.

Issue 2: The door is tilted, or the gap between two doors is uneven.

If the door appears tilted or the vertical gap between two doors is inconsistent:

1. Locate Screw A on both the top and bottom hinges.
2. Turn both Screw A counterclockwise or clockwise on each hinge to make the door properly aligned with an even gap. Adjust incrementally until desired alignment is achieved.

Issue 3: The gap between the two doors is too large.

If there is an excessive gap between the two cabinet doors when closed:

1. Locate Screw A on each hinge.
2. Turn Screw A counterclockwise or clockwise on each hinge so the doors can move to the middle position, thereby reducing the gap. Adjust both hinges equally for best results.

Issue 4: The hinges fall apart.

If a hinge detaches or becomes loose from the door or cabinet frame:

1. Push the hinges back into their correct position, ensuring they are properly seated.
2. Tighten Screw B (the screw that secures the hinge plate to the cabinet frame) to prevent the door from falling down.

Specyfikacje

Image: A wide shot of the WAMPAT TV stand in a living room, featuring a large television mounted on the wall above it. The stand is adorned with decorative items, showcasinze względu na walory estetyczne i funkcjonalność.

Image: The WAMPAT TV stand repurposed as a sideboard in a dining or kitchen area, displaying a coffee machine, bottles, and glasses, demonstrating its versatility beyond just a TV console.

Image: The WAMPAT TV stand in a modern living room, positioned beneath a large wall-mounted television. The stand is decorated with vases and books, illustrating its role as a central entertainment and display unit.

Gwarancja i wsparcie

For any questions, concerns, or assistance with your WAMPAT TV Stand, please contact customer support. Refer to your purchase documentation for specific warranty details and contact information.

You may also visit the official WAMPAT store for additional product information and support: WAMPAT Store
