Comfyer Heated Wearable Breast Pump Model W2 User Manual

1. Wprowadzenie

This manual provides detailed instructions for the safe and effective use of your Comfyer Heated Wearable Breast Pump Model W2. Please read this manual thoroughly before initial use and retain it for future reference. The Comfyer breast pump features industry-leading heating technology, hospital-grade suction, and smart app control for a comfortable and efficient pumping experience.

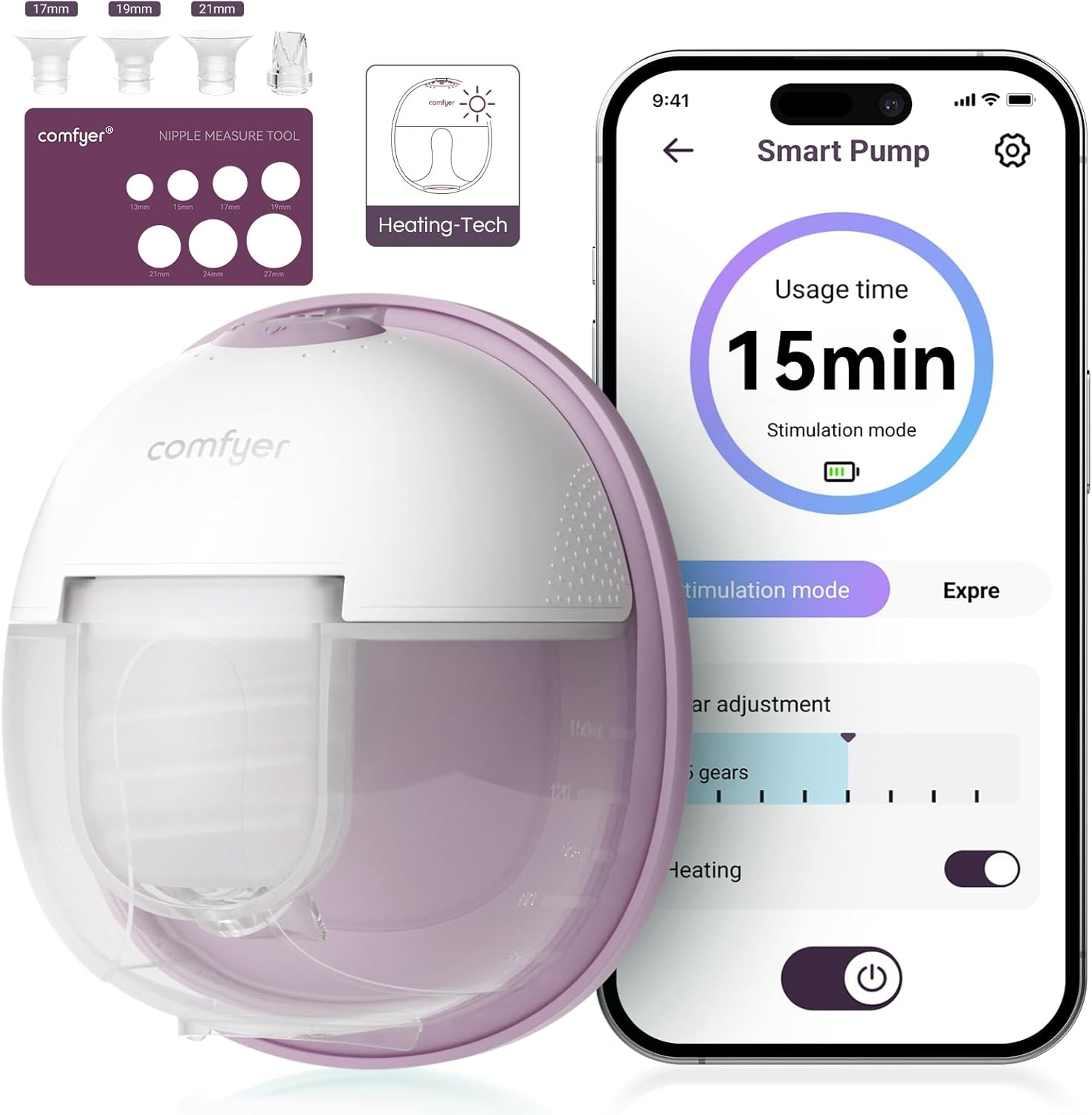

Image 1.1: Comfyer Heated Wearable Breast Pump and App Interface

2. Co znajduje się w pudełku

Your Comfyer Heated Wearable Breast Pump package includes the following components:

• 1 x Pump Motor
• 1 x Flange
• 1 x Milk Collector
• 1 x osłona przeciwpyłowa
• 1 x zawór
• 1 x Silicone Diaphragm
• 3 x Flange Inserts (17mm, 19mm, 21mm)
• 1 x kabel ładujący USB
• 1 x Nipple Size Ruler
• 20 x Breast Milk Storage Bags

Ilustracja 2.1: Zawartość opakowania

3. Instalacja i montaż

3.1 Initial Sterilization

Before the first use, sterilize all washable components (flange, milk collector, valve, silicone diaphragm, and flange inserts) by boiling or steaming them for 5 minutes. Ensure all parts are completely dry before assembly.

3.2 Choosing the Correct Flange Size

Selecting the correct flange size is crucial for comfort and milk output. Use the included nipple size ruler to measure your nipple diameter after it has been stimulated. Choose the flange insert that provides a comfortable, snug fit without compressing the nipple or areola.

• 17mm Insert: For nipple measurement 9-11mm
• 19mm Insert: For nipple measurement 13-15mm
• 21mm Insert: For nipple measurement 17-20mm

Image 3.1: Flange Size Selection Guide

3.3 Etapy montażu

1. Insert the chosen flange into the milk collector.
2. Place the silicone diaphragm securely over the milk collector.
3. Attach the valve to the bottom of the milk collector.
4. Align the assembled milk collector with the pump motor and press firmly to ensure a secure, leak-proof seal.
5. Ensure the duckbill valve, flange tunnel, diaphragm, and pump hub are firmly sealed before use to prevent leaks and ensure optimal suction.

4. Instrukcja obsługi

4.1 Włączanie/wyłączanie i wybór trybu

The pump features a central power button and mode switch. Press and hold the power button to turn the pump on or off. Short press the power button to cycle through the three available modes:

• Tryb ogrzewania: Reduces clogs and improves milk flow with gentle warmth.
• Tryb stymulacji: Mimics a baby's natural sucking to initiate milk let-down.
• Tryb ekspresji: Provides steady suction for efficient milk collection.

Image 4.1: Pumping Modes and Levels

4.2 Adjusting Suction and Heating Levels

Use the '+' and '-' buttons on the pump motor to adjust the intensity of suction (9 levels) or the heating level, depending on the selected mode. The heating technology operates between 35°C (95°F) and 45°C (113°F) to help prevent clogs and enhance milk flow.

Image 4.2: Heating Technology for Enhanced Milk Flow

4.3 Kontrola aplikacji

For a hands-free experience and customized settings, control your Comfyer breast pump using the dedicated 'comfyer' app. The app allows you to customize modes, intensity, and pumping duration.

1. Download the 'comfyer' app from the App Store (iOS) lub Google Play (Android). The app is compatible with iOS 13+ and Android 10+.
2. Create your account and log in.
3. Turn on Bluetooth on your device and power on the breast pump. The device should connect automatically.
4. If the device does not connect automatically, you can manually add it by pressing the '+' button within the app.

Image 4.3: App Connection Guide

4.4 Ładowanie magnetyczne

The pump features an innovative magnetic charging base that also serves as a storage solution for the pump motor and charging cable. Simply place the pump motor onto the magnetic base to charge. A full charge provides approximately 180 minutes of usage or 8 pumping sessions.

Image 4.4: Magnetic Charging and Battery Life

5. Konserwacja i czyszczenie

Proper cleaning and maintenance ensure hygiene and prolong the life of your breast pump. All skin-contact parts are BPA-free and food-safe.

5.1 Demontaż w celu czyszczenia

To clean, carefully disassemble the pump into its four main washable parts: the flange, diaphragm, valve, and milk collector.

Image 5.1: Parts to Clean

5.2 Instrukcje dotyczące czyszczenia

• Wash all disassembled parts with warm soapy water immediately after each use.
• Dokładnie spłukać czystą wodą.
• Allow parts to air dry completely on a clean surface or use a dedicated drying rack.
• Do not wash the pump motor. Wipe it clean with a damp jeśli to konieczne, szmatkę.

6. Rozwiązywanie Problemów

If you encounter any issues with your Comfyer breast pump, please consider the following:

• Niskie ssanie: Ensure all pump components are correctly assembled and securely sealed. Check for any damage to the silicone parts (diaphragm, valve, flange).
• Brak zasilania: Verify the pump is fully charged. Connect it to the magnetic charging base and ensure the charging indicator light is on.
• Problemy z łącznością aplikacji: Ensure Bluetooth is enabled on your mobile device and the pump is powered on. Try restarting both the app and the pump.
• Dyskomfort podczas odciągania pokarmu: Re-evaluate your flange size using the nipple size ruler. Adjust suction levels to a comfortable setting.

For further assistance, please contact Comfyer customer support.

7. Specyfikacje

8. Gwarancja i wsparcie

For warranty information, product support, or to purchase replacement parts, please visit the official Comfyer store on Amazon or contact Comfyer customer service directly. You can find more information at the Comfyer Store.
