JRready ST6524 Superseal 1.5 Waterproof Wire Connector Kit Instruction Manual

Wstęp

This instruction manual provides detailed guidance for the proper use and installation of the JRready ST6524 Superseal 1.5 Waterproof Wire Connector Kit. This kit is designed for creating reliable, waterproof electrical connections in various applications, including automotive, marine, and heavy-duty equipment. The connectors feature a special sealing design to prevent moisture and dust ingress, ensuring durability in extreme environments.

Elementy zestawu

The JRready ST6524 kit includes a comprehensive selection of components for various wiring needs:

• Superseal 1.5 Connectors: Male and female housings in 1, 2, 3, 4, 5, and 6-pin configurations.
• Zaciski: High-quality brass with nickel plating for superior conductivity and corrosion resistance. Includes terminals for 16-18AWG (14A MAX) and 20-22AWG (6A MAX) wires.
• Silicone Seals: Various sizes of silicone wire seals and cavity plugs to ensure waterproof and dustproof connections.
• Pin Release Extractor Tool (JRconDRK-NAMP1.5): Precision-engineered tool for safe terminal removal.
• DRK-785084: A ring-shaped tool for assisting with pin removal.

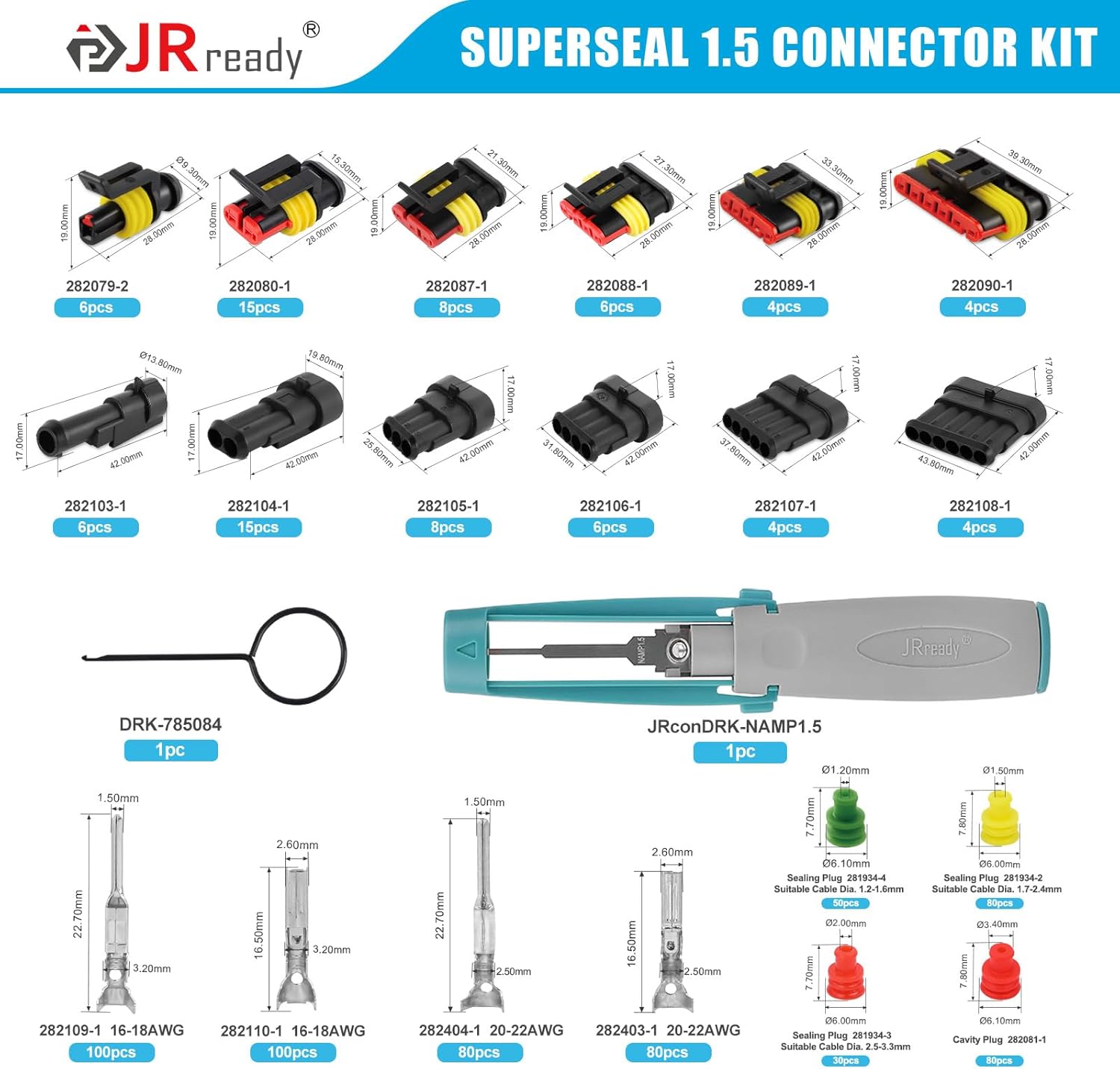

Obraz: Ponadview of the JRready ST6524 Superseal 1.5 Waterproof Wire Connector Kit, showing various male and female connector housings, terminals, seals, and the pin release extractor tool.

Setup: Wire Preparation and Terminal Crimping

Proper wire preparation and terminal crimping are crucial for a secure and reliable connection.

1. Zdejmowanie izolacji z przewodów

Carefully strip approximately 3-4mm of insulation from the end of your wire. Ensure the stripped wire length matches the terminal's crimp barrel for optimal contact.

2. Zaciskanie końcówek

Select the appropriate terminal for your wire gauge (e.g., 16-18AWG or 20-22AWG). Place the wire seal onto the wire before crimping. Use a suitable crimping tool (e.g., JRready ACT-LY-AMP1.5 or ACT-AMP1.5H) to crimp the terminal onto the stripped wire. Ensure the crimp is secure and the wire strands are fully enclosed.

Obraz: Szczegółowy view of JRready crimp stamped terminals, showing dimensions and wire gauge compatibility for 16-18AWG and 20-22AWG wires, along with recommended crimping tools.

Operating: Connector Assembly and Disassembly

1. Inserting Terminals into Connector Housing

After crimping, slide the wire seal up to the terminal. Insert the crimped terminal into the correct cavity of the connector housing. Ensure the terminal is fully seated and the locking tab engages. For female connectors, push the orange buckle into place to secure the terminal.

Image: Step-by-step guide illustrating the pin installation process for JRready Superseal 1.5 connectors, from threading the wire through the seal to plugging in the male and female connectors.

2. Connecting Male and Female Connectors

Align the male and female connector housings and push them together firmly until the locking tabs engage with an audible click. Ensure a secure connection to maintain waterproof integrity.

3. Using the Pin Removal Tool

To remove terminals, first open the protrusions at both ends of the connector and remove any secondary locks (e.g., orange clip). Use the JRconDRK-NAMP1.5 tool to gently release the terminal claws and pull out the terminal. For male terminals, the DRK-785084 ring tool can assist in pulling out the orange lock before using the extractor tool.

Image: Illustrates the steps for using the pin removal tool to extract terminals from both male and female connector housings, including releasing locks and using the extractor tool.

Konserwacja

To ensure the longevity and performance of your JRready Superseal 1.5 connectors, follow these maintenance guidelines:

• Regularna kontrola: Periodically check connections for any signs of wear, damage, or corrosion.
• Czystość: Keep connectors free from dirt, debris, and moisture. Use a clean, dry cloth to wipe down the exterior.
• Prawidłowe odłączenie: Always use the pin removal tool for disassembly to avoid damaging terminals or housings.
• Składowanie: Store unused connectors and components in a dry, clean environment, preferably in the provided storage case, to prevent damage or loss.

Rozwiązywanie problemów

If you encounter issues with your JRready Superseal 1.5 connectors, consider the following:

• Luźne połączenie: Ensure terminals are fully seated and locked within the housing. Verify that male and female connectors are firmly latched together.
• Wnikanie wody: Check that the correct size wire seals are used and are properly installed. Confirm that the connector housings are fully engaged and locked.
• Difficulty Inserting/Removing Terminals: Ensure the terminal is oriented correctly. For removal, use the specialized pin release extractor tool as instructed. Do not force terminals.
• Intermittent Electrical Contact: Re-examine the crimp connection for proper wire contact and ensure no strands are loose. Verify that terminals are clean and free of corrosion.

Specyfikacje

Informacje o gwarancji

JRready products are manufactured to high-quality standards. For specific warranty details, please refer to the product packaging or contact JRready customer support. This warranty typically covers defects in materials and workmanship under normal use.

Obsługa klienta

If you have any questions regarding product selection, usage, or require technical assistance, please contact JRready customer support. Contact information can typically be found on the product packaging or the official JRready webstrona.
