1. Koniec produktuview
The Wiltec Indoor Hydroponic Garden, Model 65424, is designed for cultivating herbs and plants indoors without soil. This intelligent hydroponic system accommodates up to 20 plants, providing an efficient and elegant solution for home gardening. It features an adjustable LED grow light and a large water reservoir to ensure optimal growth conditions with minimal maintenance.
Image 1.1: The Wiltec Indoor Hydroponic Garden in operation, showcasing various plants thriving under the LED light panel.
2. Instrukcje konfiguracji
- Rozpakuj komponenty: Ostrożnie wyjmij wszystkie części z opakowania. Sprawdź, czy wszystkie elementy wymienione w liście przewozowym są obecne.
- Złóż jednostkę:
- Place the main water reservoir base on a stable, flat surface.
- Insert the adjustable support rod into the designated slot on the base. Ensure it is securely seated.
- Attach the LED light panel to the top of the support rod.
Image 2.1: Illustration of the extendable rods, demonstrating the adjustable height feature of the LED light panel, ranging from 218mm to 634mm (8.58 to 25 inches).
- Napełnij zbiornik na wodę:
- Open the built-in water inlet cover.
- Fill the reservoir with clean water up to the indicated maximum fill line. The reservoir has a capacity of 9.8 liters.
- Add the recommended hydroponic nutrient solution according to the manufacturer's instructions (not included).
- Dokładnie zamknij pokrywę wlotu wody.
Image 2.2: Detail of the built-in water inlet cover, designed for durability and easy access to the reservoir. A technical diagram with dimensions is also shown.
- Plant Seeds/Seedlings:
- Place your chosen seeds or seedlings into the provided grow sponges/pods.
- Insert the grow pods into the designated holes on the top cover of the hydroponic system. The system can accommodate up to 20 plants.
- Podłącz zasilanie: Plug the power adapter into the unit and then into a standard electrical outlet (100-240V AC).
3. Instrukcja obsługi
3.1. Panel sterowania
The unit features an advanced control panel with touch-sensitive buttons for managing the light and pump functions. Refer to the display for current time and operational status.
Image 3.1: The advanced control panel, featuring a digital clock and timer functions for precise management of the hydroponic system's operations.
3.2. LED Grow Light
- Włączanie/wyłączanie: Press the light button on the control panel to turn the LED grow light on or off.
- Funkcja timera: Use the timer button to set the desired light cycle. The system typically operates on an automatic cycle (e.g., 16 hours on, 8 hours off) for optimal plant growth. Consult the control panel for specific timer settings.
- Regulacja wysokości: The LED light panel can be adjusted in height from 21 cm to 64 cm (8.58 to 25 inches) to accommodate different plant growth stages. Gently slide the light panel up or down the support rod to the desired position. Ensure the light is positioned appropriately above the plants for maximum effectiveness.

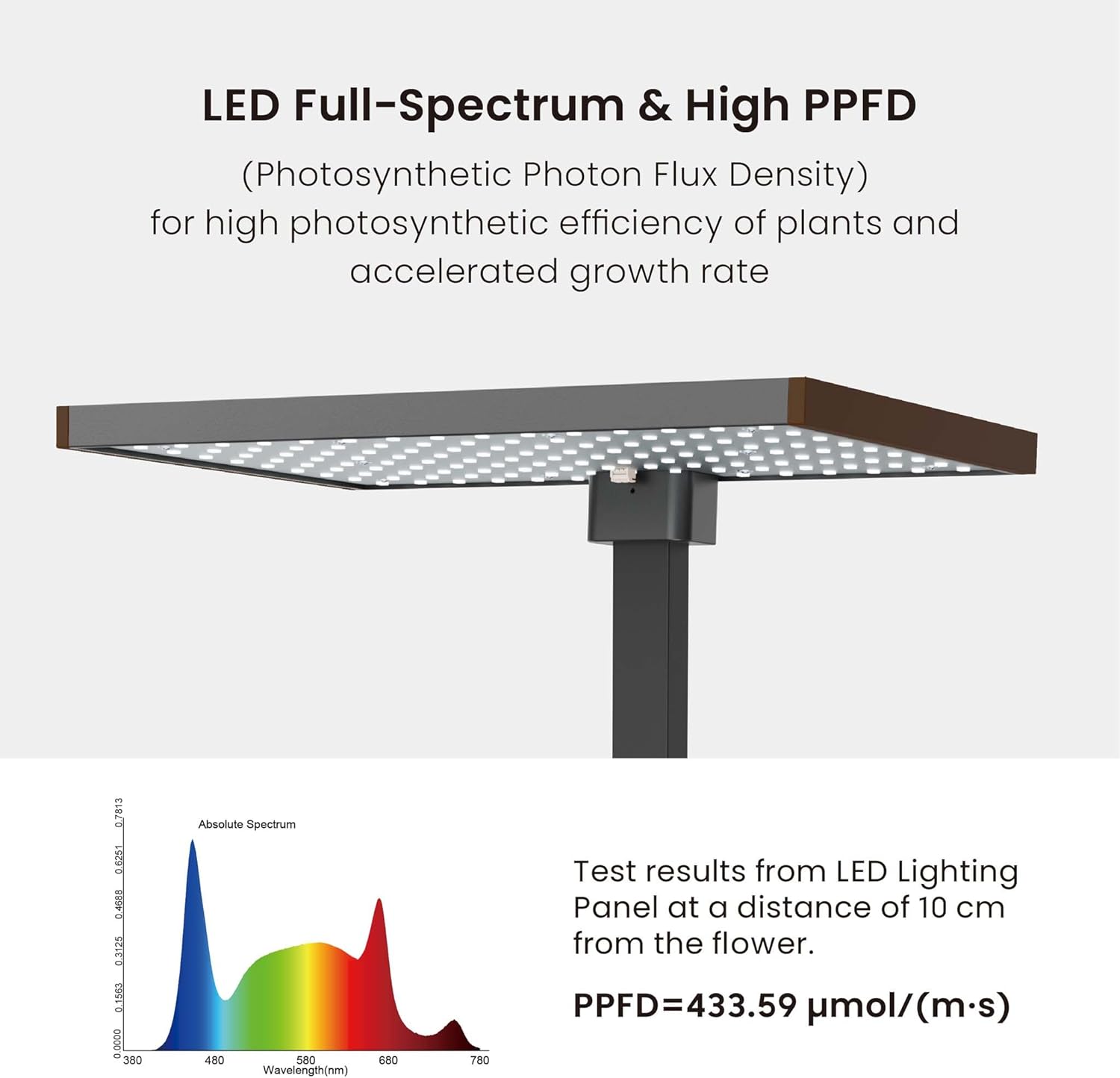

Image 3.2: Illustration detailing the LED full-spectrum light and Photosynthetic Photon Flux Density (PPFD) for high photosynthetic efficiency and accelerated plant growth. Test results show a PPFD of 433.59 µmol/(m·s) at 10 cm distance.
3.3. Pompa wodna
- The integrated water pump circulates water and nutrients to the plants. It operates quietly, typically below 20dB.
- Cykl automatyczny: The pump is designed to run on an automatic cycle, such as 15 minutes ON and 105 minutes OFF during daytime hours, to ensure consistent hydration and nutrient delivery.
Image 3.3: Visual representation emphasizing the quiet operation of the water pump (less than 20dB) and its automatic 15-minute ON / 105-minute OFF cycle during the day.
4. Konserwacja
- Monitorowanie poziomu wody: Regularly check the water level in the reservoir. Refill with fresh water and nutrient solution as needed. The 9.8-liter capacity reduces the frequency of refills.
- Nutrient Solution Replacement: It is recommended to completely replace the nutrient solution every 2-3 weeks to ensure plants receive a balanced supply of fresh nutrients and to prevent algae buildup.
- Czyszczenie: Periodically clean the reservoir and pump components to prevent mineral buildup and maintain optimal system performance. Disconnect power before cleaning.
- Pielęgnacja roślin: Prune plants as they grow to encourage bushier growth and prevent overcrowding. Harvest mature plants regularly.
5. Rozwiązywanie Problemów
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Rośliny nie rosną lub więdną | Insufficient water/nutrients, incorrect light cycle, improper light height. | Check water level and nutrient concentration. Adjust LED light height and verify light timer settings. |
| Pompa wodna nie działa | Power disconnected, pump clogged, pump malfunction. | Ensure power is connected. Clean the pump for any debris. If issues persist, contact support. |
| Nie włącza się dioda LED | Power disconnected, light timer off, LED malfunction. | Check power connection. Verify light timer settings on the control panel. |
| Wzrost glonów w zbiorniku | Excessive light exposure to water, infrequent water changes. | Ensure the reservoir is adequately covered. Perform regular water and nutrient solution changes. |
6. Specyfikacje techniczne
- Numer modelu: 65424
- Wymiary (dł. x szer. x wys.): 40.6 x 26 x 35.8 cm (16 x 10.2 x 14.1 cala)
- Waga: 3.32 kg (7.32 funta)
- Pojemność zbiornika na wodę: 9.8 litrów
- Plant Capacity: Do 20 roślin
- Regulowana wysokość światła: od 21 cm do 64 cm (od 8.58 do 25 cala)
- Pobór mocy: 100-240V AC
- Moc wyjściowa: 24 V DC, 1.5 A, 36 W.
- Water Pump Noise Level: ≤20dB
- Kraj pochodzenia: Chiny
- Producent: Wiltecki
7. Gwarancja i wsparcie
Informacje o gwarancji: Specific warranty details are not available in the provided product data. Please refer to the product packaging or contact Wiltec directly for warranty terms and conditions.
Obsługa klienta: For technical assistance, spare parts, or any inquiries regarding your Wiltec Indoor Hydroponic Garden, please contact Wiltec customer service. Contact information can typically be found on the manufacturer's webdokumentacji witryny lub produktu.
