RADIOMASTER Bandit ExpressLRS 915MHz RF Module User Manual

1. Wprowadzenie

The RADIOMASTER Bandit ExpressLRS 915MHz RF Module is designed to provide robust and reliable radio frequency communication for remote control applications. This module integrates advanced features such as high output power, low power consumption, and an intuitive user interface, making it suitable for various hobby and industrial uses. This manual provides essential information for the proper setup, operation, and maintenance of your Bandit RF Module.

2. Informacje dotyczące bezpieczeństwa

• Always ensure the module is powered correctly within the specified voltage range (DC 6V ~ 16.8V). Incorrect voltage może uszkodzić urządzenie.
• Do not operate the module without an antenna connected. Operating without an antenna can cause damage to the RF output stage.
• Chroń moduł przed działaniem wody, wilgoci i ekstremalnych temperatur.
• Avoid direct contact with the antenna during operation, especially at high power settings.
• Ensure proper ventilation around the module to prevent overheating, particularly during extended high-power use.
• To urządzenie nie jest zabawką. Trzymać poza zasięgiem dzieci.

3. Zawartość opakowania

Sprawdź, czy w przesyłce znajdują się wszystkie elementy:

• Bandit Nano ExpressLRS RF Module
• 915/868MHz T Antenna
• Mounting accessories (e.g., Nano standard 8 pin connector, various adapters)
• Kabel zasilający XT30

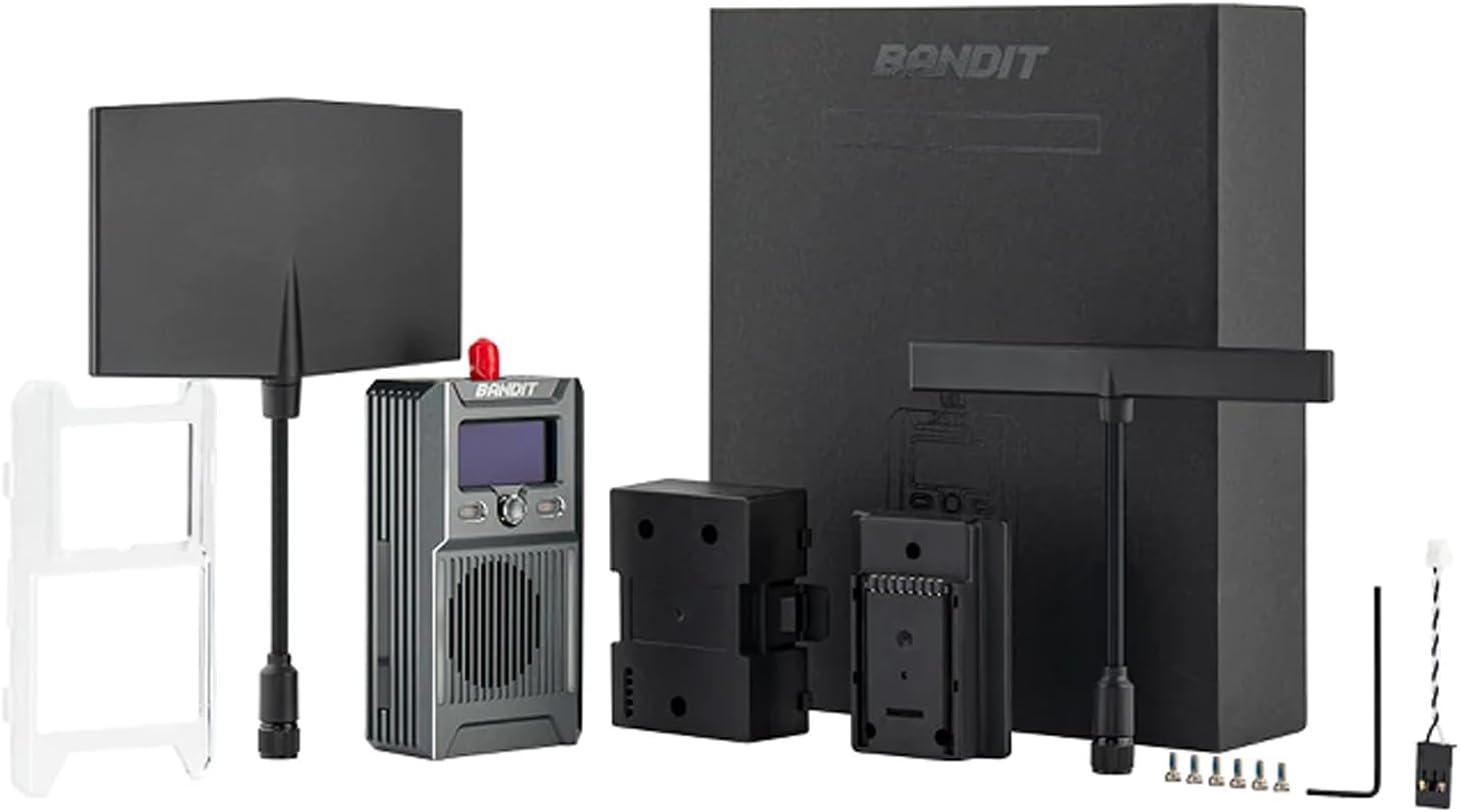

Rysunek 3.1: Bandit ExpressLRS RF Module and its accessories, including antennas, mounting hardware, and power cable.

4. Koniec produktuview

The Bandit ExpressLRS RF Module features a compact design with an integrated OLED screen and a 5-directional navigation key for easy configuration. It supports high output power and efficient cooling for stable performance.

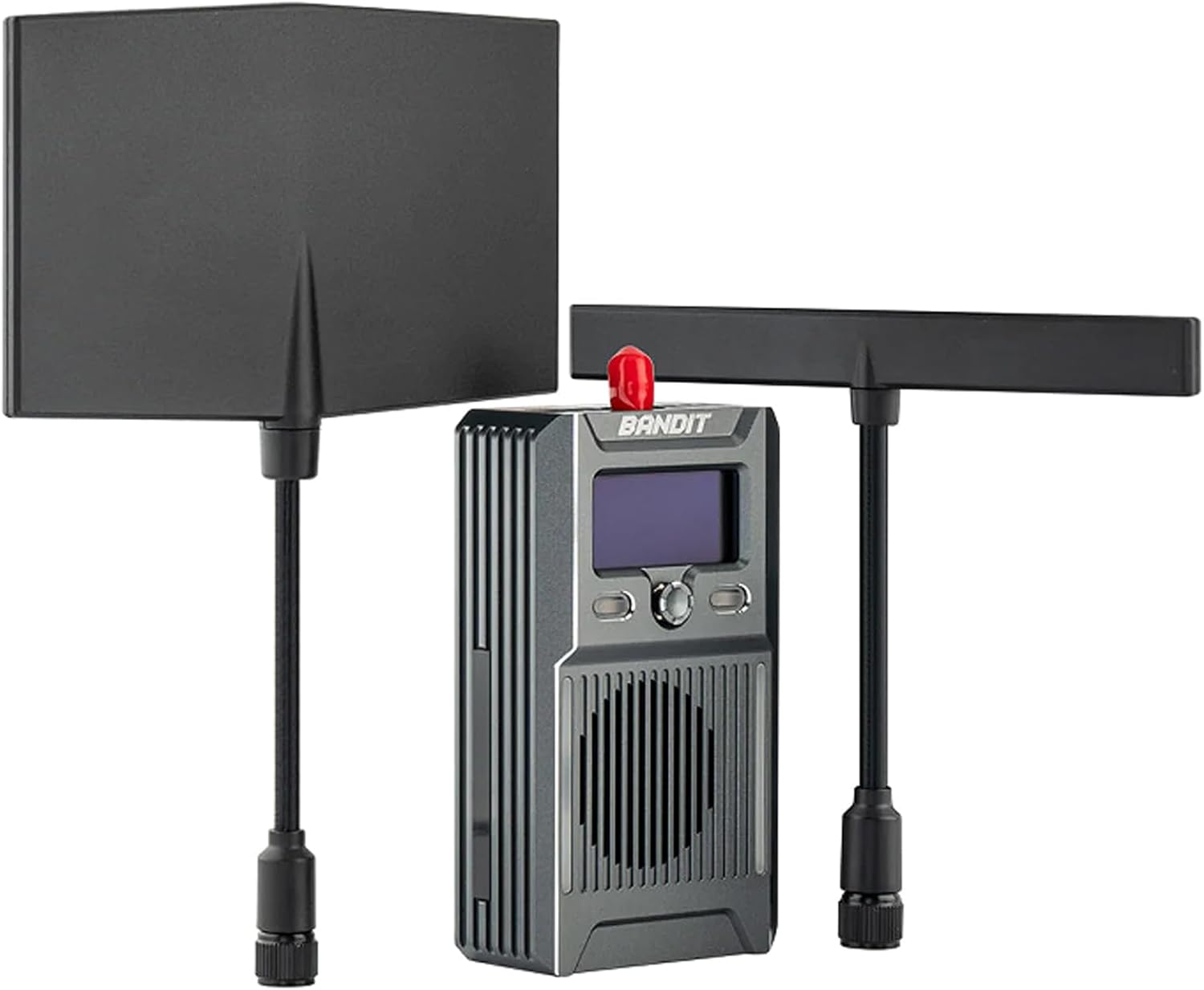

Rysunek 4.1: Przód view of the Bandit RF Module, showcasing the OLED display, control buttons, and cooling fins, with two T-style antennas attached.

Rysunek 4.2: Szczegółowy view of the module's user interface, including the high-contrast OLED display and the 5-directional navigation key for menu interaction.

Rysunek 4.3: Strona view showing the various connection ports: USB-C, CRSF, RT, and the XT30 power input (DC 6V-16.8V).

5. Konfiguracja

Instalacja modułu 5.1

1. Identify the Nano standard 8-pin connector slot on your compatible radio transmitter (e.g., Zorro, Pocket, MT12 Radio).
2. Carefully align the Bandit RF Module with the connector slot.
3. Gently push the module into place until it is securely seated. Ensure the connection is firm to prevent intermittent signal loss.
4. Attach the 915/868MHz T Antenna to the module's antenna connector. Hand-tighten only; do not overtighten.

5.2 Połączenie zasilania

The module requires an external power source via the XT30 connector.

• Connect the provided XT30 power cable to the XT30 port on the module.
• Connect the other end of the XT30 cable to a DC power source providing 6V to 16.8V. Ensure correct polarity.

5.3 Binding Process (ExpressLRS)

Refer to the official ExpressLRS documentation for detailed binding procedures. Generally, the process involves:

1. Power on your radio transmitter with the Bandit module installed.
2. Navigate to the ExpressLRS Lua script or menu on your radio.
3. Wybierz opcję „Powiąż”.
4. Power on your ExpressLRS receiver (not included) within the binding window. The module and receiver should establish a connection.
5. Confirm successful binding via the OLED screen on the module or the radio's display.

6. Obsługa

6.1 Podstawowa obsługa

Once powered on, the OLED screen will display operational information such as current power output, refresh rate, and connection status. Use the 5-directional navigation key to:

• Nawigacja po menu: Move up, down, left, or right through menu options.
• Wybierz/Potwierdź: Press the center button to select an option or confirm a setting.
• Wyjście/Powrót: Often, a long press or a specific direction will exit a menu or go back.

6.2 Power Output and Refresh Rate

The module supports up to 1 Watt (30dBm) power output and packet rates up to 200Hz. These settings can typically be adjusted via the ExpressLRS Lua script on your radio or directly through the module's menu, if available. Higher power output increases range but also power consumption and heat generation.

6.3 Łączność

The Bandit module includes Wifi and Bluetooth support, which can be used for firmware updates, configuration, and other advanced features as supported by the ExpressLRS ecosystem.

7. Konserwacja

• Czyszczenie: Use a soft, dry cloth to clean the module. Avoid using liquids or solvents.
• Składowanie: Przechowuj moduł w suchym i chłodnym miejscu, z dala od bezpośredniego światła słonecznego i ekstremalnych temperatur.
• Aktualizacje oprogramowania układowego: Regularly check for and install the latest ExpressLRS firmware updates to ensure optimal performance and access to new features. Updates can typically be performed via Wifi.
• Pielęgnacja anteny: Ensure the antenna is not bent or damaged. A damaged antenna can significantly reduce range and performance.

8. Rozwiązywanie Problemów

• Moduł nie włącza się: Check the XT30 power connection and ensure the power source is within the 6V-16.8V range and correctly polarized.
• Brak sygnału/słaby zasięg: Verify the antenna is securely attached and undamaged. Check power output settings. Ensure the receiver is powered and bound correctly.
• Kwestie wiążące: Ensure both module and receiver are running compatible ExpressLRS firmware versions. Follow the binding procedure carefully.
• OLED Screen Not Displaying: Check power supply. If power is present, try restarting the module. If the issue persists, contact support.
• Przegrzanie: Ensure the module has adequate airflow. Reduce power output if operating in high ambient temperatures.

9. Specyfikacje

Rysunek 9.1: The Bandit RF Module on a scale, indicating its weight for reference.

10. Gwarancja i wsparcie

RADIOMASTER products are designed and manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the official RADIOMASTER webOdwiedź witrynę lub skontaktuj się z autoryzowanym dealerem. Zachowaj dowód zakupu na wypadek roszczeń gwarancyjnych.
